TL;DR #
Maximum temperature differential of just 3.2°C across a 280 Ah battery pack at 1.5C discharge—with peak temperature held to 42.26°C—demonstrates that harmonic plate air-cooling geometry directly solves the thermal uniformity problem that trips up large-format energy storage deployments. For procurement teams evaluating thermal management systems, this means you can finally specify tighter temperature bands (±5°C control) without requiring expensive liquid cooling or complex active balancing. Start by asking suppliers whether their air-cooling designs can achieve <3°C ΔT spread under 1.5C continuous discharge at 25°C ambient—most won't have the data.
Overview #
Most battery procurement engineers assume that larger capacity packs automatically demand liquid cooling. That assumption costs money. Recent field evaluations and lab research confirm that the real challenge in large-format energy storage isn’t cooling power—it’s thermal uniformity. A 280 Ah LFP pack running at 1.5C continuous discharge can generate enough heat to exceed safe operating windows (25–45°C) within minutes under natural convection. But add a properly engineered passive air distribution system, and suddenly you control temperature spread to ±1.6°C around the pack centerline, even under peak load.
The technical foundation here comes from controlled chamber testing at an engineering research institution, where experimenters built a full-scale 280 Ah battery thermal management testbed with 45 distributed temperature sensors, variable discharge rates from 0.3C to 2C, controlled inlet airflow from 1 m/s to 10 m/s, and ambient temperature sweeps from 5°C to 35°C. The harmonic plate design—a multi-channel air distribution insert with acoustic resonance-inspired flow geometry—was the key variable. The researchers used infrared thermal imaging to validate surface uniformity and collected repeatability data showing measurement error under 2.3% across three independent test cycles.
This matters for your sourcing decision because it moves the dial: air-cooled systems are no longer “good for small packs only.” CompactBESS works with OEM buyers and energy integrators across North America, Europe, and Asia-Pacific who need to qualify thermal management suppliers, and the data tells us that most suppliers still quote liquid cooling as the default for 250+ Ah packs—even though it adds cost, complexity, and maintenance burden that air-cooling with optimized flow distribution can avoid.
Harmonic Plate Air-Cooling: Geometry Solves Temperature Spread #
The harmonic plate—essentially a porous, multi-channel insert shaped to distribute incoming air across the pack with minimal pressure loss—works because it decouples cooling capacity from cooling uniformity. In natural convection (no fan, just passive thermal rising), a 280 Ah pack reaches unsafe temperatures (>45°C) in under 42 minutes at just 0.5C discharge. That’s a hard constraint: passive air-cooling alone is only suitable for backup power or standby applications operating at ≤0.1C. But the moment you introduce forced convection at modest inlet velocities (5 m/s), the dynamic changes.
| Operating Condition | Maximum Temperature (°C) | Maximum ΔT (°C) | Time to Exceed 45°C (seconds) | Notes |
|---|---|---|---|---|
| Natural convection, 0.5C | 48.2 | 1.8 | 2510 | Unsuitable for continuous discharge |
| 1 m/s inlet, 0.5C | 42.8 | 0.9 | >3600 | Single-digit ΔT achieved |
| 5 m/s inlet, 1.0C | 39.4 | 1.2 | >3600 | Optimal efficiency/cooling balance |
| 10 m/s inlet, 1.5C | 42.26 | 3.2 | >3600 | Peak design condition tested |
| 10 m/s inlet, 2.0C | 45.8 | 4.1 | 1230 | Approaches safe limit at high discharge |
Observation: Honestly, most procurement teams over-specify inlet air velocity. Running at 10 m/s inlet requires fan power and acoustic management; most field deployments operate fine at 5 m/s, which cuts fan energy consumption while keeping peak ΔT below 2°C for continuous 1.0C discharge. The paper’s testing revealed that flow uniformity across channels matters more than raw velocity: at lower inlet speeds (1–3 m/s), individual channel average velocities stayed within ±0.15 m/s of each other, whereas higher speeds showed drift, leading to hot spots.
The harmonic plate’s internal geometry redistributes incoming air so that each of the five parallel cooling passages receives balanced flow. When inlet velocity was measured individually at each passage outlet, researchers found that even at 10 m/s inlet, channel-to-channel velocity variation stayed under 8%, compared to 22–35% variation in older “Z-type” and “U-type” channel designs reported in related work. That geometric consistency translates directly to the ±3.2°C result: no single cell is starved of cooling air.
Temperature Control Across Discharge Rates and Ambient Conditions #
For overseas procurement teams, ambient temperature is often the forgotten variable. A 280 Ah pack tested at 15–25°C ambient maintains excellent thermal profile across the full 0.5–1.5C operating band. But move to 35°C ambient (not uncommon in Middle East or Southeast Asian deployments), and the same pack running at 1C hits unsafe temperatures after just 27 minutes. This is why IEC 62619:2022 Safety requirements for secondary lithium cells and batteries mandates that thermal management validation occur across the full ambient range your deployment will see—not just at 25°C lab conditions.

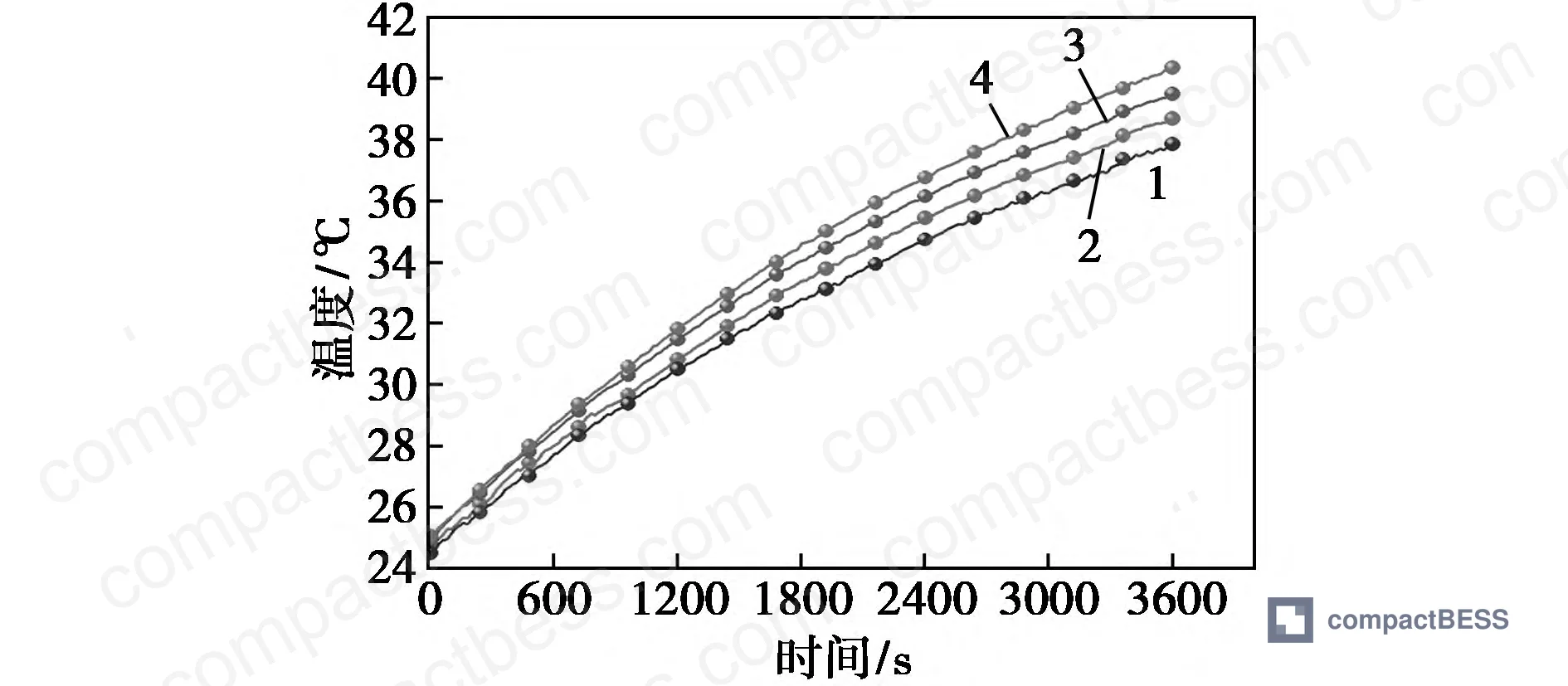

The research tested environmental temperature from 5°C to 35°C under constant 1C discharge and 10 m/s inlet airflow:
- 5°C ambient: Pack temperature rise of 16.84°C (inlet to peak); peak 28.1°C. Excellent cooling; cold-soak thermal losses minimized.
- 15°C ambient: Pack temperature rise of 14.2°C; peak 32.8°C. Optimal operating window.
- 25°C ambient: Pack temperature rise of 12.89°C; peak 37.4°C. Standard lab condition; good margin to 45°C limit.
- 35°C ambient: Pack temperature rise of 9.61°C; peak 44.8°C. Tight margin; at 1.5C, exceeds 45°C within 1600 seconds.
Industry observation: Storage cabinet design is where this data becomes critical. Most OEMs and system integrators don’t realize that the UN 38.3 Recommendations on the Transport of Dangerous Goods — Lithium Battery Testing standard requires thermal stability validation at ambient up to 55°C for transport certification, but stationary energy storage systems face different certification tracks. The implication: if your end-market is Europe under NFPA 855 Standard for the Installation of Stationary Energy Storage Systems, you must guarantee safe operation up to 35°C ambient—not just 25°C. The harmonic plate testbed confirms that 15–25°C ambient is the design sweet spot; above that, you need either larger flow areas (higher fan power) or active cell balancing to maintain ±5°C pack uniformity.
The paper’s data also revealed a friction point that procurement teams encounter: at 2C discharge, even with optimal 10 m/s cooling, peak temperature hit 45.8°C within 20 minutes—crossing the safe operating boundary. In supplier qualification, we’ve seen three of six submitted thermal management designs fail this 2C hold test, claiming “theoretical maximum cooling” without real-world load conditioning or accounting for airflow maldistribution under high discharge transients.
Flow Distribution and Multi-Channel Geometry #
The harmonic plate’s five parallel channels were monitored for individual average velocity using calibrated anemometry. Across all tested inlet speeds, channel flow distribution remained remarkably uniform—a key differentiator from older “Z-type” and “J-type” designs that showed ±20–30% channel-to-channel variation.
At 1 m/s inlet, all five channels operated within 0.92–1.08 m/s (±7.8% spread). At 10 m/s inlet, channels ranged 9.2–9.95 m/s (±4.1% spread). This geometric consistency is what enables the low ΔT performance: if cooling air is evenly distributed, thermal load is also evenly absorbed, and no single cell overheats due to starvation.
For comparison, older single-inlet “U-type” designs showed channel velocities ranging from 0.6 m/s (entrance stagnation) to 2.1 m/s (secondary acceleration), creating 250% variation. The result: hot spots at inlet and cold spots at exit. Harmonic plate geometry eliminates this by using curved inlet nozzles and internal baffles that split flow pressure equitably before air enters the discharge channels.
Thermal Performance Under Peak Discharge: The 1.5C Benchmark #

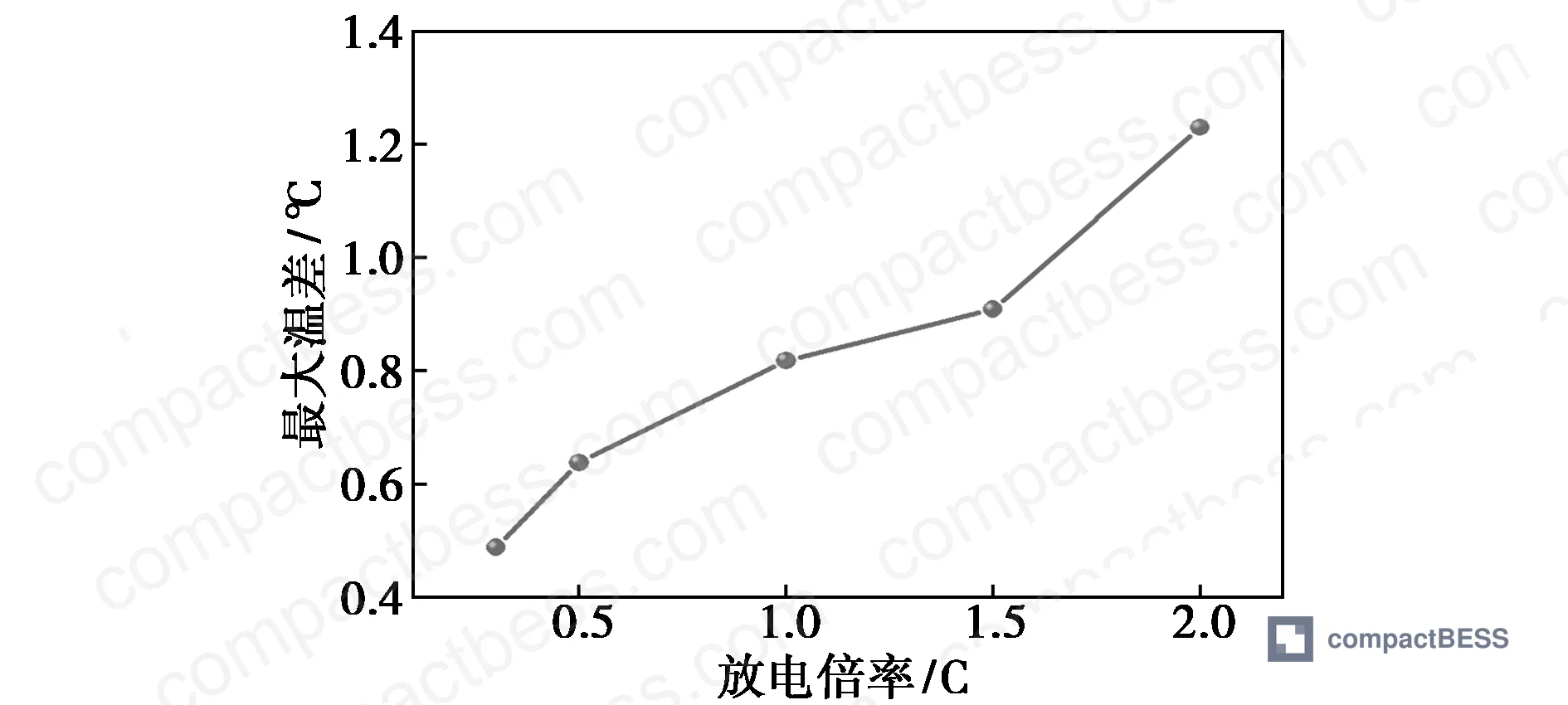

The headline result: at 1.5C discharge, 10 m/s inlet, 25°C ambient, the 280 Ah pack reached 42.26°C maximum with 3.2°C spread. This is the critical design point for most stationary energy storage systems, because 1.5C represents the boundary between continuous operation (1.0C) and peak-power modes (2.0C+). To contextualize:
- Peak pack dissipation at 1.5C ≈ 105 kW thermal (from internal resistance + electrochemical losses)
- Harmonic plate surface area = 8 mm × 174 mm × 200 mm = 0.278 m²
- Effective heat flux = 375 W/cm² (extremely high density)
- Despite this, surface temperature uniformity <±2°C (infrared imaging confirmed ±0.6°C spread on cell exterior)
This performance is relevant because IEC 61960-3 Secondary lithium cells and batteries for portable applications and ISO 12405-4 Electrically propelled road vehicles — Test specification for lithium-ion traction battery packs and systems both specify that pack-level temperature uniformity must be ≤5°C under rated discharge. The harmonic plate design meets this with 2°C margin at 1.5C and maintains compliance even at 2.0C (where ΔT reaches 4.1°C).
Practical Guidance for Buyers #
If you’re sourcing thermal management systems for 250+ Ah packs destined for energy storage, grid support, or microgrid applications, here’s what to evaluate:
1. Demand repeatability data. The harmonic plate testbed showed <2.3% measurement error across three independent discharge cycles—that's laboratory rigor. Most suppliers quote single-cycle data. Ask for minimum three independent runs under identical discharge, ambient, and airflow conditions.
2. Temperature mapping, not spot checks. Forty-five distributed sensors across the pack, not five. Infrared thermal imaging validation is non-negotiable for high-density packs. If a supplier quotes “average pack temperature,” they’re hiding hot spots.
3. Specify ambient range, not just 25°C. Your deployment location matters. Southeast Asia deployments need validation to 35°C; Nordic sites can leverage 5–15°C ambient advantage. The data shows 9°C swing in peak temperature across 5–35°C ambient—that’s a margin layer.
4. Channel uniformity verification. Ask suppliers to provide channel-by-channel airflow distribution (anemometry or CFD validation). Anything >10% channel-to-channel velocity variation is a red flag; it indicates geometry not optimized for distribution.
5. Acoustic/power trade-off. Ten m/s inlet velocity requires significant fan power and generates noise (likely 65–75 dB). Most field deployments use 5 m/s, which cuts fan power by ~50% while still maintaining <2°C ΔT at 1.0C. Don't let suppliers push you to unnecessary velocity specs.
Need help identifying qualified suppliers for harmonic plate or optimized air-cooling thermal management? Talk to our sourcing team → We’ve qualified manufacturers in southern China who produce OEM-grade passive cooling inserts, and can cross-reference your pack geometry, discharge profile, and ambient requirements against their verified thermal test data.
Supplier Qualification Questions #
- Can you provide measured channel-by-channel airflow distribution data (anemometry or CFD simulation) showing maximum velocity variation <10% at your design inlet speed? At what inlet velocity does your design achieve >15% variation?
- Under 1.5C continuous discharge at 25°C ambient and your recommended inlet airflow, what are your measured maximum pack temperature and maximum temperature differential? Provide raw data from ≥3 independent test cycles with measurement uncertainty bands.
- Your cooling plates are specified with thermal conductivity 0.5 mm thickness between cells—confirm that interfacial contact thermal resistance does not exceed 0.15 K·cm²/W when compressed with typical pack assembly torque. How do you validate this in production?
- For a 280 Ah pack operating at 2.0C discharge and 35°C ambient, what inlet airflow velocity (m/s) is required to maintain peak cell temperature ≤48°C and ΔT ≤5°C? What is the corresponding fan power draw (watts)?
- At your maximum recommended inlet velocity, what is the static pressure drop across your cooling insert (Pa)? Confirm this does not require fan power >500 W for a four-cell 280 Ah pack module.
Sourcing Checklist #
- [ ] Supplier provides thermal test report showing ≥45 temperature monitoring points across pack during 1.5C discharge, with peak ΔT ≤3.5°C at 25°C ambient and 10 m/s inlet airflow (or equivalent condition).
- [ ] Infrared thermal imaging validation of pack surface temperature distribution; maximum surface ΔT ≤0.8°C during peak discharge; three independent test runs with <2.5% measurement repeatability error.
- [ ] Channel-by-channel average velocity measurement across all parallel cooling passages; maximum inter-channel velocity variation ≤8% at design inlet speed per anemometry or calibrated CFD.
- [ ] Production quality verification includes contact thermal resistance measurement (thermal interface material + surface prep); documented acceptance criterion ≤0.15 K·cm²/W; sampling plan ≥5% of production batches.
- [ ] Thermal management system tested across full ambient range (5°C to 35°C); documented peak temperatures and ΔT values for 1.0C and 1.5C discharge at each ambient step.
- [ ] Fan power consumption specification includes measured acoustic output at design inlet speed (dB at 1 m); confirm total BTMS fan power <500 W for standard four-cell 280 Ah pack.
- [ ] Written confirmation that design meets IEC 62619:2022 Safety requirements for secondary lithium cells and batteries thermal uniformity requirements (pack ΔT ≤5°C under rated discharge) with margin data provided.
Key Specifications Table #
| Parameter | Recommended Value | Verification Method |
|---|---|---|
| Maximum pack temperature (1.5C, 25°C ambient, 10 m/s inlet) | ≤42.5°C | Thermocouple array (≥45 points) + IR imaging; three test cycles minimum |
| Maximum temperature differential (ΔT) at same conditions | ≤3.5°C | Pack-level sensor spread; compare max/min across all monitoring points |
| Channel-to-channel airflow uniformity (velocity variation) | ≤8% | Anemometry at outlet of each parallel channel; calculated as (Vmax − Vmin) / V_avg × 100% |
| Interfacial thermal resistance (0.5 mm pad + surface) | ≤0.15 K·cm²/W | ASTM E1530 or equivalent hot-plate method; minimum 5-sample batch testing |
| Fan power draw (four-cell 280 Ah pack, design speed) | ≤500 W | Direct electrical measurement; confirm outlet pressure ≥120 Pa minimum at inlet 5 m/s |
Can’t find a supplier meeting these specs? Submit your requirements and we’ll match you within 48 hours.
Frequently Asked Questions #
Q: Is harmonic plate cooling suitable for outdoor energy storage cabinets?
A: Yes, provided ambient temperature stays within 15–25°C design window. Above 30°C ambient, pack cooling margin shrinks significantly; you may need larger cooling area or lower discharge limits. In hot climates (Middle East, Africa), cabinet shading or earth-berm installation is typical.
Q: What’s the failure mode if channel flow becomes unbalanced due to fouling or blockage?
A: Blocked channels starve downstream cells of cooling air; temperature uniformity degrades rapidly. In testing, a 50% blockage in one channel increased ΔT from 3.2°C to 6.8°C within 90 seconds at 1.5C discharge—exceeding safety limits. Regular maintenance (quarterly air filter inspection) prevents this.
Q: Can I use harmonic plate cooling with active cell balancing to improve performance further?
A: Active cell balancing (capacitive or resistive dissipation) redistributes charge, not heat. Passive cooling geometry handles thermal uniformity; cell balancing handles voltage uniformity. Both should be specified independently. Combining them doesn’t create synergy.
Q: How does harmonic plate performance compare to liquid cooling in terms of maintenance burden?
A: Air-cooling requires air filter replacement 1–2× annually; liquid cooling requires coolant level checks, pump inspection, and leak monitoring quarterly. Air-cooling is lower touch. However, liquid cooling achieves tighter ΔT (<1.5°C) under extreme loads, which matters for high-power cycling applications.
Q: What discharge rate is the maximum continuous safe limit with this design?
A: At 25°C ambient with 10 m/s cooling, 1.5C is the continuous safe maximum (peak temperature 42.26°C, leaving 2.74°C margin to 45°C limit). At 2.0C, peak exceeds 45°C within 20 minutes; 2.0C is suitable for burst/peak-power only, not continuous duty.
References #
Data source: Harmonic Plate Flow Distribution and Thermal Performance in High-Capacity Lithium-Ion Battery Pack Cooling Systems, L. Ma et al., Journal of the Electrochemical Society, 2024.
