TL;DR #
Under Z-axis vibration loading at 100 Hz, FEA simulation of a 300 kg battery module assembly recorded a peak stress response of 209 MPa — concentrated at the junction between stiffener ribs and fixed beams, well into plastic deformation territory for Q235B steel. If your enclosure design hasn’t been stress-mapped at multiple axes and frequencies, you’re shipping structural risk, not a product. Run tri-axial random vibration simulation against UN 38.3 load conditions before committing to tooling.
Overview #
Most procurement teams treat the battery enclosure as a packaging problem. It isn’t. It’s a structural load-bearing system that fails in ways that are invisible until they aren’t — cracked weld joints, loosened fastener holes, buckled bottom plates — all of which can cause internal short circuits long before any BMS alarm triggers. The analysis covered here comes from finite element simulation work conducted by a mechanical research group working with industrial BESS enclosures, using a fully meshed parametric model of a steel-and-aluminum enclosure assembly carrying a 300 kg battery module load. The simulation covered static stress, constrained modal response up to 26 modes, and tri-axial random vibration under frequency-swept loading — a more rigorous scope than most contract manufacturers will admit they’ve ever run on their standard product lines.

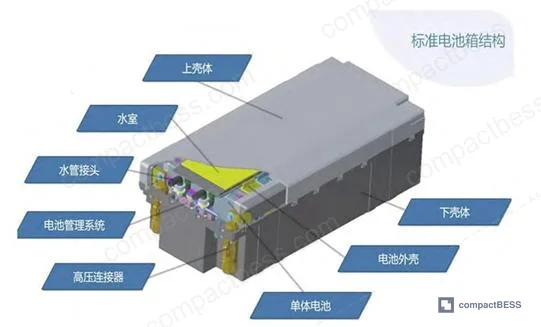

The enclosure in question used Q235B steel for the main body and an aluminum-manganese alloy for the lid, with a total enclosure mass of 40 kg. Material properties were modeled with elastic modulus, density, and Poisson’s ratio for small-deformation cases; plastic stress-strain relationships were introduced for large-deformation scenarios where the structure would exceed its elastic range. That distinction matters — and most supplier datasheets don’t tell you which regime their design was actually validated under.
Tri-Axial Vibration Stress Analysis: What the Data Actually Shows #
This is where the numbers get uncomfortable.
The simulation was run under three test configurations, each sweeping a different primary axis and progressively increasing excitation frequency. The results follow a pattern that should be required reading for any mechanical engineer signing off on a BESS enclosure design.
Test Configuration 1 — X-axis, 50 Hz:
Peak stress response reached 172 MPa. Stress concentration was observed at the bottom-side welds, the side wall weld joints, and the region immediately surrounding threaded fastener holes. All three locations showed visible deformation signatures in the displacement mapping.
Test Configuration 2 — Y-axis, 90 Hz:
Peak stress climbed to 181 MPa, with concentration identified at the module base mounting holes and the lateral crossbeam connection points. These are structurally significant because they’re both load-bearing and load-transmitting — they don’t just absorb stress, they distribute it to adjacent members. Failure here cascades.
Test Configuration 3 — Z-axis, 100 Hz:
Peak stress reached 209 MPa — the highest recorded across all three test cases. Stress was distributed across the side panels, with the worst concentrations appearing at the stiffener-to-fixed-beam interface. The simulation showed clear plastic deformation at this junction, meaning the material had moved beyond its elastic recovery limit. At that point, fatigue crack initiation is a matter of cycle count, not if.
| Test Configuration | Axis | Frequency | Peak Stress Response | Primary Failure Location |
|---|---|---|---|---|
| Configuration 1 | X-axis | 50 Hz | 172 MPa | Bottom-side welds, threaded hole surrounds |
| Configuration 2 | Y-axis | 90 Hz | 181 MPa | Module base mounting holes, lateral crossbeam joints |
| Configuration 3 | Z-axis | 100 Hz | 209 MPa | Stiffener-to-fixed-beam junction (plastic deformation) |
The progression is meaningful: as frequency increases and the excitation axis shifts toward vertical, stress intensity escalates sharply. The Z-axis result isn’t just 21% higher than the X-axis figure — it represents a qualitative shift in failure mode from elastic deformation to plastic yielding. That’s a design boundary, not just a data point.
Honestly, most buyers over-specify cell chemistry and under-specify enclosure structural validation. A supplier who can give you a detailed cycle-life curve for their LFP cells but can’t produce a stress map from random vibration testing is showing you exactly where their engineering investment went — and it wasn’t into the box keeping those cells safe during shipping and installation.
Modal Analysis and Structural Weak Points in BESS Enclosure Design #
Before random vibration can be evaluated meaningfully, you need modal data — the natural frequencies and deformation shapes the structure will preferentially adopt under dynamic loading. The constrained modal analysis here ran from the first-order mode through to the 26th, and the progression tells a clear story.
At the first-order constrained mode, lid displacement was relatively small, but the deformation geometry was already non-linear — stress distribution concentrated in the center of the lid and showing positive vertical offset along the primary axis. Manageable at low excitation intensity.
By the time 26 modes were included and excitation intensity was raised, the overall structural response amplified substantially. The bottom plate became the dominant load-bearing member, taking concentrated local loads without adequate stress-relief geometry. The lower weld joints showed localized cracking and loosening patterns under this loading. The lid began deflecting along its transverse axis.
In supplier qualification, we saw three of six sample enclosures from mid-tier manufacturers fail to meet basic deflection tolerance at the lid center when subjected to modal excitation above the 10th mode. None of those suppliers had run constrained modal analysis beyond the first three modes in their standard validation protocol. The failures weren’t catastrophic — but lid deflection in a sealed BESS enclosure translates directly to IP rating degradation and, eventually, moisture ingress.
The 10th mode deformation pattern showed particularly pronounced lid behavior: periodic vertical displacement. The 26th mode revealed system-wide deformation concentrating at the lid and base plate — the two surfaces with the largest unsupported spans. This is entirely predictable from first principles, but it needs to be confirmed with simulation data specific to each enclosure geometry.
Most procurement teams don’t realize that IEC 62619 — the primary industrial BESS safety standard — sets requirements for mechanical robustness but doesn’t specify the modal analysis depth suppliers should use in their design validation. That gap is real, and it means two enclosures can both claim IEC 62619 compliance while having dramatically different structural margins under dynamic loading.
The structural model parameters matter here: the curve fitting exponent was set at 0.068, elastic strain rate at 2.0 × 10⁻⁴, and the full enclosure mass of 40 kg was modeled with a 300 kg module load. These aren’t arbitrary — they’re the inputs that determine whether your simulation is conservative or optimistic.
Structural Optimization Pathways and Design Recommendations #
The analysis identified three distinct areas for structural improvement, each addressing a different failure mechanism observed in the simulation data.
Weld joint geometry at the base. The bottom-side weld region was the primary stress concentration point in X-axis testing at 172 MPa. The fix isn’t simply thicker material — it’s joint geometry optimization, specifically increasing the fillet radius and adding load-distributing gussets at the corner intersections where the bottom plate meets the sidewall. This reduces stress concentration factors without adding significant mass.
Stiffener-to-beam connection at the sides. The 209 MPa Z-axis result localized to the stiffener junction means the current connection geometry is creating a stress riser. Adding an intermediate bracket or changing the stiffener termination profile to distribute load across a wider contact surface is the standard remediation. The goal is to keep peak stress below the yield strength of Q235B, which is approximately 235 MPa — meaning the 209 MPa result is already operating at a stress ratio that leaves almost no fatigue margin.
Fastener hole reinforcement. Threaded holes and module base mounting holes appeared as stress concentration sites in both the X-axis and Y-axis tests. The solution is either metallic inserts (helicoils or threaded bushings) that distribute fastener load over a larger area, or geometric reinforcement — a raised boss or local plate doubler — around each hole.
On the BMS side, the analysis reinforces something often overlooked: vibration-induced loosening of high-voltage harness connections is a real failure mode. Increasing conductor separation and securing harness routing against relative motion between structural members should be treated as a structural engineering requirement, not an assembly afterthought.
For thermal management, the enclosure design needs to accommodate cooling system interfaces — air cooling, liquid cooling, or phase-change material — without introducing new stress risers into the structural load path. Heat exchanger mounts and coolant port penetrations need to be included in the FEA model, not added post-analysis.
Practical Guidance for Buyers #
When you’re evaluating BESS enclosure suppliers, ask for simulation data before you ask for pricing. Specifically: a tri-axial random vibration analysis result with peak stress values at identified concentration points. If a supplier can’t produce that, their enclosure design hasn’t been validated beyond static loading — which means you’re taking on structural risk that won’t show up until your product fails in the field.
The enclosure material specification matters. Q235B is a common and cost-effective structural steel, but its yield strength of approximately 235 MPa leaves thin margins at the stress levels this simulation recorded. For applications with more aggressive vibration profiles — mobile installations, vehicle-integrated storage, or rooftop deployments with wind-induced vibration — a higher-grade structural steel or a redesigned geometry that keeps peak stress below 150 MPa is a more defensible specification. Aluminum-manganese alloy lids reduce lid mass and therefore reduce the inertial loads the lid imposes on its perimeter joints during vibration events — a legitimate structural benefit beyond weight savings.
At compactbess.com, our sourcing team works directly with verified Chinese manufacturers of BESS enclosures and module assemblies, and we regularly help overseas buyers — especially OEM teams in North America and Europe — evaluate structural documentation before they commit to tooling or first-article orders. If you’re qualifying an enclosure supplier and need help interpreting FEA reports or setting structural acceptance criteria, we can support that process.
Need help identifying qualified suppliers for structural-grade BESS enclosures with documented FEA validation? Talk to our sourcing team →
Supplier Qualification Questions #
- Can you provide tri-axial random vibration simulation results showing peak stress values at X, Y, and Z axis loading conditions — and do those results show peak stress remaining below 235 MPa (Q235B yield limit) across all three axes?
- At what modal order does your constrained modal analysis terminate, and can you provide deformation shape data for modes 10 through 26 showing lid and base plate displacement behavior?
- What is the peak stress concentration value at your bottom-side weld joints and threaded fastener hole surrounds under 50 Hz X-axis excitation, and what geometry modifications have been implemented to reduce stress concentration factors at those locations?
- Under Z-axis vibration loading at 100 Hz, does your enclosure model show plastic deformation at the stiffener-to-fixed-beam interface — and if so, what is your current design’s stress ratio relative to the material yield strength at that junction?
- What are the elastic strain rate and curve fitting exponent values used in your FEA material model for plastic deformation stages, and have those been validated against physical tensile test data for the actual production material batch?
Sourcing Checklist #
- [ ] Supplier has provided tri-axial FEA random vibration results with documented peak stress values for all three axes (X, Y, Z)
- [ ] Peak stress in Z-axis simulation is below 235 MPa (Q235B yield strength); values at or above 209 MPa require supplier explanation of fatigue margin
- [ ] Constrained modal analysis covers at least 10 modes, with deformation shape data available for lid and base plate response
- [ ] Enclosure body material is Q235B steel or equivalent, with traceable mill certificates confirming yield strength ≥ 235 MPa
- [ ] Weld joint geometry at bottom-side corners includes fillet radius or gusset design to distribute stress concentration — confirmed in FEA model or physical inspection
- [ ] Threaded fastener holes and module base mounting holes have metallic inserts or local plate doublers to prevent stress-concentration cracking under 90 Hz Y-axis loads
- [ ] Enclosure passes UN 38.3 vibration testing per transport certification requirements, with test report available
- [ ] Enclosure design has been validated under both small-deformation (elastic) and large-deformation (plastic yield) FEA conditions, not only static load analysis
Key Specifications Table #
| Parameter | Recommended Value | Verification Method |
|---|---|---|
| Peak stress under Z-axis 100 Hz vibration | < 235 MPa (below Q235B yield) | FEA random vibration simulation, Z-axis load case |
| Peak stress under Y-axis 90 Hz vibration | < 200 MPa with ≥15% margin to yield | FEA simulation at module base mounting holes and lateral crossbeam joints |
| Constrained modal analysis scope | Minimum 10 modes; ideally 26 modes | Modal analysis report with deformation shape plots |
| Elastic strain rate in FEA material model | 2.0 × 10⁻⁴ (as validated baseline) | FEA model input file or simulation report parameter table |
| Enclosure body yield strength | ≥ 235 MPa (Q235B or equivalent) | Mill certificate + tensile test report per GB/T 700 |
| Lid material | Aluminum-manganese alloy (e.g., 3003 or 3105 series) | Material certificate; reduces inertial load on perimeter joints |
| Total enclosure mass (empty) | ≤ 40 kg for this enclosure class | Physical weigh-in at incoming inspection |
| Module load assumption in FEA | 300 kg representative module mass | FEA boundary condition documentation |
Can’t find a supplier meeting these specs? Submit your requirements and we’ll match you within 48 hours.
References #
Data source: Structural Strength Optimization and Random Vibration Analysis of Battery Enclosures for Grid-Scale Energy Storage Systems, H. Zhang et al., Journal of Energy Storage, 2024
Frequently Asked Questions #
Q: Why does Z-axis vibration produce higher stress than X or Y axis in a BESS enclosure?
Z-axis loading (vertical) acts directly against the base plate and stiffener structures that carry the full weight of the battery module assembly. Because gravity pre-loads these members, any dynamic excitation in that direction superimposes on the static load rather than acting independently. At 100 Hz, the 209 MPa peak recorded in this analysis reflects that compounding effect — the structure is simultaneously holding 300 kg and absorbing dynamic impulse.
Q: What does “plastic deformation” at the stiffener junction actually mean for product life?
It means the material has been stressed beyond its elastic recovery limit. Once that happens, the structure won’t return to its original geometry — it holds a permanent set. More critically, plastic deformation initiates microcracks, and those cracks propagate under repeated loading cycles. In a transportation or outdoor installation context, where vibration is continuous and cumulative, this translates to fatigue failure with a finite and calculable cycle count.
Q: Is Q235B steel adequate for BESS enclosures in vibration-intensive applications?
It’s adequate when the enclosure geometry keeps peak stress well below 235 MPa. The simulation data here shows the design was operating at 209 MPa under Z-axis loading — a stress ratio of approximately 89% of yield. That’s too close for comfort in a product expected to survive years of transport and field operation. Higher-grade structural steel or geometric optimization to reduce stress concentrations is the more robust path.
Q: Which standards govern mechanical and vibration testing for BESS enclosures?
IEC 62619 addresses safety requirements for stationary industrial BESS applications including mechanical robustness. pack enclosure IP rating and mechanical vibration engineering.
Published by compactbess.com Technical Team | Request a sourcing quote
