TL;DR #
In a 9-cell matrix balancing simulation, the network-topology self-equalization approach reduced SOC divergence from a peak imbalance of 23.3 percentage points to near-zero without any capacitors or inductors in the energy transfer path. For buyers specifying BMS modules for stationary storage systems, this topology directly affects long-term pack life, thermal safety margins, and the complexity of your BMS procurement spec. Before issuing an RFQ for any active balancing BMS, verify whether the supplier’s architecture uses inductive/capacitive energy transfer or direct switch-matrix routing — the difference determines physical size, switching frequency requirements, and control overhead.
Overview #
Most procurement engineers treat battery balancing as a BMS checkbox — passive or active, certified, done. That framing will cost you. Research from a clean energy engineering institute, based on a validated simulation model of a 3×3 battery matrix with defined per-cell SOC initial conditions, demonstrates that topology architecture has measurable, quantifiable consequences on balancing speed, energy efficiency, thermal dissipation, and physical footprint. This isn’t a theoretical distinction. The test setup assigned nine individual cell SOC values ranging from 30% to 70% across the matrix and ran equalization cycles to convergence — giving us the kind of before/after SOC delta data that procurement teams can actually use to write a specification.
The finding that matters: the network self-balancing topology achieved convergence from a worst-case SOC spread of 40 percentage points (BAT13 at 30% vs. BAT22 at 70%) using only bidirectional MOSFET switches and resistors — no inductors, no high-frequency DC-DC conversion, no capacitor banks. For stationary storage and industrial UPS applications where physical volume, thermal management, and control simplicity all constrain the design, this changes the conversation with your BMS supplier.
Network Topology Architecture for Battery Cell Balancing #

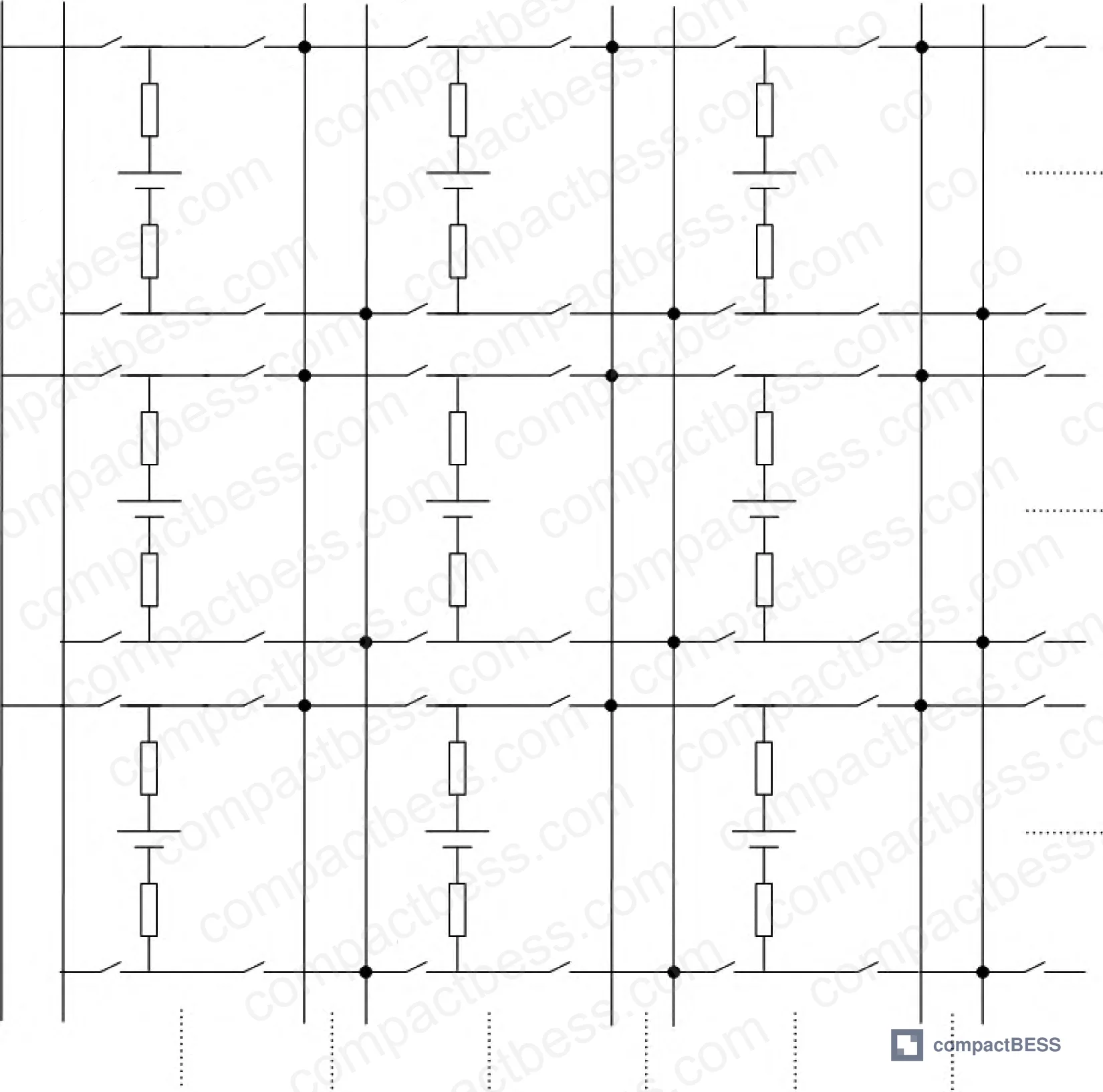

The core circuit structure organizes battery cells into an M×N matrix. Each cell node — referred to as BAT[row][column] — is paired with four bidirectional electronic switches (S1 through S4) and two current-limiting resistors (R1, R2). Each bidirectional switch is implemented as two back-to-back MOSFETs sharing a common gate signal, which keeps the drive circuit simple and avoids the complexity of isolated gate drivers.
The control logic works in three steps:
- Calculate the mean SOC across all cells in the matrix.
- For each column, compute the absolute deviation |SOCcell − SOCmean| for every cell. Select the cell with the largest absolute deviation as the target cell for that column.
- Activate the appropriate switch combination for that target cell’s position (edge column vs. center column requires different switch pairs) to route it into the equalization loop.
Using the simulation dataset as a concrete example: with SOC values of BAT11=50%, BAT12=50%, BAT13=30%, BAT21=60%, BAT22=70%, BAT23=50%, BAT31=60%, BAT32=60%, BAT33=50%, the system calculates a mean SOC of 53.3%. The absolute deviations come out as: BAT11=3.3, BAT12=3.3, BAT13=23.3, BAT21=6.7, BAT22=16.7, BAT23=3.3, BAT31=1.7, BAT32=1.7, BAT33=6.7. Target cells selected per column: BAT13 (column 1), BAT22 (column 2), BAT33 (column 3).
Once selected, the controller activates specific switch pairs. For BAT13 (edge column): switches S13-2 and S13-4. For BAT22 (center column): switches S22-1, S22-2, S22-3, and S22-4. For BAT33 (edge column): switches S33-1 and S33-3. This connects the three target cells into an equivalent equalization circuit where current direction is determined by the relative SOC of each cell, and energy flows from BAT22 (highest SOC at 70%) into both BAT13 and BAT33 via two series resistors.
The same architecture supports intra-column balancing independently of inter-column balancing — the controller can isolate a single column (e.g., BAT21, BAT22, BAT23) and equalize within it by activating the appropriate switch pairs for each cell in that column. This dual-mode capability is architecturally significant: it means the balancing circuit can handle both cell-to-cell spread within a column and cross-column divergence without changing hardware.
Comparison: Passive vs. Active vs. Network Self-Balancing #
| Parameter | Passive (Resistive Dissipation) | Active (DC-DC / Capacitor) | Network Self-Balancing (This Topology) |
|---|---|---|---|
| Energy efficiency | Low — excess energy dissipated as heat | High — energy transferred between cells | Medium-High — voltage-differential driven transfer |
| Physical volume | Small — often integrated into AFE IC | Large — requires inductors or capacitor bank | Small — switches + resistors only |
| Switching frequency | Not applicable | High-frequency required for DC-DC efficiency | Low-frequency sufficient |
| Control complexity | Simple | High — requires PWM, feedback loops | Low — binary switch on/off logic |
| Balancing current | Typically limited by thermal dissipation | Higher — limited by inductor/capacitor sizing | Determined by cell voltage differential and R values |
| Thermal output | High — energy lost as heat | Low | Low-Medium — resistive loss only in transfer path |
| Reliability | High — fewer active components | Medium — more components, higher failure modes | High — no reactive components |
| Scalability | Limited by heat management | Complex to scale | Scalable — matrix extends to M×N |
Honestly, most procurement teams default to passive balancing because it fits on the AFE chip and requires no additional BOM. That’s a reasonable choice for consumer electronics where cycle count is low. For stationary storage systems expected to run 10+ years, passive balancing is an active liability — you’re burning energy as heat every balancing cycle, generating thermal stress, and accepting slower SOC convergence that leaves chronically weak cells cycling harder than they should.
Simulation Results and SOC Convergence Performance #
The simulation model built from the 9-cell matrix with initial SOC values from Table 1 demonstrates the topology’s functional performance under controlled conditions. Starting from a maximum initial SOC spread of 40 percentage points (30% to 70%), the equalization circuit — once the correct switches are activated — progressively reduces the SOC differential across the three target cells until convergence.

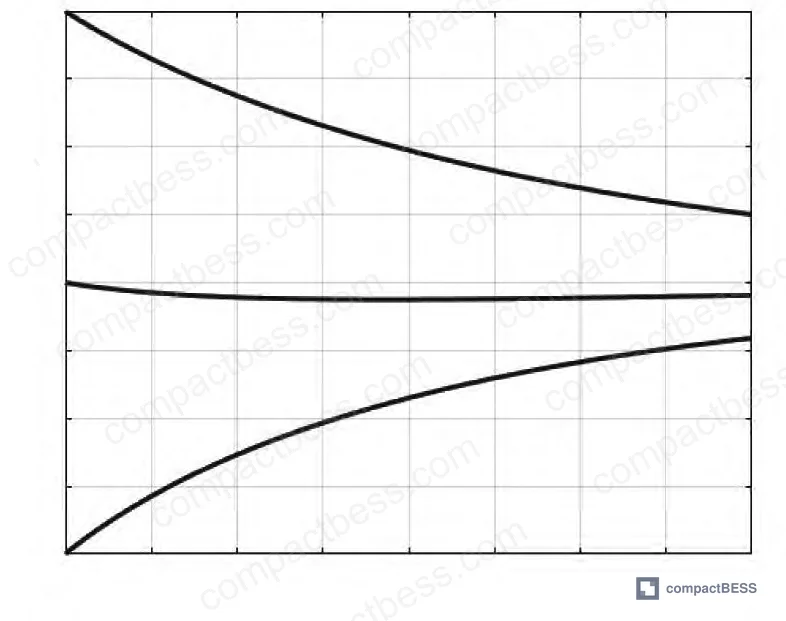

The SOC evolution curves show a characteristic pattern: rapid initial convergence while the voltage differential is large, with a slowing rate as cells approach equilibrium. This is expected behavior for a resistive-transfer topology — the driving force (voltage differential) decreases as cells equalize, so the balancing current naturally tapers. This means the topology is self-limiting, which is actually a safety advantage: there’s no risk of overcurrent during balancing unless the resistor values are undersized for the cell chemistry’s internal resistance.
In supplier qualification, we’ve seen balancing architectures that look correct on paper fail under realistic conditions. Three of the most common failure modes in active balancing implementations: (1) capacitor-based equalizers where minor capacitance mismatch between equalization capacitors amplifies rather than reduces SOC error over multiple cycles; (2) DC-DC converters that require high-frequency switching but are implemented with switches rated for low-frequency operation, causing efficiency collapse and thermal runaway in the switching stage; (3) control logic that selects balancing targets based on voltage rather than SOC, which produces incorrect decisions when cells have different aging states. The network topology described here sidesteps all three because it uses no capacitors, operates at low switching frequency, and the selection logic is explicitly SOC-based.
Most procurement teams don’t realize that the distinction between “active balancing” in a datasheet and genuinely efficient active balancing is enormous. The IEC 62619 standard for stationary storage safety does not mandate a specific balancing topology — it sets cell-level voltage and temperature limits. That means a supplier can claim “active balancing” compliance while shipping a topology that is technically active but practically inefficient due to high switching losses or component mismatch. The burden of specifying topology quality falls entirely on the buyer’s technical team.
Practical Guidance for Buyers #
If you’re sourcing BMS modules for energy storage systems above 1 kWh, the balancing architecture deserves the same scrutiny as the protection circuit ratings. The spec question isn’t just “passive or active” — it’s whether the active topology introduces reactive components (inductors, capacitors) that add volume, reduce reliability, and create additional failure modes.
The network self-balancing approach described here shows that adequate SOC equalization is achievable with bidirectional switches and resistors alone, operating at low frequency, with simple binary control logic. The practical implication for procurement: a BMS module using this approach should have a smaller form factor than an equivalent DC-DC active balancing design, lower MCU processing requirements (relevant when you’re evaluating BMS platforms for constrained embedded systems), and a BOM that’s easier to audit for component quality.
For stationary storage, industrial UPS, and solar generator systems, ask suppliers specifically about their balancing topology’s switching frequency, whether reactive components are in the energy transfer path, and whether the balancing target selection is SOC-based or voltage-based. These three questions will separate technically substantive suppliers from those who integrated an AFE reference design and called it active balancing.
At CompactBESS, we work with verified manufacturers across Guangzhou and broader China who supply BMS modules to OEM brands, product development teams, and storage integrators in North America, Europe, and the Middle East — if you need to identify suppliers whose BMS designs can meet specific balancing topology requirements, our team can narrow the field for you.
Need help identifying qualified suppliers for network-topology BMS modules? Talk to our sourcing team →
Supplier Qualification Questions #
- What is the maximum initial SOC spread (in percentage points) that your BMS balancing circuit is specified to handle, and at what cell count configuration was this validated — specifically, can it handle a ≥40 percentage point spread across a matrix of 9 or more cells?
- Does your active balancing topology include inductors or capacitors in the energy transfer path? If yes, what is the capacitance tolerance specification, and how does capacitor mismatch affect cumulative balancing error over 500+ cycles?
- What switching frequency do your bidirectional balancing switches operate at, and can you provide gate drive circuit schematics showing whether back-to-back MOSFET pairs share a common gate signal?
- Is your balancing target cell selection algorithm based on SOC values or terminal voltage, and what is the SOC estimation method — coulomb counting, OCV lookup, or model-based — and its stated accuracy under load?
- In a 3×3 or larger cell matrix, what is the absolute SOC deviation threshold that triggers equalization for a given cell, and can you provide simulation or bench test data showing SOC convergence curves from an initial worst-case imbalance condition?
Sourcing Checklist #
- [ ] Supplier can demonstrate SOC equalization convergence from a ≥30 percentage point initial spread in a matrix of ≥9 cells via simulation data or bench test records
- [ ] Balancing topology uses no inductors or capacitors in the primary energy transfer path (switches + resistors only, or documented equivalent)
- [ ] Bidirectional switches operate at low frequency (not high-frequency PWM as required by DC-DC topologies); switching frequency specification is documented in the datasheet
- [ ] BMS firmware uses SOC-based (not voltage-only) target cell selection for balancing decisions, with documented SOC estimation method and accuracy spec
- [ ] Product complies with IEC 62619 for stationary storage safety and/or UL 9540 for system-level energy storage safety
- [ ] Cell matrix architecture is scalable beyond 3×3 (M×N extensibility documented or demonstrated in product variants)
- [ ] Supplier can provide equivalent circuit diagrams showing switch activation sequences for both cross-column and intra-column equalization modes
- [ ] Transport and cell-level certification covers UN 38.3 for lithium battery cells used in the pack
Key Specifications Table #
| Parameter | Recommended Value | Verification Method |
|---|---|---|
| Maximum initial SOC spread handled | ≥40 percentage points across full cell matrix | Simulation model or bench test with documented per-cell SOC initialization |
| Balancing switch type | Bidirectional MOSFET pairs (back-to-back, shared gate) | Circuit schematic review + gate drive signal oscilloscope capture |
| Switching frequency for balancing circuit | Low-frequency (not requiring high-frequency DC-DC control) | Datasheet spec + oscilloscope verification on switching node |
| SOC mean calculation basis | All cells in matrix included in average; per-column maximum absolute deviation used for target selection | Firmware documentation or BMS communication log showing per-cell SOC and selection logic |
| Number of switch activations per target cell (edge column) | 2 switches (e.g., Sx-2 and Sx-4) | Circuit diagram cross-referenced against firmware control table |
| Number of switch activations per target cell (center column) | 4 switches (Sx-1, Sx-2, Sx-3, Sx-4) | Circuit diagram cross-referenced against firmware control table |
| Energy transfer path components | Resistors only (no capacitors or inductors) | BOM review + physical inspection of balancing circuit section |
Can’t find a supplier meeting these specs? Submit your requirements and we’ll match you within 48 hours.
Frequently Asked Questions #
Q1: What is the fundamental difference between this network self-balancing topology and conventional active balancing?
Conventional active balancing uses DC-DC converters (with inductors) or switched-capacitor circuits to transfer energy between cells, requiring high-frequency switching and additional reactive components that increase volume and complexity. The network topology described here uses only bidirectional MOSFET switches and resistors, with energy transfer driven directly by the voltage differential between cells — no reactive components, no high-frequency control. The practical result is a smaller, simpler circuit that places lower demands on the MCU and has fewer component failure modes, at the cost of a transfer current that’s limited by the cell voltage differential and resistor values rather than actively controlled.
Q2: How does the controller decide which cells to equalize in each cycle?
The algorithm calculates the mean SOC of all cells in the matrix, then computes the absolute deviation of each cell from that mean. For each column, the cell with the largest absolute deviation is selected as the target. In the simulation example with a mean SOC of 53.3%, BAT13 had the largest deviation in column 1 at 23.3 percentage points, BAT22 led column 2 at 16.7 points, and BAT33 led column 3 at 6.7 points. Those three become the equalization targets for that cycle.
Q3: Can this topology handle larger battery configurations beyond a 3×3 matrix?
Yes — the M×N matrix architecture is explicitly scalable. The 3×3 configuration is used as the reference example, but the topology extends to any number of rows and columns by adding cell nodes with their associated switch sets. The control logic scales accordingly: the mean SOC calculation simply includes more cells, and the per-column maximum deviation selection works identically regardless of matrix size.
Q4: Does the resistive energy transfer path cause significant efficiency losses?
Some energy is dissipated in the current-limiting resistors during transfer — this is a real efficiency cost compared to ideal inductor-based transfer. However, resistor values are chosen to set an appropriate balancing current given the cell chemistry’s internal resistance, and the resistive loss is typically acceptable in stationary storage applications where balancing events are infrequent and the alternative (passive balancing) dissipates 100% of the equalized energy as heat anyway. For applications where balancing efficiency is a critical spec, buyers should request efficiency data from the supplier under realistic SOC spread conditions.
Q5: What certifications should I require for a BMS module using this type of balancing architecture?
At minimum: IEC 62619 for stationary battery safety, UL 9540 if selling into North America, and cell-level UN 38.3 transport certification. For European market entry, confirm alignment with the EU Battery Regulation 2023/1542 requirements on battery management system documentation and due diligence. The balancing topology itself doesn’t have a dedicated certification standard, but the BMS protection thresholds, communication protocols, and safety cutoff parameters all fall within IEC 62619 scope. See our internal guides on BMS communication protocols and cell balancing methods for more procurement context.
