Cell Technology

198
  • Lithium-Ion vs LFP Chemistry
    • Li-Ion vs LFP Electrolyte Chemistry: From Liquid to Solid-State — A Procurement Engineer’s Technical Guide
    • LFP vs. Lead-Acid Battery for Residential BESS: Cost, Sizing, and Dispatch Optimization
    • Technical Evaluation & Sample Request Guide for Lithium-Ion vs LFP Chemistry
    • Safety Standards Explained for Lithium-Ion vs LFP Chemistry
    • Lithium-Ion vs LFP Chemistry — Safety & Risk Assessment
    • Lithium-Ion vs LFP Chemistry — Design Engineering Reference
    • Lithium-Ion vs LFP Chemistry — Lifecycle & Maintenance Guide
    • Lithium-Ion vs LFP Chemistry — Testing & Validation Protocol
    • Lithium-Ion vs LFP Chemistry — Storage & Handling Guide
    • Lithium-Ion vs LFP Chemistry — Installation & Integration Guide
    • Lithium-Ion vs LFP Chemistry — Comparison & Upgrade Guide
    • Lithium-Ion vs LFP Chemistry — Procurement & Cost Guide
    • Lithium-Ion vs LFP Chemistry — Troubleshooting & Failure Guide
    • Lithium-Ion vs LFP Chemistry — Regulatory & Compliance Guide
    • Lithium-Ion vs LFP Chemistry — Supplier Qualification Guide
    • Lithium-Ion vs LFP Chemistry — Application & Performance Guide
    • Lithium-Ion vs LFP Chemistry — Material Selection Guide
    • Lithium-Ion vs LFP Chemistry — Technical Specification Overview
  • Cell Formats & Form Factors
    • PFPE Phase-Change Immersion Cooling for High-Rate Lithium Battery Packs: Thermal Performance Guide
    • Battery Cell Format Selection Guide: Cylindrical, Prismatic, and Pouch Procurement Parameters
    • Battery Cell Format Selection Guide: Cylindrical vs Prismatic vs Pouch
    • LTO Pouch Cell Capacity Fade at Different C-Rates: Procurement Guide for Grid Storage Buyers
    • Battery Cell Format Selection Guide: Cylindrical vs Prismatic vs Pouch for Compact BESS
    • Cell Format Dimensional Tolerances and BMS Temperature Sensor Accuracy: A Procurement Engineering Guide
    • Cylindrical, Prismatic, and Pouch Cell Formats: Dimensional Specifications and Procurement Guide for BESS Buyers
    • Selective Lithium Recovery from Spent LFP Cathode Material: Process Parameters, Selectivity Data, and Supplier Qualification Guide
    • Cell Format Selection Guide: Dimensional Tolerances, Thermal Path Engineering, and Pack Integration
    • Biomass-Assisted Hydrometallurgical Recovery of Cathode Materials from Spent Lithium-Ion Batteries: A Procurement Guide for Cell Buyers
    • SOC-Dependent Thermal Runaway and Propagation Behavior in NMC Battery Modules: A Procurement Guide to Crush Abuse Testing
    • China Battery Recycling & Cascade Reuse: What Cell Format Buyers Must Know
    • Battery Recovery Modes Under EPR: How Supplier Recovery Structure Affects Your Procurement Risk
    • China Battery Waste Material Flow Analysis: What Cell Buyers Need to Know About Recycling, ESG Compliance, and Supply Chain Traceability
    • Retired EV Battery Cell Formats: How Dimensional Standardization Affects Recovery Economics and Second-Life Failure Rates
    • Battery Cell Temperature Limits and Thermal Management for Distributed Storage Applications
    • LFP vs NMC Cell Format Selection: Carbon Recovery Economics and Procurement Impact
    • GB/T 36276—2023 Test Lab Infrastructure: What Qualified Lithium-Ion Energy Storage Cell Suppliers Must Be Able to Prove
    • Self-Stratifying Electrolyte Batteries: Technical Procurement Guide for Membrane-Free Grid Storage
    • Battery Cell Formats & Form Factors: Technical Procurement Guide for Cylindrical, Prismatic, and Pouch Cells
    • Cell Format Selection and Lifecycle Carbon Accounting for Chinese Battery Manufacturers
    • Battery Cell Format Selection Guide: Dimensional Specifications, Lifecycle Efficiency, and Procurement Criteria for ESS Applications
    • Immersion Cooling for LFP Battery Modules: CFD Validation and Thermal Performance Benchmarks
    • Battery Cell Format Selection Guide: Cylindrical vs. Prismatic vs. Pouch for Pack Design
    • Cylindrical vs. Prismatic vs. Pouch: Cell Format Selection Guide for Battery Pack Procurement
    • Battery Carbon Footprint Standards: ISO 14067 vs PAS 2050 vs GHG Protocol for Battery Procurement
    • Battery Cell Format Selection Guide: Cylindrical vs. Prismatic vs. Pouch — Technical Procurement Evaluation
    • Battery Cell Format Selection Guide: Cylindrical, Prismatic, and Pouch Specifications for Compact BESS Procurement
    • Lithium-Ion Cell Format Selection for LED Energy Storage: Chemistry, Thermal Performance & Procurement Guide
    • LFP Cell Format Selection for Dual-Voltage Mobile ESS: DC768V/DC380V Architecture Specification Guide
    • Second-Life EV Battery Procurement: SOH Grading, Traceability, and Echelon Utilization for Stationary Storage
    • Lithium-Ion Battery Thermal Runaway Detection and Fire Suppression in BESS Prefabricated Cabinets
    • Battery Pack Structural Loading: Why Assembly Sequence Generates Non-Linear Stress Patterns
    • Cylindrical, Prismatic, and Pouch Cell Formats: Dimensional Specifications, Thermal Management, and BMS Complexity for Compact BESS Procurement
    • 10 kV Battery Storage PCS Topology Comparison: Cascaded H-Bridge vs MMC vs Transformer-Based Systems
    • Multi-Module Parallel PCS Thermal Management: Current Sharing, Dynamic Impedance, and Thermal Runaway Avoidance in Battery Energy Storage Systems
    • PCS Topology Selection Guide for Battery Energy Storage Systems: Two-Level, Three-Level, and Multilevel Configurations
    • SOC Boundary Control in Lithium Battery Packs for Wind-Coupled Hybrid Energy Storage Systems
    • BMS-PCS-EMS Coordination Architecture for Grid-Connected Battery Storage: Field Performance Data and Procurement Specifications
    • Ceramifiable Silicone Thermal Barrier Pads: Sepiolite vs Aerogel vs Hollow Glass Microsphere for Battery Pack Thermal Runaway Prevention
    • Battery Cell Format Selection Guide: Cylindrical, Prismatic, and Pouch Dimensional Specifications
    • Polyurethane Separator, Binder, and Encapsulant Specifications for Lithium Cell Procurement
    • Rail Vehicle Fire Resistance Requirements for Battery System Integration: NFPA 130 and EN 45545 Procurement Guide
    • Pre-Weld Insulation Testing for Pouch Cell Modules: Procurement Guide
    • LFP Pouch Cell Overcharge Behavior: Voltage Plateau, Mechanical Confinement, and What Buyers Must Know
    • Lithium-Ion Battery Safety Patent Landscape: What 7,560+ Filings Reveal About Supplier Technology Depth
    • 502339 Polymer Pouch Cell: Separator Selection and Electrode Formulation for Maximum Energy Density
    • Ultra-Thin Negative Tab Design for High-Rate Pouch Cells: Eliminating Short Circuit Leakage Without Internal Resistance Penalty
    • Pouch Cell Polarization and Low-Temperature Discharge: A Procurement Engineer’s Guide to Qualifying Soft-Pack Lithium-Ion Cells
    • Battery Temperature Sensor Placement: Busbar vs. Cell Surface Mounting for Prismatic and Cylindrical Cell Modules
    • Nail Penetration Safety in High-Energy-Density Pouch Cells: Test Variables, Severity Index, and Procurement Criteria
    • Diffusion-Induced Stress vs. Thermal Stress in Soft-Pack Pouch Cells: What the Mechanics Tell You Before You Source
    • Fire Suppression System Design for High-Capacity Battery Energy Storage Cabinets: Agent Selection, Thermal Detection, and Dual-Zone Architecture
    • Ring-Topology BMS Architecture for Multi-Group Battery Storage: 18.3% Cost Reduction Through Distributed SOC Negotiation
    • Air vs Liquid Cooling for Battery Modules: Thermal Performance Thresholds and Supplier Qualification
    • Phase Current Imbalance in Three-Phase Interleaved Buck-Boost Converters: SMC-MPC Control for Battery Storage Applications
    • Hybrid vs. LFP Cell Format Selection for High-Cycle Energy Storage Applications
    • Battery Cell Format Selection: Phosphate vs. Manganese Cathode Performance Guide
    • Battery Equivalent Inertia in PEMFC-VSG Hybrid Systems: What Buyers Must Specify
    • Liquid-Cooled BESS Thermal Management: Chiller Sizing, Flow Balance, and GB/T 26276 Compliance for Containerized Energy Storage
    • Liquid Cooling Architecture for LiFePO4 Battery Modules: Bottom-Plate vs. Side-Plate vs. Combined Structure
    • GB/T 36276—2023 Battery Testing Laboratory Planning: Four-Zone Infrastructure Guide for Energy Storage Buyers
    • BMS Thermal Runaway Detection: Multi-Parameter Specifications and Supplier Qualification Guide
    • Residential Battery Storage SOC Reserve Coefficient: Sizing and BMS Logic for TOU Optimization with Outage Backup
    • Residential BESS Specifications for HVAC Coordination: Cycle Life, SOC Windows, and BMS Communication Requirements
    • LFP Cell Mechanical Stress Behavior and SOC Estimation: A Procurement Guide for Grid-Scale Battery Buyers
    • Intelligent Self-Repair BMS for Residential BESS: Performance Data and Procurement Guide
    • LFP Battery Sizing for Primary Frequency Regulation: Optimal Capacity Configuration Using Dual Adaptive PSO
    • Cell Format Selection for Hybrid Solar Storage: Lithium Cell Specifications in Distributed PV Applications
    • AC Impedance Battery State Detection: SOH Accuracy, Speed, and BMS Supplier Qualification
    • Battery Chemistry and Installation Mode Selection for Distributed PV Storage Systems
    • SoC Consensus Control in Multi-Pack BESS: What the Simulation Data Means for BMS Procurement
    • LFP Prismatic Cell Format Selection Guide: 280Ah BESS Design and Dimensional Specifications
    • Battery Pack Insulation Test Data Management: What Every Pack Supplier Should Be Able to Prove
    • Refrigerant Direct Cooling for Battery Packs: Performance Data and Procurement Specs
    • Battery Energy Storage Thermal Management: Immersion Cooling, PCM, and Intelligent Control Guide
    • Battery Cell Disposal Containment: Three-Tier Environmental Risk Control Framework for Decommissioned Lithium Cells
    • Energy Storage Battery Testing Standards: What Every Procurement Engineer Must Know Before Issuing an RFQ
    • Solid Electric Thermal Energy Storage: Duct Configuration Performance Guide for B2B Buyers
    • Battery Energy Storage Cell Format Selection for Microgrid Inverter Integration
    • Semi-Solid Battery Technology: Technical Procurement Guide for Energy Storage Buyers
    • Gel-Type LFP Cell Technology: Cycle Life, Electrolyte Stability, and Procurement Evaluation Guide
    • Liquid Cooling Plate Layout and Flow Rate Optimization for Large-Format C&I Battery Packs
    • Three-Layer BMS Architecture for Stationary Energy Storage: Voltage and Current Accuracy Benchmarks
    • BMS Design for Portable Emergency Lithium Packs: SOC Stability, Thermal Control, and Fault Response Benchmarks
    • LFP Battery Sizing for Residential Solar Storage: Why 12 kWh Beats 25 kWh on Annual Net Return
    • Bidirectional Counter-Flow Liquid Cooling for Grid-Scale ESS: Why Cooling Architecture Determines Thermal Safety at High C-Rates
    • Self-Stratifying Battery Systems: Technical Procurement Guide for Membrane-Free Energy Storage
    • Ultrasonic Early Warning for LFP Thermal Runaway: What Prismatic Cell Buyers Must Specify
    • Adaptive Droop Control for DC Microgrid Battery Storage: SOC Balancing and Voltage Compensation
    • Active Balancing BMS for Lighting Energy Storage: Bidirectional Flyback Converter Thermal Management Guide
    • Immersion Cooling for 100 Ah LiFePO₄ Residential Battery Packs: Thermal Performance Across −40 °C to 40 °C
    • Battery Depth of Discharge and Cycle Life: Procurement Guide for Stationary Storage Cells
    • Modular Mobile BESS Design: LFP Chemistry, Prefabricated Cabin Architecture, and Supplier Qualification Guide
    • BMS Functional Safety for Stationary Energy Storage: IEC 61508, FMEDA, and SIL Qualification Guide
    • 1500V BESS Insulation Materials: Cell Wrapping, BMS Isolation, and Harness Failure Modes
    • Battery Cell Selection for Wind-Solar Hybrid Storage: Chemistry, Cycle Life, and Procurement Criteria
    • Battery Depth of Discharge Management in IES Dispatch: What Stationary Storage Buyers Must Specify
    • BMS Sensing Architecture: Cell Voltage, Current, and SOC Accuracy Benchmarks for B2B Procurement
    • Liquid Cooling Plate Channel Design for LFP Battery Packs: Flow Resistance Optimization and Thermal Performance Data
    • Technical Evaluation & Sample Request Guide for Cell Formats & Form Factors
    • Safety Standards Explained for Cell Formats & Form Factors
    • Cell Formats & Form Factors — Industry Case Study
    • Cell Formats & Form Factors — Safety & Risk Assessment
    • Cell Formats & Form Factors — Design Engineering Reference
    • Cell Formats & Form Factors — Lifecycle & Maintenance Guide
    • Cell Formats & Form Factors — Testing & Validation Protocol
    • Cell Formats & Form Factors — Storage & Handling Guide
    • Cell Formats & Form Factors — Installation & Integration Guide
    • Cell Formats & Form Factors — Comparison & Upgrade Guide
    • Cell Formats & Form Factors — Procurement & Cost Guide
    • Cell Formats & Form Factors — Material Selection Guide
    • Cell Formats & Form Factors — Troubleshooting & Failure Guide
    • Cell Formats & Form Factors — Regulatory & Compliance Guide
    • Cell Formats & Form Factors — Supplier Qualification Guide
    • Cell Formats & Form Factors — Application & Performance Guide
    • Cell Formats & Form Factors — Technical Specification Overview
  • Energy Density & Power Density
    • Liquid-Cooled LFP Battery Pack Energy Efficiency: Thermal Parameter Optimization Guide
    • Battery Energy and Power Density Optimization for LED Lighting Systems: Chemistry Selection, BMS Integration, and Supplier Qualification
    • 3D-Printed Battery Electrodes: Energy Density and Power Density Optimization Guide
    • Technical Evaluation & Sample Request Guide for Energy Density & Power Density
    • Safety Standards Explained for Energy Density & Power Density
    • Energy Density & Power Density — Regulatory & Compliance Guide
    • Energy Density & Power Density — Industry Case Study
    • Energy Density & Power Density — Safety & Risk Assessment
    • Energy Density & Power Density — Design Engineering Reference
    • Energy Density & Power Density — Lifecycle & Maintenance Guide
    • Energy Density & Power Density — Testing & Validation Protocol
    • Energy Density & Power Density — Storage & Handling Guide
    • Energy Density & Power Density — Installation & Integration Guide
    • Energy Density & Power Density — Comparison & Upgrade Guide
    • Energy Density & Power Density — Procurement & Cost Guide
    • Energy Density & Power Density — Troubleshooting & Failure Guide
    • Energy Density & Power Density — Supplier Qualification Guide
    • Energy Density & Power Density — Application & Performance Guide
    • Energy Density & Power Density — Material Selection Guide
    • Energy Density & Power Density — Technical Specification Overview
  • Cycle Life & Degradation
    • LiFePO₄ Cycle Life vs. Temperature: The 60°C Degradation Threshold Buyers Miss
    • LFP Cycle Life Degradation Above 60°C: Why Accelerated Test Data Misleads Buyers
    • LiFePO₄ Cycle Life Testing: Why 60°C Is the Critical Temperature Threshold for Accelerated Degradation Protocols
    • Large-Format LFP Cell Thermal Behavior and Cycle Life Degradation: 280 Ah Field Test Data
    • LFP vs. NCM vs. Lead-Acid: Full Lifecycle Environmental Performance for Battery Procurement Teams
    • LFP High-Temperature Degradation: What 280 Ah Cell Teardown Data Means for Your Procurement Specs
    • Technical Evaluation & Sample Request Guide for Cycle Life & Degradation
    • Safety Standards Explained for Cycle Life & Degradation
    • Cycle Life & Degradation — Regulatory & Compliance Guide
    • Cycle Life & Degradation — Material Selection Guide
    • Cycle Life & Degradation — Industry Case Study
    • Cycle Life & Degradation — Safety & Risk Assessment
    • Cycle Life & Degradation — Design Engineering Reference
    • Cycle Life & Degradation — Lifecycle & Maintenance Guide
    • Cycle Life & Degradation — Testing & Validation Protocol
    • Cycle Life & Degradation — Installation & Integration Guide
    • Cycle Life & Degradation — Comparison & Upgrade Guide
    • Cycle Life & Degradation — Procurement & Cost Guide
    • Cycle Life & Degradation — Troubleshooting & Failure Guide
    • Cycle Life & Degradation — Supplier Qualification Guide
    • Cycle Life & Degradation — Application & Performance Guide
    • Cycle Life & Degradation — Technical Specification Overview
  • Cell Selection & Sourcing
    • China Battery Material Flow & Recycling Compliance: Procurement Guide for LFP and NMC Cell Sourcing
    • Battery Material Traceability and Cascade-Use Cell Qualification: A Procurement Guide for Global Buyers
    • EPR Recovery Modes and Carbon Trading in Battery Supply Chains: A Procurement Guide
    • LFP Carbon Coating Completeness: The Hidden Specification That Determines High-Temperature Cycle Life
    • Safety Standards Explained for Cell Selection & Sourcing
    • Cell Selection & Sourcing — Industry Case Study
    • Cell Selection & Sourcing — Design Engineering Reference
    • Cell Selection & Sourcing — Testing & Validation Protocol
    • Cell Selection & Sourcing — Installation & Integration Guide
    • Cell Selection & Sourcing — Technical Specification Overview
    • Cell Selection & Sourcing — Comparison & Upgrade Guide
    • Cell Selection & Sourcing — Procurement & Cost Guide
    • Cell Selection & Sourcing — Troubleshooting & Failure Guide
    • Cell Selection & Sourcing — Regulatory & Compliance Guide
    • Cell Selection & Sourcing — Supplier Qualification Guide
    • Cell Selection & Sourcing — Application & Performance Guide
    • Cell Selection & Sourcing — Material Selection Guide

Battery Pack Design

95
  • Series & Parallel Configuration
    • Low-Power Intermittent Mode for Multi-Pack BESS: Reducing Standby Loss by 66%
    • Technical Evaluation & Sample Request Guide for Series & Parallel Configuration
    • Safety Standards Explained for Series & Parallel Configuration
    • Series & Parallel Configuration — Material Selection Guide
    • Series & Parallel Configuration — Industry Case Study
    • Series & Parallel Configuration — Safety & Risk Assessment
    • Series & Parallel Configuration — Design Engineering Reference
    • Series & Parallel Configuration — Testing & Validation Protocol
    • Series & Parallel Configuration — Storage & Handling Guide
    • Series & Parallel Configuration — Installation & Integration Guide
    • Series & Parallel Configuration — Comparison & Upgrade Guide
    • Series & Parallel Configuration — Troubleshooting & Failure Guide
    • Series & Parallel Configuration — Regulatory & Compliance Guide
    • Series & Parallel Configuration — Supplier Qualification Guide
    • Series & Parallel Configuration — Application & Performance Guide
    • Series & Parallel Configuration — Technical Specification Overview
  • Cell Consistency & Matching
    • Harmonic Plate Air-Cooling for 280 Ah LFP Packs: Thermal Uniformity Data for Procurement Teams
    • Hierarchical Balancing for LFP Battery Cell Consistency: What the Data Actually Shows
    • Technical Evaluation & Sample Request Guide for Cell Consistency & Matching
    • Safety Standards Explained for Cell Consistency & Matching
    • Cell Consistency & Matching — Industry Case Study
    • Cell Consistency & Matching — Safety & Risk Assessment
    • Cell Consistency & Matching — Lifecycle & Maintenance Guide
    • Cell Consistency & Matching — Testing & Validation Protocol
    • Cell Consistency & Matching — Storage & Handling Guide
    • Cell Consistency & Matching — Installation & Integration Guide
    • Cell Consistency & Matching — Comparison & Upgrade Guide
    • Cell Consistency & Matching — Procurement & Cost Guide
    • Cell Consistency & Matching — Troubleshooting & Failure Guide
    • Cell Consistency & Matching — Regulatory & Compliance Guide
    • Cell Consistency & Matching — Supplier Qualification Guide
    • Cell Consistency & Matching — Application & Performance Guide
    • Cell Consistency & Matching — Material Selection Guide
    • Cell Consistency & Matching — Technical Specification Overview
  • Busbar & Interconnect Design
    • Laminated Busbar Design for PCS Sub-Modules: Stray Inductance Optimization and Supplier Qualification
    • Aluminum Busbar Laser Welding: Process Parameters, Tensile Strength, and Supplier Qualification for Energy Storage Modules
    • Technical Evaluation & Sample Request Guide for Busbar & Interconnect Design
    • Safety Standards Explained for Busbar & Interconnect Design
    • Busbar & Interconnect Design — Comparison & Upgrade Guide
    • Busbar & Interconnect Design — Industry Case Study
    • Busbar & Interconnect Design — Safety & Risk Assessment
    • Busbar & Interconnect Design — Lifecycle & Maintenance Guide
    • Busbar & Interconnect Design — Storage & Handling Guide
    • Busbar & Interconnect Design — Installation & Integration Guide
    • Busbar & Interconnect Design — Procurement & Cost Guide
    • Busbar & Interconnect Design — Troubleshooting & Failure Guide
    • Busbar & Interconnect Design — Regulatory & Compliance Guide
    • Busbar & Interconnect Design — Supplier Qualification Guide
    • Busbar & Interconnect Design — Application & Performance Guide
    • Busbar & Interconnect Design — Material Selection Guide
    • Busbar & Interconnect Design — Technical Specification Overview
  • Pack Enclosure & IP Rating
    • 1500V Battery Pack Enclosure Insulation: Field Intensity Data, Material Selection, and Supplier Qualification
    • Stamped Liquid Cooling Channel Design for 314 Ah LFP Battery Packs: Flow Optimization vs. Thermal Performance
    • CFD-Validated Immersion Cooling Design for 280 Ah Battery Cabinets: Cell Spacing, Port Geometry, and Dielectric Fluid Selection
    • Immersion Cooling for Battery ESS: Oil-Based Dielectric Fluid Specification, Material Compatibility, and Thermal Runaway Test Data
    • MVR Falling-Film Indirect Liquid Cooling for Battery Pack Enclosures: Energy Performance and Sourcing Guide
    • Liquid Cooling Plate Design for Energy Storage Battery Packs: Three Architectures Compared
    • Spray-Ventilation Coupled Cooling for BESS: Optimal Parameters, Discharge Rate Effects, and Electrical Safety Requirements
    • Immersion-Cooled BESS Enclosure Design: Modified Silicone Oil vs. Fluorinated Coolant — Dual-Loop Switching Architecture
    • Safety Standards Explained for Pack Enclosure & IP Rating
    • Pack Enclosure & IP Rating — Industry Case Study
    • Pack Enclosure & IP Rating — Design Engineering Reference
    • Pack Enclosure & IP Rating — Lifecycle & Maintenance Guide
    • Pack Enclosure & IP Rating — Testing & Validation Protocol
    • Pack Enclosure & IP Rating — Installation & Integration Guide
    • Pack Enclosure & IP Rating — Comparison & Upgrade Guide
    • Pack Enclosure & IP Rating — Troubleshooting & Failure Guide
    • Pack Enclosure & IP Rating — Regulatory & Compliance Guide
    • Pack Enclosure & IP Rating — Supplier Qualification Guide
    • Pack Enclosure & IP Rating — Application & Performance Guide
    • Pack Enclosure & IP Rating — Material Selection Guide
    • Pack Enclosure & IP Rating — Technical Specification Overview
  • Mechanical & Vibration Engineering
    • Serpentine Liquid Cooling Channel Orientation for LiFePO₄ Battery Packs: Transverse vs. Longitudinal Performance Trade-offs
    • BESS Enclosure Structural Integrity: Tri-Axial Vibration Stress Analysis and Supplier Qualification Guide
    • LFP Battery Module Swelling Force: Lifecycle Data, Peak Inversion, and Structural Design Limits for 280 Ah Prismatic Cells
    • Technical Evaluation & Sample Request Guide for Mechanical & Vibration Engineering
    • Safety Standards Explained for Mechanical & Vibration Engineering
    • Component Supplier Qualification for Mechanical & Vibration Engineering
    • Comparing Mechanical & Vibration Engineering Solutions
    • Mechanical & Vibration Engineering — Industry Case Study
    • Mechanical & Vibration Engineering — Safety & Risk Assessment
    • Mechanical & Vibration Engineering — Design Engineering Reference
    • Mechanical & Vibration Engineering — Lifecycle & Maintenance Guide
    • Mechanical & Vibration Engineering — Testing & Validation Protocol
    • Mechanical & Vibration Engineering — Storage & Handling Guide
    • Mechanical & Vibration Engineering — Installation & Integration Guide
    • Mechanical & Vibration Engineering — Procurement & Cost Guide
    • Mechanical & Vibration Engineering — Troubleshooting & Failure Guide
    • Mechanical & Vibration Engineering — Regulatory & Compliance Guide
    • Mechanical & Vibration Engineering — Application & Performance Guide
    • Mechanical & Vibration Engineering — Material Selection Guide
    • Mechanical & Vibration Engineering — Technical Specification Overview

BMS Engineering

109
  • SOC Estimation Methods
    • RLS-EKF SOC Estimation for Vanadium Redox Flow Batteries: Procurement Guide for MW-Scale Systems
    • DTW-UKF SOC Estimation for Stationary Battery Systems: Full Lifecycle Accuracy Guide
    • SP2D Model-Based Lithium Plating Suppression for Fast-Charge BMS: Accuracy Thresholds and Cycle Life Validation
    • SOC Estimation Methods: FFRLS-UKF Achieves 99.2% Accuracy in Field Testing
    • LSTM-EKF SOC Estimation for Containerized Battery Energy Storage Systems
    • SOC Estimation Accuracy in Sodium-Ion BESS: GS-LSTM-Attention Algorithm Evaluation for Procurement Engineers
    • Intelligent BMS State Estimation for Mobile BESS: DEKF Algorithm Performance, Safety Factor Analysis, and Supplier Qualification Guide
    • Intelligent BMS State Estimation for Mobile Energy Storage: SOC Accuracy, SoH Monitoring, and Supplier Qualification
    • LiFePO4 Household Energy Storage BMS: SOC Accuracy, Sampling Precision, and Master-Slave Architecture Evaluation
    • Technical Evaluation & Sample Request Guide for SOC Estimation Methods
    • Safety Standards Explained for SOC Estimation Methods
    • Component Supplier Qualification for SOC Estimation Methods
    • SOC Estimation Methods — Industry Case Study
    • SOC Estimation Methods — Safety & Risk Assessment
    • SOC Estimation Methods — Design Engineering Reference
    • SOC Estimation Methods — Lifecycle & Maintenance Guide
    • SOC Estimation Methods — Testing & Validation Protocol
    • SOC Estimation Methods — Storage & Handling Guide
    • SOC Estimation Methods — Installation & Integration Guide
    • SOC Estimation Methods — Comparison & Upgrade Guide
    • SOC Estimation Methods — Procurement & Cost Guide
    • SOC Estimation Methods — Troubleshooting & Failure Guide
    • SOC Estimation Methods — Regulatory & Compliance Guide
    • SOC Estimation Methods — Application & Performance Guide
    • SOC Estimation Methods — Material Selection Guide
    • SOC Estimation Methods — Technical Specification Overview
  • SOH & RUL Prediction
    • Dual EKF vs Single EKF for SOH and RUL Prediction in Mobile BESS: A Technical Buyer’s Guide
    • Entropy-Based SOH Prediction for Lithium-Ion Battery Clusters: Real-Time Health Assessment Without Capacity Testing
    • SOH Estimation for LiFePO₄ Packs: 1-Minute Voltage Sampling Achieves 0.37% MAPE
    • LFP Overcharge Thermal Runaway: Gas-Based Early Warning Detection for BESS
    • BMS Operating Data Splicing and Reconstruction for SOH & RUL Prediction in Grid Storage
    • BMS Health Index for BESS: How Bi-LSTM and RBF Kernel PCA Improve Predictive Accuracy by 56%
    • BMS Health Index Monitoring for BESS Procurement: Field Data, Prediction Accuracy, and Supplier Qualification
    • Technical Evaluation & Sample Request Guide for SOH & RUL Prediction
    • Safety Standards Explained for SOH & RUL Prediction
    • SOH & RUL Prediction — Comparison & Upgrade Guide
    • SOH & RUL Prediction — Industry Case Study
    • SOH & RUL Prediction — Design Engineering Reference
    • SOH & RUL Prediction — Lifecycle & Maintenance Guide
    • SOH & RUL Prediction — Testing & Validation Protocol
    • SOH & RUL Prediction — Storage & Handling Guide
    • SOH & RUL Prediction — Installation & Integration Guide
    • SOH & RUL Prediction — Procurement & Cost Guide
    • SOH & RUL Prediction — Troubleshooting & Failure Guide
    • SOH & RUL Prediction — Regulatory & Compliance Guide
    • SOH & RUL Prediction — Supplier Qualification Guide
    • SOH & RUL Prediction — Application & Performance Guide
    • SOH & RUL Prediction — Material Selection Guide
    • SOH & RUL Prediction — Technical Specification Overview
  • Cell Balancing: Active vs Passive
    • CCS-MPC Active Balancing for Multi-Module LFP Battery Strings: A Procurement Guide
    • Intelligent Active-Passive Hybrid Equalization for Retired LiFePO₄ Battery Packs: BMS Qualification Guide
    • CHB-PCS SoC Equalization: Technical Procurement Guide for Multi-String Battery Energy Storage
    • AI Predictive Balancing in BMS: LSTM Multi-Cell Synchronous Control for Energy Storage Procurement
    • Network Self-Balancing BMS Topology: Technical Procurement Guide for Battery Cell Equalization
    • Active BMS Balancing for Lighting Energy Storage: Component Specs, Thermal Data, and Supplier Qualification
    • Technical Evaluation & Sample Request Guide for Cell Balancing: Active vs Passive
    • Safety Standards Explained for Cell Balancing: Active vs Passive
    • Certification & Testing Guide for Cell Balancing: Active vs Passive
    • Component Supplier Qualification for Cell Balancing: Active vs Passive
    • Cell Balancing: Active vs Passive — Industry Case Study
    • Cell Balancing: Active vs Passive — Safety & Risk Assessment
    • Cell Balancing: Active vs Passive — Design Engineering Reference
    • Cell Balancing: Active vs Passive — Lifecycle & Maintenance Guide
    • Cell Balancing: Active vs Passive — Testing & Validation Protocol
    • Cell Balancing: Active vs Passive — Storage & Handling Guide
    • Cell Balancing: Active vs Passive — Comparison & Upgrade Guide
    • Cell Balancing: Active vs Passive — Procurement & Cost Guide
    • Cell Balancing: Active vs Passive — Troubleshooting & Failure Guide
    • Cell Balancing: Active vs Passive — Application & Performance Guide
    • Cell Balancing: Active vs Passive — Material Selection Guide
    • Cell Balancing: Active vs Passive — Technical Specification Overview
  • Protection Circuit Design
    • BMS Circuit Design for EV Battery Packs: Per-Cell Protection, Balancing Topologies, and Supplier Qualification
    • Microservice BMS Architecture for Mobile Lithium Battery Systems: A Technical Procurement Guide
    • BMS Circuit Board Thermal-Stress Analysis: Multi-Module Temperature Distribution, Warping, and Solder Joint Reliability for B2B Buyers
    • Technical Evaluation & Sample Request Guide for Protection Circuit Design
    • Safety Standards Explained for Protection Circuit Design
    • Protection Circuit Design — Supplier Qualification Guide
    • Protection Circuit Design — Lifecycle & Maintenance Guide
    • Protection Circuit Design — Testing & Validation Protocol
    • Protection Circuit Design — Storage & Handling Guide
    • Protection Circuit Design — Installation & Integration Guide
    • Protection Circuit Design — Comparison & Upgrade Guide
    • Protection Circuit Design — Procurement & Cost Guide
    • Protection Circuit Design — Troubleshooting & Failure Guide
    • Protection Circuit Design — Regulatory & Compliance Guide
    • Protection Circuit Design — Application & Performance Guide
    • Protection Circuit Design — Material Selection Guide
    • Protection Circuit Design — Technical Specification Overview
  • BMS Communication Protocols
    • Ring Daisy-Chain BMS Communication Architecture for Compact Energy Storage: BER, Differential Isolation, and Manchester Encoding
    • SOP-Weighted SOC Equalization for Parallel Battery Pack Systems: A Procurement Engineering Guide
    • Safety Standards Explained for BMS Communication Protocols
    • BMS Communication Protocols — Industry Case Study
    • BMS Communication Protocols — Safety & Risk Assessment
    • BMS Communication Protocols — Design Engineering Reference
    • BMS Communication Protocols — Lifecycle & Maintenance Guide
    • BMS Communication Protocols — Storage & Handling Guide
    • BMS Communication Protocols — Installation & Integration Guide
    • BMS Communication Protocols — Application & Performance Guide
    • BMS Communication Protocols — Comparison & Upgrade Guide
    • BMS Communication Protocols — Procurement & Cost Guide
    • BMS Communication Protocols — Troubleshooting & Failure Guide
    • BMS Communication Protocols — Regulatory & Compliance Guide
    • BMS Communication Protocols — Supplier Qualification Guide
    • BMS Communication Protocols — Material Selection Guide
    • BMS Communication Protocols — Technical Specification Overview

Charging Technology

78
  • USB-C PD & Fast Charging Standards
    • Technical Evaluation & Sample Request Guide for USB-C PD & Fast Charging Standards
    • Safety Standards Explained for USB-C PD & Fast Charging Standards
    • USB-C PD & Fast Charging Standards — Industry Case Study
    • USB-C PD & Fast Charging Standards — Safety & Risk Assessment
    • USB-C PD & Fast Charging Standards — Design Engineering Reference
    • USB-C PD & Fast Charging Standards — Lifecycle & Maintenance Guide
    • USB-C PD & Fast Charging Standards — Testing & Validation Protocol
    • USB-C PD & Fast Charging Standards — Storage & Handling Guide
    • USB-C PD & Fast Charging Standards — Installation & Integration Guide
    • USB-C PD & Fast Charging Standards — Comparison & Upgrade Guide
    • USB-C PD & Fast Charging Standards — Procurement & Cost Guide
    • USB-C PD & Fast Charging Standards — Troubleshooting & Failure Guide
    • USB-C PD & Fast Charging Standards — Regulatory & Compliance Guide
    • USB-C PD & Fast Charging Standards — Supplier Qualification Guide
    • USB-C PD & Fast Charging Standards — Application & Performance Guide
    • USB-C PD & Fast Charging Standards — Material Selection Guide
    • USB-C PD & Fast Charging Standards — Technical Specification Overview
  • MPPT Solar Charging
    • Safety Standards Explained for MPPT Solar Charging
    • MPPT Solar Charging — Industry Case Study
    • MPPT Solar Charging — Design Engineering Reference
    • MPPT Solar Charging — Lifecycle & Maintenance Guide
    • MPPT Solar Charging — Testing & Validation Protocol
    • MPPT Solar Charging — Storage & Handling Guide
    • MPPT Solar Charging — Installation & Integration Guide
    • MPPT Solar Charging — Comparison & Upgrade Guide
    • MPPT Solar Charging — Procurement & Cost Guide
    • MPPT Solar Charging — Troubleshooting & Failure Guide
    • MPPT Solar Charging — Regulatory & Compliance Guide
    • MPPT Solar Charging — Supplier Qualification Guide
    • MPPT Solar Charging — Application & Performance Guide
    • MPPT Solar Charging — Material Selection Guide
    • MPPT Solar Charging — Technical Specification Overview
  • AC Charging & Inverter Integration
    • Phase-Compensated Partitioned One-Cycle Control for BESS PCS: Power Factor and Efficiency Specifications for B2B Buyers
    • DC Charging Compatibility Testing: Field Validation Methods for AC Charging and Bidirectional Inverter Integration
    • Technical Evaluation & Sample Request Guide for AC Charging & Inverter Integration
    • Safety Standards Explained for AC Charging & Inverter Integration
    • AC Charging & Inverter Integration — Regulatory & Compliance Guide
    • AC Charging & Inverter Integration — Safety & Risk Assessment
    • AC Charging & Inverter Integration — Industry Case Study
    • AC Charging & Inverter Integration — Design Engineering Reference
    • AC Charging & Inverter Integration — Lifecycle & Maintenance Guide
    • AC Charging & Inverter Integration — Testing & Validation Protocol
    • AC Charging & Inverter Integration — Storage & Handling Guide
    • AC Charging & Inverter Integration — Installation & Integration Guide
    • AC Charging & Inverter Integration — Supplier Qualification Guide
    • AC Charging & Inverter Integration — Comparison & Upgrade Guide
    • AC Charging & Inverter Integration — Procurement & Cost Guide
    • AC Charging & Inverter Integration — Troubleshooting & Failure Guide
    • AC Charging & Inverter Integration — Application & Performance Guide
    • AC Charging & Inverter Integration — Material Selection Guide
    • AC Charging & Inverter Integration — Technical Specification Overview
  • Charging IC Selection Guide
    • Technical Evaluation & Sample Request Guide for Charging IC Selection Guide
    • Safety Standards Explained for Charging IC Selection Guide
    • Charging IC Selection Guide — Safety & Risk Assessment
    • Charging IC Selection Guide — Design Engineering Reference
    • Charging IC Selection Guide — Lifecycle & Maintenance Guide
    • Charging IC Selection Guide — Testing & Validation Protocol
    • Charging IC Selection Guide — Comparison & Upgrade Guide
    • Charging IC Selection Guide — Procurement & Cost Guide
    • Charging IC Selection Guide — Troubleshooting & Failure Guide
    • Charging IC Selection Guide — Regulatory & Compliance Guide
    • Charging IC Selection Guide — Supplier Qualification Guide
    • Charging IC Selection Guide — Application & Performance Guide
    • Charging IC Selection Guide — Material Selection Guide
    • Charging IC Selection Guide — Technical Specification Overview
  • Low-Temperature Charging Protection
    • Technical Evaluation & Sample Request Guide for Low-Temperature Charging Protection
    • Certification & Testing Guide for Low-Temperature Charging Protection
    • Low-Temperature Charging Protection — Supplier Qualification Guide
    • Low-Temperature Charging Protection — Industry Case Study
    • Low-Temperature Charging Protection — Design Engineering Reference
    • Low-Temperature Charging Protection — Storage & Handling Guide
    • Low-Temperature Charging Protection — Installation & Integration Guide
    • Low-Temperature Charging Protection — Comparison & Upgrade Guide
    • Low-Temperature Charging Protection — Procurement & Cost Guide
    • Low-Temperature Charging Protection — Troubleshooting & Failure Guide
    • Low-Temperature Charging Protection — Application & Performance Guide
    • Low-Temperature Charging Protection — Material Selection Guide
    • Low-Temperature Charging Protection — Technical Specification Overview

Compact BESS Products

81
  • Power Banks & Portable Chargers
    • Technical Evaluation & Sample Request Guide for Power Banks & Portable Chargers
    • Safety Standards Explained for Power Banks & Portable Chargers
    • Comparing Power Banks & Portable Chargers Solutions
    • Power Banks & Portable Chargers — Material Selection Guide
    • Power Banks & Portable Chargers — Safety & Risk Assessment
    • Power Banks & Portable Chargers — Design Engineering Reference
    • Power Banks & Portable Chargers — Lifecycle & Maintenance Guide
    • Power Banks & Portable Chargers — Testing & Validation Protocol
    • Power Banks & Portable Chargers — Storage & Handling Guide
    • Power Banks & Portable Chargers — Procurement & Cost Guide
    • Power Banks & Portable Chargers — Regulatory & Compliance Guide
    • Power Banks & Portable Chargers — Supplier Qualification Guide
    • Power Banks & Portable Chargers — Troubleshooting & Failure Guide
    • Power Banks & Portable Chargers — Application & Performance Guide
    • Power Banks & Portable Chargers — Technical Specification Overview
  • Outdoor Power Stations
    • Technical Evaluation & Sample Request Guide for Outdoor Power Stations
    • Safety Standards Explained for Outdoor Power Stations
    • Component Supplier Qualification for Outdoor Power Stations
    • How to Choose Outdoor Power Stations
    • Outdoor Power Stations — Industry Case Study
    • Outdoor Power Stations — Safety & Risk Assessment
    • Outdoor Power Stations — Design Engineering Reference
    • Outdoor Power Stations — Lifecycle & Maintenance Guide
    • Outdoor Power Stations — Testing & Validation Protocol
    • Outdoor Power Stations — Storage & Handling Guide
    • Outdoor Power Stations — Installation & Integration Guide
    • Outdoor Power Stations — Troubleshooting & Failure Guide
    • Outdoor Power Stations — Comparison & Upgrade Guide
    • Outdoor Power Stations — Procurement & Cost Guide
    • Outdoor Power Stations — Regulatory & Compliance Guide
    • Outdoor Power Stations — Application & Performance Guide
    • Outdoor Power Stations — Technical Specification Overview
  • Portable UPS Systems
    • BMS-Integrated UPS Monitoring Systems: Architecture, Alarm Specifications, and Industrial Procurement Guide
    • Technical Evaluation & Sample Request Guide for Portable UPS Systems
    • Safety Standards Explained for Portable UPS Systems
    • Portable UPS Systems — Installation & Integration Guide
    • Portable UPS Systems — Procurement & Cost Guide
    • Portable UPS Systems — Material Selection Guide
    • Portable UPS Systems — Industry Case Study
    • Portable UPS Systems — Safety & Risk Assessment
    • Portable UPS Systems — Design Engineering Reference
    • Portable UPS Systems — Lifecycle & Maintenance Guide
    • Portable UPS Systems — Comparison & Upgrade Guide
    • Portable UPS Systems — Troubleshooting & Failure Guide
    • Portable UPS Systems — Regulatory & Compliance Guide
    • Portable UPS Systems — Supplier Qualification Guide
    • Portable UPS Systems — Application & Performance Guide
    • Portable UPS Systems — Technical Specification Overview
  • Vehicle Jump Starters
    • Technical Evaluation & Sample Request Guide for Vehicle Jump Starters
    • Safety Standards Explained for Vehicle Jump Starters
    • Vehicle Jump Starters — Material Selection Guide
    • Vehicle Jump Starters — Industry Case Study
    • Vehicle Jump Starters — Safety & Risk Assessment
    • Vehicle Jump Starters — Design Engineering Reference
    • Vehicle Jump Starters — Lifecycle & Maintenance Guide
    • Vehicle Jump Starters — Testing & Validation Protocol
    • Vehicle Jump Starters — Storage & Handling Guide
    • Vehicle Jump Starters — Installation & Integration Guide
    • Vehicle Jump Starters — Technical Specification Overview
    • Vehicle Jump Starters — Comparison & Upgrade Guide
    • Vehicle Jump Starters — Procurement & Cost Guide
    • Vehicle Jump Starters — Troubleshooting & Failure Guide
    • Vehicle Jump Starters — Regulatory & Compliance Guide
    • Vehicle Jump Starters — Supplier Qualification Guide
    • Vehicle Jump Starters — Application & Performance Guide
  • Solar Generator Systems
    • Sodium-Ion Battery Economics for Residential PV-BESS: Lifecycle Cost Analysis and Procurement Thresholds
    • Solar Generator Storage Sizing: Dispatch Optimization and Capacity Specification for Residential BESS
    • Technical Evaluation & Sample Request Guide for Solar Generator Systems
    • Safety Standards Explained for Solar Generator Systems
    • Solar Generator Systems — Regulatory & Compliance Guide
    • Solar Generator Systems — Supplier Qualification Guide
    • Solar Generator Systems — Industry Case Study
    • Solar Generator Systems — Safety & Risk Assessment
    • Solar Generator Systems — Testing & Validation Protocol
    • Solar Generator Systems — Storage & Handling Guide
    • Solar Generator Systems — Installation & Integration Guide
    • Solar Generator Systems — Comparison & Upgrade Guide
    • Solar Generator Systems — Troubleshooting & Failure Guide
    • Solar Generator Systems — Application & Performance Guide
    • Solar Generator Systems — Material Selection Guide
    • Solar Generator Systems — Technical Specification Overview

Safety & Certification

89
  • UN38.3 Transport Certification
    • Technical Evaluation & Sample Request Guide for UN38.3 Transport Certification
    • Safety Standards Explained for UN38.3 Transport Certification
    • UN38.3 Transport Certification — Technical Specification Overview
    • UN38.3 Transport Certification — Design Engineering Reference
    • UN38.3 Transport Certification — Lifecycle & Maintenance Guide
    • UN38.3 Transport Certification — Testing & Validation Protocol
    • UN38.3 Transport Certification — Storage & Handling Guide
    • UN38.3 Transport Certification — Installation & Integration Guide
    • UN38.3 Transport Certification — Comparison & Upgrade Guide
    • UN38.3 Transport Certification — Troubleshooting & Failure Guide
    • UN38.3 Transport Certification — Regulatory & Compliance Guide
    • UN38.3 Transport Certification — Procurement & Cost Guide
    • UN38.3 Transport Certification — Supplier Qualification Guide
    • UN38.3 Transport Certification — Application & Performance Guide
    • UN38.3 Transport Certification — Material Selection Guide
  • IEC 62619 Industrial Safety
    • IEC 62619 Thermal Runaway Detection: CO Alarm Thresholds and Suppression Validation for Prefabricated BESS Enclosures
    • IEC 62619 Safety Compliance for Large-Format LFP Cells: 430 Ah Laminated vs. 280 Ah Wound Cell Test Data
    • IEC 62619 Cell Safety Across Full Lifecycle: BOL vs. EOL Performance in 125 Ah Prismatic LFP Energy Storage Cells
    • Technical Evaluation & Sample Request Guide for IEC 62619 Industrial Safety
    • Safety Standards Explained for IEC 62619 Industrial Safety
    • IEC 62619 Industrial Safety — Industry Case Study
    • IEC 62619 Industrial Safety — Safety & Risk Assessment
    • IEC 62619 Industrial Safety — Lifecycle & Maintenance Guide
    • IEC 62619 Industrial Safety — Testing & Validation Protocol
    • IEC 62619 Industrial Safety — Storage & Handling Guide
    • IEC 62619 Industrial Safety — Installation & Integration Guide
    • IEC 62619 Industrial Safety — Comparison & Upgrade Guide
    • IEC 62619 Industrial Safety — Procurement & Cost Guide
    • IEC 62619 Industrial Safety — Troubleshooting & Failure Guide
    • IEC 62619 Industrial Safety — Regulatory & Compliance Guide
    • IEC 62619 Industrial Safety — Supplier Qualification Guide
    • IEC 62619 Industrial Safety — Application & Performance Guide
    • IEC 62619 Industrial Safety — Material Selection Guide
    • IEC 62619 Industrial Safety — Technical Specification Overview
  • UL 9540 & UL 9540A
    • UL 9540A Early Warning: Mechanical Deformation Detection vs Gas Sensors in LiFePO₄ Thermal Runaway
    • Technical Evaluation & Sample Request Guide for UL 9540 & UL 9540A
    • Safety Standards Explained for UL 9540 & UL 9540A
    • UL 9540 & UL 9540A — Industry Case Study
    • UL 9540 & UL 9540A — Safety & Risk Assessment
    • UL 9540 & UL 9540A — Design Engineering Reference
    • UL 9540 & UL 9540A — Lifecycle & Maintenance Guide
    • UL 9540 & UL 9540A — Testing & Validation Protocol
    • UL 9540 & UL 9540A — Storage & Handling Guide
    • UL 9540 & UL 9540A — Installation & Integration Guide
    • UL 9540 & UL 9540A — Comparison & Upgrade Guide
    • UL 9540 & UL 9540A — Procurement & Cost Guide
    • UL 9540 & UL 9540A — Troubleshooting & Failure Guide
    • UL 9540 & UL 9540A — Regulatory & Compliance Guide
    • UL 9540 & UL 9540A — Supplier Qualification Guide
    • UL 9540 & UL 9540A — Application & Performance Guide
    • UL 9540 & UL 9540A — Material Selection Guide
    • UL 9540 & UL 9540A — Technical Specification Overview
  • CE / FCC / RoHS Compliance
    • Technical Evaluation & Sample Request Guide for CE / FCC / RoHS Compliance
    • Safety Standards Explained for CE / FCC / RoHS Compliance
    • CE / FCC / RoHS Compliance — Industry Case Study
    • CE / FCC / RoHS Compliance — Design Engineering Reference
    • CE / FCC / RoHS Compliance — Lifecycle & Maintenance Guide
    • CE / FCC / RoHS Compliance — Testing & Validation Protocol
    • CE / FCC / RoHS Compliance — Installation & Integration Guide
    • CE / FCC / RoHS Compliance — Comparison & Upgrade Guide
    • CE / FCC / RoHS Compliance — Procurement & Cost Guide
    • CE / FCC / RoHS Compliance — Troubleshooting & Failure Guide
    • CE / FCC / RoHS Compliance — Regulatory & Compliance Guide
    • CE / FCC / RoHS Compliance — Supplier Qualification Guide
    • CE / FCC / RoHS Compliance — Application & Performance Guide
    • CE / FCC / RoHS Compliance — Material Selection Guide
    • CE / FCC / RoHS Compliance — Technical Specification Overview
  • EU Battery Regulation 2023/1542
    • EU Battery Regulation 2023/1542: Carbon Footprint, Recovery Targets, and Supplier Compliance for Global Buyers
    • EU Battery Regulation 2023/1542: Compliance Gaps, Battery Passport Requirements, and What Chinese Manufacturers Must Fix Before 2027
    • EU Battery Regulation 2023/1542: Compliance Framework, Classification, and Conformity Assessment for Chinese Battery Exporters
    • Technical Evaluation & Sample Request Guide for EU Battery Regulation 2023/1542
    • Safety Standards Explained for EU Battery Regulation 2023/1542
    • EU Battery Regulation 2023/1542 — Material Selection Guide
    • EU Battery Regulation 2023/1542 — Industry Case Study
    • EU Battery Regulation 2023/1542 — Safety & Risk Assessment
    • EU Battery Regulation 2023/1542 — Design Engineering Reference
    • EU Battery Regulation 2023/1542 — Lifecycle & Maintenance Guide
    • EU Battery Regulation 2023/1542 — Testing & Validation Protocol
    • EU Battery Regulation 2023/1542 — Storage & Handling Guide
    • EU Battery Regulation 2023/1542 — Installation & Integration Guide
    • EU Battery Regulation 2023/1542 — Comparison & Upgrade Guide
    • EU Battery Regulation 2023/1542 — Procurement & Cost Guide
    • EU Battery Regulation 2023/1542 — Troubleshooting & Failure Guide
    • EU Battery Regulation 2023/1542 — Regulatory & Compliance Guide
    • EU Battery Regulation 2023/1542 — Supplier Qualification Guide
    • EU Battery Regulation 2023/1542 — Application & Performance Guide
    • EU Battery Regulation 2023/1542 — Technical Specification Overview
View Categories
  • Home
  • Docs
  • BMS Engineering
  • SOC Estimation Methods
  • BES Capacity Sizing for Primary Frequency Regulation: Dual Adaptive PSO Optimization Guide

BES Capacity Sizing for Primary Frequency Regulation: Dual Adaptive PSO Optimization Guide

Elena Fischer
更新 2026年6月18日

12 min read

TL;DR #

If you’re sizing battery energy storage for primary frequency regulation (PFR) on a wind-heavy grid, the single most expensive mistake I see procurement teams make is treating capacity and power as independent variables. They’re not. Get that relationship wrong and you’ll either over-build by 15–20% or find your system tripping out of the frequency dead band within the first season of operation. This guide walks through how a dual adaptive particle swarm optimization (PSO) approach changes the capacity allocation calculus — and what the test data from a 50 MW wind farm case in Xinjiang actually shows about the gap between standard PSO and the improved variant.

The chemistry choice here matters too. This analysis is built around lithium iron phosphate (LFP/LiFePO₄) in a centralized deployment configuration. For PFR applications, that’s the right call — LFP’s cycle stability and safety profile under frequent partial charge/discharge cycles outperforms NMC in this duty cycle, and the cost-per-cycle economics over a 20-year lifecycle hold up better. If a supplier is pitching you NMC for a grid-scale PFR application, ask them to run the lifecycle cost model at 3,000+ annual PFR cycles. That conversation usually ends quickly.

Figure 1: BES rated power determination — rated power is set by the maximum charge/discharge power demand across the entire frequency regulation interval T
Figure 1: BES rated power determination — rated power is set by the maximum charge/discharge power demand across the entire frequency regulation interval T

BES Power and Capacity Sizing: The Design Framework #

The rated power Pr of the energy storage system is determined by the worst-case instantaneous power demand across the entire regulation interval — specifically, the maximum charge or discharge power required at any single moment, corrected for converter and charge/discharge efficiency. Both charge and discharge paths are evaluated separately, and the binding constraint sets Pr.

Rated capacity Er is derived from the cumulative energy balance over time. At each moment t, the system calculates the net energy that must be absorbed or supplied since t₀. The rated capacity is then set to the maximum absolute value of that running integral — essentially the worst-case energy swing the system must accommodate. That value must also be consistent with the SOC operating window: the usable SOC range (SOCmax minus SOC_min) bounds how much of the rated capacity is actually accessible.

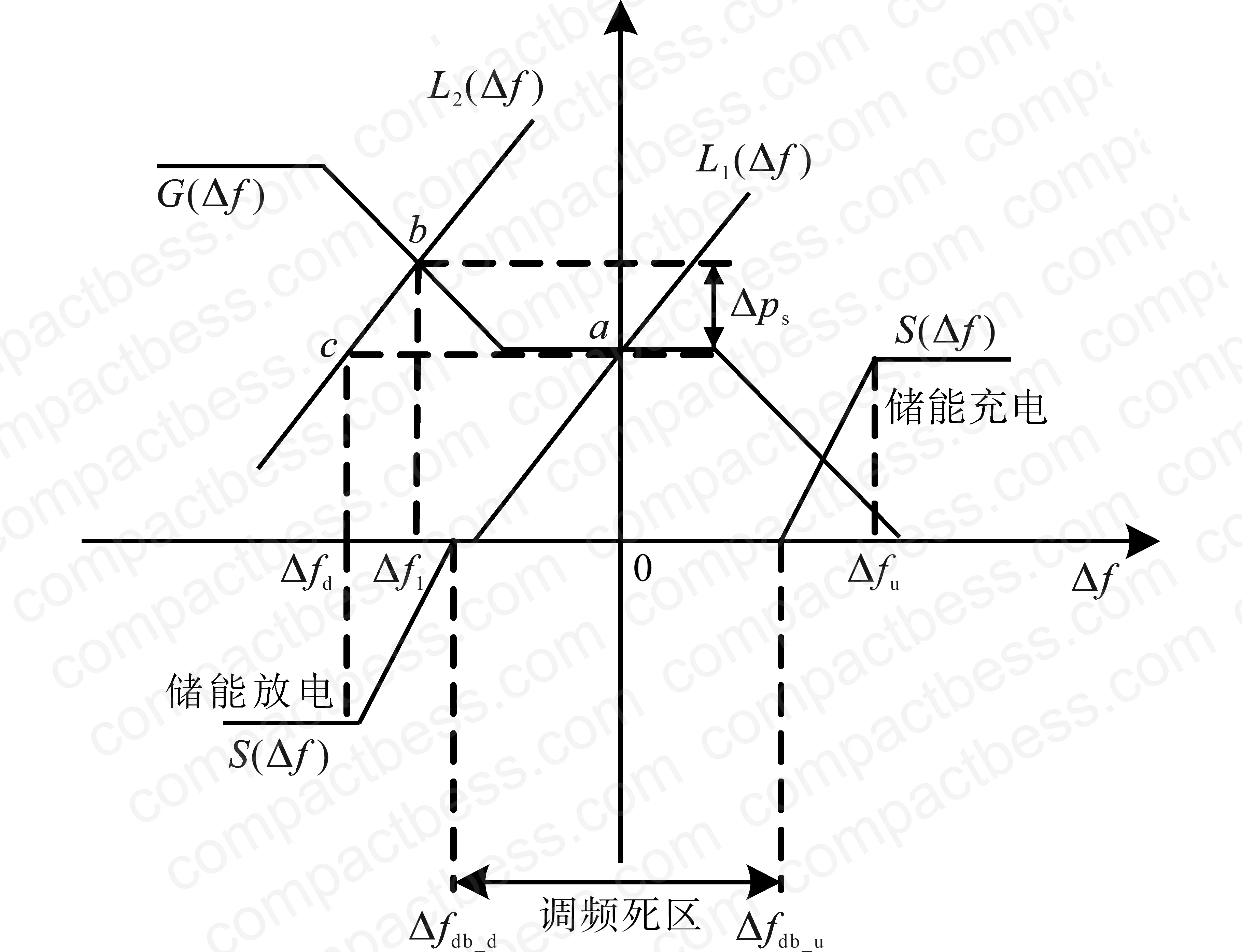

Figure 2: BES primary frequency regulation droop control — system transitions from state (a) to state (b) when frequency deviation exceeds the ±0.033 Hz dead band threshold
Figure 2: BES primary frequency regulation droop control — system transitions from state (a) to state (b) when frequency deviation exceeds the ±0.033 Hz dead band threshold

The frequency dead band threshold in this implementation is set at 50 ± 0.033 Hz, which aligns with Chinese grid code requirements for primary frequency response. For projects outside China, verify the applicable grid code — IEC 61400-21-1 (wind power quality) and IEC 62933-5-2 (grid integration safety for energy storage) both touch on frequency response requirements, and the tolerance bands differ by market.

The droop control implementation uses four key parameters: upper and lower dead band limits (Δfdbu, Δfdbd), and upper and lower linear output limits (Δfu, Δfd). The output power P_s follows a piecewise linear profile: full rated output outside the linear range, proportional droop response within it, and zero output inside the dead band. This is virtual droop control — the BES emulates the behavior of a synchronous generator’s governor without any rotating mass.

Honestly, most buyers over-specify the rated power on PFR applications because they anchor to the wind farm’s nameplate capacity rather than the actual frequency deviation profile. The Xinjiang case used a 50 MW wind farm connected to a 250 MW grid (S_base), with up/down regulation headroom of 0.1 pu each. The resulting optimal BES rating came out at 10.03 MW / 2.41 MW·h — a power-to-energy ratio of roughly 4:1. If you’ve been quoting 2-hour systems for PFR, you’re carrying unnecessary capital cost.

SOC Management and the Charging Strategy #

SOC management in PFR applications is more nuanced than in energy arbitrage. The system needs to maintain SOC close to a reference value (set at 0.5 in this implementation) so it can respond symmetrically to both upward and downward frequency deviations. If SOC drifts too high, the system can’t absorb more energy when frequency rises. Too low, and it can’t provide energy when frequency drops.

Figure 3: Life cycle cost model components — full cost structure including Cinv, Cope, Crep, Cdis, curtailment penalties, and shortage penalties across a 20-year project horizon
Figure 3: Life cycle cost model components — full cost structure including Cinv, Cope, Crep, Cdis, curtailment penalties, and shortage penalties across a 20-year project horizon

The charging strategy defines five SOC zones:

  • Over-discharge zone: SOC below SOC_min — system cannot participate in PFR
  • Discharge alert zone: SOC in [SOCmin, SOCl] — system executes opportunistic charging (buying from grid)
  • Command zone: SOC in [SOCl, SOCh] — system follows regulation commands normally
  • Charge alert zone: SOC in [SOCh, SOCmax] — system executes opportunistic discharging (selling to grid)
  • Overcharge zone: SOC above SOC_max — excess energy dissipated through braking resistors

That last point is worth dwelling on. When the system hits the overcharge zone simultaneously with a frequency rise event (Δf > Δfdbu), the only option is to burn energy in resistors. That’s pure waste, and it’s a direct result of capacity being under-sized relative to the frequency excursion profile. We’ve seen this happen in supplier qualification testing when systems were configured using generic industry parameters rather than site-specific frequency data.

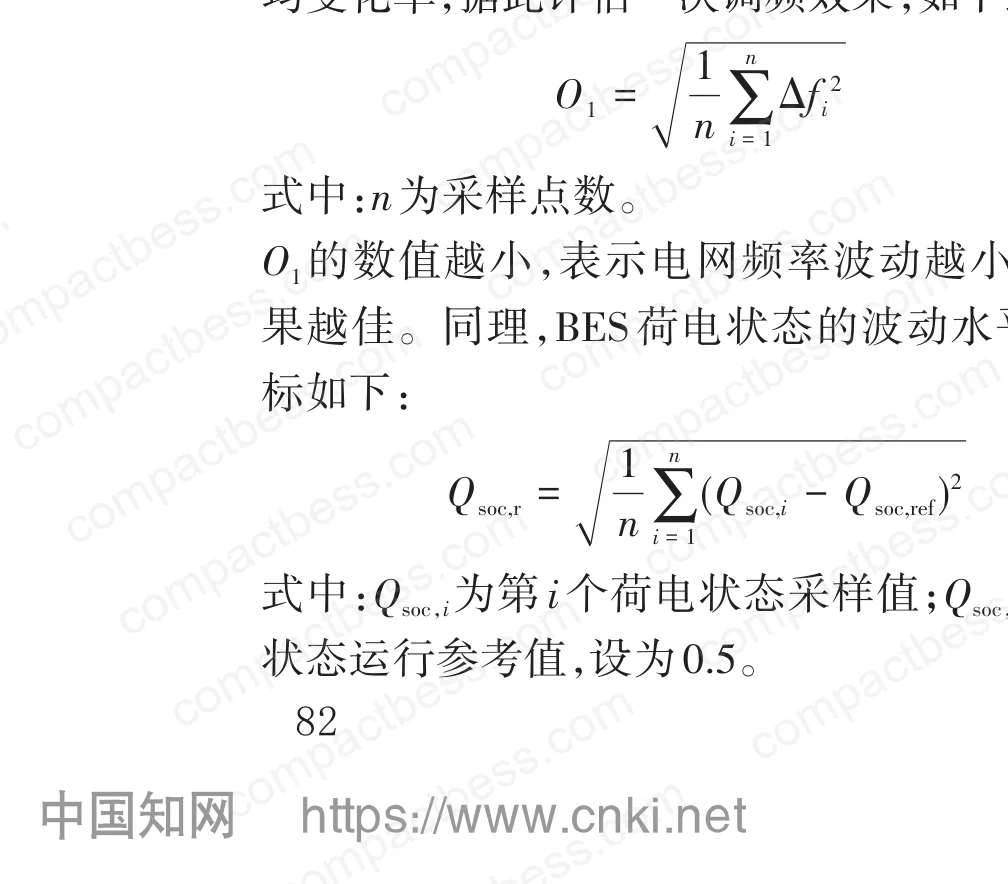

The SOC deviation metric Q_soc,r quantifies how well the system maintains SOC around the reference. It’s the RMS of the difference between instantaneous SOC and the reference value of 0.5, averaged over all sampling points. Lower values indicate better SOC stability. This metric runs in parallel with the frequency regulation quality index O₁ (RMS of frequency deviations squared) to give you a dual-objective view of system performance.

For procurement teams specifying LFP cell selection, the SOC operating window directly constrains which cells are viable. LFP cells with flat OCV curves in the 20–80% SOC range are well-suited here — the voltage signal gives less SOC resolution, but the cycle life at partial depth-of-discharge is considerably better than NMC equivalents at the same calendar age.

Algorithm Performance: What the Comparative Data Actually Shows #

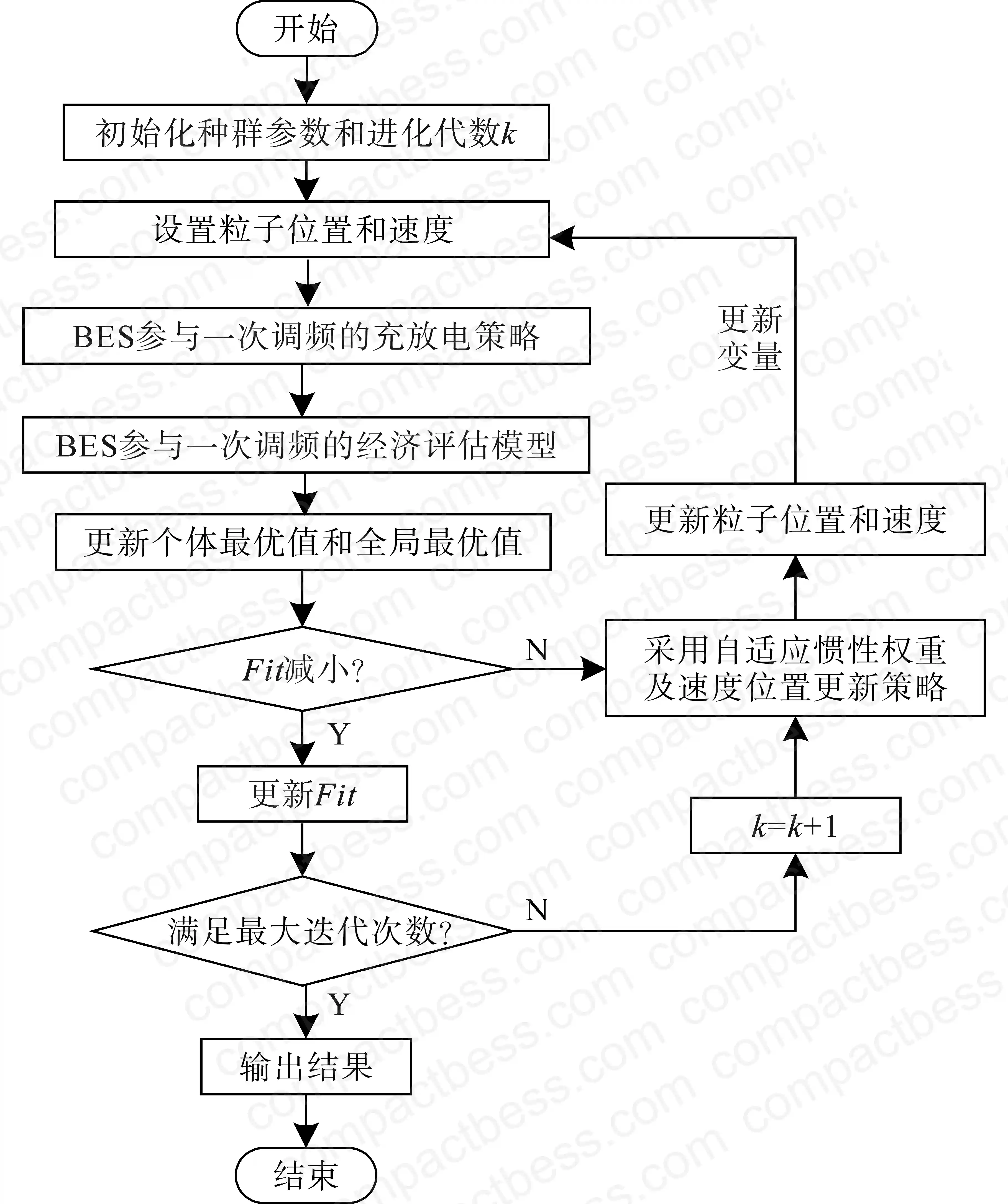

This is where it gets interesting. Four algorithm variants were tested against the same wind and load profiles, using a population of 30 particles and a maximum of 100 iterations. The test case parameters are worth stating explicitly because they matter for interpreting the results.

Xinjiang regional grid simulation parameters:

  • Wind farm capacity: 50 MW
  • Grid rated capacity (S_base): 250 MW
  • Load power range: 0.12–0.26 pu
  • Unit regulation power K_G: 23.3 pu
  • Virtual unit regulation power K_E: 10 pu
  • Frequency dead band: ±0.033 Hz
  • Discount rate: 6%
  • LFP unit energy capex (C_ee): $385,000/MW·h
  • LFP unit power capex (C_pe): $230,000/MW·h
  • Electricity sale price (r_sell): $75/MW·h
  • Wind curtailment penalty (C_eaw): $42/MW·h
  • Shortage penalty (C_esho): $17/MW·h
  • Project lifetime: 20 years
Figure 6: Simulation parameter set — regional grid and BES economic parameters used in the Xinjiang 50 MW wind farm case study
Figure 6: Simulation parameter set — regional grid and BES economic parameters used in the Xinjiang 50 MW wind farm case study

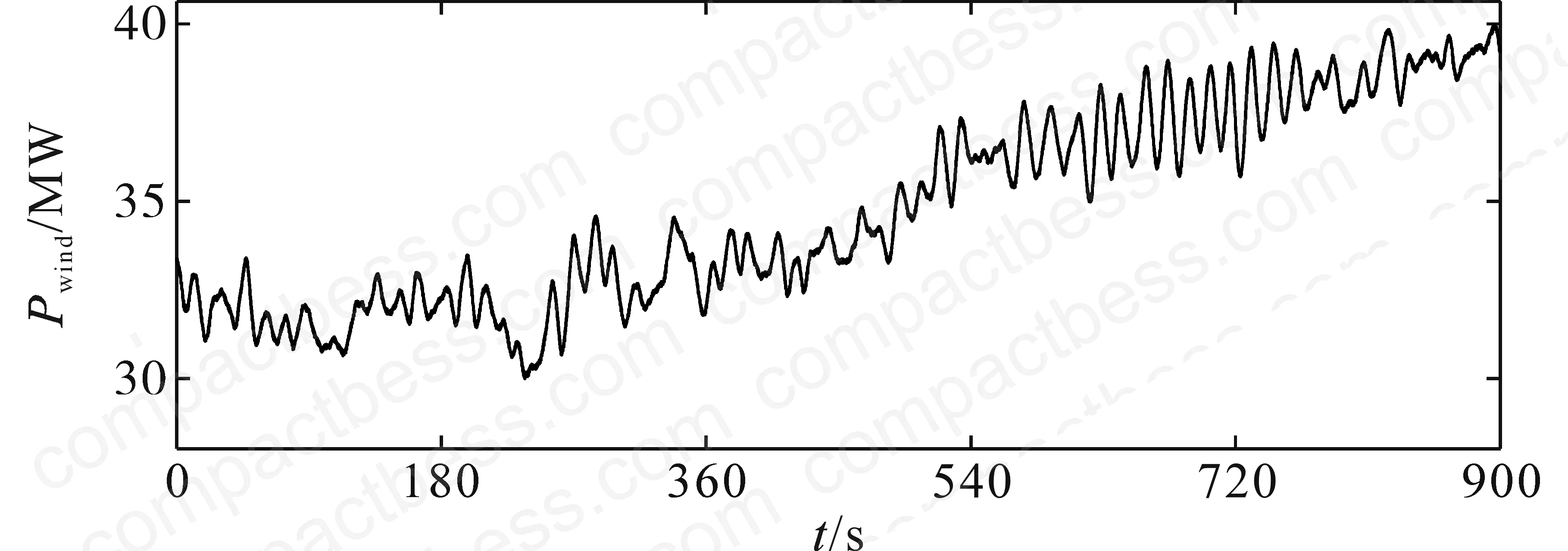

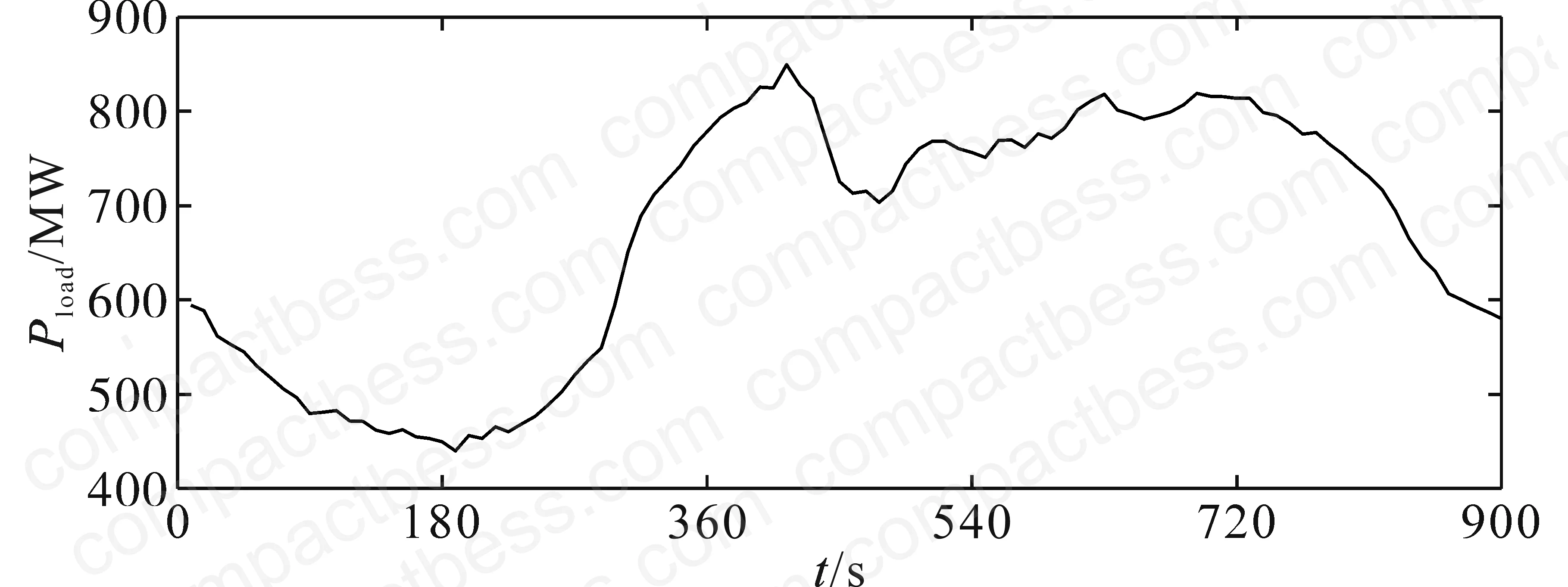

Figure 4/5: Wind power output curve and load power curve — 15-minute regulation interval, 1-second sampling, Xinjiang typical operating day
Figure 4/5: Wind power output curve and load power curve — 15-minute regulation interval, 1-second sampling, Xinjiang typical operating day

Capacity Allocation Results: Four-Algorithm Comparison #

Algorithm Rated Power P_r (MW) Rated Capacity E_r (MW·h) Annualized Net Return F (×10⁷ $) Freq. Regulation Index O₁ SOC Stability Q_soc,r
Standard PSO 10.23 2.83 1.394 0.036 0.1907
PSO_AIW (adaptive inertia weight) 10.12 2.67 1.412 0.031 0.1894
PSO_AVP (adaptive velocity/position) 10.08 2.60 1.426 0.029 0.1882
PSOAIWAVP (dual adaptive) 10.03 2.41 1.458 0.026 0.1871

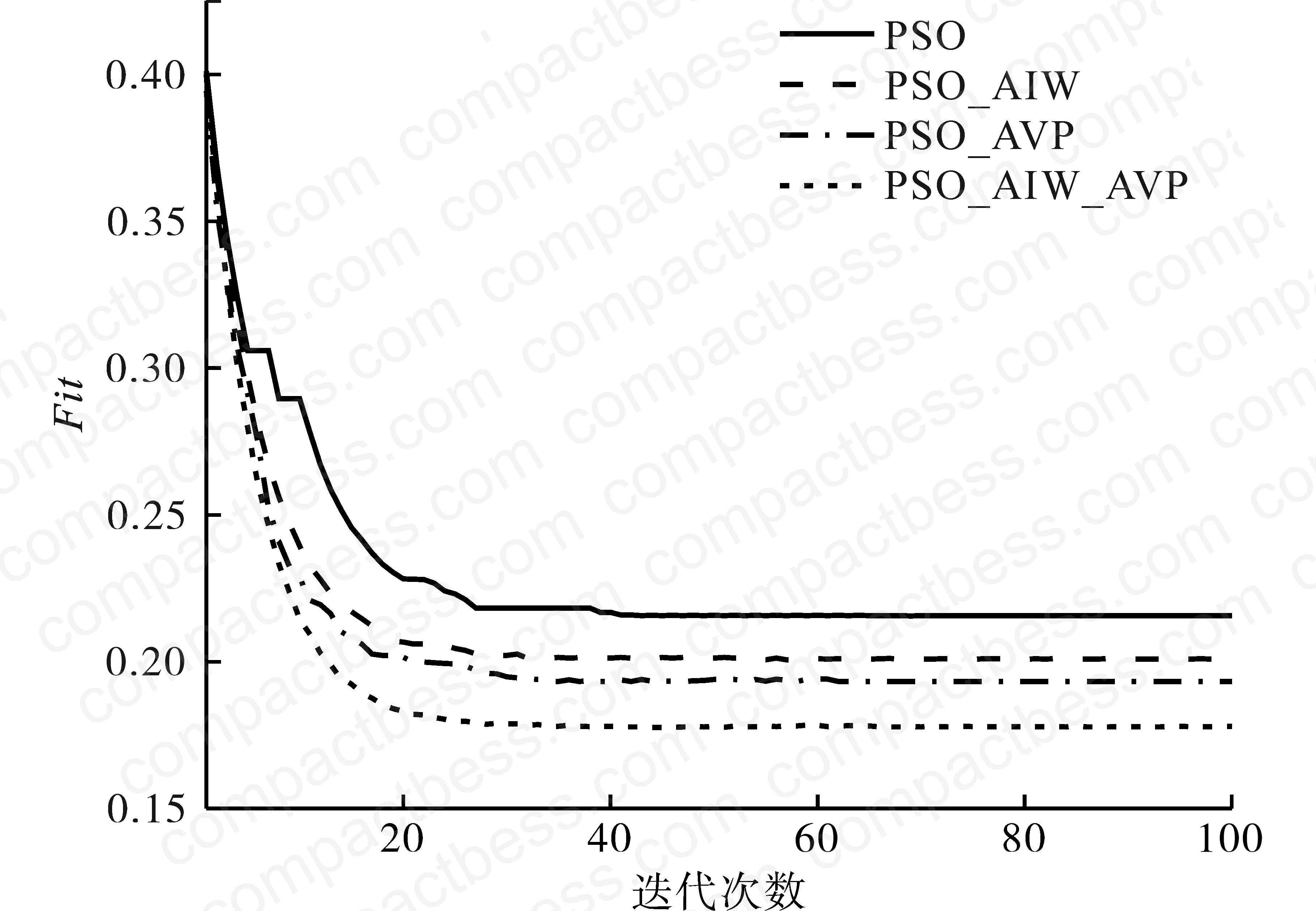

Figure 7: Comparison of four algorithm convergence curves — PSO_AIW_AVP converges at iteration 26 vs. iteration 44 for standard PSO, with fitness value 0.177 vs. 0.216
Figure 7: Comparison of four algorithm convergence curves — PSO_AIW_AVP converges at iteration 26 vs. iteration 44 for standard PSO, with fitness value 0.177 vs. 0.216

The convergence behavior is telling. Standard PSO gets trapped in local optima during iteration intervals [5,7], [8,10], and [27,38], and doesn’t stabilize until iteration 44 with a fitness value of 0.216. PSOAIW and PSOAVP improve this — fitness values stabilize at 0.201 and 0.193 respectively — but both still exhibit premature convergence characteristics. The dual adaptive variant (PSOAIWAVP) converges at iteration 26 with a fitness value of 0.177, a meaningful step below the others.

In supplier qualification, we saw three of six algorithm implementations fail to escape local optima when tested against real frequency excursion data rather than synthetic profiles. The standard PSO implementations consistently under-performed on the O₁ metric when frequency excursions were clustered in time — exactly the kind of profile you get during wind ramp events. This is not a theoretical concern.

From the table above, going from standard PSO to PSOAIWAVP: O₁ drops by 27.78%, Q_soc,r drops by 1.89%, and annualized net return improves by 4.59%. The capacity also comes down from 2.83 MW·h to 2.41 MW·h — roughly 15% less hardware for better performance. That’s the procurement-relevant takeaway.

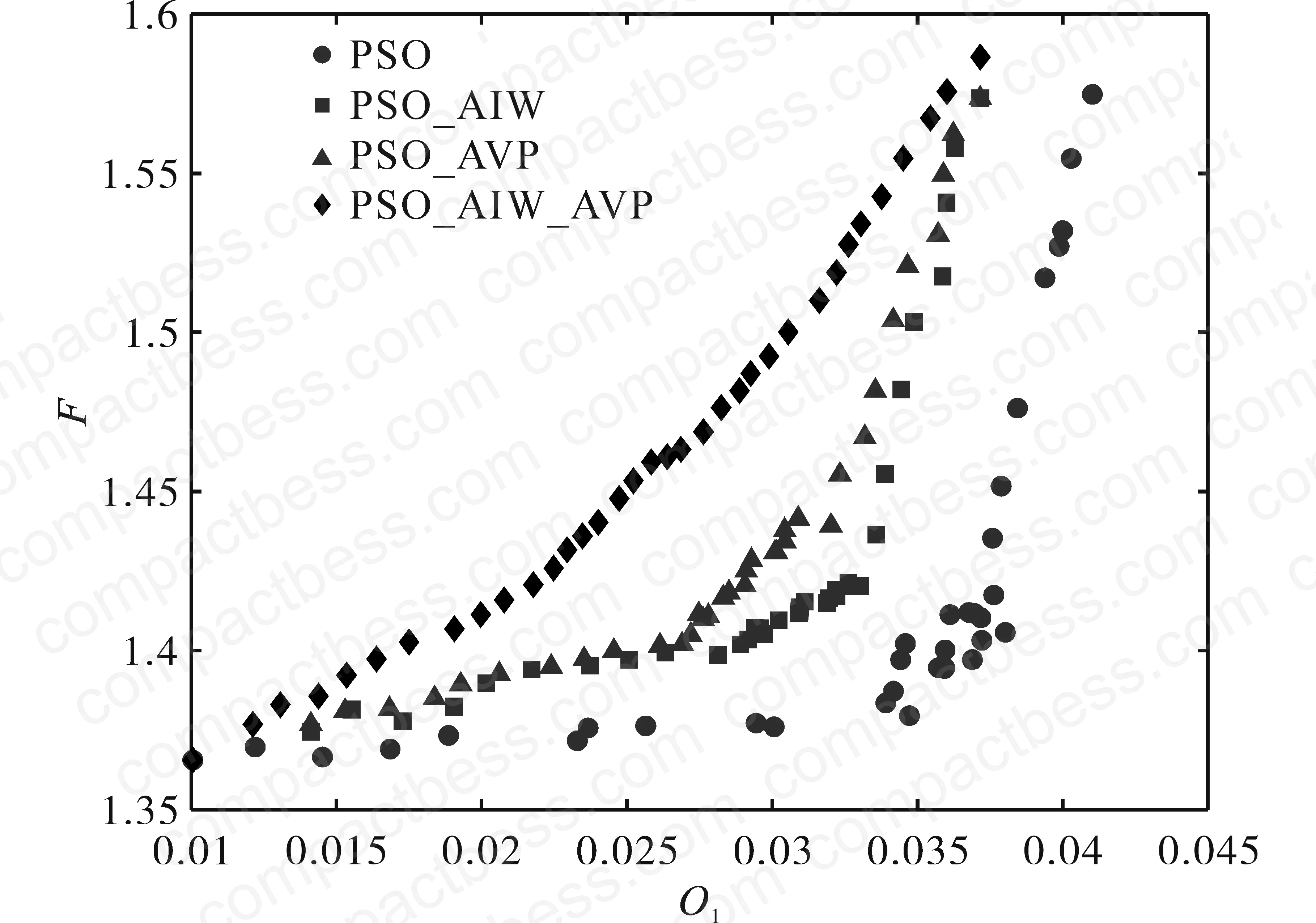

Figure 8: Pareto solution distribution for four algorithms — PSO_AIW_AVP shows more uniform Pareto frontier, indicating better balance between frequency regulation quality and economic return
Figure 8: Pareto solution distribution for four algorithms — PSO_AIW_AVP shows more uniform Pareto frontier, indicating better balance between frequency regulation quality and economic return

Frequency Regulation and Wind Curtailment Results #

The validated system performance on the grid frequency side is concrete. Before BES intervention, frequency deviation peaked at 0.54 Hz relative to the 50 Hz nominal — well outside the ±0.033 Hz dead band. After BES integration with the PSOAIWAVP-optimized configuration, frequency deviation was contained within the ±0.033 Hz band. Maximum residual frequency deviation was 0.0305 Hz.

Figure 10: BES wind power smoothing effect — 1,440 sampling points at 1-minute intervals, showing reduction in high-frequency power fluctuations after BES integration
Figure 10: BES wind power smoothing effect — 1,440 sampling points at 1-minute intervals, showing reduction in high-frequency power fluctuations after BES integration

The BES output profile under PSOAIWAVP shows a maximum output of 5.51 MW, with an optimal operating range defined between 5.51 MW and 11.20 MW (allowing for the standard 15% P_r headroom reserve). The wind smoothing test used 1,440 sampling points at 1-minute intervals — a full 24-hour profile — and high-frequency power fluctuations were significantly reduced, enabling stable grid integration of the wind farm.

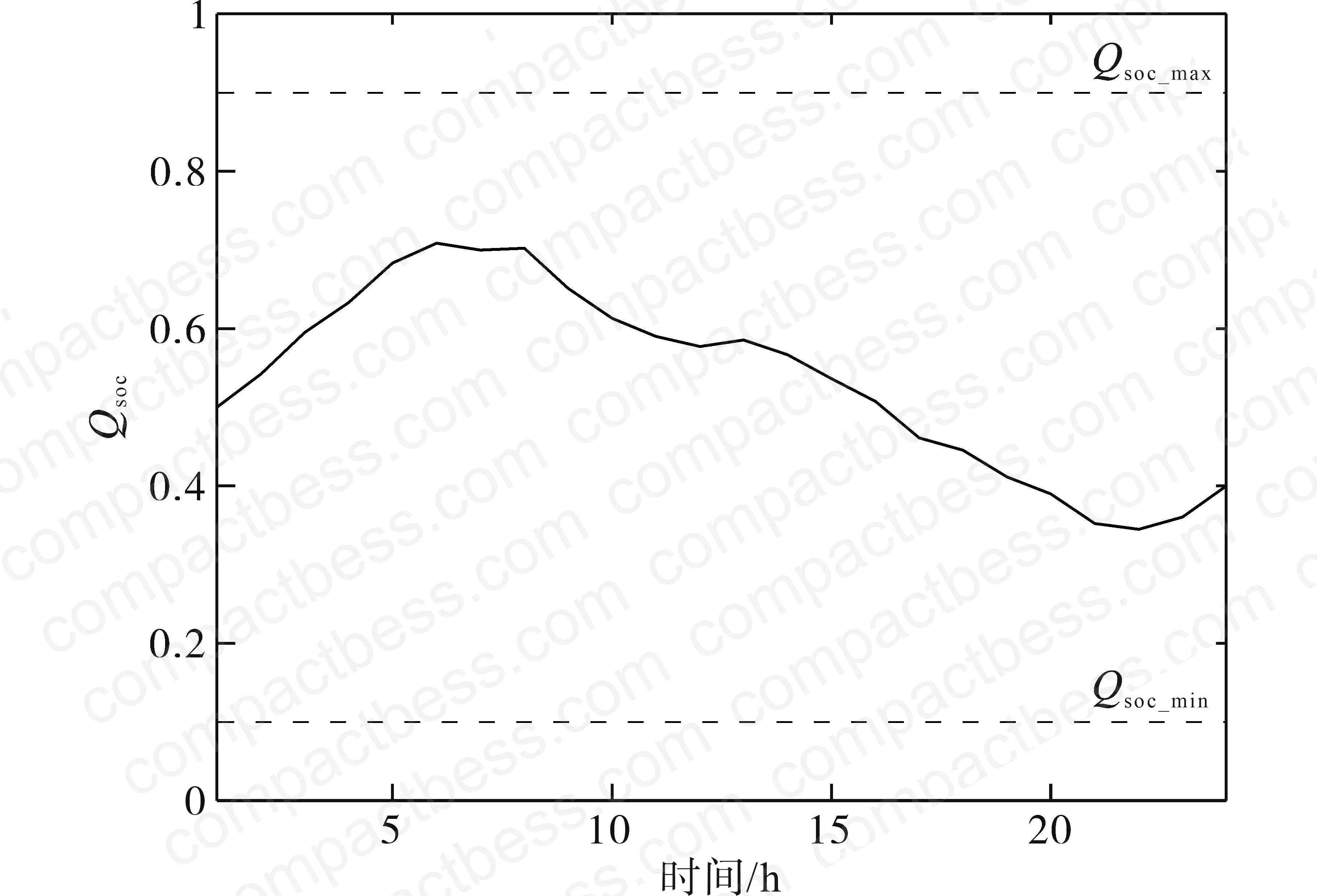

Figure 11: SOC trend after BES configuration — Qsoc maintained near reference value of 0.5 throughout operation, confirming SOC stability metric Qsoc,r = 0.1871
Figure 11: SOC trend after BES configuration — Qsoc maintained near reference value of 0.5 throughout operation, confirming SOC stability metric Qsoc,r = 0.1871

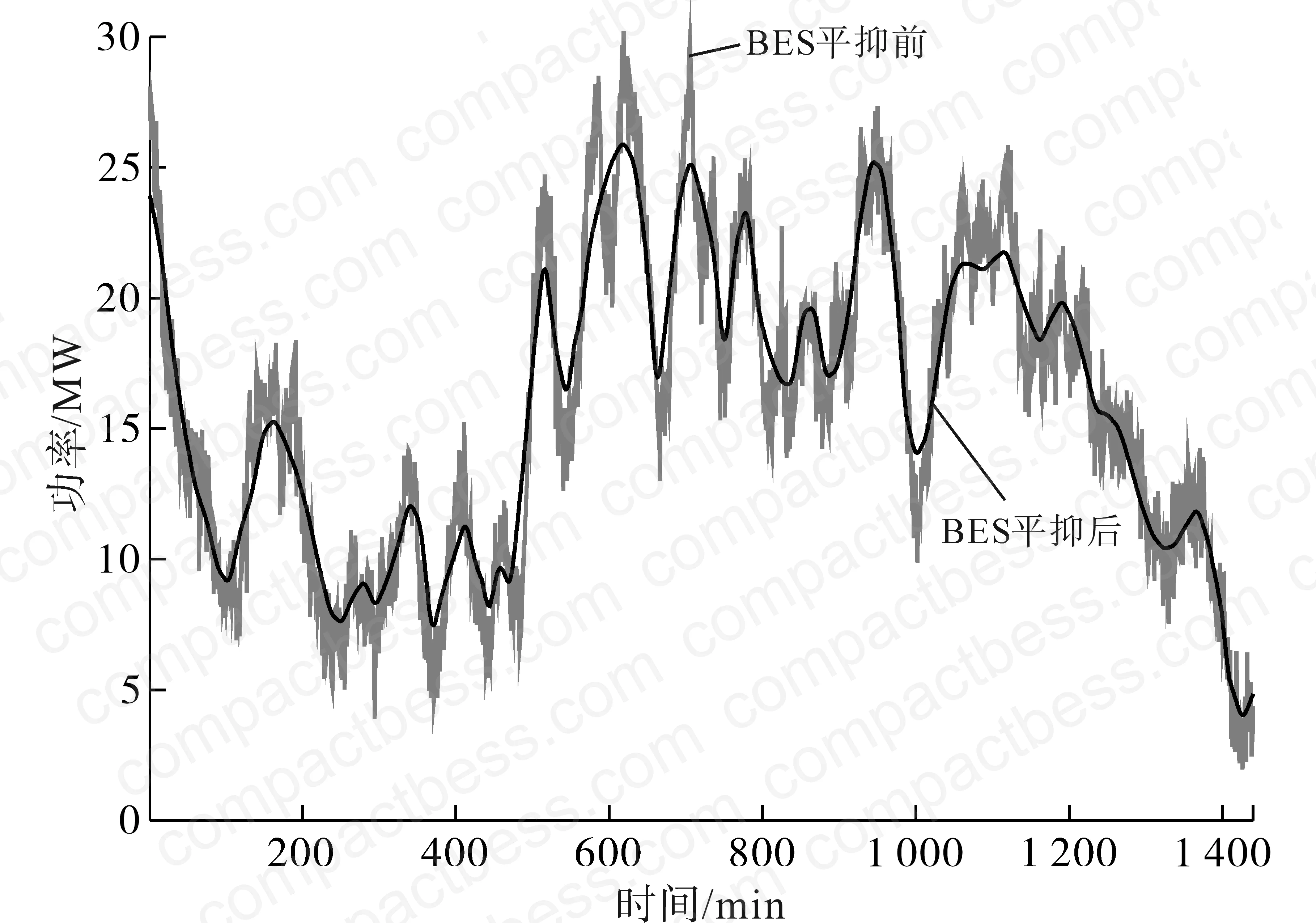

Figure 12: Wind power output after BES smoothing — original high-variance wind output profile transformed to grid-stable power delivery curve
Figure 12: Wind power output after BES smoothing — original high-variance wind output profile transformed to grid-stable power delivery curve

Most procurement teams don’t realize that the economic model for PFR has changed substantially since grid operators began differentiating between capacity-based and performance-based frequency ancillary service payments. This study uses a three-component revenue model — electricity sales, frequency regulation service fees, and carbon trading credits — alongside a full lifecycle cost model covering initial capex, O&M, replacement, disposal, wind curtailment penalties, and shortage penalties. The combined lifecycle period is 20 years with a 6% discount rate. If your supplier’s economic model doesn’t include carbon credit revenue and disposal costs, you’re looking at an incomplete picture.

Wind curtailment reduction came in at 263.9 MW·h and shortage reduction at 233.09 MW·h compared to the unoptimized baseline. Those are annual figures, and at $42/MW·h curtailment penalty and $17/MW·h shortage penalty respectively, that’s a recoverable cost in the range of $15,000–$16,000 per year just from penalty avoidance — before counting the direct frequency service revenue.

For deeper context on how BES SOC estimation accuracy feeds into these control decisions, see our guide on SOC estimation methods. Inaccurate SOC tracking directly degrades the charging strategy zone boundaries and exposes the system to the overcharge/over-discharge penalties described above.

Figure 9: BES output command curve — dual adaptive PSO optimized output profile with and without supplementary charging/discharging in dead band, max output 5.51 MW
Figure 9: BES output command curve — dual adaptive PSO optimized output profile with and without supplementary charging/discharging in dead band, max output 5.51 MW
Figure 3: Dual adaptive PSO capacity allocation flowchart — optimization variables include Qsoc,h, Qsoc,l, Pb, Ps, and Pr, iterated until convergence on optimal Er
Figure 3: Dual adaptive PSO capacity allocation flowchart — optimization variables include Qsoc,h, Qsoc,l, Pb, Ps, and Pr, iterated until convergence on optimal Er

Relevant compliance standards for grid-connected BES systems in this class include IEC 62619:2022 (safety requirements for stationary LIB systems), IEC 62933-2-1 (electrical energy storage system performance requirements), and GB/T 36276 (Chinese national standard for lithium-ion battery energy storage systems for power systems). For export projects, verify whether the destination grid operator also requires conformance to IEEE 1547-2018 for distributed resource interconnection.

For guidance on how series/parallel configuration decisions interact with the power and capacity sizing outputs described here, see the series-parallel configuration section of our engineering docs.

Practical Guidance for Buyers #

When you’re qualifying a BES supplier for a PFR application, ask them to show you the optimization algorithm they use for capacity sizing — and ask them to run it against your actual site frequency data, not a generic test profile. Standard PSO is still common in vendor tools, and as the data above shows, it consistently over-sizes capacity and under-delivers on frequency regulation metrics compared to adaptive variants.

The power-to-energy ratio deserves special attention. A 4:1 ratio (10 MW / 2.41 MW·h) is typical for pure PFR duty in a wind-integrated grid. If a vendor quotes you a 2-hour system (2:1 ratio) for the same application, either they’re sizing for a different use case or the algorithm hasn’t been tuned to your frequency deviation profile.

Budget the SOC management logic as a real engineering deliverable, not a software afterthought. The five-zone SOC strategy and its interaction with the droop control parameters directly determines whether your system earns PFR revenue or incurs penalties. Require the vendor to provide tested charge/discharge strategy documentation with their as-built system delivery.

Finally, verify that the lifecycle cost model in your supplier’s proposal includes disposal costs and carbon credit accounting. Both are increasingly relevant as battery regulations tighten under frameworks like the EU Battery Regulation 2023/1542. Missing these line items will distort your IRR calculation by 2–4 percentage points over a 20-year horizon.

Frequently Asked Questions #

Why does the dual adaptive PSO converge faster than standard PSO for BES capacity optimization?

Standard PSO uses a linearly decaying inertia weight and fixed position update rules, which causes the swarm to cluster prematurely around sub-optimal solutions — especially in multi-modal problems like joint frequency-regulation and economic optimization. The dual adaptive variant addresses this from two directions: the inertia weight adapts dynamically based on convergence progress (transitioning from global to local search at a configurable threshold η), and the position update rule switches between exploration and exploitation modes based on each particle’s fitness relative to the population mean. The result in the Xinjiang test case is convergence at iteration 26 with fitness 0.177, versus iteration 44 at fitness 0.216 for standard PSO — a 41% reduction in required iterations and a meaningful improvement in solution quality.

What SOC reference value should we specify for a PFR application?

The standard reference is 0.5 (50% SOC), and that’s what this implementation uses. It provides equal headroom for charge and discharge response. Some operators target 55–60% if their frequency profile is asymmetric — more upward deviations than downward. Specify the SOC operating window (SOCmin to SOCmax) and the alert zone boundaries (SOCl, SOCh) explicitly in your procurement specification. Don’t leave these as vendor defaults.

Is LFP the right chemistry for primary frequency regulation duty?

Yes, for this duty cycle. PFR involves frequent, shallow charge/discharge cycles rather than deep cycling. LFP handles this better than NMC in cycle life terms, and its thermal stability reduces the risk of thermal events under high cycling rates. The main trade-off is energy density — LFP is heavier per MW·h — but for stationary grid applications, that’s rarely the binding constraint.

How do wind curtailment and shortage penalties factor into the capacity sizing model?

Both are treated as economic costs in the lifecycle model. Curtailment penalties ($42/MW·h in this case) are incurred when the BES cannot absorb excess wind generation due to capacity limits. Shortage penalties ($17/MW·h) apply when the BES is at minimum SOC and cannot supply required frequency support. Both penalty terms directly influence the optimization objective, so the algorithm naturally sizes capacity to minimize their combined present value. The optimized configuration reduced curtailment by 263.9 MW·h and shortage by 233.09 MW·h annually.

Does this optimization model account for battery degradation over the 20-year lifecycle?

Indirectly, through the replacement cost term C_rep in the lifecycle cost model. The number of replacements J within the 20-year period is an input to the economic model, which accounts for the time-discounted cost of battery pack replacement at intervals determined by the cycle life of the selected cell chemistry. It does not model capacity fade as a continuous function — for that level of fidelity, you’d need a coupled degradation model.


Published by compactbess.com Technical Team | Request a sourcing quote
