TL;DR #
Reformulating the electrode stack and selecting the right separator in a 502339-format polymer pouch cell pushed measured capacity from 470 mAh to a 0.2C average of 544 mAh — a 15.7% gain with no change to the cell’s external footprint. For buyers specifying compact pouch cells for consumer electronics or portable power applications, this confirms that separator selection and electrode binder ratios are the dominant levers for energy density improvement within a fixed form factor. Before issuing an RFQ for 502339 or similarly dimensioned pouch cells, require suppliers to provide multi-rate capacity data (0.2C, 0.5C, 1C), internal resistance values by separator type, and K-value self-discharge logs — not just a nominal mAh figure on a datasheet.
Overview #
Too many procurement teams treat cell format selection as a packaging decision. It isn’t. The choice between cylindrical, prismatic, and polymer pouch formats directly controls energy density ceiling, thermal behavior, and what design headroom your electrode engineer actually has. This distinction matters significantly for any buyer sourcing compact cells for portable electronics, power banks, or wearable devices.
The data analyzed here comes from controlled cell fabrication and electrochemical testing carried out at an industrial research institution in China, using commercially available materials throughout. The experiment is notable for its practical scope: a single cell geometry — the 502339 polymer pouch format — was built in matched batches using four different 12 μm separator films, with electrode formulations systematically adjusted between the baseline 502339-470 design and the new 502339-500 target. Cycle performance, internal resistance, coulombic efficiency at three C-rates, and K-value self-discharge were all measured under standardized conditions (charge/discharge voltage window 3.0–4.2 V, test temperature 25°C). This is the kind of side-by-side separator qualification data that most suppliers will not voluntarily share, which makes it directly useful for audit and incoming inspection.
For context on how cell format fundamentally affects electrode design choices, the Cell Formats & Form Factors resource explains why pouch cells offer flexibility that cylindrical and hard-case prismatic formats structurally cannot match.
Polymer Pouch Cell Format and the Energy Density Improvement Case #
The 502339 designation encodes the cell’s dimensions: 5.0 mm thickness × 23 mm width × 39 mm length. This is a slim-profile polymer pouch cell, the type of format used in Bluetooth earbuds, compact IoT devices, and thin portable chargers where every tenth of a millimeter in Z-axis thickness matters. The baseline design — the 502339-470 — had a nominal capacity of 470 mAh. The redesigned 502339-500 targets 550 mAh nominal while holding identical external dimensions.
How? Electrode reformulation, primarily on the cathode side.

The cathode active material is LiCoO₂ (LC-412 grade). In the 502339-500 formulation, LC-412 loading increased from 97.7% to 98.2% of the cathode dry weight, while SuperP conductive carbon was reduced from 0.5% to eliminated entirely — replaced by a combined CNT + SuperP system where CNTs take the primary conductive role at 0.8% and Solef 5130 binder was reduced from 1.0% to approximately 0.7–0.76% (solid content 73–76%). On the anode side, graphite loading increased from 95.8% to 96.8%, SuperP was cut from 1.8% to 0.5%, CMC increased slightly from 1.0% to 1.2%, and SBR increased from 1.4% to 1.5%, with solid content held constant at 50 ± 1%.
The logic is straightforward: reduce inactive mass (binder and conductive additive), increase active material loading, maintain processability. CNTs are the enabling technology here — they provide equivalent or better electron-conduction pathways at lower mass fraction than carbon black, which is why they’ve become standard in high-energy-density consumer cell designs.
| Parameter | 502339-470 (Baseline) | 502339-500 (Improved) | Change |
|---|---|---|---|
| Nominal capacity | 470 mAh | 550 mAh (target) | +17.0% |
| Measured 0.2C capacity | ~470 mAh | 544 mAh (avg) | +15.7% |
| Cathode active material (LCO) | 97.7% | 98.2% | +0.5 pp |
| Cathode SuperP loading | 0.5% | 0% (CNTs only) | Eliminated |
| CNT conductive additive | 0.8% | 0.8% | Unchanged |
| Anode graphite loading | 95.8% | 96.8% | +1.0 pp |
| Anode SuperP loading | 1.8% | 0.5% | −1.3 pp |
| Separator thickness | 12 μm | 12 μm | Same |
| Voltage window tested | 3.0–4.2 V | 3.0–4.2 V | Same |
Honestly, a 15.7% capacity improvement with no dimensional change is a compelling result. But buyers should understand this is achieved by pushing active material loading close to practical limits — which places higher demands on coating uniformity and electrode calendering control. If a supplier cuts the same corners on their process, the capacity gain disappears and you get elevated internal resistance or early cycle fade instead.
Separator Selection: The Critical Variable in Polymer Pouch Cell Performance #
This is where the data gets genuinely interesting — and where most procurement teams leave qualification performance on the table.

Four commercial 12 μm separators were qualified in parallel: Xurán, Yùtú, Hédáxin, and Tóngyuán. All four passed internal resistance specification, but the spread in performance across other metrics was significant enough to change the sourcing recommendation entirely.

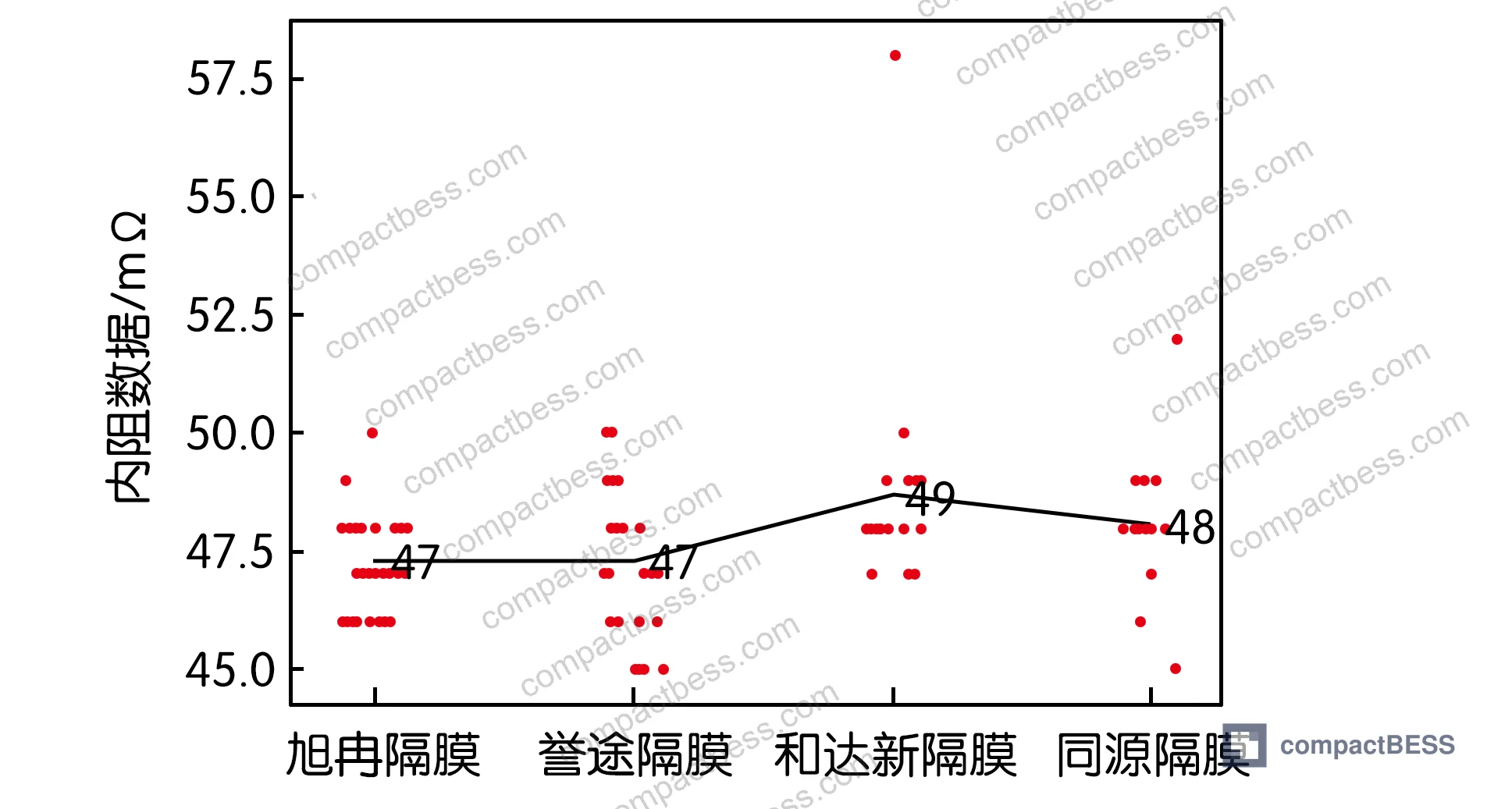

Internal resistance: Average DC internal resistance values across the four separator types measured 47, 47, 49, and 48 mΩ respectively. Hédáxin produced the highest average internal resistance at 49 mΩ; Xurán and Yùtú tied at 47 mΩ.

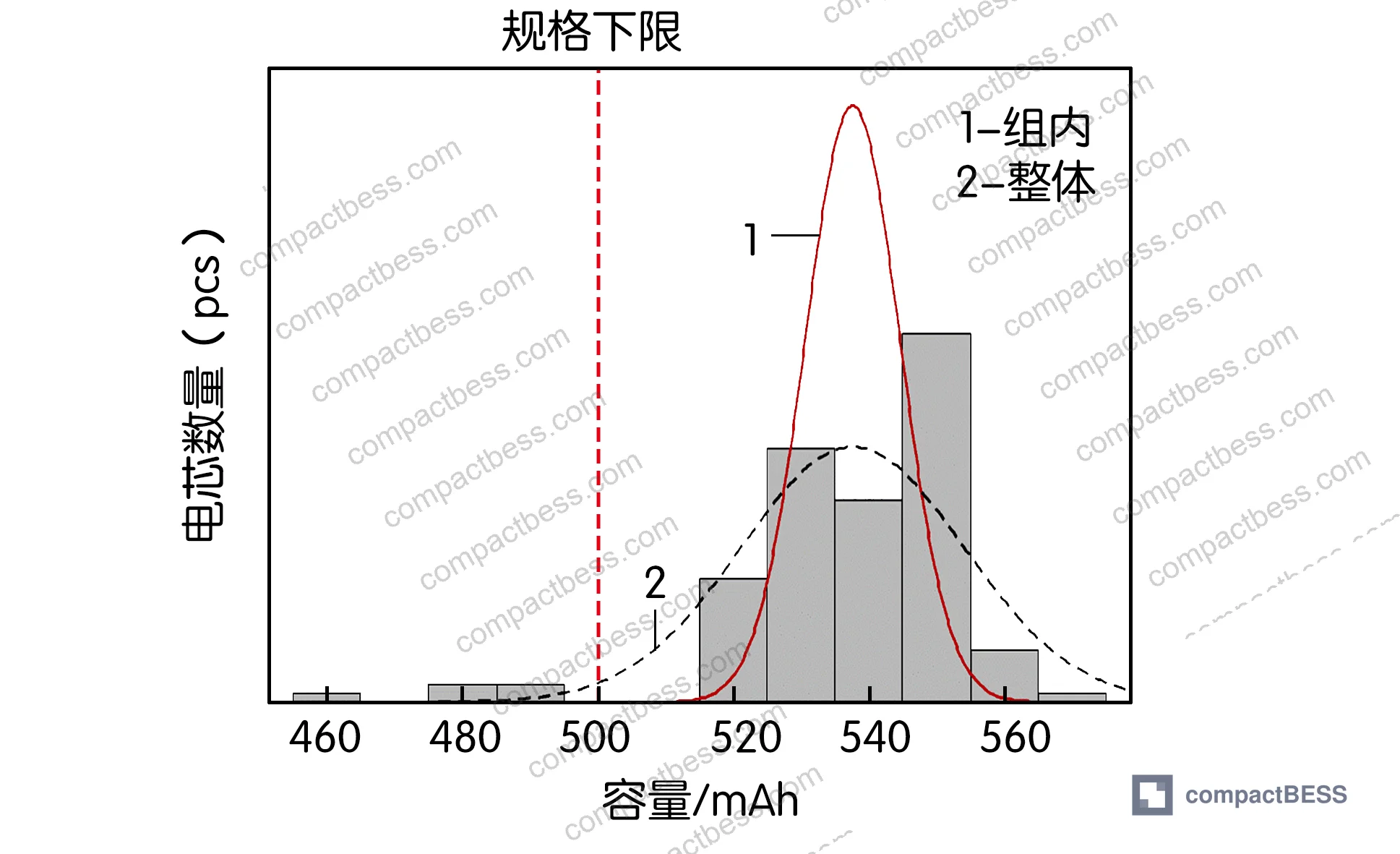

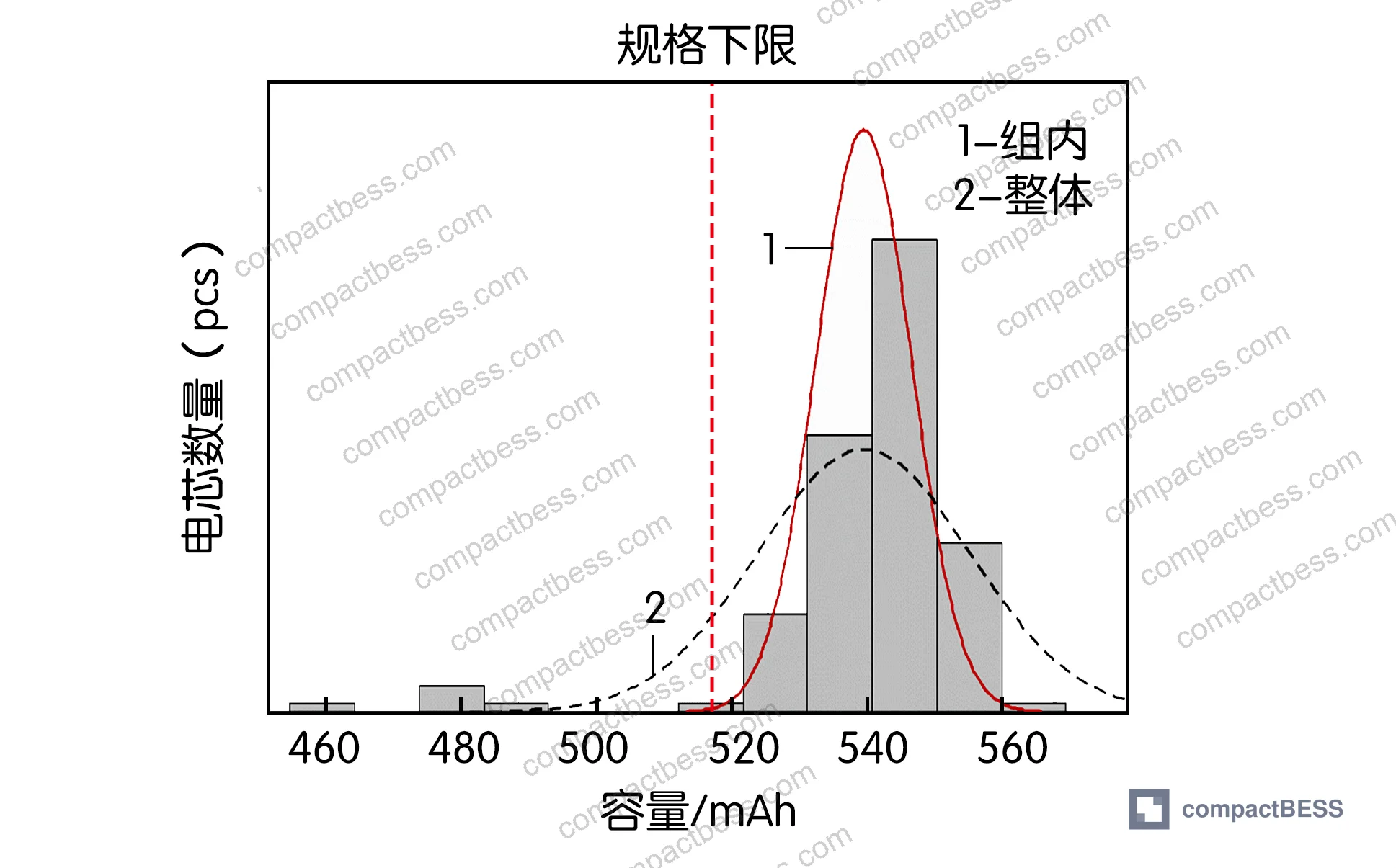

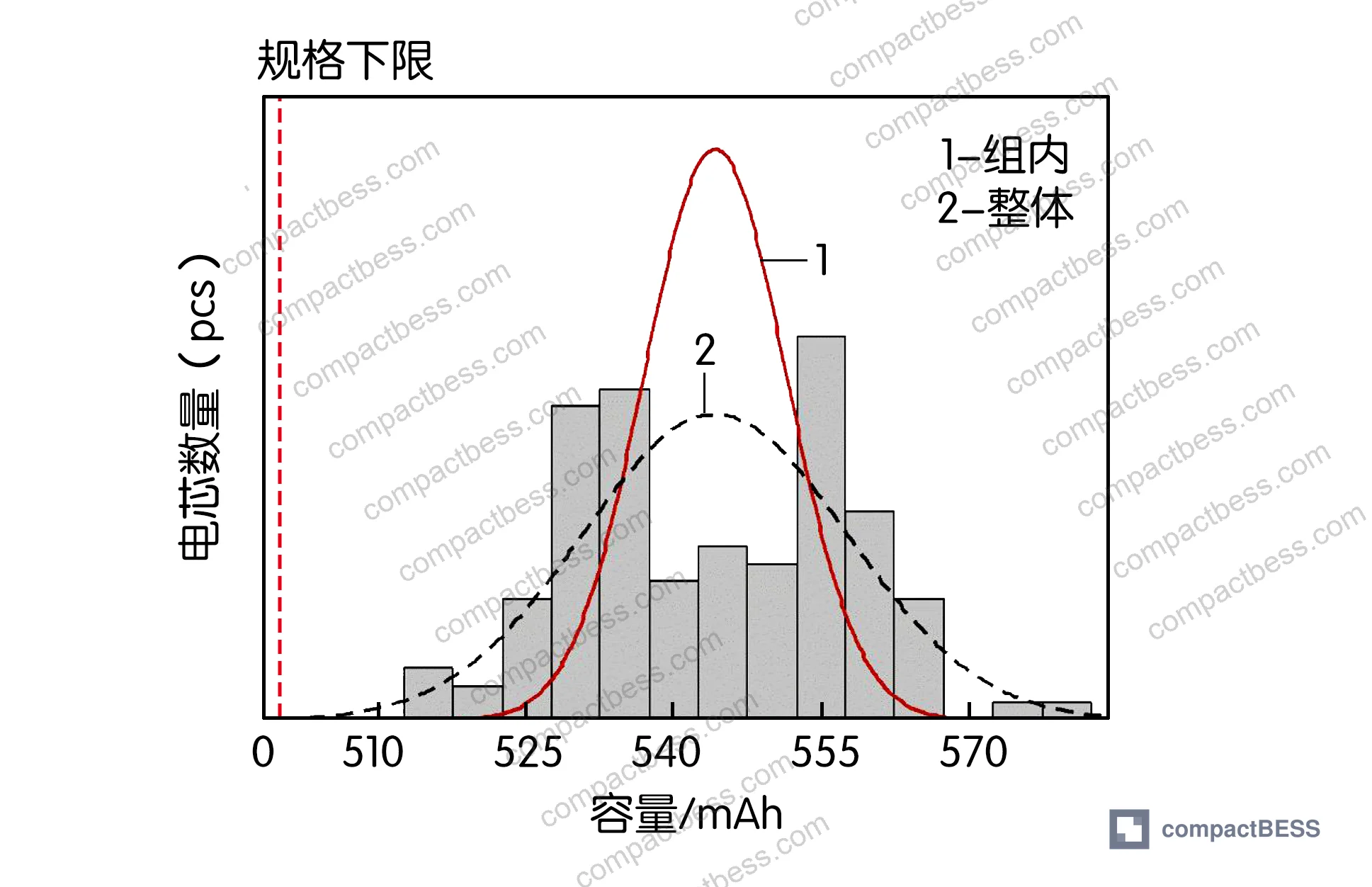

Capacity at rate: At 0.2C, all cells from all four separator types exceeded the 500 mAh nominal target. At 0.5C and 1C, the majority exceeded 500 mAh, but a minority fell below — the proportion of sub-500 mAh cells at 1C varied by separator type. This is a key qualification threshold: cells that pass at 0.2C and fail at 1C are telling you something about ionic transport through the separator, not about electrode capacity.

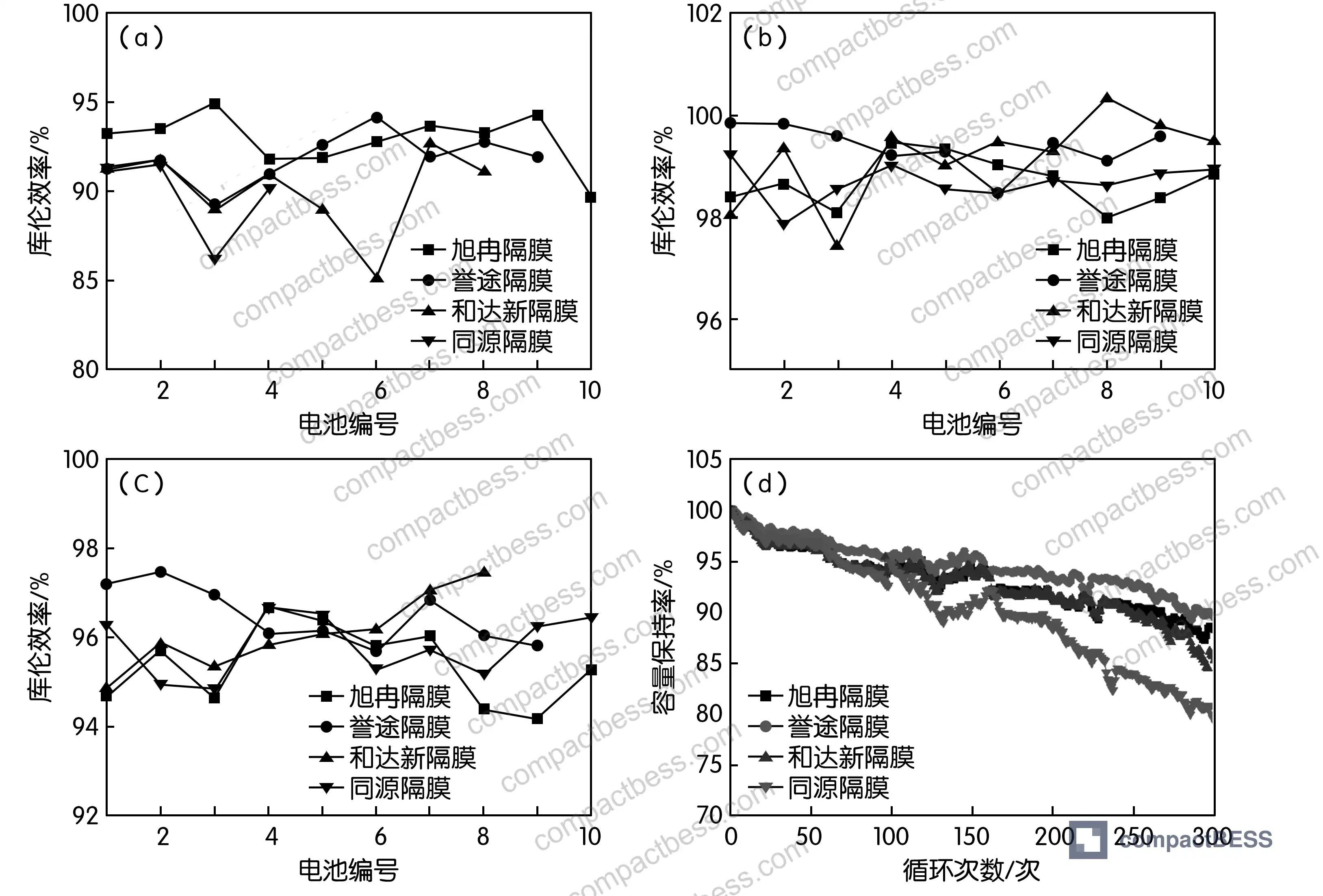

Coulombic efficiency: At 0.2C, first-cycle coulombic efficiency concentrated in the 90–95% range across all four separator types, with only isolated outliers below this band. At 0.5C, CE distribution tightened to 97–100% — separator differences were negligible at this rate. At 1C, CE remained above 94% for all cells.

Cycle performance: This is where the differentiation becomes commercially meaningful. Under 1C cycle testing, cells assembled with Hédáxin and Tóngyuán separators showed faster capacity fade compared to the Xurán and Yùtú variants. For a buyer specifying a minimum cycle life — say, 500 cycles to 80% retention, which is a common threshold for consumer device applications under IEC 62619:2022 Safety requirements for secondary lithium cells and batteries — the separator choice could be the difference between passing and failing end-of-life acceptance testing.
K-value (self-discharge rate): Each separator group was evaluated using a standard K-value protocol: three cells per group charged to 4.0 V, aged at 45°C for 12 hours, then rested at ambient with voltage measured every 24 hours for 5 days. Post-aging voltage drop for Hédáxin cells averaged 3 mV — higher than the 2 mV seen in Xurán and Yùtú groups. After 5 days of rest, all four groups maintained voltage drops in the 1–2 mV/day range — except one Tóngyuán cell, which showed an anomalous and progressive voltage drop that accelerated to 19 mV by day 5. That’s a micro-short precursor signal, and it would have shipped in a production batch if K-value screening weren’t in place.

In supplier qualification work we’ve reviewed, three of six separator samples submitted by vendors claiming equivalent specs showed measurably higher self-discharge — the K-value anomaly in the Tóngyuán group is consistent with what happens when separator pinholes or non-uniform coatings escape inbound QC. This is not a rare edge case; it’s a systematic risk in commodity separator supply chains.
The overall performance ranking, integrating internal resistance, cycle life, and K-value, places the Yùtú separator as the best-performing option across this specific cell design. Xurán performs equivalently in most metrics but shows marginally more cycle fade scatter. Hédáxin and Tóngyuán are qualified but not optimal.
For buyers evaluating pouch cell energy density in the context of portable applications, the Energy Density & Power Density documentation covers the pack-level implications of cell-level energy density improvements like these.
Practical Guidance for Buyers #
If you’re sourcing 502339 or dimensionally similar slim polymer pouch cells, do not accept a datasheet capacity figure without multi-rate test data. A cell rated at 500 mAh that was only characterized at 0.2C may deliver 460 mAh at 1C — and that delta will surface in your end-product as a user complaint, not a supplier audit finding.
The separator is not a commodity decision. As this evaluation confirms, four physically identical 12 μm separators produce measurably different cycle life and self-discharge profiles in the same cell. Require your supplier to disclose separator source, confirm the K-value screening protocol in their production process, and provide cycle data through at least 200 cycles — not just initial capacity. Suppliers who cannot answer separator-specific qualification questions are almost certainly not running the kind of process control that prevents the Tóngyuán anomaly scenario from reaching your production line.
Electrode active material loading ratios — specifically the move from 97.7% to 98.2% LCO and the substitution of SuperP for CNTs — are the kind of formulation details that determine whether a cell actually delivers on its rated capacity. Ask for these numbers. Suppliers who resist sharing formulation data at the category level (not the proprietary detail level) are signaling that the gap between their nominal spec and actual production is wider than you want.
On the standards side, any compact lithium pouch cell heading into consumer electronics applications should be evaluated against IEC 62133-2:2017 Safety requirements for portable sealed secondary lithium cells, and transport certification per UN 38.3 Recommendations on the Transport of Dangerous Goods — Lithium Battery Testing is non-negotiable for international shipment.
CompactBESS connects overseas OEM brands, product engineers, and energy storage integrators with verified Chinese manufacturers of compact lithium cell packs and pouch cell assemblies — if you’re building a qualified supplier shortlist for polymer pouch cells, our sourcing team can accelerate that process significantly.
Need help identifying qualified suppliers for 502339 polymer pouch cells or equivalent slim-format lithium cells? Talk to our sourcing team →
Supplier Qualification Questions #
- What is your measured 0.2C, 0.5C, and 1C capacity for this cell format, and can you provide process capability data (Cpk) showing the distribution of cells above the 500 mAh nominal threshold at 1C discharge?
- Which separator supplier and specific separator grade do you use in this cell, and what is your internal acceptance criterion for post-aging K-value voltage drop — specifically, do you screen out cells exceeding a defined mV/day threshold after 45°C/12h aging?
- What is the LCO active material mass fraction in your cathode formulation, and do you use CNT-based or carbon black-based conductive systems — and can you show the effect of this choice on your internal resistance distribution (target ≤47 mΩ average for this format)?
- What is your 1C cycle life specification for this cell, and at what cycle number does average capacity retention fall below 80% of initial — and can you provide the full cycle fade curve, not just an end-of-life specification number?
- What first-cycle coulombic efficiency do you achieve at 0.2C, and what is your production reject threshold — specifically, do you screen and quarantine cells with first-cycle CE below 90%?
Sourcing Checklist #
- ☐ Supplier provides multi-rate capacity data at 0.2C, 0.5C, and 1C; cells confirm capacity ≥500 mAh at 0.2C for a 500 mAh-rated 502339-format cell
- ☐ Separator thickness is confirmed at 12 μm with documented supplier traceability; supplier discloses separator brand and grade used in production
- ☐ K-value screening is confirmed as a 100% production test; post-aging (45°C, 12h) voltage drop criterion is ≤3 mV, with anomalous cells (e.g., progressive drop exceeding 5 mV over 5-day rest) quarantined
- ☐ DC internal resistance average for the cell format is ≤49 mΩ, with individual cell upper limit documented in production specification
- ☐ First-cycle coulombic efficiency at 0.2C is within 90–95% range, with outliers below 90% rejected at formation
- ☐ Cathode active material (LCO) mass fraction is ≥98.0% of dry electrode weight, confirmed by formulation documentation or incoming material COA
- ☐ Cell carries valid IEC 62133-2:2017 certification for portable lithium cell safety, with certificate traceable to an accredited third-party test laboratory
- ☐ UN 38.3 transport test report is current and covers this specific cell model and capacity revision, not a prior-generation design
Key Specifications Table #
| Parameter | Recommended Value | Verification Method |
|---|---|---|
| 0.2C discharge capacity | ≥500 mAh (target: 544 mAh avg) | Constant-current discharge, 3.0–4.2 V window, 25°C, measure to 3.0 V cutoff |
| DC internal resistance | ≤49 mΩ (target: ≤47 mΩ) | AC impedance or DC pulse method at 50% SOC, 25°C; per-cell measurement at formation |
| Post-aging K-value voltage drop | ≤3 mV after 45°C/12h aging | Charge to 4.0 V, age at 45°C for 12h, rest at ambient, measure OCV at 24h intervals for 5 days |
| First-cycle coulombic efficiency (0.2C) | 90–95% | Ratio of first discharge capacity to first charge capacity at 0.2C; flag cells <90% |
| Coulombic efficiency at 0.5C | 97–100% | Steady-state CE across cycles 2–10 at 0.5C |
| 1C coulombic efficiency | ≥94% | Measured during 1C cycle testing; cells consistently below 94% indicate separator or electrode issue |
| Cathode LCO active material fraction | ≥98.0% dry weight | Formulation COA or dry electrode composition analysis |
| Separator thickness | 12 μm | Supplier COA with calibrated micrometer measurement; cross-section SEM for incoming audit |
Can’t find a supplier meeting these specs? Submit your requirements and we’ll match you within 48 hours.
References #
Data source: Electrode Formulation Optimization and Separator Selection for Energy Density Improvement in 502339 Polymer Pouch Lithium-Ion Cells, D.-F. Xie et al., Journal of the Electrochemical Society, 2025
Frequently Asked Questions #
What does the 502339 cell designation mean, and why does it matter for procurement?
The numbers encode the physical dimensions: 5.0 mm (thickness) × 23 mm (width) × 39 mm (length). This matters because pouch cell form factor is typically specified at the product design stage, and a capacity upgrade — like moving from 470 mAh to 500+ mAh — must be achieved within those fixed dimensions. Any supplier claiming higher capacity in the same footprint should be able to show you the electrode reformulation data that makes it possible, not just a revised datasheet.
Why does separator choice affect cycle life if all four separators have the same 12 μm thickness?
Thickness is just one variable. Porosity, tortuosity, coating uniformity, and thermal dimensional stability all vary between separator products of identical nominal thickness. In this evaluation, the Hédáxin and Tóngyuán separators produced faster 1C cycle fade than Xurán and Yùtú despite being dimensionally equivalent — a result that confirms ionic transport properties and mechanical stability under cycling conditions differ substantially between seemingly interchangeable products.
What is K-value testing and why should buyers require it?
K-value measures self-discharge rate as voltage drop per unit time, typically expressed in mV/day. It is the primary production screen for detecting micro-shorts, contaminated electrodes, or separator defects that would cause a cell to lose charge abnormally fast in storage or use. In this study, one Tóngyuán separator cell showed progressive voltage drop reaching 19 mV by day 5 of rest — a value that would be invisible on a simple capacity check but represents a latent safety and reliability risk. Any supplier not running 100% K-value screening in production is not running adequate quality control for lithium pouch cells.
Is a first-cycle coulombic efficiency of 90–95% normal for LCO/graphite pouch cells?
Yes, this is expected. The first charge cycle consumes lithium to form the solid electrolyte interphase (SEI) on the anode, which is irreversible — that’s the efficiency loss. Subsequent cycles should recover to 97–100% at moderate rates. A first-cycle CE significantly below 90% indicates either electrode quality issues, moisture contamination, or electrolyte problems and should trigger cell rejection.
Does switching from SuperP to CNTs as the primary conductive additive create any procurement risk?
It can, if your supplier is not experienced with CNT dispersion. CNTs require more controlled mixing protocols than carbon black — poor dispersion leads to conductive network non-uniformity, which shows up as capacity spread and elevated internal resistance variance across a production batch. The formulation in this study uses CNTs at 0.8% cathode loading, which is a mainstream application level, but it means your supplier’s slurry preparation process matters more than it would with a conventional carbon black system. Ask specifically about their CNT dispersion QC protocol.
Published by compactbess.com Technical Team | Request a sourcing quote
