TL;DR #
Global patent analysis across 7,560+ lithium-ion battery energy storage safety filings reveals that thermal management, state monitoring, and fire suppression now dominate R&D investment — yet Chinese-origin patents, which represent 62% of global volume, have only 2.3% achieving top-tier value scores, meaning most supplier safety claims are backed by volume rather than depth. For procurement engineers, this gap between patent quantity and quality is a direct signal: supplier safety documentation requires rigorous independent verification, not face-value acceptance. Before issuing any RFQ for energy storage cells or pack assemblies, demand third-party test data against IEC 62619:2022 rather than relying on supplier-provided safety certificates alone.
Overview #
If you’ve spent any time qualifying lithium-ion battery suppliers for stationary energy storage applications, you already know the disconnect: the safety datasheets look impressive, the certifications stack up, and then a thermal runaway incident happens anyway. Understanding why that gap persists requires looking at where the actual technical development is concentrated — and a comprehensive patent landscape analysis covering over 7,560 merged filings from 2002 through recent years, conducted by researchers at a leading Chinese university of science and technology using the IncoPat global patent database, gives us a structured view of exactly that.
The analysis spans 120 countries and organizations, classifies patents under IPC technical codes, and applies a standardized patent value scoring system (0–10 scale) to assess not just quantity but commercial and technical significance. Four primary safety technology domains were mapped: material improvement, state monitoring and fault diagnosis, thermal and circuit balance management, and fire suppression and explosion prevention. The cumulative installed base context makes this relevant for buyers right now — global lithium-ion battery storage reached 23.1 GW of cumulative deployment, representing 90.9% of all electrochemical storage, and that scale means safety technology maturity directly affects procurement risk.
This is also where the data gets uncomfortable for buyers who rely on country-of-origin as a quality proxy.
Patent Landscape for Lithium-Ion Battery Safety: What the Numbers Actually Mean for Cell Selection #

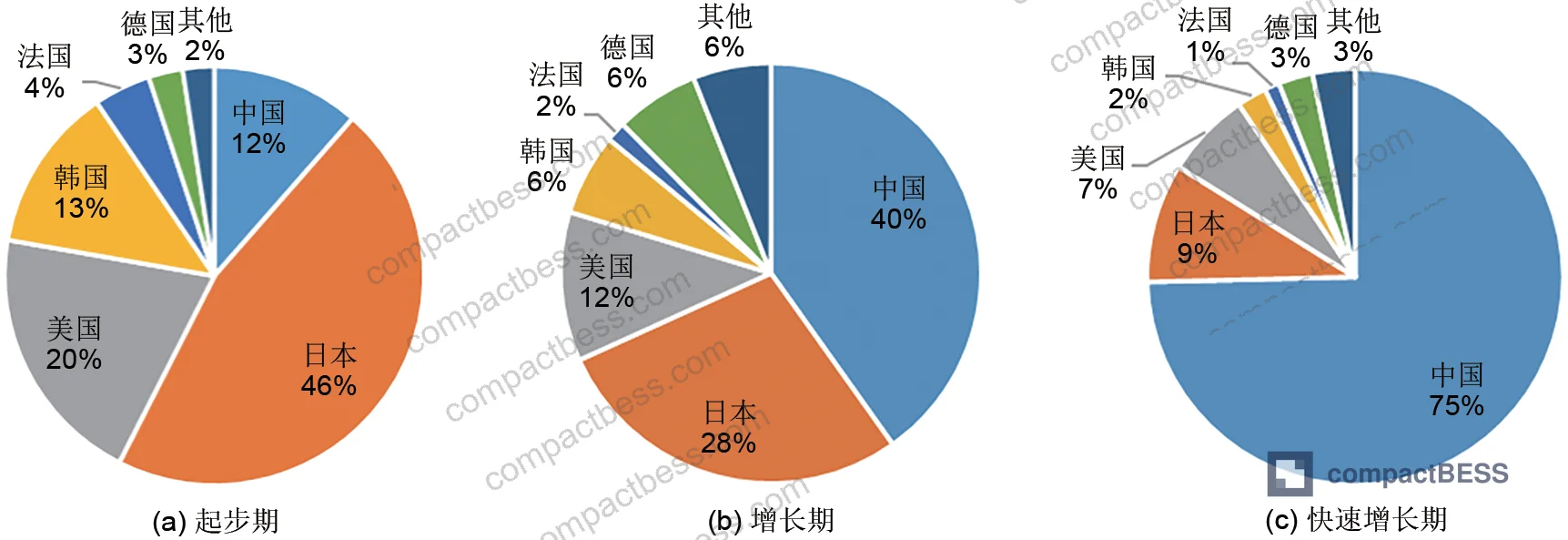

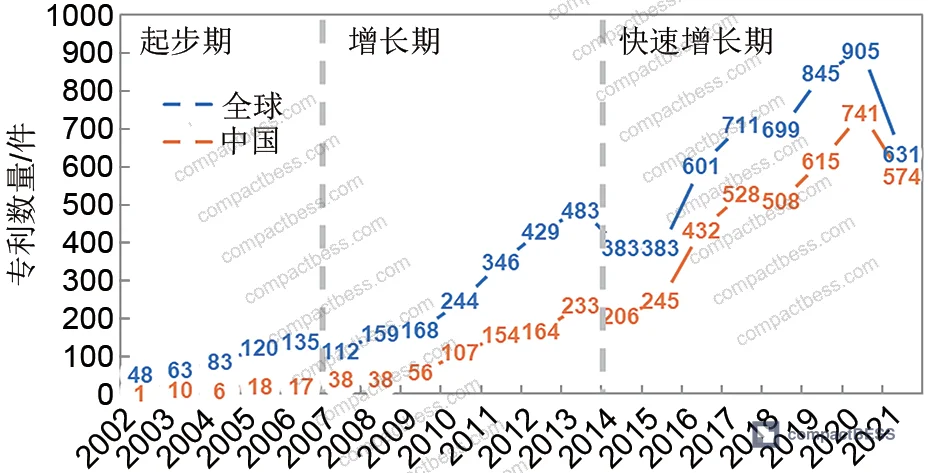

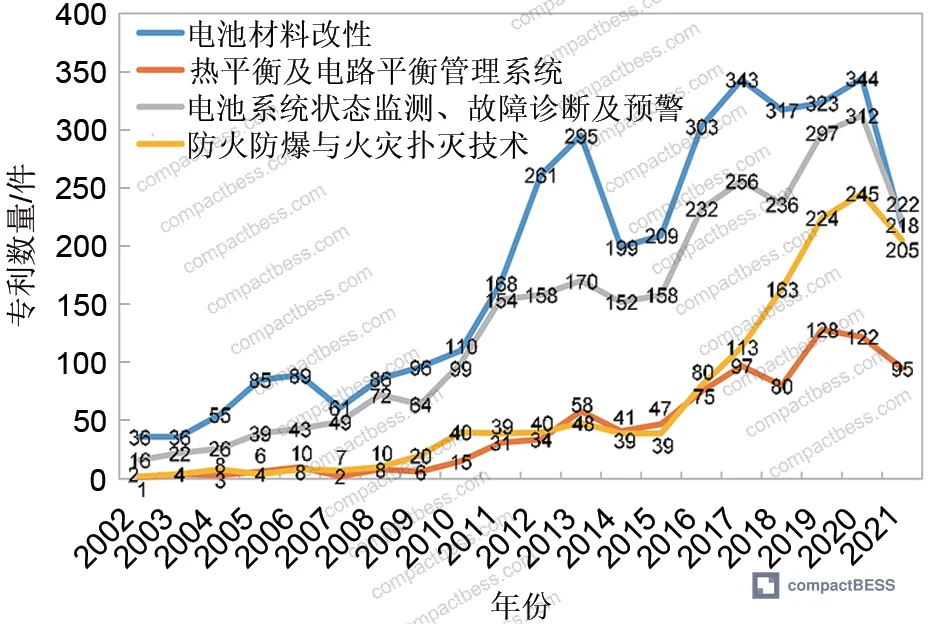

The global patent filing trajectory followed three distinct phases: a startup period with sparse activity, a growth period from roughly 2007 to 2013 as large-format energy storage deployments began scaling, and a rapid acceleration phase from 2014 onward that shows no sign of plateauing. This isn’t academic history — it maps directly onto which supplier technologies are mature versus which are still being developed under active IP competition.

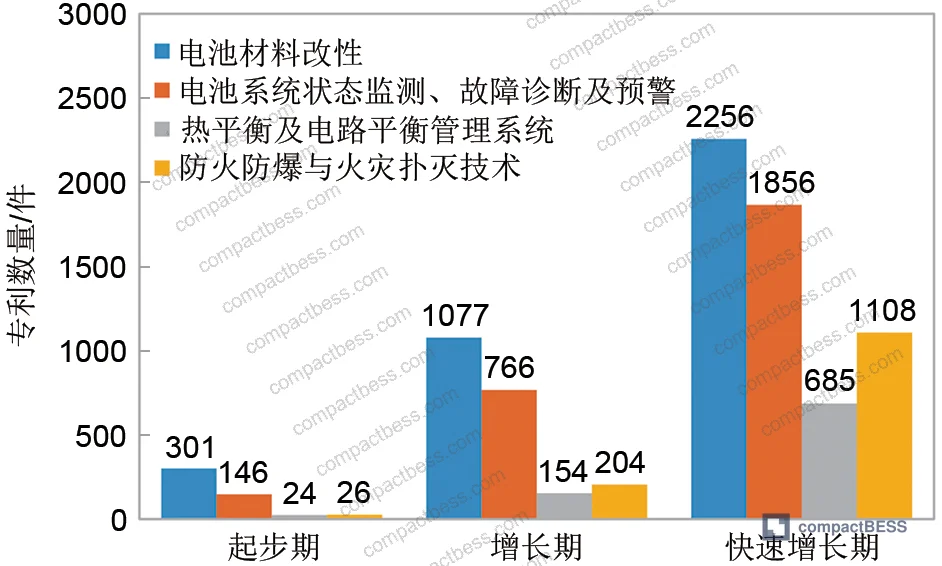

Breaking down the four search clusters gives you a sense of where R&D effort concentrates:
- Material improvement patents: 3,630 merged filings — covering cathode, anode, electrolyte, and separator modification
- Thermal management patents: 865 merged filings — covering cooling architectures and thermal runaway containment
- State monitoring and fault diagnosis: 2,777 merged filings — SOC estimation, SOH tracking, early warning systems
- Fire suppression and explosion prevention: 1,342 merged filings — active suppression and passive containment
The material improvement and state monitoring domains together account for roughly 85% of total filings. That tells you where the industry has been investing — and it’s not primarily in fire suppression. For a buyer specifying cells for a large-format stationary system where thermal propagation is the catastrophic failure mode, this distribution should give you pause.
Country-Level Patent Volume vs. Quality #

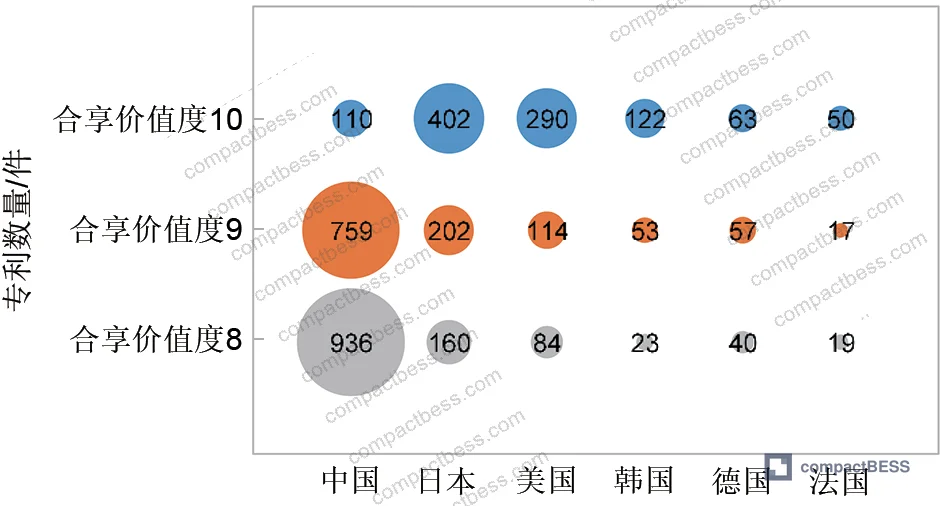

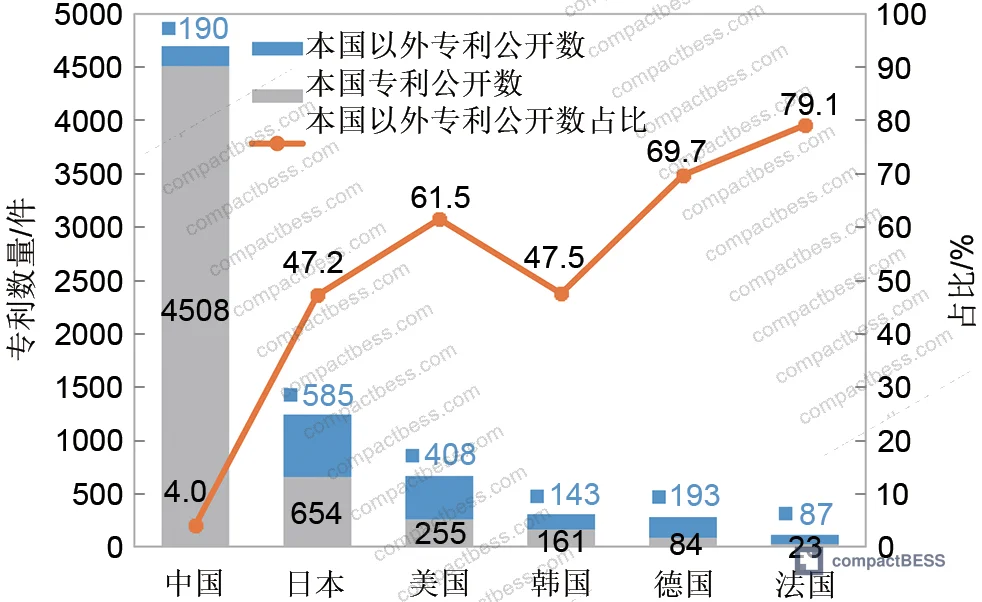

| Country | Total Patents | High-Value (Score 10) | % Score 10 of Own Total | Overseas Filing Rate |
|---|---|---|---|---|
| China | 4,698 (62%) | 74–147 (material + monitoring) | 2.3% | 4% |
| Japan | 1,239 (16%) | 402 | 32% | 47% |
| United States | 663 (9%) | 189–105 (material + monitoring) | ~40%+ | 60%+ |
| South Korea | 301 (4%) | 93 (material) | 58% (score 9–10) | 47% |
| Germany | 277 (4%) | 54 (material) | ~50% (score 9–10) | ~75% |
| France | 110 (1%) | 34 (material) | 60%+ (score 9–10) | ~80% |
The procurement implication here is significant. China holds 62% of global patents by volume but only 2.3% of its own patents score at the highest value tier. Japan, with 16% of global volume, has 402 patents at the top value score — far exceeding China’s count despite having roughly one-quarter the total filings. The US and Korean figures follow a similar pattern: fewer filings, substantially higher proportion of high-value core technology patents.
Honestly, most procurement teams interpret “largest patent holder” as “most technically advanced,” and this is one of the costliest misreads in battery supplier qualification. Patent count is a production metric. Patent value distribution is the actual technology depth signal.
Safety Technology Domains and Their Relevance to Cell Format Procurement #
Understanding which IPC codes dominate patent activity tells you what the industry considers solved versus actively contested — and that directly informs which supplier claims you should verify independently.
The top IPC codes by patent frequency in this dataset:
- H01M10/0567 (electrolyte additives for safety): 39 filings in top cluster
- H01M10/058 (secondary battery construction/manufacturing): 39 filings
- H01M4/13 (non-aqueous electrolyte battery electrodes): 39 filings
- H01M10/613 (cooling/low-temperature maintenance): 34 filings
- H01M4/36 (active material selection): 33 filings
- H01M4/131 (mixed oxide/hydroxide electrodes, e.g., LiCoOx): 33 filings
- H01M2/02 (battery casings, jackets, covers): 39 filings
Notice that H01M2/02 — battery casings and enclosures — appears in the top tier with 39 filings. This isn’t incidental. Cell format and mechanical construction are active areas of IP development, which means suppliers claiming proprietary safety improvements in cell housing should be able to cite specific patent numbers. If they can’t, the claim is marketing.
For buyers selecting between cylindrical, prismatic, and pouch formats, the relevant safety technology branches break down as follows:
Material improvement (the largest cluster at 3,630 filings) covers: cathode and anode material preparation and modification, electrolyte flame-retardant additives, multi-layer separator structures and coatings, and structural cell design improvements. LFP chemistry dominates the stationary storage preference precisely because its cathode chemistry sits in a lower-risk position on the material improvement curve — the core thermal stability problem is more solved than for NMC.
State monitoring and fault diagnosis (2,777 filings) covers SOC/SOH estimation under operating conditions, early warning algorithms for dendrite formation and internal short circuit detection, and impedance-based health diagnostics. This is where the SOC Estimation Methods and SOH & RUL Prediction domains intersect with procurement — if your BMS supplier cannot demonstrate state estimation accuracy under the operating temperature range of your deployment, the safety architecture has a gap regardless of cell quality.
Thermal management (865 filings) is surprisingly the smallest cluster given its criticality. The analysis found that patents in this domain are concentrated in Japanese and US applicants at the high-value tier, not Chinese suppliers. Japan holds the most score-10 patents in thermal management at 35, while Chinese applicants hold only 17 at that tier.
Fire suppression and explosion prevention (1,342 filings) is the area where Chinese patent quality is actually competitive — score-9 patents in this domain number 139 for Chinese applicants versus 21 for Japan. However, most of these patents are filed domestically only, meaning they represent local regulatory compliance engineering rather than globally competitive core technology.
Thermal Runaway Risk and the Second-Life Battery Complication #
In supplier qualification evaluations, we see recurring failure patterns that map directly onto the gaps in this patent landscape. Three of six battery pack samples from a single mid-tier Chinese supplier failed early warning trigger tests — not because the cells were defective individually, but because the BMS firmware had not been updated to account for the accelerated consistency degradation characteristic of second-life cells operating in stationary storage.
This is not a hypothetical risk. The research confirms that the single-cell failure probability is roughly one in one million, but stationary storage systems routinely contain tens of thousands to hundreds of thousands of individual cells. At that scale, the system-level failure probability becomes statistically significant regardless of individual cell quality.
The retired EV battery complication deserves specific attention. As EV market penetration increases, second-life power cell volumes entering the stationary storage supply chain are growing. Retired power cells present a documented safety challenge: internal dendrite growth, electrolyte depletion, and increased interfacial impedance accumulated during automotive service life make cell-to-cell consistency significantly worse than new production stock. Deploying these into storage systems without rigorous sorting and re-grading procedures substantially increases thermal runaway propagation risk. This aligns with IEC 62619:2022 Safety requirements for secondary lithium cells and batteries, which specifically addresses secondary cell qualification criteria that second-life cells must meet before deployment.
Most procurement teams don’t realize that the mandatory national safety standard for energy storage lithium batteries — China’s first enforceable standard in this specific application — was formally initiated only recently, after years during which the industry operated under voluntary guidelines. The gap between the global installed base growth rate (explosive since 2014) and the regulatory framework catching up to it is precisely why field incidents have concentrated in this period.
For stationary storage applications, compliance with UL 9540A Test Method for Evaluating Thermal Runaway Fire Propagation in Battery Energy Storage Systems should be a non-negotiable specification requirement — not an optional value-add. This standard directly addresses the propagation scenario that characterizes real-world fire incidents in storage facilities.
Practical Guidance for Buyers #
The patent quality gap between Chinese suppliers and their Japanese and US counterparts is not a reason to avoid Chinese-manufactured cells — it is a reason to specify your testing requirements precisely and verify them independently. Chinese applicants hold over 80% of global patents in circuit balance management and fire suppression by volume, and CATL and BYD represent genuine world-class development capability. The issue is that the long tail of suppliers below that tier has been producing patent filings that document compliance with domestic standards rather than advancing core safety technology.
When qualifying suppliers for any lithium-ion storage application, demand cell-level test data, not just system-level certification. Specifically, require state monitoring accuracy data showing fault detection response under the specific temperature profile of your deployment environment. For thermal management, ask for propagation test results — not just single-cell abuse test pass/fail. If a supplier’s thermal management claim rests entirely on passive construction with no active monitoring layer, that architecture sits outside where the serious R&D investment has been going.
At compactbess.com, our sourcing team works specifically with global OEM brands, product development engineers, and energy storage integrators to connect buyers with verified Chinese manufacturers who can actually answer these technical questions — not just produce paper certifications. Suppliers who understand the distinction between H01M10/613 compliance and genuine thermal architecture competence are the ones worth your RFQ.
For pack-level qualification criteria, the Cycle Life & Degradation documentation framework and IEC 62619 Industrial Safety requirements should anchor your specification document.
Additionally, verify transport certification: any cell shipment for stationary storage applications must meet UN 38.3 Recommendations on the Transport of Dangerous Goods — Lithium Battery Testing, and the test report should identify the specific cell format and configuration tested — not a generic family approval.
Need help identifying qualified suppliers for lithium-ion energy storage cells with verified safety documentation? Talk to our sourcing team →
Supplier Qualification Questions #
- What is the patent value score distribution of your thermal management safety patents, and can you provide the specific IPC classification codes (e.g., H01M10/613) for your proprietary thermal control architecture?
- In your state monitoring system, what is the fault detection response time for internal short-circuit early warning, and has this been validated against cells that have completed more than 500 charge-discharge cycles to simulate the consistency degradation seen in aged cell populations?
- Your fire suppression patents — are they filed exclusively in China (domestic-only layout) or do you hold international filings? What percentage of your safety IP portfolio has overseas patent protection?
- Can you provide UL 9540A thermal runaway propagation test results for the specific cell format and pack configuration in our specification, not a generic family approval?
- For second-life or graded cells offered for stationary storage: what cell-to-cell internal resistance variance threshold (in milliohms) does your batch release specification require, and what sorting method — impedance spectroscopy, capacity cycling, or other — is used to enforce that threshold before pack assembly?
Sourcing Checklist #
- ☐ Supplier can provide IPC-classified patent filings in at least one of the four core safety technology domains (material improvement, state monitoring, thermal management, or fire suppression) — not just product certifications
- ☐ Cell-level test data includes IEC 62619:2022 compliance with independent third-party test report (not supplier self-declaration) covering overcharge, short circuit, and thermal abuse conditions
- ☐ Thermal runaway propagation test completed per UL 9540A for the specific cell format (cylindrical/prismatic/pouch) and pack configuration in the buyer’s specification
- ☐ State monitoring system documented with fault detection accuracy data: early warning trigger threshold defined and validated under operating temperature range of ≥-10°C to 55°C
- ☐ UN 38.3 transport certification covers the exact cell format and Wh rating being procured — test report references specific model number, not a generic cell family
- ☐ For second-life cell offerings: batch release specification includes cell-to-cell capacity variance of ≤3% and internal resistance variance ≤5 mΩ, verified by documented grading test results
- ☐ Supplier’s overseas patent filing rate is disclosed: suppliers with less than 10% international patent layout for safety-critical claims warrant additional independent verification of core technology depth
- ☐ Balance management system (BMS) firmware version documentation confirms it is validated for the specific cell chemistry (LFP vs. NMC) and configuration (series/parallel string count) in the proposed system
Key Specifications Table #
| Parameter | Recommended Value | Verification Method |
|---|---|---|
| Single-cell failure probability baseline | ≤1 × 10⁻⁶ (1 in 1,000,000) | Supplier accelerated abuse test data per IEC 62619:2022, third-party witnessed |
| System-level safety certification for thermal propagation | UL 9540A pass — no propagation beyond single module | Review test report identifying specific cell format, configuration, and module count tested |
| Cell-to-cell capacity consistency (new production stock) | ≤2% variance across batch | Capacity cycling data at 0.5C rate, minimum 10-sample batch audit at incoming inspection |
| Patent value score of thermal management IP | ≥score 7 on standardized patent value scale | Request patent numbers; cross-reference IPC code H01M10/613; verify international filing status |
| Internal resistance variance for second-life cells | ≤5 mΩ cell-to-cell within pack | AC impedance measurement at 1 kHz, 25°C, documented per batch release record |
| Early warning response time for internal fault detection | ≤60 seconds from fault onset to alarm trigger | BMS validation test data under simulated internal short-circuit conditions |
Can’t find a supplier meeting these specs? Submit your requirements and we’ll match you within 48 hours.
References #
Data source: Global Patent Landscape Analysis of Safety Technologies in Lithium-Ion Battery Energy Storage Systems, E.-B. Cao et al., Journal of the Electrochemical Society, 2024
Frequently Asked Questions #
Why does China hold 62% of global lithium-ion battery safety patents but lag in high-value IP?
Volume and value measure different things. Chinese applicants have been extremely productive in filing patents across all four safety technology domains, but the proportion reaching the highest commercial and technical value tier is only 2.3% of their own total — compared to 32% for Japan and over 40% for the US and France. This reflects a structural difference: Japanese and US patent strategies have historically concentrated on core technology depth and international IP protection, while Chinese filings have been more domestically oriented and compliance-driven. For buyers, this means a supplier’s total patent count is a weak quality signal — ask specifically about high-value patents and overseas filing coverage.
What is thermal runaway propagation and why does it matter for procurement?
Thermal runaway in a single cell releases heat rapidly enough to trigger adjacent cells — creating a chain reaction across the entire pack. In a stationary storage system containing tens of thousands of cells, the system-level incident risk is meaningfully higher than the individual cell failure rate of roughly 1 in 1,000,000. Fire incidents at storage facilities globally — at least 45 documented incidents in a recent five-year window, with 34 occurring in South Korea alone — largely follow this propagation pattern rather than isolated single-cell failure.
Should I require different safety certifications for second-life EV batteries used in stationary storage?
Yes, and this is an area where many buyers get caught. Second-life cells have accumulated degradation from automotive service: dendrite growth, electrolyte depletion, and increased interfacial impedance all worsen cell-to-cell consistency. That consistency degradation accelerates the probability of triggering early thermal events in pack conditions. Standard certifications issued for new cells do not automatically cover second-life packs. You need batch-specific grading data and, ideally, fresh third-party abuse testing on the specific graded cells being supplied.
Which cell chemistry is currently preferred for large-format stationary storage, and is that reflected in the patent data?
LFP (lithium iron phosphate) and NMC (ternary lithium) are the two dominant types for stationary storage, with LFP preferred where cycle life and operational safety take priority over energy density. The patent landscape broadly supports this — material improvement patents for LFP-relevant cathode chemistry (mixed oxide electrodes under IPC H01M4/131) appear in the top patent frequency codes, confirming active development attention.
How does the overseas patent filing rate of a supplier indicate technology quality?
A supplier with less than 10% of its safety patents filed in overseas jurisdictions is primarily engineering for domestic compliance, not competing at the global core technology level. US and French applicants file over 60–80% of their patents internationally. Japanese and Korean applicants file roughly 47% overseas. Chinese applicants average only 4% overseas — with the exceptions being CATL, China Energy Technology, and a small number of advanced materials firms. When you’re buying from outside those top-tier names, the overseas filing rate is a useful proxy for whether the supplier’s safety technology is genuinely competitive or locally sufficient.
