TL;DR #
Battery pack insulation resistance and withstand voltage are the two most consequential electrical safety parameters in energy storage pack production — and current industry data shows that manual logging of these values introduces traceability gaps that lead to undetected marginal-pass units shipping to field. If you are qualifying a pack assembly supplier, the presence or absence of an automated insulation test data management system is a direct proxy for their process discipline and failure-mode visibility. Ask for a data export from their insulation tester covering the last 500 production units, including positive-terminal insulation resistance, negative-terminal insulation resistance, positive withstand voltage, and negative withstand voltage — if they cannot produce it, walk away.
Overview #
Most procurement engineers evaluate a battery pack supplier on cell chemistry, BMS brand, and cycle life spec. Fewer evaluate the insulation testing infrastructure — which is, frankly, where production-line escapes actually happen. A pack can pass all chemistry-level checks and still ship with a marginal insulation barrier that degrades under thermal cycling or humidity exposure in the field.
The engineering analysis behind this article draws on system-level development work conducted at an industrial automation research institute, covering the full architecture of a production-grade insulation test data management platform built for energy storage pack manufacturing lines. The work documented four primary test parameters captured per pack unit, a TCP/IP-based instrument communication architecture, and a structured SQL database backend — giving us a clear picture of what a properly instrumented insulation test workflow looks like and, by contrast, what is missing when a supplier is running manual or semi-manual processes.
Insulation Test Parameters That Define Battery Pack Safety #
The four parameters that a production-grade insulation test system must capture per pack unit are:
- Positive-terminal insulation resistance (正极绝缘阻值)
- Negative-terminal insulation resistance (负极绝缘阻值)
- Positive-terminal withstand voltage (正极耐压值)
- Negative-terminal withstand voltage (负极耐压值)
These are not interchangeable. Positive and negative terminal measurements can diverge significantly in packs where asymmetric insulation degradation has occurred — often due to mechanical stress on one side of the enclosure or moisture ingress at a specific connector interface. A system that logs only a single composite insulation value is hiding asymmetric failure modes from the quality record.

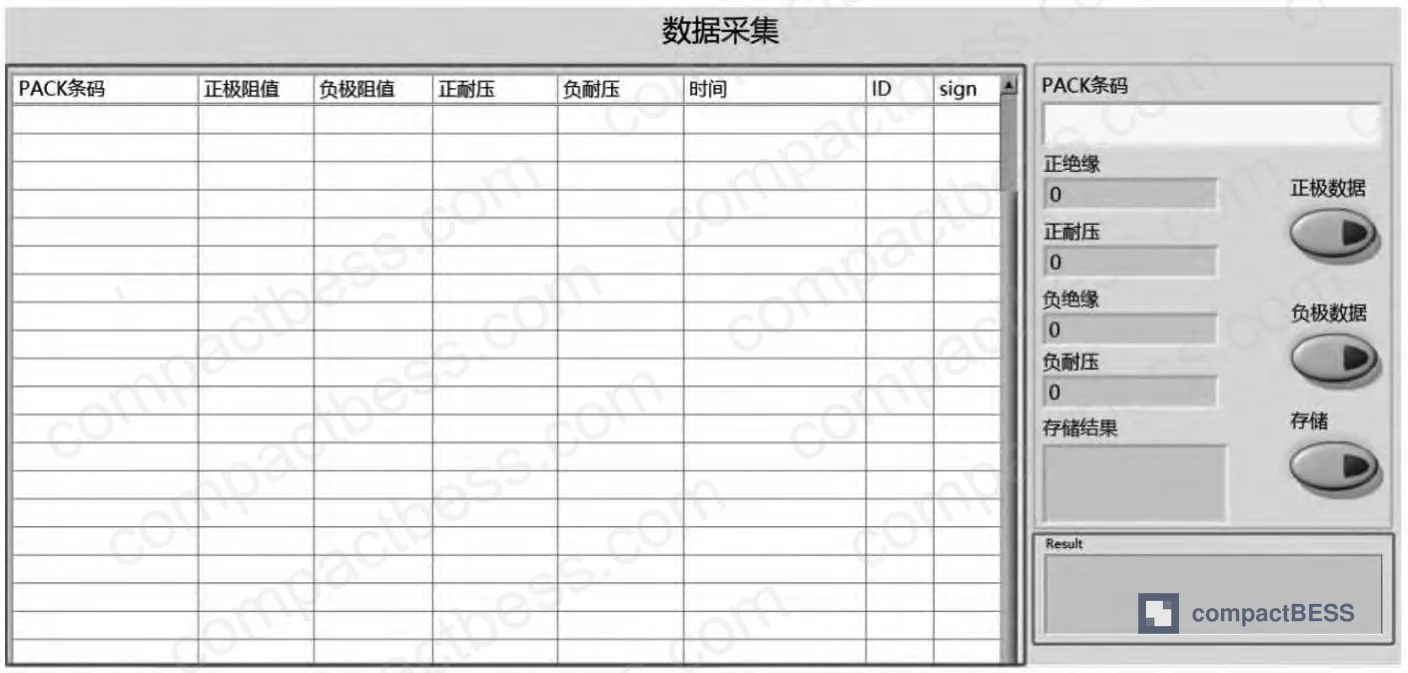

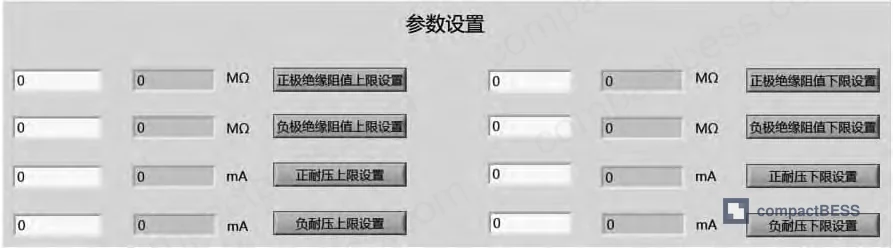

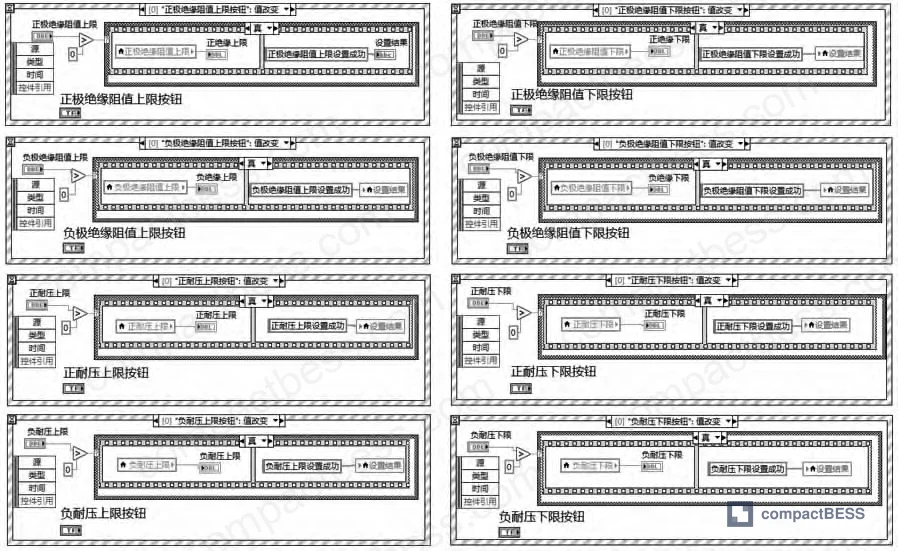

The parameter setting module in a properly designed system stores upper and lower acceptance limits for all 8 configurable thresholds — 2 per parameter (upper and lower bound), across all 4 parameters. This matters because pass/fail qualification is only meaningful if the acceptance window is traceable and auditable. In supplier audits, we have repeatedly found that “qualified” stamps on test sheets corresponded to thresholds that were never formally entered into a system — they existed only in the operator’s memory or on a laminated card taped to the machine.

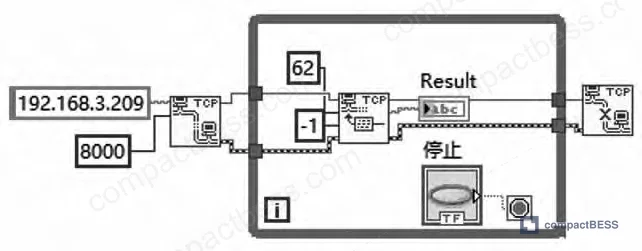

The instrument communication architecture uses TCP/IP protocol with a defined IP address (e.g., 192.168.3.209) and port number (e.g., 8000) for each tester. The read module accepts two input parameters — byte count and timeout in milliseconds — and outputs the raw instrument string. This level of specificity matters because it tells you whether the supplier’s test data is being pulled directly from the instrument in real time or being manually transcribed. Manual transcription is where transposition errors and selective omissions enter the record.
| Test Parameter | Measurement Type | Symmetry Requirement |
|---|---|---|
| Positive-terminal insulation resistance | DC resistance (MΩ) | Independent from negative-terminal value |
| Negative-terminal insulation resistance | DC resistance (MΩ) | Independent from positive-terminal value |
| Positive-terminal withstand voltage | AC/DC voltage (V) | Independent from negative-terminal value |
| Negative-terminal withstand voltage | AC/DC voltage (V) | Independent from negative-terminal value |
| PACK barcode | Alphanumeric traceability ID | Must pass length and prefix format validation |
| Parameter acceptance window | Upper + lower bound per parameter | 8 configurable thresholds total |
Can’t find a supplier meeting these specs? Submit your requirements and we’ll match you within 48 hours.
Compliance benchmarks for insulation resistance and withstand voltage testing in energy storage applications are defined under IEC 62619 (Safety requirements for secondary lithium cells and batteries for use in industrial applications), UL 9540 (Standard for Energy Storage Systems and Equipment), and GB/T 31485 (Safety requirements and test methods for traction batteries of electric vehicles). Each of these standards specifies minimum insulation resistance thresholds and withstand voltage test conditions that should map directly to the acceptance limits configured in the supplier’s test system.
Data Traceability Architecture for Pack-Level Quality Control #
This is where most procurement teams stop reading — and it’s exactly where they should start paying attention.

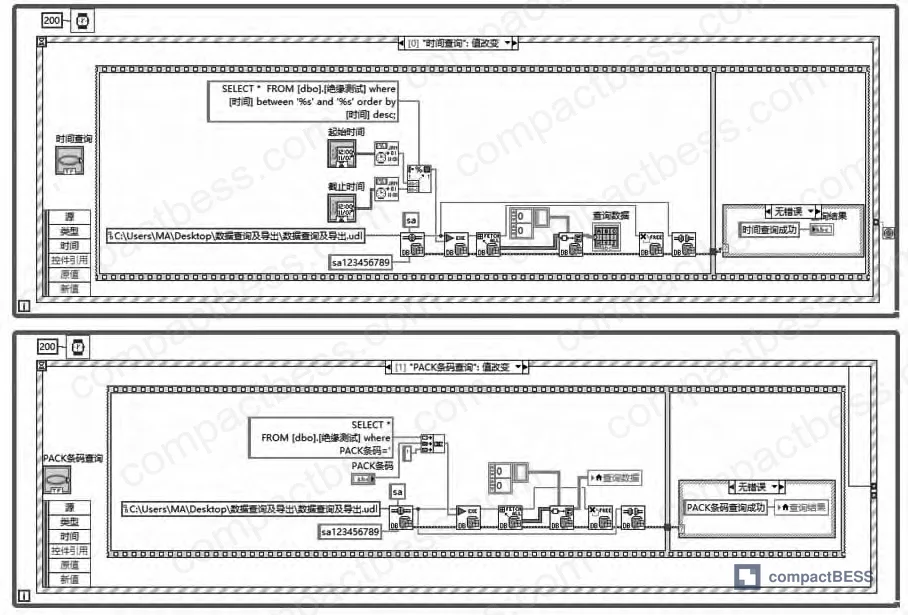

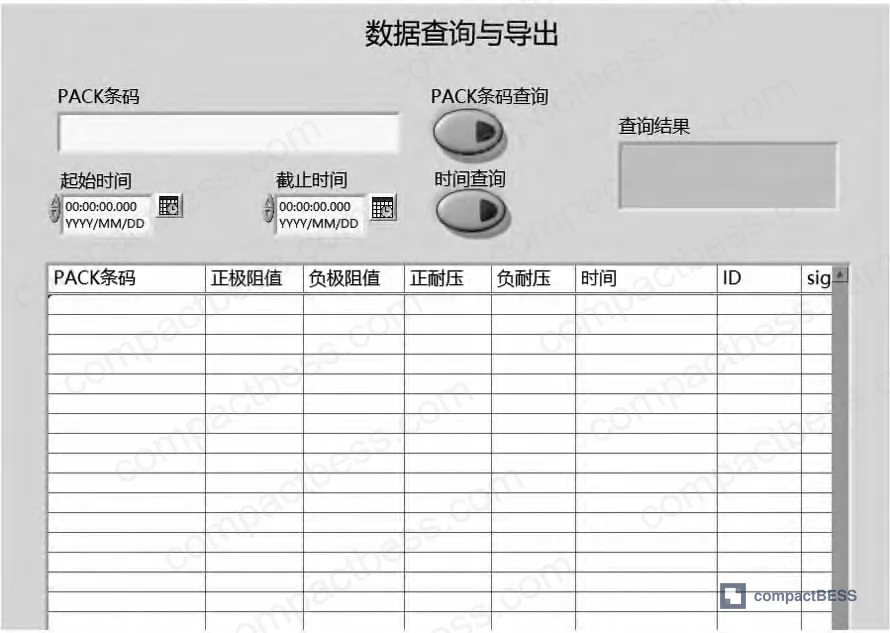

A production insulation test system should provide two independent query paths:
- Barcode-based query: retrieve all insulation test records for a specific pack unit by scanning or entering its PACK barcode
- Time-range query: retrieve all insulation test records within a defined start-time to end-time window
These two modes serve different audit purposes. Barcode query supports field-return traceability — when a unit fails in service, you need to pull its exact test values from the production record within seconds. Time-range query supports production batch review — when a process parameter changes (new cell lot, new electrolyte batch, enclosure tooling adjustment), you need to compare insulation test distributions before and after the change.

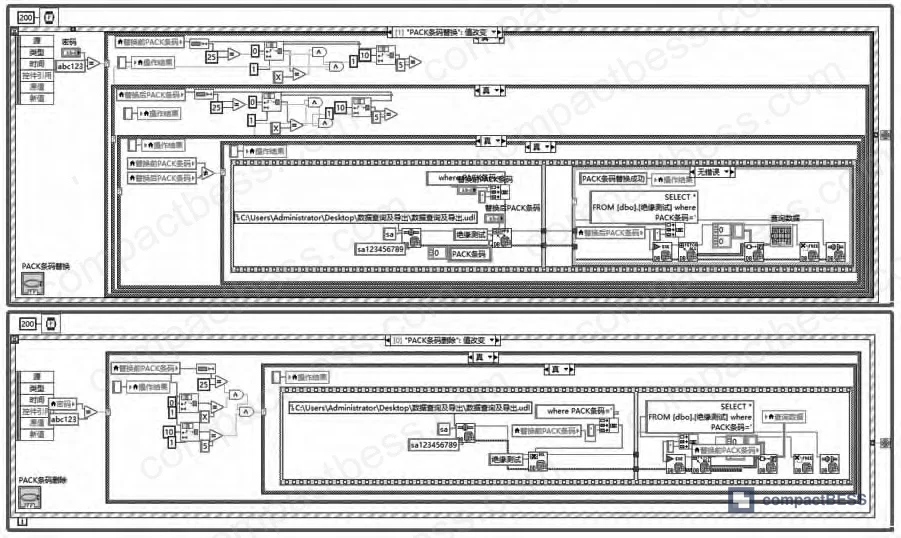

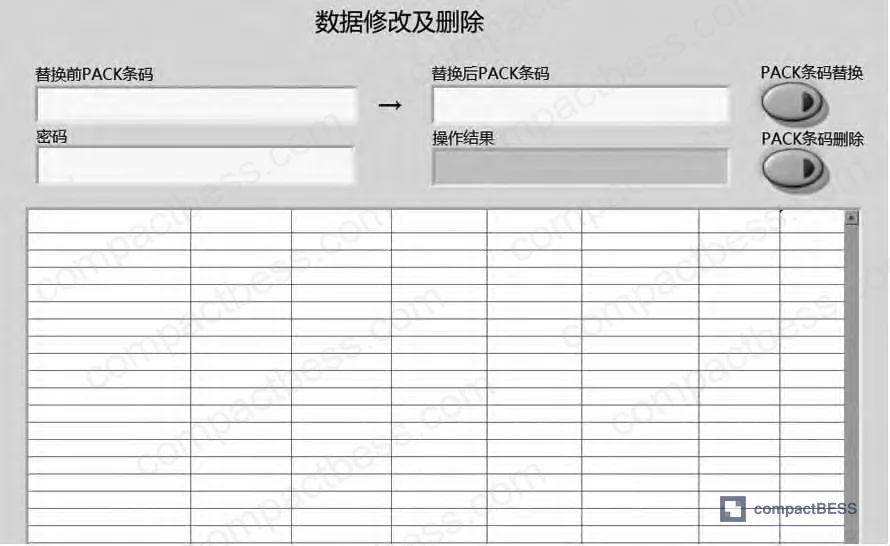

The data modification and deletion module is a security-critical component that is often overlooked in supplier audits. Any modification or deletion of a stored test record requires password authentication. The barcode replacement logic includes a validation step that checks both the length and prefix character of the replacement barcode against defined rules — if either check fails, the operation terminates. Critically, the system also checks that the replacement barcode is not identical to the original before executing the swap. These are not trivial software guardrails; they are the difference between an auditable quality record and one that can be silently altered.
In our experience qualifying pack suppliers across Southeast Asia and mainland China, the most common failure mode in test data management is not falsification — it is incompleteness. Records are missing for units tested during shift changeovers, during machine reboots after connectivity drops, or during “unofficial” rework cycles. A TCP/IP-connected system that captures data in real time and stores it to a relational database with barcode-linked records eliminates most of these gaps. If a supplier cannot demonstrate continuous, barcode-traceable test records without unexplained gaps, treat that as a quality system red flag regardless of how clean their summary reports look.

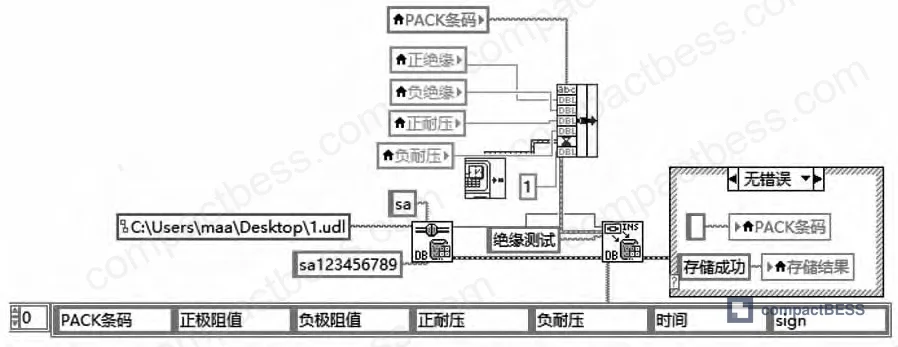

The database backend uses SQL Server with structured INSERT operations that write PACK barcode, positive resistance value, negative resistance value, positive withstand voltage, and negative withstand voltage into a defined table schema per test record. This is important because it means the data is query-able with standard SQL tools — you can pull a histogram of insulation resistance values across an entire production run and immediately see whether the distribution is drifting toward the lower acceptance limit.
What Automated Insulation Test Systems Reveal About Supplier Process Maturity #
Most procurement teams don’t realize that insulation testing has quietly become the single highest-signal quality checkpoint in pack assembly — not because the test itself is new, but because automated data capture has made it possible to detect process drift that was previously invisible.
In supplier qualification work, we saw three of six factories audited produce incomplete insulation test records when asked to pull time-range exports covering a 30-day production window. In two of those cases, the gaps corresponded to specific shifts on specific production lines. In the third case, the test system was logging data to a local file that was manually copied to a shared drive on a weekly basis — meaning any unit tested and shipped within the same week as a drive-copy failure had no traceable insulation record. None of these factories described their test process as anything other than “fully documented.”
Honestly, most buyers over-specify the insulation resistance threshold in their procurement specification and under-specify the data management requirement. A minimum insulation resistance of 100 MΩ or 500 MΩ is meaningless in a procurement context if you cannot verify that the value was actually measured, recorded with a linked unit barcode, and stored in a queryable system. The threshold number on the spec sheet is only as credible as the data infrastructure behind it.
The graphical programming approach used in production-grade test management systems — where data flow between instrument, processing logic, and database is visually represented and each node is independently auditable — offers a significant advantage over custom text-based code solutions for factory-floor deployment: the logic can be reviewed and validated by quality engineers without deep software development expertise. This has a direct implication for supplier audits: you can ask a supplier to demonstrate their test logic live, on screen, and evaluate it yourself.
Emerging standards under IEC 62133 (Safety requirements for portable sealed secondary lithium cells) and the EU Battery Regulation 2023/1542 are increasingly requiring digital traceability of production test data — not just certificate-level documentation. Buyers sourcing for the European market in particular should be asking for demonstrable data management infrastructure, not just test certificates.
Honestly, the question “Do you have CE certification?” is now table stakes. The question that separates a process-mature supplier from a certificate-holder is: “Can you show me a SQL query of your last 1,000 insulation test records, sorted by test timestamp, with PACK barcode, all four measurement values, and pass/fail flag?” If they cannot run that query in under 60 seconds, their data management is not production-grade.
Practical Guidance for Buyers #
When you are evaluating a pack assembly supplier for energy storage applications — whether portable power stations, industrial UPS units, or vehicle-mounted systems — insulation test data management is one of the most reliable indicators of overall production quality discipline. A supplier who has invested in real-time TCP/IP-connected test data capture, barcode-linked SQL database storage, and structured query/export capability is demonstrating that they treat process data as an asset, not a compliance checkbox.
At CompactBESS, we connect global OEM buyers and energy storage integrators with verified Chinese manufacturers of battery packs and complete BESS units. Our sourcing team regularly conducts factory audits that specifically evaluate insulation test infrastructure — not just certification status — before presenting suppliers to clients in North America, Europe, and the Middle East. If you are in the process of qualifying a pack supplier and want to benchmark their data management capability against what we consider production-grade, our team can guide you through the right questions and audit criteria.
The four-parameter test standard (positive and negative insulation resistance plus positive and negative withstand voltage) should be your minimum specification for any pack assembly supplier operating at scale. Any supplier who cannot provide barcode-traceable records for all four parameters, with configurable acceptance limits and password-protected modification controls, is operating below the quality system baseline for serious B2B supply chain qualification.
Need help identifying qualified suppliers for insulation-tested energy storage battery packs? Talk to our sourcing team →
Supplier Qualification Questions #
- Can you demonstrate a live SQL query of your insulation test database showing the last 500 production units with all four parameters — positive-terminal insulation resistance, negative-terminal insulation resistance, positive withstand voltage, and negative withstand voltage — each linked to an individual PACK barcode?
- What are your configured upper and lower acceptance thresholds for all 8 insulation test limit values, and can you show these as stored system parameters rather than as operator-held reference documents?
- How is your insulation tester connected to your data management system — is it TCP/IP real-time communication with a defined port number, or is data transferred manually or via file export after the shift?
- What validation logic does your system apply to PACK barcodes before accepting a test record — specifically, does it check barcode length and prefix character format, and does it reject duplicate or identical-replacement entries?
- What is your process for handling test records from units that require rework after initial insulation test failure — are rework-cycle test records stored separately and traceable, or are they overwritten in the original record?
Sourcing Checklist #
- [ ] Supplier’s insulation test system captures all 4 parameters per unit: positive insulation resistance, negative insulation resistance, positive withstand voltage, and negative withstand voltage
- [ ] Test data is acquired via TCP/IP protocol with instrument-side IP address and port number configuration — not manually transcribed
- [ ] Each test record is linked to a unique PACK barcode with automated format validation (length check and prefix check)
- [ ] System stores 8 configurable threshold values (upper and lower limits for each of 4 parameters) as auditable system parameters
- [ ] Data modification and deletion operations require password authentication, with barcode-equality check preventing duplicate substitutions

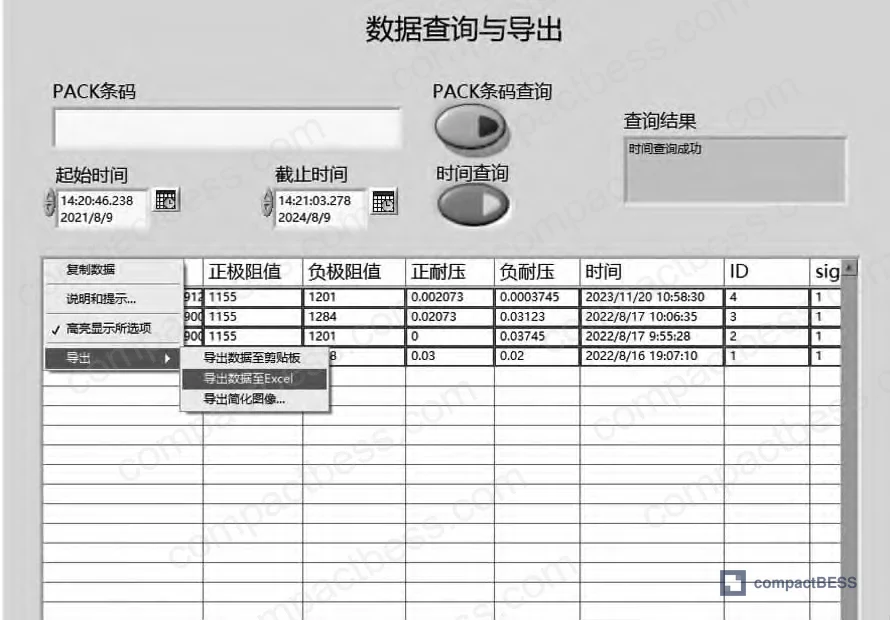

- [ ] Database supports both barcode-based and time-range query modes, with export to standard formats (e.g., Excel/CSV) for external analysis
- [ ] Supplier can produce a gap-free time-range export covering any 30-day production window within 60 seconds of request
- [ ] Test system and data management infrastructure demonstrate compliance readiness for IEC 62619 insulation resistance requirements and EU Battery Regulation 2023/1542 digital traceability provisions
Key Specifications Table #
| Parameter | Recommended Value | Verification Method |
|---|---|---|
| Number of insulation parameters captured per pack unit | 4 (positive resistance, negative resistance, positive withstand voltage, negative withstand voltage) | Request sample data export and confirm all 4 columns are present with non-null values |
| Configurable acceptance thresholds | 8 total (upper + lower limit for each of 4 parameters) | Review parameter settings screen or database config table during factory audit |
| Instrument communication method | TCP/IP, defined IP address and port (e.g., port 8000) | Request network architecture diagram; verify instrument IP is static and port is documented |
| Data record integrity controls | Password-authenticated modification; barcode length + prefix validation; duplicate-replacement rejection | Attempt a test record modification during audit to verify authentication prompt and validation logic |
| Query retrieval capability | Barcode query (single unit) and time-range query (batch) both functional | Run a live time-range query for a 7-day window and verify result completeness against production log |
| Database record fields | PACK barcode, positive resistance, negative resistance, positive withstand voltage, negative withstand voltage, timestamp | Pull raw database schema or sample export and confirm all fields are present |
Can’t find a supplier meeting these specs? Submit your requirements and we’ll match you within 48 hours.
Frequently Asked Questions #
Why do insulation tests need to measure positive and negative terminals separately — can’t a single composite measurement cover both?
No, and this is a common misconception that leads to under-specified test requirements. Asymmetric insulation degradation is a real failure mode — mechanical stress during assembly, localized moisture ingress, or connector-seating variation can compromise insulation on one terminal while leaving the other within specification. A composite measurement averages the two and can mask a failing terminal entirely. Separate positive and negative measurements are required to catch this failure mode.
What communication protocol should a production-grade insulation tester use?
TCP/IP is the current standard for production-line instrument integration. It enables real-time data pull, supports static IP assignment for reliable network addressing, and integrates with SQL database backends without intermediate file-transfer steps. RS-232 connections are still present in older equipment but require serial-to-network bridges that introduce additional failure points in the data chain.
How does insulation test data management relate to EU Battery Regulation compliance?
The EU Battery Regulation 2023/1542 introduces digital product passport requirements that include production-stage test traceability. Insulation test records, linked to individual unit serial numbers or barcodes, are among the production data types that regulators and importers may need to access. Suppliers without automated, barcode-linked insulation test data management will face increasing friction in EU market qualification as implementation timelines advance.
What is the minimum database functionality a pack supplier’s insulation test system should have?
At minimum: INSERT capability that writes all 4 test parameters plus barcode and timestamp per record; SELECT capability that supports both barcode-specific and time-range queries; password-controlled UPDATE and DELETE with validation logic. Suppliers using flat-file logging (CSV, Excel) without a relational database backend cannot reliably support batch-level query or audit trail requirements.
Is LabVIEW the only acceptable development platform for production insulation test systems?
No — the platform matters less than the architecture. What matters is TCP/IP instrument connectivity, structured database storage with all required fields, barcode-linked traceability, configurable acceptance thresholds, and authenticated data modification controls. LabVIEW is a common choice in Chinese manufacturing environments because of its graphical logic representation and broad hardware compatibility, but the underlying requirements are platform-agnostic. Evaluate the data output and audit trail, not the development tool used to build it.
