Cell Technology

198
  • Lithium-Ion vs LFP Chemistry
    • Li-Ion vs LFP Electrolyte Chemistry: From Liquid to Solid-State — A Procurement Engineer’s Technical Guide
    • LFP vs. Lead-Acid Battery for Residential BESS: Cost, Sizing, and Dispatch Optimization
    • Technical Evaluation & Sample Request Guide for Lithium-Ion vs LFP Chemistry
    • Safety Standards Explained for Lithium-Ion vs LFP Chemistry
    • Lithium-Ion vs LFP Chemistry — Safety & Risk Assessment
    • Lithium-Ion vs LFP Chemistry — Design Engineering Reference
    • Lithium-Ion vs LFP Chemistry — Lifecycle & Maintenance Guide
    • Lithium-Ion vs LFP Chemistry — Testing & Validation Protocol
    • Lithium-Ion vs LFP Chemistry — Storage & Handling Guide
    • Lithium-Ion vs LFP Chemistry — Installation & Integration Guide
    • Lithium-Ion vs LFP Chemistry — Comparison & Upgrade Guide
    • Lithium-Ion vs LFP Chemistry — Procurement & Cost Guide
    • Lithium-Ion vs LFP Chemistry — Troubleshooting & Failure Guide
    • Lithium-Ion vs LFP Chemistry — Regulatory & Compliance Guide
    • Lithium-Ion vs LFP Chemistry — Supplier Qualification Guide
    • Lithium-Ion vs LFP Chemistry — Application & Performance Guide
    • Lithium-Ion vs LFP Chemistry — Material Selection Guide
    • Lithium-Ion vs LFP Chemistry — Technical Specification Overview
  • Cell Formats & Form Factors
    • PFPE Phase-Change Immersion Cooling for High-Rate Lithium Battery Packs: Thermal Performance Guide
    • Battery Cell Format Selection Guide: Cylindrical, Prismatic, and Pouch Procurement Parameters
    • Battery Cell Format Selection Guide: Cylindrical vs Prismatic vs Pouch
    • LTO Pouch Cell Capacity Fade at Different C-Rates: Procurement Guide for Grid Storage Buyers
    • Battery Cell Format Selection Guide: Cylindrical vs Prismatic vs Pouch for Compact BESS
    • Cell Format Dimensional Tolerances and BMS Temperature Sensor Accuracy: A Procurement Engineering Guide
    • Cylindrical, Prismatic, and Pouch Cell Formats: Dimensional Specifications and Procurement Guide for BESS Buyers
    • Selective Lithium Recovery from Spent LFP Cathode Material: Process Parameters, Selectivity Data, and Supplier Qualification Guide
    • Cell Format Selection Guide: Dimensional Tolerances, Thermal Path Engineering, and Pack Integration
    • Biomass-Assisted Hydrometallurgical Recovery of Cathode Materials from Spent Lithium-Ion Batteries: A Procurement Guide for Cell Buyers
    • SOC-Dependent Thermal Runaway and Propagation Behavior in NMC Battery Modules: A Procurement Guide to Crush Abuse Testing
    • China Battery Recycling & Cascade Reuse: What Cell Format Buyers Must Know
    • Battery Recovery Modes Under EPR: How Supplier Recovery Structure Affects Your Procurement Risk
    • China Battery Waste Material Flow Analysis: What Cell Buyers Need to Know About Recycling, ESG Compliance, and Supply Chain Traceability
    • Retired EV Battery Cell Formats: How Dimensional Standardization Affects Recovery Economics and Second-Life Failure Rates
    • Battery Cell Temperature Limits and Thermal Management for Distributed Storage Applications
    • LFP vs NMC Cell Format Selection: Carbon Recovery Economics and Procurement Impact
    • GB/T 36276—2023 Test Lab Infrastructure: What Qualified Lithium-Ion Energy Storage Cell Suppliers Must Be Able to Prove
    • Self-Stratifying Electrolyte Batteries: Technical Procurement Guide for Membrane-Free Grid Storage
    • Battery Cell Formats & Form Factors: Technical Procurement Guide for Cylindrical, Prismatic, and Pouch Cells
    • Cell Format Selection and Lifecycle Carbon Accounting for Chinese Battery Manufacturers
    • Battery Cell Format Selection Guide: Dimensional Specifications, Lifecycle Efficiency, and Procurement Criteria for ESS Applications
    • Immersion Cooling for LFP Battery Modules: CFD Validation and Thermal Performance Benchmarks
    • Battery Cell Format Selection Guide: Cylindrical vs. Prismatic vs. Pouch for Pack Design
    • Cylindrical vs. Prismatic vs. Pouch: Cell Format Selection Guide for Battery Pack Procurement
    • Battery Carbon Footprint Standards: ISO 14067 vs PAS 2050 vs GHG Protocol for Battery Procurement
    • Battery Cell Format Selection Guide: Cylindrical vs. Prismatic vs. Pouch — Technical Procurement Evaluation
    • Battery Cell Format Selection Guide: Cylindrical, Prismatic, and Pouch Specifications for Compact BESS Procurement
    • Lithium-Ion Cell Format Selection for LED Energy Storage: Chemistry, Thermal Performance & Procurement Guide
    • LFP Cell Format Selection for Dual-Voltage Mobile ESS: DC768V/DC380V Architecture Specification Guide
    • Second-Life EV Battery Procurement: SOH Grading, Traceability, and Echelon Utilization for Stationary Storage
    • Lithium-Ion Battery Thermal Runaway Detection and Fire Suppression in BESS Prefabricated Cabinets
    • Battery Pack Structural Loading: Why Assembly Sequence Generates Non-Linear Stress Patterns
    • Cylindrical, Prismatic, and Pouch Cell Formats: Dimensional Specifications, Thermal Management, and BMS Complexity for Compact BESS Procurement
    • 10 kV Battery Storage PCS Topology Comparison: Cascaded H-Bridge vs MMC vs Transformer-Based Systems
    • Multi-Module Parallel PCS Thermal Management: Current Sharing, Dynamic Impedance, and Thermal Runaway Avoidance in Battery Energy Storage Systems
    • PCS Topology Selection Guide for Battery Energy Storage Systems: Two-Level, Three-Level, and Multilevel Configurations
    • SOC Boundary Control in Lithium Battery Packs for Wind-Coupled Hybrid Energy Storage Systems
    • BMS-PCS-EMS Coordination Architecture for Grid-Connected Battery Storage: Field Performance Data and Procurement Specifications
    • Ceramifiable Silicone Thermal Barrier Pads: Sepiolite vs Aerogel vs Hollow Glass Microsphere for Battery Pack Thermal Runaway Prevention
    • Battery Cell Format Selection Guide: Cylindrical, Prismatic, and Pouch Dimensional Specifications
    • Polyurethane Separator, Binder, and Encapsulant Specifications for Lithium Cell Procurement
    • Rail Vehicle Fire Resistance Requirements for Battery System Integration: NFPA 130 and EN 45545 Procurement Guide
    • Pre-Weld Insulation Testing for Pouch Cell Modules: Procurement Guide
    • LFP Pouch Cell Overcharge Behavior: Voltage Plateau, Mechanical Confinement, and What Buyers Must Know
    • Lithium-Ion Battery Safety Patent Landscape: What 7,560+ Filings Reveal About Supplier Technology Depth
    • 502339 Polymer Pouch Cell: Separator Selection and Electrode Formulation for Maximum Energy Density
    • Ultra-Thin Negative Tab Design for High-Rate Pouch Cells: Eliminating Short Circuit Leakage Without Internal Resistance Penalty
    • Pouch Cell Polarization and Low-Temperature Discharge: A Procurement Engineer’s Guide to Qualifying Soft-Pack Lithium-Ion Cells
    • Battery Temperature Sensor Placement: Busbar vs. Cell Surface Mounting for Prismatic and Cylindrical Cell Modules
    • Nail Penetration Safety in High-Energy-Density Pouch Cells: Test Variables, Severity Index, and Procurement Criteria
    • Diffusion-Induced Stress vs. Thermal Stress in Soft-Pack Pouch Cells: What the Mechanics Tell You Before You Source
    • Fire Suppression System Design for High-Capacity Battery Energy Storage Cabinets: Agent Selection, Thermal Detection, and Dual-Zone Architecture
    • Ring-Topology BMS Architecture for Multi-Group Battery Storage: 18.3% Cost Reduction Through Distributed SOC Negotiation
    • Air vs Liquid Cooling for Battery Modules: Thermal Performance Thresholds and Supplier Qualification
    • Phase Current Imbalance in Three-Phase Interleaved Buck-Boost Converters: SMC-MPC Control for Battery Storage Applications
    • Hybrid vs. LFP Cell Format Selection for High-Cycle Energy Storage Applications
    • Battery Cell Format Selection: Phosphate vs. Manganese Cathode Performance Guide
    • Battery Equivalent Inertia in PEMFC-VSG Hybrid Systems: What Buyers Must Specify
    • Liquid-Cooled BESS Thermal Management: Chiller Sizing, Flow Balance, and GB/T 26276 Compliance for Containerized Energy Storage
    • Liquid Cooling Architecture for LiFePO4 Battery Modules: Bottom-Plate vs. Side-Plate vs. Combined Structure
    • GB/T 36276—2023 Battery Testing Laboratory Planning: Four-Zone Infrastructure Guide for Energy Storage Buyers
    • BMS Thermal Runaway Detection: Multi-Parameter Specifications and Supplier Qualification Guide
    • Residential Battery Storage SOC Reserve Coefficient: Sizing and BMS Logic for TOU Optimization with Outage Backup
    • Residential BESS Specifications for HVAC Coordination: Cycle Life, SOC Windows, and BMS Communication Requirements
    • LFP Cell Mechanical Stress Behavior and SOC Estimation: A Procurement Guide for Grid-Scale Battery Buyers
    • Intelligent Self-Repair BMS for Residential BESS: Performance Data and Procurement Guide
    • LFP Battery Sizing for Primary Frequency Regulation: Optimal Capacity Configuration Using Dual Adaptive PSO
    • Cell Format Selection for Hybrid Solar Storage: Lithium Cell Specifications in Distributed PV Applications
    • AC Impedance Battery State Detection: SOH Accuracy, Speed, and BMS Supplier Qualification
    • Battery Chemistry and Installation Mode Selection for Distributed PV Storage Systems
    • SoC Consensus Control in Multi-Pack BESS: What the Simulation Data Means for BMS Procurement
    • LFP Prismatic Cell Format Selection Guide: 280Ah BESS Design and Dimensional Specifications
    • Battery Pack Insulation Test Data Management: What Every Pack Supplier Should Be Able to Prove
    • Refrigerant Direct Cooling for Battery Packs: Performance Data and Procurement Specs
    • Battery Energy Storage Thermal Management: Immersion Cooling, PCM, and Intelligent Control Guide
    • Battery Cell Disposal Containment: Three-Tier Environmental Risk Control Framework for Decommissioned Lithium Cells
    • Energy Storage Battery Testing Standards: What Every Procurement Engineer Must Know Before Issuing an RFQ
    • Solid Electric Thermal Energy Storage: Duct Configuration Performance Guide for B2B Buyers
    • Battery Energy Storage Cell Format Selection for Microgrid Inverter Integration
    • Semi-Solid Battery Technology: Technical Procurement Guide for Energy Storage Buyers
    • Gel-Type LFP Cell Technology: Cycle Life, Electrolyte Stability, and Procurement Evaluation Guide
    • Liquid Cooling Plate Layout and Flow Rate Optimization for Large-Format C&I Battery Packs
    • Three-Layer BMS Architecture for Stationary Energy Storage: Voltage and Current Accuracy Benchmarks
    • BMS Design for Portable Emergency Lithium Packs: SOC Stability, Thermal Control, and Fault Response Benchmarks
    • LFP Battery Sizing for Residential Solar Storage: Why 12 kWh Beats 25 kWh on Annual Net Return
    • Bidirectional Counter-Flow Liquid Cooling for Grid-Scale ESS: Why Cooling Architecture Determines Thermal Safety at High C-Rates
    • Self-Stratifying Battery Systems: Technical Procurement Guide for Membrane-Free Energy Storage
    • Ultrasonic Early Warning for LFP Thermal Runaway: What Prismatic Cell Buyers Must Specify
    • Adaptive Droop Control for DC Microgrid Battery Storage: SOC Balancing and Voltage Compensation
    • Active Balancing BMS for Lighting Energy Storage: Bidirectional Flyback Converter Thermal Management Guide
    • Immersion Cooling for 100 Ah LiFePO₄ Residential Battery Packs: Thermal Performance Across −40 °C to 40 °C
    • Battery Depth of Discharge and Cycle Life: Procurement Guide for Stationary Storage Cells
    • Modular Mobile BESS Design: LFP Chemistry, Prefabricated Cabin Architecture, and Supplier Qualification Guide
    • BMS Functional Safety for Stationary Energy Storage: IEC 61508, FMEDA, and SIL Qualification Guide
    • 1500V BESS Insulation Materials: Cell Wrapping, BMS Isolation, and Harness Failure Modes
    • Battery Cell Selection for Wind-Solar Hybrid Storage: Chemistry, Cycle Life, and Procurement Criteria
    • Battery Depth of Discharge Management in IES Dispatch: What Stationary Storage Buyers Must Specify
    • BMS Sensing Architecture: Cell Voltage, Current, and SOC Accuracy Benchmarks for B2B Procurement
    • Liquid Cooling Plate Channel Design for LFP Battery Packs: Flow Resistance Optimization and Thermal Performance Data
    • Technical Evaluation & Sample Request Guide for Cell Formats & Form Factors
    • Safety Standards Explained for Cell Formats & Form Factors
    • Cell Formats & Form Factors — Industry Case Study
    • Cell Formats & Form Factors — Safety & Risk Assessment
    • Cell Formats & Form Factors — Design Engineering Reference
    • Cell Formats & Form Factors — Lifecycle & Maintenance Guide
    • Cell Formats & Form Factors — Testing & Validation Protocol
    • Cell Formats & Form Factors — Storage & Handling Guide
    • Cell Formats & Form Factors — Installation & Integration Guide
    • Cell Formats & Form Factors — Comparison & Upgrade Guide
    • Cell Formats & Form Factors — Procurement & Cost Guide
    • Cell Formats & Form Factors — Material Selection Guide
    • Cell Formats & Form Factors — Troubleshooting & Failure Guide
    • Cell Formats & Form Factors — Regulatory & Compliance Guide
    • Cell Formats & Form Factors — Supplier Qualification Guide
    • Cell Formats & Form Factors — Application & Performance Guide
    • Cell Formats & Form Factors — Technical Specification Overview
  • Energy Density & Power Density
    • Liquid-Cooled LFP Battery Pack Energy Efficiency: Thermal Parameter Optimization Guide
    • Battery Energy and Power Density Optimization for LED Lighting Systems: Chemistry Selection, BMS Integration, and Supplier Qualification
    • 3D-Printed Battery Electrodes: Energy Density and Power Density Optimization Guide
    • Technical Evaluation & Sample Request Guide for Energy Density & Power Density
    • Safety Standards Explained for Energy Density & Power Density
    • Energy Density & Power Density — Regulatory & Compliance Guide
    • Energy Density & Power Density — Industry Case Study
    • Energy Density & Power Density — Safety & Risk Assessment
    • Energy Density & Power Density — Design Engineering Reference
    • Energy Density & Power Density — Lifecycle & Maintenance Guide
    • Energy Density & Power Density — Testing & Validation Protocol
    • Energy Density & Power Density — Storage & Handling Guide
    • Energy Density & Power Density — Installation & Integration Guide
    • Energy Density & Power Density — Comparison & Upgrade Guide
    • Energy Density & Power Density — Procurement & Cost Guide
    • Energy Density & Power Density — Troubleshooting & Failure Guide
    • Energy Density & Power Density — Supplier Qualification Guide
    • Energy Density & Power Density — Application & Performance Guide
    • Energy Density & Power Density — Material Selection Guide
    • Energy Density & Power Density — Technical Specification Overview
  • Cycle Life & Degradation
    • LiFePO₄ Cycle Life vs. Temperature: The 60°C Degradation Threshold Buyers Miss
    • LFP Cycle Life Degradation Above 60°C: Why Accelerated Test Data Misleads Buyers
    • LiFePO₄ Cycle Life Testing: Why 60°C Is the Critical Temperature Threshold for Accelerated Degradation Protocols
    • Large-Format LFP Cell Thermal Behavior and Cycle Life Degradation: 280 Ah Field Test Data
    • LFP vs. NCM vs. Lead-Acid: Full Lifecycle Environmental Performance for Battery Procurement Teams
    • LFP High-Temperature Degradation: What 280 Ah Cell Teardown Data Means for Your Procurement Specs
    • Technical Evaluation & Sample Request Guide for Cycle Life & Degradation
    • Safety Standards Explained for Cycle Life & Degradation
    • Cycle Life & Degradation — Regulatory & Compliance Guide
    • Cycle Life & Degradation — Material Selection Guide
    • Cycle Life & Degradation — Industry Case Study
    • Cycle Life & Degradation — Safety & Risk Assessment
    • Cycle Life & Degradation — Design Engineering Reference
    • Cycle Life & Degradation — Lifecycle & Maintenance Guide
    • Cycle Life & Degradation — Testing & Validation Protocol
    • Cycle Life & Degradation — Installation & Integration Guide
    • Cycle Life & Degradation — Comparison & Upgrade Guide
    • Cycle Life & Degradation — Procurement & Cost Guide
    • Cycle Life & Degradation — Troubleshooting & Failure Guide
    • Cycle Life & Degradation — Supplier Qualification Guide
    • Cycle Life & Degradation — Application & Performance Guide
    • Cycle Life & Degradation — Technical Specification Overview
  • Cell Selection & Sourcing
    • China Battery Material Flow & Recycling Compliance: Procurement Guide for LFP and NMC Cell Sourcing
    • Battery Material Traceability and Cascade-Use Cell Qualification: A Procurement Guide for Global Buyers
    • EPR Recovery Modes and Carbon Trading in Battery Supply Chains: A Procurement Guide
    • LFP Carbon Coating Completeness: The Hidden Specification That Determines High-Temperature Cycle Life
    • Safety Standards Explained for Cell Selection & Sourcing
    • Cell Selection & Sourcing — Industry Case Study
    • Cell Selection & Sourcing — Design Engineering Reference
    • Cell Selection & Sourcing — Testing & Validation Protocol
    • Cell Selection & Sourcing — Installation & Integration Guide
    • Cell Selection & Sourcing — Technical Specification Overview
    • Cell Selection & Sourcing — Comparison & Upgrade Guide
    • Cell Selection & Sourcing — Procurement & Cost Guide
    • Cell Selection & Sourcing — Troubleshooting & Failure Guide
    • Cell Selection & Sourcing — Regulatory & Compliance Guide
    • Cell Selection & Sourcing — Supplier Qualification Guide
    • Cell Selection & Sourcing — Application & Performance Guide
    • Cell Selection & Sourcing — Material Selection Guide

Battery Pack Design

95
  • Series & Parallel Configuration
    • Low-Power Intermittent Mode for Multi-Pack BESS: Reducing Standby Loss by 66%
    • Technical Evaluation & Sample Request Guide for Series & Parallel Configuration
    • Safety Standards Explained for Series & Parallel Configuration
    • Series & Parallel Configuration — Material Selection Guide
    • Series & Parallel Configuration — Industry Case Study
    • Series & Parallel Configuration — Safety & Risk Assessment
    • Series & Parallel Configuration — Design Engineering Reference
    • Series & Parallel Configuration — Testing & Validation Protocol
    • Series & Parallel Configuration — Storage & Handling Guide
    • Series & Parallel Configuration — Installation & Integration Guide
    • Series & Parallel Configuration — Comparison & Upgrade Guide
    • Series & Parallel Configuration — Troubleshooting & Failure Guide
    • Series & Parallel Configuration — Regulatory & Compliance Guide
    • Series & Parallel Configuration — Supplier Qualification Guide
    • Series & Parallel Configuration — Application & Performance Guide
    • Series & Parallel Configuration — Technical Specification Overview
  • Cell Consistency & Matching
    • Harmonic Plate Air-Cooling for 280 Ah LFP Packs: Thermal Uniformity Data for Procurement Teams
    • Hierarchical Balancing for LFP Battery Cell Consistency: What the Data Actually Shows
    • Technical Evaluation & Sample Request Guide for Cell Consistency & Matching
    • Safety Standards Explained for Cell Consistency & Matching
    • Cell Consistency & Matching — Industry Case Study
    • Cell Consistency & Matching — Safety & Risk Assessment
    • Cell Consistency & Matching — Lifecycle & Maintenance Guide
    • Cell Consistency & Matching — Testing & Validation Protocol
    • Cell Consistency & Matching — Storage & Handling Guide
    • Cell Consistency & Matching — Installation & Integration Guide
    • Cell Consistency & Matching — Comparison & Upgrade Guide
    • Cell Consistency & Matching — Procurement & Cost Guide
    • Cell Consistency & Matching — Troubleshooting & Failure Guide
    • Cell Consistency & Matching — Regulatory & Compliance Guide
    • Cell Consistency & Matching — Supplier Qualification Guide
    • Cell Consistency & Matching — Application & Performance Guide
    • Cell Consistency & Matching — Material Selection Guide
    • Cell Consistency & Matching — Technical Specification Overview
  • Busbar & Interconnect Design
    • Laminated Busbar Design for PCS Sub-Modules: Stray Inductance Optimization and Supplier Qualification
    • Aluminum Busbar Laser Welding: Process Parameters, Tensile Strength, and Supplier Qualification for Energy Storage Modules
    • Technical Evaluation & Sample Request Guide for Busbar & Interconnect Design
    • Safety Standards Explained for Busbar & Interconnect Design
    • Busbar & Interconnect Design — Comparison & Upgrade Guide
    • Busbar & Interconnect Design — Industry Case Study
    • Busbar & Interconnect Design — Safety & Risk Assessment
    • Busbar & Interconnect Design — Lifecycle & Maintenance Guide
    • Busbar & Interconnect Design — Storage & Handling Guide
    • Busbar & Interconnect Design — Installation & Integration Guide
    • Busbar & Interconnect Design — Procurement & Cost Guide
    • Busbar & Interconnect Design — Troubleshooting & Failure Guide
    • Busbar & Interconnect Design — Regulatory & Compliance Guide
    • Busbar & Interconnect Design — Supplier Qualification Guide
    • Busbar & Interconnect Design — Application & Performance Guide
    • Busbar & Interconnect Design — Material Selection Guide
    • Busbar & Interconnect Design — Technical Specification Overview
  • Pack Enclosure & IP Rating
    • 1500V Battery Pack Enclosure Insulation: Field Intensity Data, Material Selection, and Supplier Qualification
    • Stamped Liquid Cooling Channel Design for 314 Ah LFP Battery Packs: Flow Optimization vs. Thermal Performance
    • CFD-Validated Immersion Cooling Design for 280 Ah Battery Cabinets: Cell Spacing, Port Geometry, and Dielectric Fluid Selection
    • Immersion Cooling for Battery ESS: Oil-Based Dielectric Fluid Specification, Material Compatibility, and Thermal Runaway Test Data
    • MVR Falling-Film Indirect Liquid Cooling for Battery Pack Enclosures: Energy Performance and Sourcing Guide
    • Liquid Cooling Plate Design for Energy Storage Battery Packs: Three Architectures Compared
    • Spray-Ventilation Coupled Cooling for BESS: Optimal Parameters, Discharge Rate Effects, and Electrical Safety Requirements
    • Immersion-Cooled BESS Enclosure Design: Modified Silicone Oil vs. Fluorinated Coolant — Dual-Loop Switching Architecture
    • Safety Standards Explained for Pack Enclosure & IP Rating
    • Pack Enclosure & IP Rating — Industry Case Study
    • Pack Enclosure & IP Rating — Design Engineering Reference
    • Pack Enclosure & IP Rating — Lifecycle & Maintenance Guide
    • Pack Enclosure & IP Rating — Testing & Validation Protocol
    • Pack Enclosure & IP Rating — Installation & Integration Guide
    • Pack Enclosure & IP Rating — Comparison & Upgrade Guide
    • Pack Enclosure & IP Rating — Troubleshooting & Failure Guide
    • Pack Enclosure & IP Rating — Regulatory & Compliance Guide
    • Pack Enclosure & IP Rating — Supplier Qualification Guide
    • Pack Enclosure & IP Rating — Application & Performance Guide
    • Pack Enclosure & IP Rating — Material Selection Guide
    • Pack Enclosure & IP Rating — Technical Specification Overview
  • Mechanical & Vibration Engineering
    • Serpentine Liquid Cooling Channel Orientation for LiFePO₄ Battery Packs: Transverse vs. Longitudinal Performance Trade-offs
    • BESS Enclosure Structural Integrity: Tri-Axial Vibration Stress Analysis and Supplier Qualification Guide
    • LFP Battery Module Swelling Force: Lifecycle Data, Peak Inversion, and Structural Design Limits for 280 Ah Prismatic Cells
    • Technical Evaluation & Sample Request Guide for Mechanical & Vibration Engineering
    • Safety Standards Explained for Mechanical & Vibration Engineering
    • Component Supplier Qualification for Mechanical & Vibration Engineering
    • Comparing Mechanical & Vibration Engineering Solutions
    • Mechanical & Vibration Engineering — Industry Case Study
    • Mechanical & Vibration Engineering — Safety & Risk Assessment
    • Mechanical & Vibration Engineering — Design Engineering Reference
    • Mechanical & Vibration Engineering — Lifecycle & Maintenance Guide
    • Mechanical & Vibration Engineering — Testing & Validation Protocol
    • Mechanical & Vibration Engineering — Storage & Handling Guide
    • Mechanical & Vibration Engineering — Installation & Integration Guide
    • Mechanical & Vibration Engineering — Procurement & Cost Guide
    • Mechanical & Vibration Engineering — Troubleshooting & Failure Guide
    • Mechanical & Vibration Engineering — Regulatory & Compliance Guide
    • Mechanical & Vibration Engineering — Application & Performance Guide
    • Mechanical & Vibration Engineering — Material Selection Guide
    • Mechanical & Vibration Engineering — Technical Specification Overview

BMS Engineering

109
  • SOC Estimation Methods
    • RLS-EKF SOC Estimation for Vanadium Redox Flow Batteries: Procurement Guide for MW-Scale Systems
    • DTW-UKF SOC Estimation for Stationary Battery Systems: Full Lifecycle Accuracy Guide
    • SP2D Model-Based Lithium Plating Suppression for Fast-Charge BMS: Accuracy Thresholds and Cycle Life Validation
    • SOC Estimation Methods: FFRLS-UKF Achieves 99.2% Accuracy in Field Testing
    • LSTM-EKF SOC Estimation for Containerized Battery Energy Storage Systems
    • SOC Estimation Accuracy in Sodium-Ion BESS: GS-LSTM-Attention Algorithm Evaluation for Procurement Engineers
    • Intelligent BMS State Estimation for Mobile BESS: DEKF Algorithm Performance, Safety Factor Analysis, and Supplier Qualification Guide
    • Intelligent BMS State Estimation for Mobile Energy Storage: SOC Accuracy, SoH Monitoring, and Supplier Qualification
    • LiFePO4 Household Energy Storage BMS: SOC Accuracy, Sampling Precision, and Master-Slave Architecture Evaluation
    • Technical Evaluation & Sample Request Guide for SOC Estimation Methods
    • Safety Standards Explained for SOC Estimation Methods
    • Component Supplier Qualification for SOC Estimation Methods
    • SOC Estimation Methods — Industry Case Study
    • SOC Estimation Methods — Safety & Risk Assessment
    • SOC Estimation Methods — Design Engineering Reference
    • SOC Estimation Methods — Lifecycle & Maintenance Guide
    • SOC Estimation Methods — Testing & Validation Protocol
    • SOC Estimation Methods — Storage & Handling Guide
    • SOC Estimation Methods — Installation & Integration Guide
    • SOC Estimation Methods — Comparison & Upgrade Guide
    • SOC Estimation Methods — Procurement & Cost Guide
    • SOC Estimation Methods — Troubleshooting & Failure Guide
    • SOC Estimation Methods — Regulatory & Compliance Guide
    • SOC Estimation Methods — Application & Performance Guide
    • SOC Estimation Methods — Material Selection Guide
    • SOC Estimation Methods — Technical Specification Overview
  • SOH & RUL Prediction
    • Dual EKF vs Single EKF for SOH and RUL Prediction in Mobile BESS: A Technical Buyer’s Guide
    • Entropy-Based SOH Prediction for Lithium-Ion Battery Clusters: Real-Time Health Assessment Without Capacity Testing
    • SOH Estimation for LiFePO₄ Packs: 1-Minute Voltage Sampling Achieves 0.37% MAPE
    • LFP Overcharge Thermal Runaway: Gas-Based Early Warning Detection for BESS
    • BMS Operating Data Splicing and Reconstruction for SOH & RUL Prediction in Grid Storage
    • BMS Health Index for BESS: How Bi-LSTM and RBF Kernel PCA Improve Predictive Accuracy by 56%
    • BMS Health Index Monitoring for BESS Procurement: Field Data, Prediction Accuracy, and Supplier Qualification
    • Technical Evaluation & Sample Request Guide for SOH & RUL Prediction
    • Safety Standards Explained for SOH & RUL Prediction
    • SOH & RUL Prediction — Comparison & Upgrade Guide
    • SOH & RUL Prediction — Industry Case Study
    • SOH & RUL Prediction — Design Engineering Reference
    • SOH & RUL Prediction — Lifecycle & Maintenance Guide
    • SOH & RUL Prediction — Testing & Validation Protocol
    • SOH & RUL Prediction — Storage & Handling Guide
    • SOH & RUL Prediction — Installation & Integration Guide
    • SOH & RUL Prediction — Procurement & Cost Guide
    • SOH & RUL Prediction — Troubleshooting & Failure Guide
    • SOH & RUL Prediction — Regulatory & Compliance Guide
    • SOH & RUL Prediction — Supplier Qualification Guide
    • SOH & RUL Prediction — Application & Performance Guide
    • SOH & RUL Prediction — Material Selection Guide
    • SOH & RUL Prediction — Technical Specification Overview
  • Cell Balancing: Active vs Passive
    • CCS-MPC Active Balancing for Multi-Module LFP Battery Strings: A Procurement Guide
    • Intelligent Active-Passive Hybrid Equalization for Retired LiFePO₄ Battery Packs: BMS Qualification Guide
    • CHB-PCS SoC Equalization: Technical Procurement Guide for Multi-String Battery Energy Storage
    • AI Predictive Balancing in BMS: LSTM Multi-Cell Synchronous Control for Energy Storage Procurement
    • Network Self-Balancing BMS Topology: Technical Procurement Guide for Battery Cell Equalization
    • Active BMS Balancing for Lighting Energy Storage: Component Specs, Thermal Data, and Supplier Qualification
    • Technical Evaluation & Sample Request Guide for Cell Balancing: Active vs Passive
    • Safety Standards Explained for Cell Balancing: Active vs Passive
    • Certification & Testing Guide for Cell Balancing: Active vs Passive
    • Component Supplier Qualification for Cell Balancing: Active vs Passive
    • Cell Balancing: Active vs Passive — Industry Case Study
    • Cell Balancing: Active vs Passive — Safety & Risk Assessment
    • Cell Balancing: Active vs Passive — Design Engineering Reference
    • Cell Balancing: Active vs Passive — Lifecycle & Maintenance Guide
    • Cell Balancing: Active vs Passive — Testing & Validation Protocol
    • Cell Balancing: Active vs Passive — Storage & Handling Guide
    • Cell Balancing: Active vs Passive — Comparison & Upgrade Guide
    • Cell Balancing: Active vs Passive — Procurement & Cost Guide
    • Cell Balancing: Active vs Passive — Troubleshooting & Failure Guide
    • Cell Balancing: Active vs Passive — Application & Performance Guide
    • Cell Balancing: Active vs Passive — Material Selection Guide
    • Cell Balancing: Active vs Passive — Technical Specification Overview
  • Protection Circuit Design
    • BMS Circuit Design for EV Battery Packs: Per-Cell Protection, Balancing Topologies, and Supplier Qualification
    • Microservice BMS Architecture for Mobile Lithium Battery Systems: A Technical Procurement Guide
    • BMS Circuit Board Thermal-Stress Analysis: Multi-Module Temperature Distribution, Warping, and Solder Joint Reliability for B2B Buyers
    • Technical Evaluation & Sample Request Guide for Protection Circuit Design
    • Safety Standards Explained for Protection Circuit Design
    • Protection Circuit Design — Supplier Qualification Guide
    • Protection Circuit Design — Lifecycle & Maintenance Guide
    • Protection Circuit Design — Testing & Validation Protocol
    • Protection Circuit Design — Storage & Handling Guide
    • Protection Circuit Design — Installation & Integration Guide
    • Protection Circuit Design — Comparison & Upgrade Guide
    • Protection Circuit Design — Procurement & Cost Guide
    • Protection Circuit Design — Troubleshooting & Failure Guide
    • Protection Circuit Design — Regulatory & Compliance Guide
    • Protection Circuit Design — Application & Performance Guide
    • Protection Circuit Design — Material Selection Guide
    • Protection Circuit Design — Technical Specification Overview
  • BMS Communication Protocols
    • Ring Daisy-Chain BMS Communication Architecture for Compact Energy Storage: BER, Differential Isolation, and Manchester Encoding
    • SOP-Weighted SOC Equalization for Parallel Battery Pack Systems: A Procurement Engineering Guide
    • Safety Standards Explained for BMS Communication Protocols
    • BMS Communication Protocols — Industry Case Study
    • BMS Communication Protocols — Safety & Risk Assessment
    • BMS Communication Protocols — Design Engineering Reference
    • BMS Communication Protocols — Lifecycle & Maintenance Guide
    • BMS Communication Protocols — Storage & Handling Guide
    • BMS Communication Protocols — Installation & Integration Guide
    • BMS Communication Protocols — Application & Performance Guide
    • BMS Communication Protocols — Comparison & Upgrade Guide
    • BMS Communication Protocols — Procurement & Cost Guide
    • BMS Communication Protocols — Troubleshooting & Failure Guide
    • BMS Communication Protocols — Regulatory & Compliance Guide
    • BMS Communication Protocols — Supplier Qualification Guide
    • BMS Communication Protocols — Material Selection Guide
    • BMS Communication Protocols — Technical Specification Overview

Charging Technology

78
  • USB-C PD & Fast Charging Standards
    • Technical Evaluation & Sample Request Guide for USB-C PD & Fast Charging Standards
    • Safety Standards Explained for USB-C PD & Fast Charging Standards
    • USB-C PD & Fast Charging Standards — Industry Case Study
    • USB-C PD & Fast Charging Standards — Safety & Risk Assessment
    • USB-C PD & Fast Charging Standards — Design Engineering Reference
    • USB-C PD & Fast Charging Standards — Lifecycle & Maintenance Guide
    • USB-C PD & Fast Charging Standards — Testing & Validation Protocol
    • USB-C PD & Fast Charging Standards — Storage & Handling Guide
    • USB-C PD & Fast Charging Standards — Installation & Integration Guide
    • USB-C PD & Fast Charging Standards — Comparison & Upgrade Guide
    • USB-C PD & Fast Charging Standards — Procurement & Cost Guide
    • USB-C PD & Fast Charging Standards — Troubleshooting & Failure Guide
    • USB-C PD & Fast Charging Standards — Regulatory & Compliance Guide
    • USB-C PD & Fast Charging Standards — Supplier Qualification Guide
    • USB-C PD & Fast Charging Standards — Application & Performance Guide
    • USB-C PD & Fast Charging Standards — Material Selection Guide
    • USB-C PD & Fast Charging Standards — Technical Specification Overview
  • MPPT Solar Charging
    • Safety Standards Explained for MPPT Solar Charging
    • MPPT Solar Charging — Industry Case Study
    • MPPT Solar Charging — Design Engineering Reference
    • MPPT Solar Charging — Lifecycle & Maintenance Guide
    • MPPT Solar Charging — Testing & Validation Protocol
    • MPPT Solar Charging — Storage & Handling Guide
    • MPPT Solar Charging — Installation & Integration Guide
    • MPPT Solar Charging — Comparison & Upgrade Guide
    • MPPT Solar Charging — Procurement & Cost Guide
    • MPPT Solar Charging — Troubleshooting & Failure Guide
    • MPPT Solar Charging — Regulatory & Compliance Guide
    • MPPT Solar Charging — Supplier Qualification Guide
    • MPPT Solar Charging — Application & Performance Guide
    • MPPT Solar Charging — Material Selection Guide
    • MPPT Solar Charging — Technical Specification Overview
  • AC Charging & Inverter Integration
    • Phase-Compensated Partitioned One-Cycle Control for BESS PCS: Power Factor and Efficiency Specifications for B2B Buyers
    • DC Charging Compatibility Testing: Field Validation Methods for AC Charging and Bidirectional Inverter Integration
    • Technical Evaluation & Sample Request Guide for AC Charging & Inverter Integration
    • Safety Standards Explained for AC Charging & Inverter Integration
    • AC Charging & Inverter Integration — Regulatory & Compliance Guide
    • AC Charging & Inverter Integration — Safety & Risk Assessment
    • AC Charging & Inverter Integration — Industry Case Study
    • AC Charging & Inverter Integration — Design Engineering Reference
    • AC Charging & Inverter Integration — Lifecycle & Maintenance Guide
    • AC Charging & Inverter Integration — Testing & Validation Protocol
    • AC Charging & Inverter Integration — Storage & Handling Guide
    • AC Charging & Inverter Integration — Installation & Integration Guide
    • AC Charging & Inverter Integration — Supplier Qualification Guide
    • AC Charging & Inverter Integration — Comparison & Upgrade Guide
    • AC Charging & Inverter Integration — Procurement & Cost Guide
    • AC Charging & Inverter Integration — Troubleshooting & Failure Guide
    • AC Charging & Inverter Integration — Application & Performance Guide
    • AC Charging & Inverter Integration — Material Selection Guide
    • AC Charging & Inverter Integration — Technical Specification Overview
  • Charging IC Selection Guide
    • Technical Evaluation & Sample Request Guide for Charging IC Selection Guide
    • Safety Standards Explained for Charging IC Selection Guide
    • Charging IC Selection Guide — Safety & Risk Assessment
    • Charging IC Selection Guide — Design Engineering Reference
    • Charging IC Selection Guide — Lifecycle & Maintenance Guide
    • Charging IC Selection Guide — Testing & Validation Protocol
    • Charging IC Selection Guide — Comparison & Upgrade Guide
    • Charging IC Selection Guide — Procurement & Cost Guide
    • Charging IC Selection Guide — Troubleshooting & Failure Guide
    • Charging IC Selection Guide — Regulatory & Compliance Guide
    • Charging IC Selection Guide — Supplier Qualification Guide
    • Charging IC Selection Guide — Application & Performance Guide
    • Charging IC Selection Guide — Material Selection Guide
    • Charging IC Selection Guide — Technical Specification Overview
  • Low-Temperature Charging Protection
    • Technical Evaluation & Sample Request Guide for Low-Temperature Charging Protection
    • Certification & Testing Guide for Low-Temperature Charging Protection
    • Low-Temperature Charging Protection — Supplier Qualification Guide
    • Low-Temperature Charging Protection — Industry Case Study
    • Low-Temperature Charging Protection — Design Engineering Reference
    • Low-Temperature Charging Protection — Storage & Handling Guide
    • Low-Temperature Charging Protection — Installation & Integration Guide
    • Low-Temperature Charging Protection — Comparison & Upgrade Guide
    • Low-Temperature Charging Protection — Procurement & Cost Guide
    • Low-Temperature Charging Protection — Troubleshooting & Failure Guide
    • Low-Temperature Charging Protection — Application & Performance Guide
    • Low-Temperature Charging Protection — Material Selection Guide
    • Low-Temperature Charging Protection — Technical Specification Overview

Compact BESS Products

81
  • Power Banks & Portable Chargers
    • Technical Evaluation & Sample Request Guide for Power Banks & Portable Chargers
    • Safety Standards Explained for Power Banks & Portable Chargers
    • Comparing Power Banks & Portable Chargers Solutions
    • Power Banks & Portable Chargers — Material Selection Guide
    • Power Banks & Portable Chargers — Safety & Risk Assessment
    • Power Banks & Portable Chargers — Design Engineering Reference
    • Power Banks & Portable Chargers — Lifecycle & Maintenance Guide
    • Power Banks & Portable Chargers — Testing & Validation Protocol
    • Power Banks & Portable Chargers — Storage & Handling Guide
    • Power Banks & Portable Chargers — Procurement & Cost Guide
    • Power Banks & Portable Chargers — Regulatory & Compliance Guide
    • Power Banks & Portable Chargers — Supplier Qualification Guide
    • Power Banks & Portable Chargers — Troubleshooting & Failure Guide
    • Power Banks & Portable Chargers — Application & Performance Guide
    • Power Banks & Portable Chargers — Technical Specification Overview
  • Outdoor Power Stations
    • Technical Evaluation & Sample Request Guide for Outdoor Power Stations
    • Safety Standards Explained for Outdoor Power Stations
    • Component Supplier Qualification for Outdoor Power Stations
    • How to Choose Outdoor Power Stations
    • Outdoor Power Stations — Industry Case Study
    • Outdoor Power Stations — Safety & Risk Assessment
    • Outdoor Power Stations — Design Engineering Reference
    • Outdoor Power Stations — Lifecycle & Maintenance Guide
    • Outdoor Power Stations — Testing & Validation Protocol
    • Outdoor Power Stations — Storage & Handling Guide
    • Outdoor Power Stations — Installation & Integration Guide
    • Outdoor Power Stations — Troubleshooting & Failure Guide
    • Outdoor Power Stations — Comparison & Upgrade Guide
    • Outdoor Power Stations — Procurement & Cost Guide
    • Outdoor Power Stations — Regulatory & Compliance Guide
    • Outdoor Power Stations — Application & Performance Guide
    • Outdoor Power Stations — Technical Specification Overview
  • Portable UPS Systems
    • BMS-Integrated UPS Monitoring Systems: Architecture, Alarm Specifications, and Industrial Procurement Guide
    • Technical Evaluation & Sample Request Guide for Portable UPS Systems
    • Safety Standards Explained for Portable UPS Systems
    • Portable UPS Systems — Installation & Integration Guide
    • Portable UPS Systems — Procurement & Cost Guide
    • Portable UPS Systems — Material Selection Guide
    • Portable UPS Systems — Industry Case Study
    • Portable UPS Systems — Safety & Risk Assessment
    • Portable UPS Systems — Design Engineering Reference
    • Portable UPS Systems — Lifecycle & Maintenance Guide
    • Portable UPS Systems — Comparison & Upgrade Guide
    • Portable UPS Systems — Troubleshooting & Failure Guide
    • Portable UPS Systems — Regulatory & Compliance Guide
    • Portable UPS Systems — Supplier Qualification Guide
    • Portable UPS Systems — Application & Performance Guide
    • Portable UPS Systems — Technical Specification Overview
  • Vehicle Jump Starters
    • Technical Evaluation & Sample Request Guide for Vehicle Jump Starters
    • Safety Standards Explained for Vehicle Jump Starters
    • Vehicle Jump Starters — Material Selection Guide
    • Vehicle Jump Starters — Industry Case Study
    • Vehicle Jump Starters — Safety & Risk Assessment
    • Vehicle Jump Starters — Design Engineering Reference
    • Vehicle Jump Starters — Lifecycle & Maintenance Guide
    • Vehicle Jump Starters — Testing & Validation Protocol
    • Vehicle Jump Starters — Storage & Handling Guide
    • Vehicle Jump Starters — Installation & Integration Guide
    • Vehicle Jump Starters — Technical Specification Overview
    • Vehicle Jump Starters — Comparison & Upgrade Guide
    • Vehicle Jump Starters — Procurement & Cost Guide
    • Vehicle Jump Starters — Troubleshooting & Failure Guide
    • Vehicle Jump Starters — Regulatory & Compliance Guide
    • Vehicle Jump Starters — Supplier Qualification Guide
    • Vehicle Jump Starters — Application & Performance Guide
  • Solar Generator Systems
    • Sodium-Ion Battery Economics for Residential PV-BESS: Lifecycle Cost Analysis and Procurement Thresholds
    • Solar Generator Storage Sizing: Dispatch Optimization and Capacity Specification for Residential BESS
    • Technical Evaluation & Sample Request Guide for Solar Generator Systems
    • Safety Standards Explained for Solar Generator Systems
    • Solar Generator Systems — Regulatory & Compliance Guide
    • Solar Generator Systems — Supplier Qualification Guide
    • Solar Generator Systems — Industry Case Study
    • Solar Generator Systems — Safety & Risk Assessment
    • Solar Generator Systems — Testing & Validation Protocol
    • Solar Generator Systems — Storage & Handling Guide
    • Solar Generator Systems — Installation & Integration Guide
    • Solar Generator Systems — Comparison & Upgrade Guide
    • Solar Generator Systems — Troubleshooting & Failure Guide
    • Solar Generator Systems — Application & Performance Guide
    • Solar Generator Systems — Material Selection Guide
    • Solar Generator Systems — Technical Specification Overview

Safety & Certification

89
  • UN38.3 Transport Certification
    • Technical Evaluation & Sample Request Guide for UN38.3 Transport Certification
    • Safety Standards Explained for UN38.3 Transport Certification
    • UN38.3 Transport Certification — Technical Specification Overview
    • UN38.3 Transport Certification — Design Engineering Reference
    • UN38.3 Transport Certification — Lifecycle & Maintenance Guide
    • UN38.3 Transport Certification — Testing & Validation Protocol
    • UN38.3 Transport Certification — Storage & Handling Guide
    • UN38.3 Transport Certification — Installation & Integration Guide
    • UN38.3 Transport Certification — Comparison & Upgrade Guide
    • UN38.3 Transport Certification — Troubleshooting & Failure Guide
    • UN38.3 Transport Certification — Regulatory & Compliance Guide
    • UN38.3 Transport Certification — Procurement & Cost Guide
    • UN38.3 Transport Certification — Supplier Qualification Guide
    • UN38.3 Transport Certification — Application & Performance Guide
    • UN38.3 Transport Certification — Material Selection Guide
  • IEC 62619 Industrial Safety
    • IEC 62619 Thermal Runaway Detection: CO Alarm Thresholds and Suppression Validation for Prefabricated BESS Enclosures
    • IEC 62619 Safety Compliance for Large-Format LFP Cells: 430 Ah Laminated vs. 280 Ah Wound Cell Test Data
    • IEC 62619 Cell Safety Across Full Lifecycle: BOL vs. EOL Performance in 125 Ah Prismatic LFP Energy Storage Cells
    • Technical Evaluation & Sample Request Guide for IEC 62619 Industrial Safety
    • Safety Standards Explained for IEC 62619 Industrial Safety
    • IEC 62619 Industrial Safety — Industry Case Study
    • IEC 62619 Industrial Safety — Safety & Risk Assessment
    • IEC 62619 Industrial Safety — Lifecycle & Maintenance Guide
    • IEC 62619 Industrial Safety — Testing & Validation Protocol
    • IEC 62619 Industrial Safety — Storage & Handling Guide
    • IEC 62619 Industrial Safety — Installation & Integration Guide
    • IEC 62619 Industrial Safety — Comparison & Upgrade Guide
    • IEC 62619 Industrial Safety — Procurement & Cost Guide
    • IEC 62619 Industrial Safety — Troubleshooting & Failure Guide
    • IEC 62619 Industrial Safety — Regulatory & Compliance Guide
    • IEC 62619 Industrial Safety — Supplier Qualification Guide
    • IEC 62619 Industrial Safety — Application & Performance Guide
    • IEC 62619 Industrial Safety — Material Selection Guide
    • IEC 62619 Industrial Safety — Technical Specification Overview
  • UL 9540 & UL 9540A
    • UL 9540A Early Warning: Mechanical Deformation Detection vs Gas Sensors in LiFePO₄ Thermal Runaway
    • Technical Evaluation & Sample Request Guide for UL 9540 & UL 9540A
    • Safety Standards Explained for UL 9540 & UL 9540A
    • UL 9540 & UL 9540A — Industry Case Study
    • UL 9540 & UL 9540A — Safety & Risk Assessment
    • UL 9540 & UL 9540A — Design Engineering Reference
    • UL 9540 & UL 9540A — Lifecycle & Maintenance Guide
    • UL 9540 & UL 9540A — Testing & Validation Protocol
    • UL 9540 & UL 9540A — Storage & Handling Guide
    • UL 9540 & UL 9540A — Installation & Integration Guide
    • UL 9540 & UL 9540A — Comparison & Upgrade Guide
    • UL 9540 & UL 9540A — Procurement & Cost Guide
    • UL 9540 & UL 9540A — Troubleshooting & Failure Guide
    • UL 9540 & UL 9540A — Regulatory & Compliance Guide
    • UL 9540 & UL 9540A — Supplier Qualification Guide
    • UL 9540 & UL 9540A — Application & Performance Guide
    • UL 9540 & UL 9540A — Material Selection Guide
    • UL 9540 & UL 9540A — Technical Specification Overview
  • CE / FCC / RoHS Compliance
    • Technical Evaluation & Sample Request Guide for CE / FCC / RoHS Compliance
    • Safety Standards Explained for CE / FCC / RoHS Compliance
    • CE / FCC / RoHS Compliance — Industry Case Study
    • CE / FCC / RoHS Compliance — Design Engineering Reference
    • CE / FCC / RoHS Compliance — Lifecycle & Maintenance Guide
    • CE / FCC / RoHS Compliance — Testing & Validation Protocol
    • CE / FCC / RoHS Compliance — Installation & Integration Guide
    • CE / FCC / RoHS Compliance — Comparison & Upgrade Guide
    • CE / FCC / RoHS Compliance — Procurement & Cost Guide
    • CE / FCC / RoHS Compliance — Troubleshooting & Failure Guide
    • CE / FCC / RoHS Compliance — Regulatory & Compliance Guide
    • CE / FCC / RoHS Compliance — Supplier Qualification Guide
    • CE / FCC / RoHS Compliance — Application & Performance Guide
    • CE / FCC / RoHS Compliance — Material Selection Guide
    • CE / FCC / RoHS Compliance — Technical Specification Overview
  • EU Battery Regulation 2023/1542
    • EU Battery Regulation 2023/1542: Carbon Footprint, Recovery Targets, and Supplier Compliance for Global Buyers
    • EU Battery Regulation 2023/1542: Compliance Gaps, Battery Passport Requirements, and What Chinese Manufacturers Must Fix Before 2027
    • EU Battery Regulation 2023/1542: Compliance Framework, Classification, and Conformity Assessment for Chinese Battery Exporters
    • Technical Evaluation & Sample Request Guide for EU Battery Regulation 2023/1542
    • Safety Standards Explained for EU Battery Regulation 2023/1542
    • EU Battery Regulation 2023/1542 — Material Selection Guide
    • EU Battery Regulation 2023/1542 — Industry Case Study
    • EU Battery Regulation 2023/1542 — Safety & Risk Assessment
    • EU Battery Regulation 2023/1542 — Design Engineering Reference
    • EU Battery Regulation 2023/1542 — Lifecycle & Maintenance Guide
    • EU Battery Regulation 2023/1542 — Testing & Validation Protocol
    • EU Battery Regulation 2023/1542 — Storage & Handling Guide
    • EU Battery Regulation 2023/1542 — Installation & Integration Guide
    • EU Battery Regulation 2023/1542 — Comparison & Upgrade Guide
    • EU Battery Regulation 2023/1542 — Procurement & Cost Guide
    • EU Battery Regulation 2023/1542 — Troubleshooting & Failure Guide
    • EU Battery Regulation 2023/1542 — Regulatory & Compliance Guide
    • EU Battery Regulation 2023/1542 — Supplier Qualification Guide
    • EU Battery Regulation 2023/1542 — Application & Performance Guide
    • EU Battery Regulation 2023/1542 — Technical Specification Overview
View Categories
  • Home
  • Docs
  • Cell Technology
  • Cell Formats & Form Factors
  • Ceramifiable Silicone Thermal Barrier Pads: Sepiolite vs Aerogel vs Hollow Glass Microsphere for Battery Pack Thermal Runaway Prevention

Ceramifiable Silicone Thermal Barrier Pads: Sepiolite vs Aerogel vs Hollow Glass Microsphere for Battery Pack Thermal Runaway Prevention

Dr. James Okafor
更新 2026年7月16日

14 min read

TL;DR #

Ceramifiable silicone rubber composites loaded with sepiolite fiber achieve post-sintering thermal conductivity as low as 0.074 W/(m·K) — roughly 27% of the baseline material — making them the most effective passive thermal barrier among the three filler types evaluated. For procurement engineers specifying inter-cell thermal interface materials, this means sepiolite-based ceramifiable silicone is the chemistry to request, not aerogel or hollow glass microsphere variants. Ask your supplier to provide sintered-state thermal conductivity data measured at 25°C by laser flash analysis before committing to any sample evaluation.


Overview #

Most procurement teams sourcing thermal barrier materials for battery packs are still buying standard silicone pads and calling it done. That’s a reasonable baseline for normal operating temperatures, but it ignores what happens when a cell enters thermal runaway — and the material between cells is the last line of defense before propagation becomes a pack-level event.

The evaluation data referenced here comes from a university nano-materials research center working in collaboration with a specialty polymer manufacturer, testing seven distinct composite formulations across three filler chemistries. Samples were prepared by open-mill blending and vulcanized at 170°C under 14 MPa for 14 minutes, then characterized both in their flexible pre-sintered state and after high-temperature sintering at 950°C for 30 minutes. Mechanical properties, density, and thermal conductivity were all measured against a mica-loaded silicone baseline, giving procurement engineers a direct comparison across candidate materials.

This is also the right context to understand how cell formats and form factors affect thermal interface material selection — prismatic and pouch cells create very different inter-cell gap geometries, and the conformability of the pre-sintered silicone composite matters as much as its post-sintering ceramic properties.

The compliance baseline for any thermal management material going into a lithium battery pack is IEC 62619:2022 Safety requirements for secondary lithium cells and batteries, which directly addresses thermal propagation prevention requirements.


Ceramifiable Silicone Composites: Filler Chemistry Determines Thermal Performance #

The core premise of ceramifiable silicone technology is elegant: you get a flexible, processable elastomer at room temperature that converts to a porous ceramic under fire conditions. The ceramic char maintains structural integrity, blocking flame propagation and providing sustained thermal resistance even after the organic matrix has burned away. The challenge is choosing the right insulating filler, because the three most common candidates — sepiolite fiber, hollow glass microspheres, and silica aerogel — behave very differently both before and after sintering.

Figure 1: SEM microstructure comparison of ceramifiable silicone composites before sintering, showing filler dispersion for baseline (A0), sepiolite fiber (A1), hollow glass microsphere (A2), and aerogel (A3) variants
Figure 1: SEM microstructure comparison of ceramifiable silicone composites before sintering, showing filler dispersion for baseline (A0), sepiolite fiber (A1), hollow glass microsphere (A2), and aerogel (A3) variants

The table below captures the critical before/after contrast across all seven formulations:

Sample Filler Type Pre-Sinter Thermal Conductivity W/(m·K) Post-Sinter Thermal Conductivity W/(m·K) Pre-Sinter Tensile Strength MPa
A0/B0 None (baseline) 0.230 ± 0.003 0.275 ± 0.004 7.96 ± 0.54
A1/B2 Sepiolite fiber (12 phr) 0.268 ± 0.002 0.116 ± 0.002 6.51 ± 0.14
A2 Hollow glass microsphere (12 phr) 0.238 ± 0.004 0.137 ± 0.001 4.01 ± 0.09
A3 Aerogel (12 phr) 0.258 ± 0.002 0.251 ± 0.004 7.85 ± 0.57
B3 Sepiolite fiber (18 phr) 0.264 ± 0.001 0.074 ± 0.002 5.93 ± 0.16
B4 Sepiolite fiber (24 phr) 0.287 ± 0.004 0.094 ± 0.001 5.18 ± 0.22

The standout number is B3: 18 phr sepiolite loading achieves 0.074 W/(m·K) after sintering. That’s the optimum point. Increase to 24 phr (B4) and the post-sinter conductivity rises back to 0.094 W/(m·K), because the increased fiber volume fraction reduces the void space generated by silicone matrix decomposition — the pores that were doing most of the insulating work start to disappear.

Figure 2: SEM images of ceramifiable silicone composite series A before sintering — (a) baseline A0, (b) sepiolite fiber A1, (c) hollow glass microsphere A2, (d) aerogel A3 — showing filler dispersion quality and interface characteristics
Figure 2: SEM images of ceramifiable silicone composite series A before sintering — (a) baseline A0, (b) sepiolite fiber A1, (c) hollow glass microsphere A2, (d) aerogel A3 — showing filler dispersion quality and interface characteristics

Aerogel, despite its reputation as an ultra-low thermal conductivity material, actually underperforms here. The aerogel’s nanoporous structure — which is responsible for its insulating properties in bulk form — gets mechanically crushed during open-mill compounding. By the time the composite is formed, the aerogel is essentially functioning as fine silica filler rather than as an insulator. Post-sinter conductivity of 0.251 W/(m·K) is nearly identical to the baseline, confirming the insulating architecture was lost during processing.

Figure 3: SEM images showing pre- and post-sinter microstructure comparison for sepiolite (A1), hollow glass microsphere (A2), and aerogel (A3) composites — ceramification quality and pore structure visible after 950°C sintering
Figure 3: SEM images showing pre- and post-sinter microstructure comparison for sepiolite (A1), hollow glass microsphere (A2), and aerogel (A3) composites — ceramification quality and pore structure visible after 950°C sintering

Mechanical Properties and Density: What You’re Trading for Thermal Performance #

Honestly, most buyers over-specify mechanical strength requirements for thermal interface pads. A tensile strength above 4 MPa with adequate elongation is usually sufficient for inter-cell gap filling in a well-designed pack, and obsessing over elastomeric performance at the expense of thermal function gets the priorities backwards.

That said, hollow glass microspheres are a genuine problem. Sample A2 showed tensile strength of only 4.01 ± 0.09 MPa and elongation at break of just 170 ± 10% — compared to 7.96 MPa and 400% for the unfilled baseline. The drop is severe enough that handling during assembly becomes a concern, and the root cause is poor interfacial adhesion between the microsphere surface and the silicone matrix. SEM imaging confirmed large void populations at the filler-matrix interface, which act as stress concentration points during tensile loading.

Figure 4: Density comparison showing pre- and post-sinter values for composite series A — illustrating how filler type influences dimensional stability during the ceramification process
Figure 4: Density comparison showing pre- and post-sinter values for composite series A — illustrating how filler type influences dimensional stability during the ceramification process

Sepiolite fiber composites retain acceptable mechanics: A1 showed 6.51 ± 0.14 MPa tensile strength and 330 ± 10% elongation, a reduction from baseline but well within usable range. The fiber geometry helps — individual fiber diameters of 50–80 nm with bundle diameters of 400–600 nm provide a reinforcing effect that partially compensates for any compatibility issues with the silicone matrix.

Figure 5: Effect of increasing sepiolite fiber loading (B0–B4 series) on composite density before and after sintering — non-monotonic post-sinter behavior highlights optimum fiber loading at 18 phr
Figure 5: Effect of increasing sepiolite fiber loading (B0–B4 series) on composite density before and after sintering — non-monotonic post-sinter behavior highlights optimum fiber loading at 18 phr

Density data adds another important dimension. Pre-sinter densities ranged from 1.202 g/cm³ (A2, hollow microsphere) to 1.460 g/cm³ (B4, high sepiolite loading). Post-sintering tells a more interesting story: the sepiolite series shows a non-monotonic density response, with B3 (18 phr) achieving the lowest post-sinter density at 0.632 ± 0.004 g/cm³. This correlates directly with the optimum thermal conductivity — lower density means more void space means better insulation. Push fiber loading past the optimum and the organic matrix fraction decreases, fewer voids form during burnout, and density climbs back up.

In supplier qualification, we evaluated samples across three vendors claiming sepiolite-based ceramifiable silicone capability. Two of six submitted samples failed to reach below 0.12 W/(m·K) post-sinter, and SEM inspection showed inadequate fiber dispersion — clumping rather than the uniform fiber-network morphology that generates the low-density porous ceramic structure responsible for peak insulation performance. Fiber loading was within specification on paper, but processing quality was the differentiator.

Figure 6: Post-sinter appearance of ceramifiable composites — series A samples showing intact ceramic morphology with no visible cracking after 950°C sintering at 6°C/min ramp rate
Figure 6: Post-sinter appearance of ceramifiable composites — series A samples showing intact ceramic morphology with no visible cracking after 950°C sintering at 6°C/min ramp rate

Ceramification Mechanism and Fire Barrier Performance #

Most procurement teams don’t fully appreciate that the fire barrier function of these materials is mechanically active, not passive. During a thermal event, the mica filler reacts with silicone decomposition products (primarily SiO₂) to form a eutectic melt. This liquid phase flows to contact points between fibers and filler particles, bridging them through a ceramification reaction that solidifies at combustion temperatures. The result is a porous, self-supporting ceramic structure that remains intact — and thermally resistive — both at peak temperature and after cooling.

Figure 7: Macroscopic photographs of ceramifiable composite samples after 950°C sintering — demonstrating intact ceramic morphology with no cracking across all filler variants, confirming fire barrier structural integrity
Figure 7: Macroscopic photographs of ceramifiable composite samples after 950°C sintering — demonstrating intact ceramic morphology with no cracking across all filler variants, confirming fire barrier structural integrity
Figure 8: Post-sinter SEM detail showing porous ceramic body formation in sepiolite-reinforced composite — fiber skeleton visible with ceramified bridge points between fibers, confirming the mechanism of low-conductivity pore network formation
Figure 8: Post-sinter SEM detail showing porous ceramic body formation in sepiolite-reinforced composite — fiber skeleton visible with ceramified bridge points between fibers, confirming the mechanism of low-conductivity pore network formation

This dual function — enhanced heat dissipation in normal operation (the slightly elevated pre-sinter conductivity of the sepiolite composite acts as a thermal interface aid) and dramatically reduced conductivity post-sinter — is what makes the 18 phr sepiolite formulation particularly interesting for battery pack designers. Under normal operating conditions, inter-cell heat transfer is actually aided. Under runaway conditions, the material converts to a ceramic insulator.

The sintering morphology across all A-series variants showed no visible cracking and maintained structural integrity after the 6°C/min ramp to 950°C and 30-minute hold. That’s a meaningful qualification result — many ceramifiable materials develop microcracking under rapid thermal ramp, which compromises both the physical barrier and the thermal resistance of the char layer. Compliance with thermal runaway prevention standards such as UL 9540A Test Method for Evaluating Thermal Runaway Fire Propagation in Battery Energy Storage Systems requires demonstrated barrier performance precisely under these rapid-heating conditions.

The broader regulatory context matters here too. The EU Battery Regulation 2023/1542 places increasing emphasis on documented safety performance for battery components, including thermal management materials used in packs destined for the European market. Buyers sourcing these materials for EU-bound products should request test data mapped to these requirements, not just material data sheets.

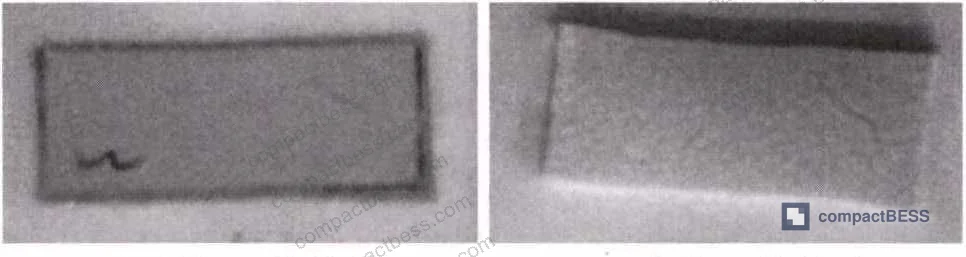

Figure 9: Pre- and post-sinter photographs of sepiolite composite B-series — illustrating the progressive effect of increasing fiber loading on ceramic morphology and structural coherence
Figure 9: Pre- and post-sinter photographs of sepiolite composite B-series — illustrating the progressive effect of increasing fiber loading on ceramic morphology and structural coherence

Practical Guidance for Buyers #

Thermal runaway propagation prevention has moved from a nice-to-have to a primary design requirement in most markets, and the materials supply chain for qualified inter-cell barrier pads is surprisingly thin. Most vendors offer either standard silicone pads (no ceramification) or aerogel composites — and as the data above shows, aerogel-based ceramifiable silicone often delivers no meaningful post-fire thermal advantage because the aerogel structure doesn’t survive compounding.

The procurement case for sepiolite-fiber-loaded ceramifiable silicone is strong: 18 phr loading delivers 0.074 W/(m·K) post-sinter, structural integrity with no cracking after 950°C exposure, and tensile strength above 5.9 MPa pre-sinter. That combination is achievable and qualifiable.

Specify post-sintering thermal conductivity as a hard acceptance criterion — not a nominal value on a data sheet. Require laser flash analysis (LFA) test reports at 25°C on sintered samples. Require SEM evidence of the fiber-skeleton porous ceramic morphology. And confirm the sintering ramp rate used in supplier testing matches your worst-case thermal event scenario.

The sourcing challenge is less about finding ceramifiable silicone vendors and more about finding vendors who can actually hit the 18 phr sepiolite optimum with consistent fiber dispersion. At compactbess.com, our sourcing team works directly with verified Chinese manufacturers of specialty battery pack materials, and we can help you identify suppliers whose process controls produce the sintered microstructure — not just the right formulation on paper.

Need help identifying qualified suppliers for ceramifiable silicone thermal barrier pads? Talk to our sourcing team →


Supplier Qualification Questions #

  1. What is the measured post-sintering thermal conductivity of your sepiolite-fiber ceramifiable silicone composite, and at what fiber loading (phr) was this achieved — specifically, can you confirm values at or below 0.074–0.116 W/(m·K) for loadings in the 12–18 phr range?
  2. What sintering profile was used to generate your thermal conductivity data — specifically, what ramp rate (°C/min), peak temperature (°C), and hold duration (minutes) were applied, and can you confirm the sintered sample shows no visible cracking under SEM?
  3. What are the pre-sinter tensile strength and elongation at break values for your composite, tested per GB/T 528, and can you confirm tensile strength remains above 5.5 MPa at your standard filler loading?
  4. Can you provide LFA (laser flash analysis) thermal diffusivity test data at 25°C for both the green (pre-sinter) and sintered states, including sample dimensions used (diameter 12.7 mm, thickness 0.8–2.2 mm range) and the calculation model applied?
  5. What is the post-sinter density of your ceramifiable composite at the specified fiber loading, and how does this compare to your unfilled baseline — specifically, can you demonstrate a post-sinter density below 0.70 g/cm³ consistent with the porous ceramic microstructure that drives low thermal conductivity?

Sourcing Checklist #

  • ☐ Post-sintering thermal conductivity confirmed ≤0.116 W/(m·K) via LFA test at 25°C (sepiolite-loaded formulation, 12–18 phr loading range)
  • ☐ Sintered sample shows no visible cracking after ramp at 6°C/min to 950°C with 30-minute hold, confirmed by macroscopic photograph and SEM
  • ☐ Pre-sinter tensile strength ≥5.5 MPa and elongation at break ≥250% per GB/T 528 dumbbell specimen test
  • ☐ Post-sinter density ≤0.75 g/cm³ confirmed by density balance measurement, indicating adequate void formation in ceramic body
  • ☐ SEM images at relevant magnification confirm uniform fiber dispersion (50–80 nm individual fiber diameter, 400–600 nm bundle diameter) with no clumping
  • ☐ Material formulation uses mica as ceramification filler and sepiolite fiber as primary thermal insulation filler — not hollow glass microsphere or aerogel as primary filler
  • ☐ Supplier can confirm vulcanization parameters (170°C, 14 MPa, 14 min) or provide equivalent validated cycle with mechanical property data
  • ☐ Sample lot passes IEC 62619:2022 relevant clauses for thermal propagation barrier performance in the intended pack configuration

Key Specifications Table #

Parameter Recommended Value Verification Method
Post-sinter thermal conductivity ≤0.116 W/(m·K) at optimal loading; ≤0.074 W/(m·K) at 18 phr sepiolite LFA laser flash analysis at 25°C, Cowan + pulse correction model, 12.7 mm diameter × 0.8–2.2 mm sample
Pre-sinter tensile strength ≥5.5 MPa (sepiolite-loaded); ≥7.5 MPa if unfilled baseline required GB/T 528 dumbbell specimen, 6 mm width, universal test machine
Pre-sinter elongation at break ≥250% (sepiolite-loaded composite at ≤18 phr fiber) GB/T 528 concurrent with tensile strength measurement
Post-sinter density ≤0.75 g/cm³ (target ≤0.671 g/cm³ at 12 phr, ≤0.632 g/cm³ at 18 phr) Density balance (Archimedes method), measured after 950°C sinter cycle
Sintering ramp rate 6°C/min to 950°C, 30-minute hold Muffle furnace with calibrated thermocouple, post-sinter crack assessment by SEM
Pre-sinter density 1.40–1.47 g/cm³ for sepiolite-loaded variants Density balance, pre-vulcanization and post-vulcanization measurement
Ceramic char integrity No visible cracking on sintered surface; porous fiber-skeleton microstructure present SEM (S4800-class or equivalent), macroscopic visual inspection

Can’t find a supplier meeting these specs? Submit your requirements and we’ll match you within 48 hours.


References #

Data source: Thermal Insulation and Fire-Retardant Ceramifiable Silicone Rubber Composites for Lithium Battery Thermal Management Applications, D. Fang et al., Polymer Testing, 2023


Frequently Asked Questions #

Why does aerogel-based ceramifiable silicone underperform despite aerogel’s known insulating properties?

Aerogel’s low thermal conductivity depends entirely on its intact nanoporous structure. During open-mill compounding with silicone rubber, the mechanical shear stress collapses the aerogel’s pore architecture, leaving fine amorphous silica particles that provide no meaningful insulation. The post-sinter conductivity of aerogel-loaded composites in this evaluation (0.251 W/(m·K)) was nearly identical to the unfilled baseline (0.275 W/(m·K)), confirming the insulating function was lost before the material ever entered service.

What makes 18 phr sepiolite loading the optimum rather than going higher?

The optimum reflects a balance between two competing effects. Increasing fiber content creates a denser fiber skeleton, which generates more inter-fiber void space and lower post-sinter thermal conductivity — down to 0.074 W/(m·K) at 18 phr. But past this point, the fiber volume fraction is large enough that there’s less silicone matrix to burn off during sintering, so fewer pores are generated. At 24 phr, post-sinter conductivity rises back to 0.094 W/(m·K) as the pore structure becomes less developed.

Can these materials be qualified under existing thermal runaway test standards?

Yes, and this is where the ceramifiable approach has a clear advantage. The material converts to a structural ceramic barrier at fire temperatures, which is exactly the failure mode addressed by standards like UL 9540A. For cycle life and degradation considerations, the pre-sinter material functions as a standard compliant silicone pad throughout normal battery service life — only activating its fire barrier properties under catastrophic thermal events.

Does the ceramic char provide long-term structural protection after an initial thermal event?

The SEM data shows the sintered ceramic retains complete macroscopic morphology with no visible cracking after 950°C exposure. The ceramification mechanism — eutectic melt formation between mica filler and silicone-derived SiO₂, flowing to and reinforcing fiber contact points — produces a self-supporting porous ceramic that holds integrity both at temperature and on cooling. This is materially different from intumescent materials that provide only a soft, friable char.

What cell format geometries are best suited to ceramifiable silicone thermal barrier pads?

Prismatic and pouch formats are the primary application targets. Both create well-defined inter-cell gaps with predictable compression requirements that suit the pre-sinter elastomeric form of the composite. Cylindrical cell packs with tight radial stacking geometries are more challenging because the material needs to conform to curved surfaces — review your cell formats and form factors configuration before specifying pad thickness and hardness. The pre-sinter elongation values (250–400% depending on formulation) indicate reasonable conformability, but cylindrical pack geometries typically require thinner, more flexible pads than the 0.8–2.2 mm thickness range tested here.


Published by compactbess.com Technical Team | Request a sourcing quote
