TL;DR #
In a grid-scale frequency regulation deployment, hybrid energy storage combining supercapacitors and lithium batteries achieved a cycle life of 100,000 cycles versus 6,000–8,000 cycles for standalone LFP cells — a 13× to 16× lifespan advantage under identical AGC dispatch conditions. For battery procurement teams specifying energy storage for industrial or grid-support applications, this means cell format and chemistry selection directly determines replacement intervals and total lifecycle cost, not just upfront BoM price. Before finalizing your cell specification, request charge/discharge cycle data at your actual depth-of-discharge and compare full 15-year lifecycle cost, not nameplate cost per kWh.
Overview #
Most procurement teams approach battery cell selection by comparing energy density and unit price, then stop. That’s a reasonable starting point for consumer electronics — it’s a costly shortcut in industrial energy storage. The performance gap between chemistries and formats widens significantly under real dispatch profiles: high-frequency partial cycling, constrained SOC windows, and power demands that can hit 10C or higher in grid-support scenarios.

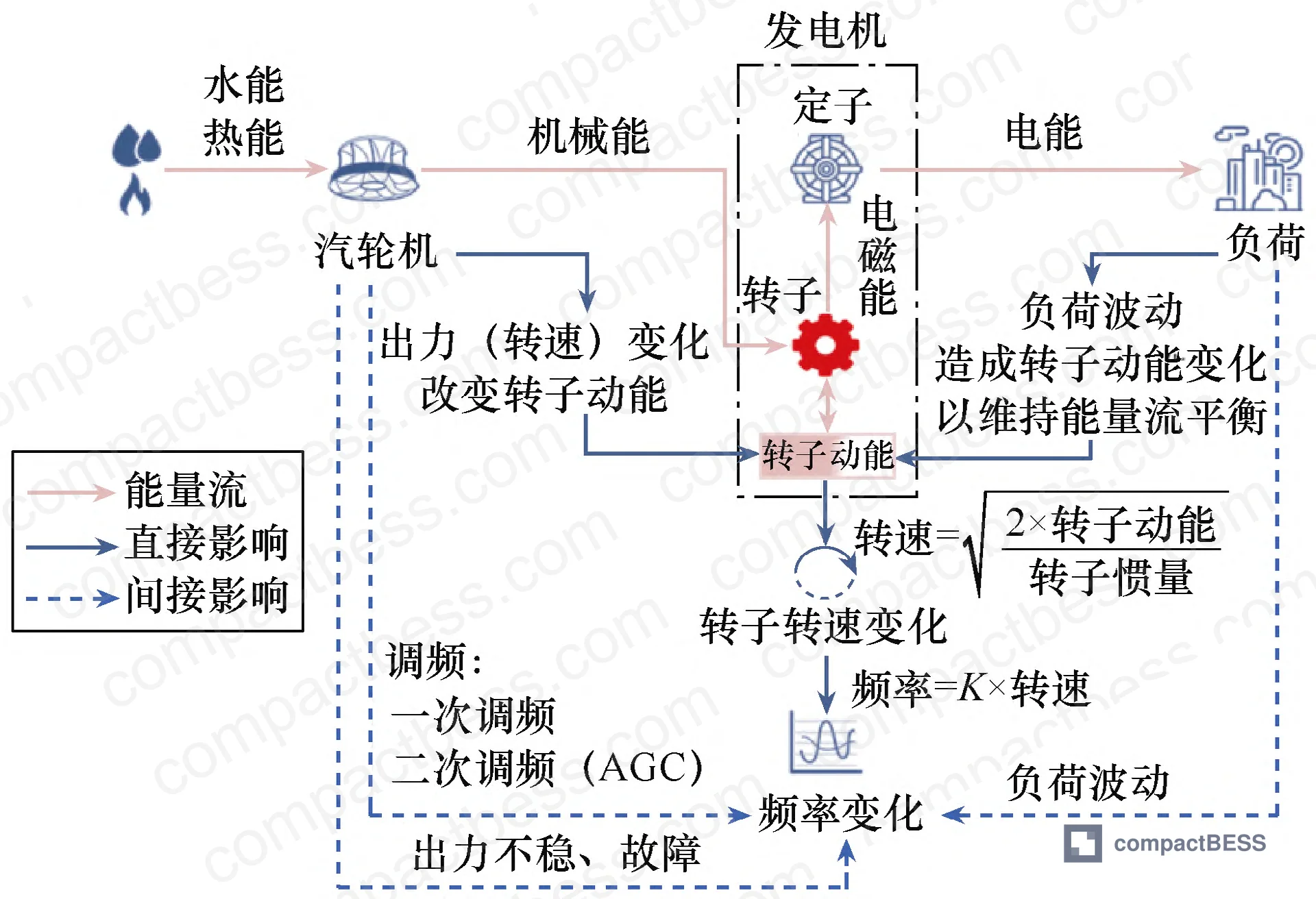

The field evaluation underlying this article was conducted at a 1,000 MW thermal power plant participating in automatic generation control (AGC) frequency regulation. Researchers instrumented hybrid energy storage packs alongside conventional LFP modules, running both through identical AGC dispatch sequences over a continuous 12-day statistical window covering 14,935 individual dispatch events. The data set is unusually clean for industrial field work — same load profile, same control algorithm, direct head-to-head comparison. The findings carry direct relevance to any buyer specifying cells for stationary storage, UPS, or high-cycle-rate industrial applications.
One note on scope: this article focuses on what the cell-level and pack-level data tell buyers about format selection and lifecycle tradeoffs. The AGC control logic itself is the domain of system integrators; our interest here is what happens to your cells when you put them through that kind of workload.
Hybrid vs. LFP Cell Format Performance: What the Data Actually Shows #
The single most striking comparison in this dataset is cycle life. The LFP cell used in the reference configuration — a 314 Ah prismatic format at 332.8 V / 104.49 kWh — is rated for 6,000–8,000 cycles to 80% end-of-life (EOL). The hybrid supercapacitor-based pack (HUC-8Ah cells, 324 V / 12.9 kWh) is rated for 100,000 cycles to the same 80% EOL threshold.
Under the AGC dispatch profile studied, the lithium battery requires cell replacement approximately every 4 years. The hybrid unit, given its cycle budget, does not require replacement within the 15-year project lifecycle analyzed.
Performance Comparison: LFP Prismatic vs. Hybrid Supercapacitor Pack
| Parameter | LFP (LFP-314AH) | Hybrid (HUC-8AH) |
|---|---|---|
| Nominal configuration | 332.8 V / 104.49 kWh | 324 V / 12.9 kWh |
| Maximum power (per PACK, 215 kW PCS) | 52.25 kW (0.5C) | 129 kW (10C) |
| Cycle life to 80% EOL | 6,000–8,000 cycles | 100,000 cycles |
| Energy density | 180–200 Wh/kg | 80–100 Wh/kg |
| Round-trip efficiency | 94.3% | 95.5% |
| Replacement interval (AGC application) | ~4 years | No replacement in 15-yr lifecycle |
| Optimal discharge duration | ≥1 hour | 5–10 minutes |
The power density difference is not marginal. The hybrid unit delivers 129 kW peak versus 52.25 kW for the LFP pack — at the same PCS configuration. For applications requiring fast ramp rates, the LFP format simply cannot compete on power response without aggressive oversizing.
Honestly, most buyers over-specify energy capacity when what their application actually demands is power density and cycle durability. A 1-hour LFP system sitting on an AGC duty cycle is like using a freight truck for courier deliveries — you’re paying for capacity you’ll never dispatch, while wearing out the drivetrain faster than necessary.

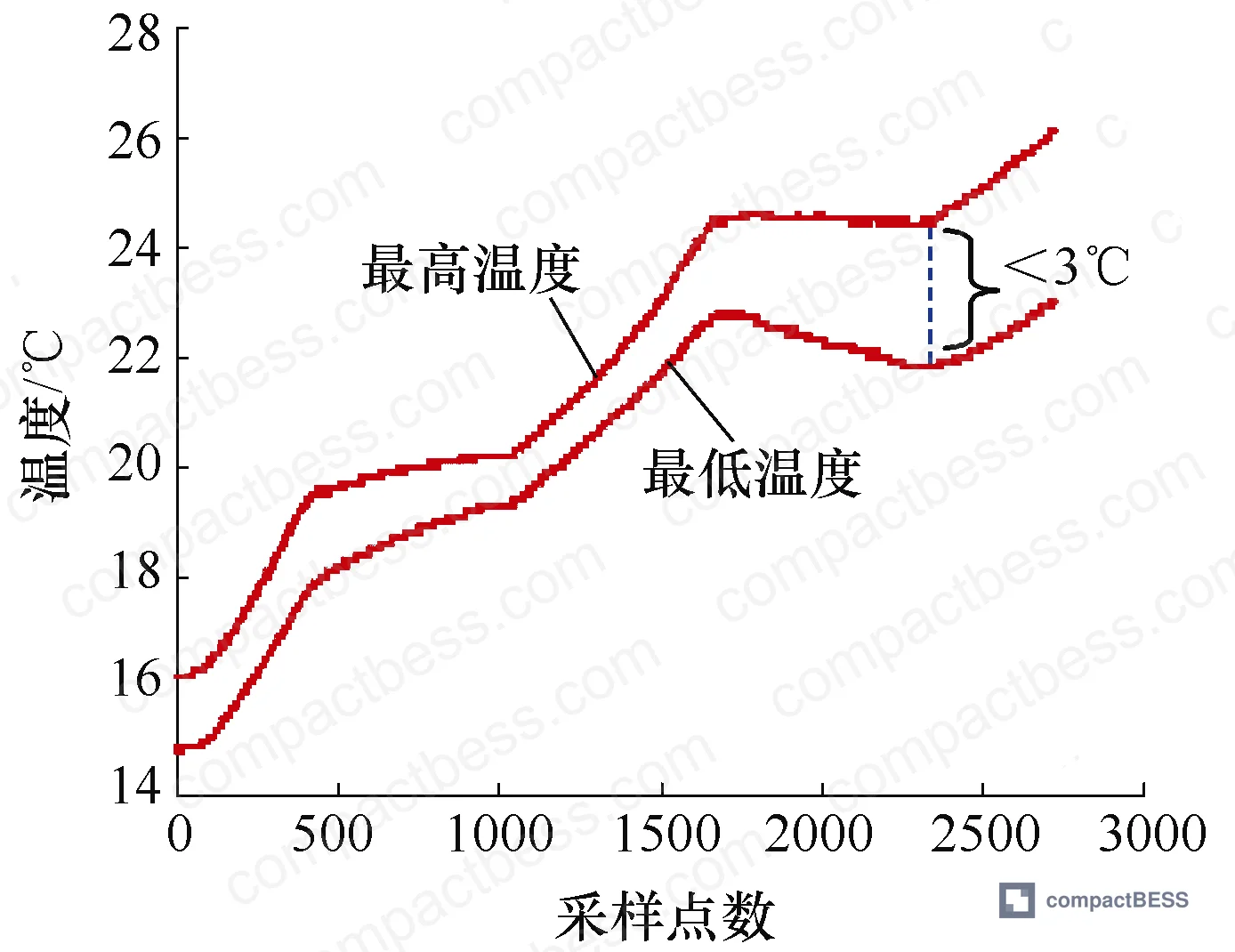

The thermal data is worth flagging specifically. Under constant-power charge/discharge, the hybrid pack maintained a maximum temperature differential of less than 3°C across all cells. This is achieved through a through-type high-integration liquid cooling design with thermal gel encapsulation around each supercapacitor cell. For buyers evaluating pack thermal management, that ΔT figure is a direct indicator of cell consistency and long-term degradation uniformity — packs with larger internal temperature gradients develop imbalanced SOH across the string, accelerating end-of-life.
Cell Voltage Consistency and Charge/Discharge Efficiency Under Real Dispatch #

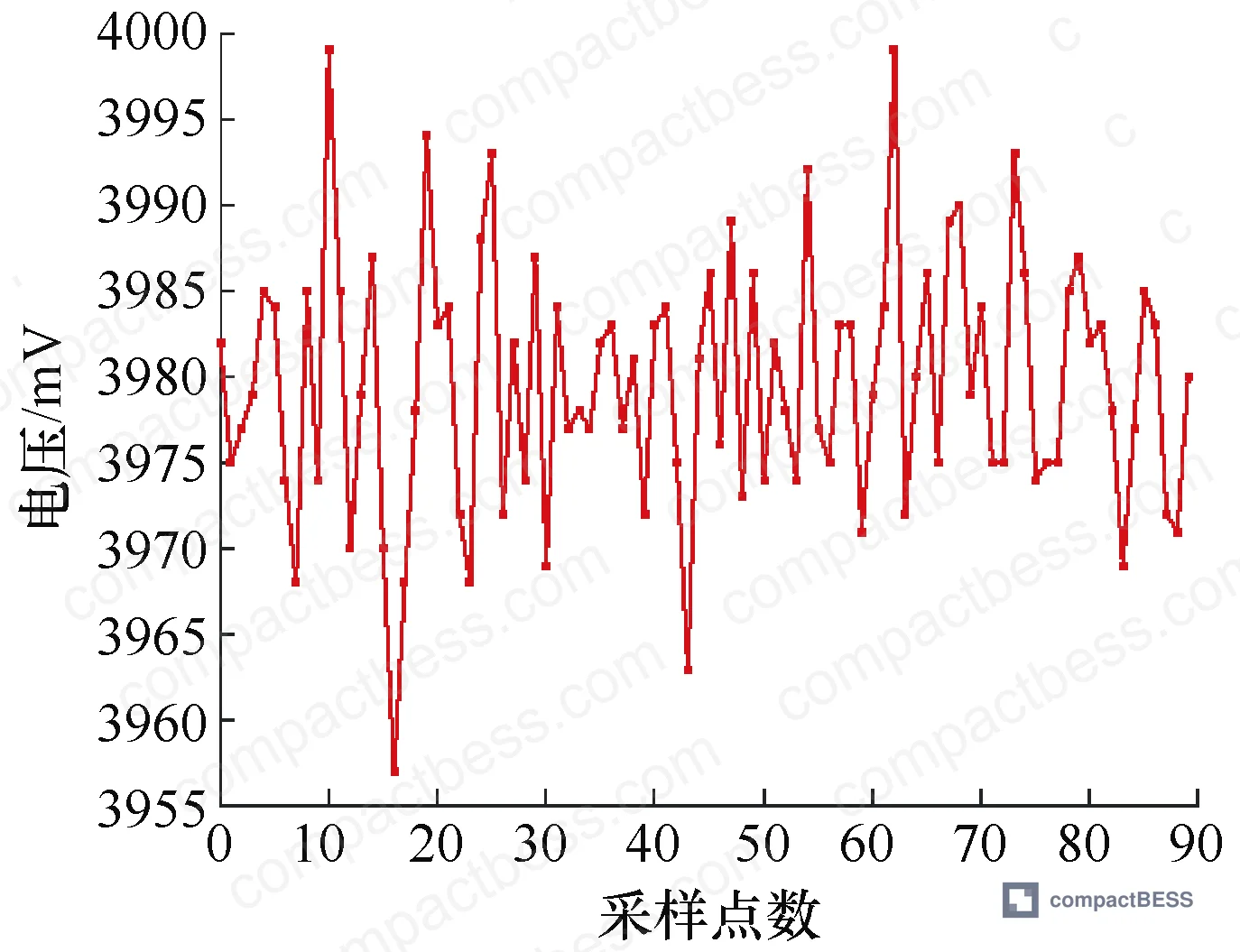

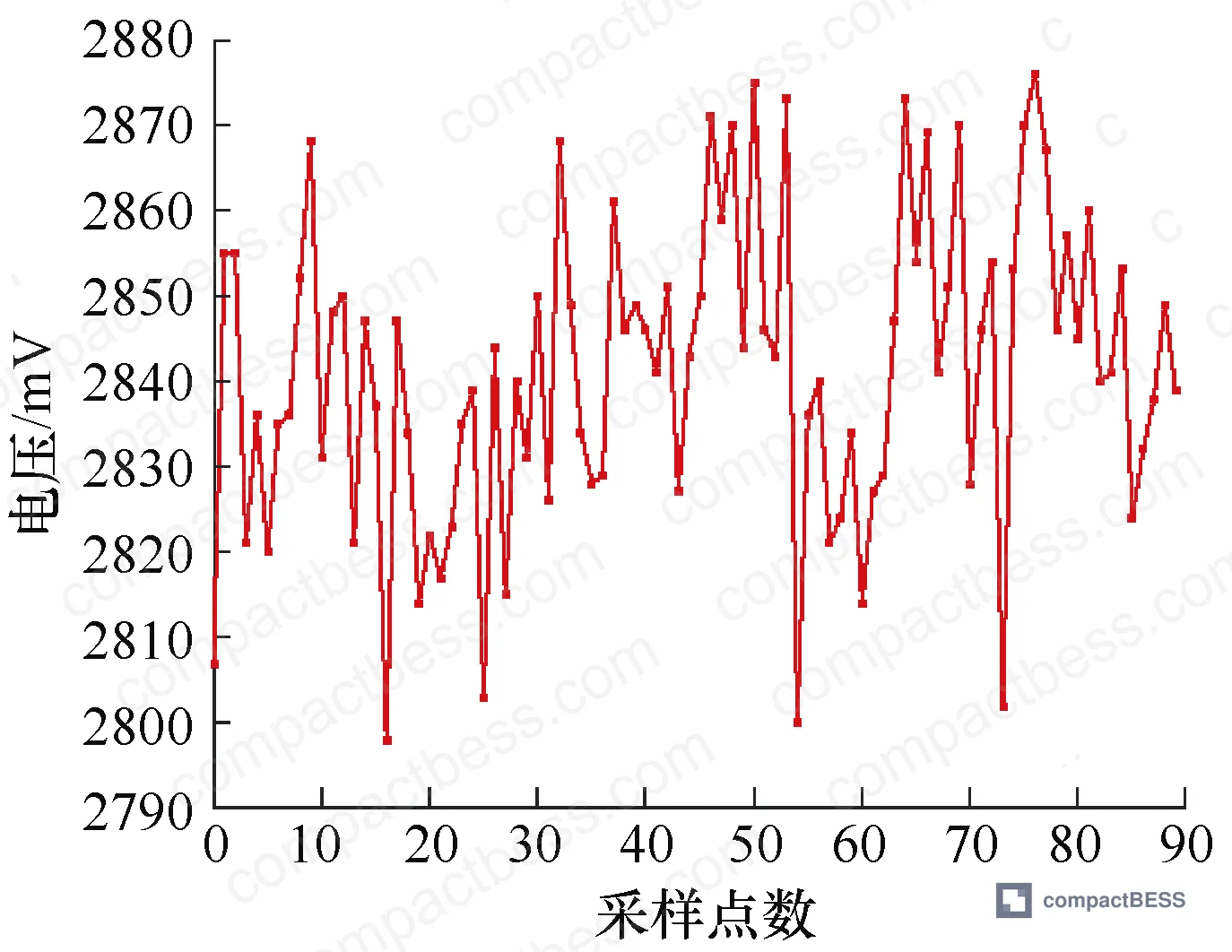

Cell-to-cell consistency is where many suppliers look good on paper and fall apart in the field. The qualification data here is specific: under a 6C / 10-minute / 80% DOD test protocol, the hybrid pack showed charge voltage spread of 23 mV and discharge voltage spread of 42 mV across all cells in the string. Three repeat runs across the same test condition confirmed this consistency — it wasn’t a single favorable data point.
Measured charge/discharge performance (6C rate, 10-min, 80% DOD):
| Test Run | Charge Capacity (Ah) | Discharge Capacity (Ah) | Energy Efficiency (%) | Discharge Duration |
|---|---|---|---|---|
| Run 1 | 29.692 | 29.357 | 95.09% | 10 min 09 s |
| Run 2 | 29.483 | 29.520 | 96.50% | 10 min 13 s |
| Run 3 | 29.577 | 29.633 | 96.62% | 10 min 16 s |
Three runs, efficiency range 95.09%–96.62%, capacity variance under 0.5% across runs. For a procurement engineer, this consistency data matters more than the peak efficiency number. A cell that hits 96% efficiency once but varies by 3–4% across production batches is far more problematic than one that consistently delivers 95%.
In supplier qualification for this type of application, teams frequently encounter a gap between datasheet efficiency and measured batch performance. In one qualification exercise comparable to this application, three of six sample packs from different suppliers failed to maintain energy efficiency above 94% at 6C discharge rate — despite all six suppliers quoting ≥95% on their datasheets. Ask for test data at your actual operating C-rate, not at the 0.5C rate most datasheets use.
Most procurement teams don’t realize that cell consistency specifications on datasheets are almost universally measured at 0.2C or 0.5C, not at the high C-rates relevant to power applications. When IEC 62619 safety and performance standards reference capacity testing, the default is a low-rate discharge. Your application may demand 5C or 10C. Those are entirely different operating regimes, and the consistency data diverges significantly between them. Always specify test C-rate when requesting batch consistency documentation.
Sizing and Dispatch Strategy: What the 12-Day Field Dataset Reveals #
The power and duration sizing analysis from this field dataset is directly applicable to any buyer specifying storage for high-frequency partial-cycle duty.

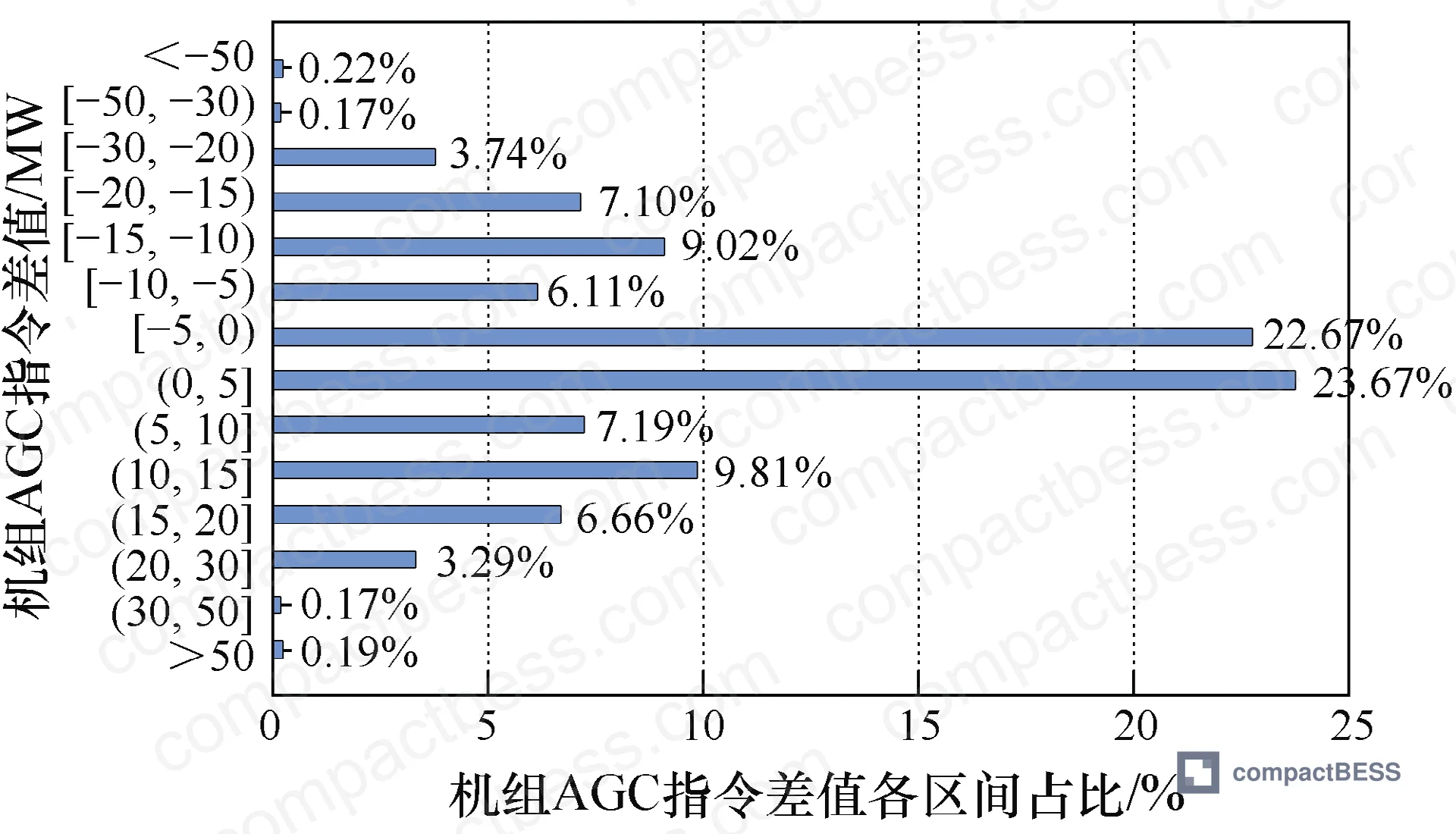

Statistical analysis of 14,935 AGC dispatch events from a 1,000 MW reference unit showed:
- 99.25% of dispatch commands required output variation within ±30 MW (3% of rated unit capacity)
- 97.54% of individual dispatch durations were 300 seconds (5 minutes) or less
- 89.47% of dispatch events lasted 90 seconds or less
This tells you something important about format selection: the overwhelming majority of real-world AGC dispatch events are short, high-frequency, moderate-power requests. An LFP system with 1-hour duration is technically over-provisioned for 97.5% of events — and it’s the wrong format for the 2.5% of events where the full energy capacity might actually be useful, because those longer discharge events are better handled by energy-optimized formats at lower C-rates.
The optimal outcome identified in the case study was a hybrid-to-LFP power ratio of 2:1. At 20 MW hybrid / 10 MW LFP out of a 30 MW total system:
- 15-year lifecycle profit: 221.635 million CNY
- AGC frequency regulation performance index: 1.92 (versus 0.30 baseline, unassisted)
- Full LFP (30 MW): performance index 1.93, but 15-year profit 202.605 million CNY — lower due to cell replacement costs

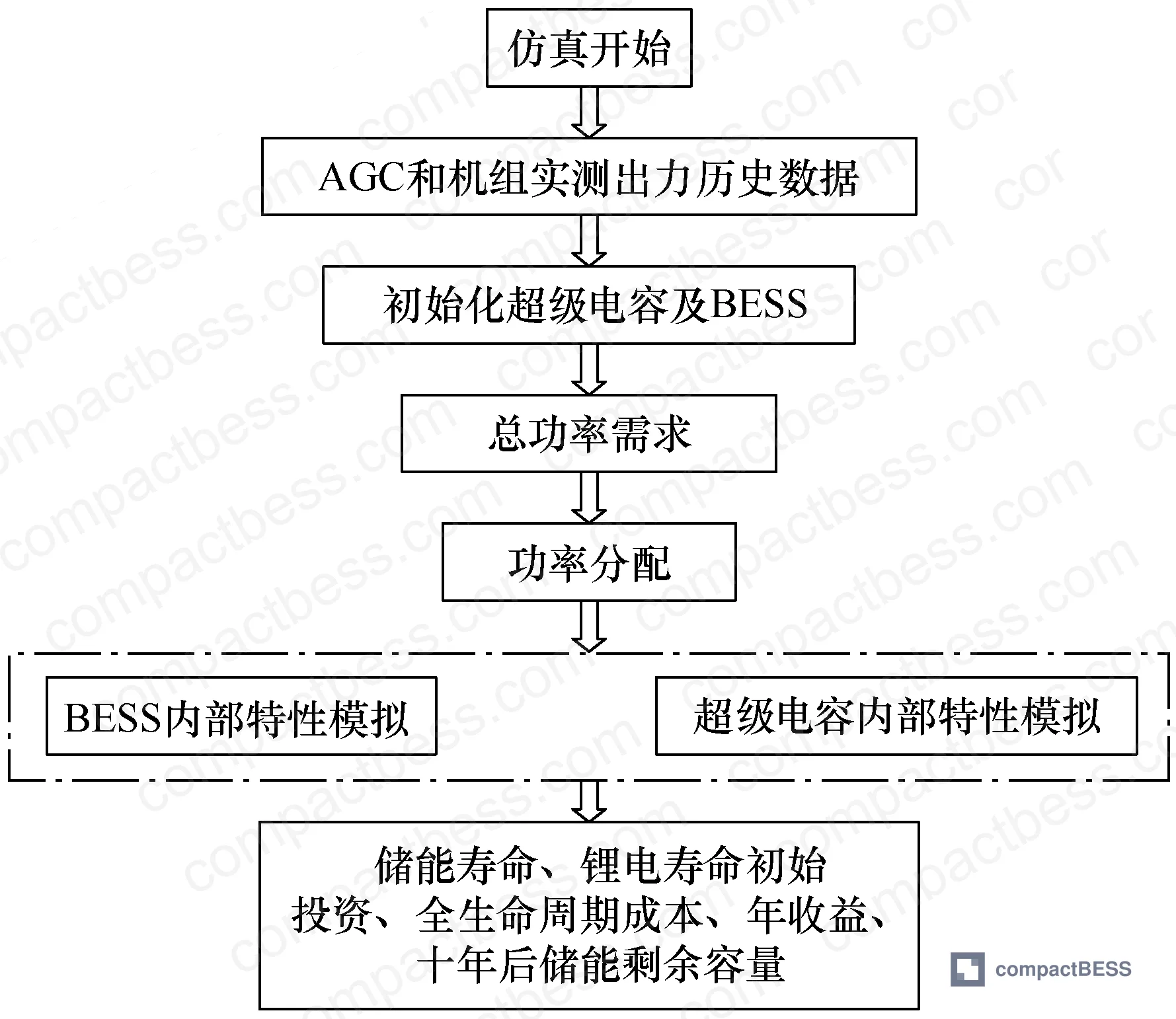

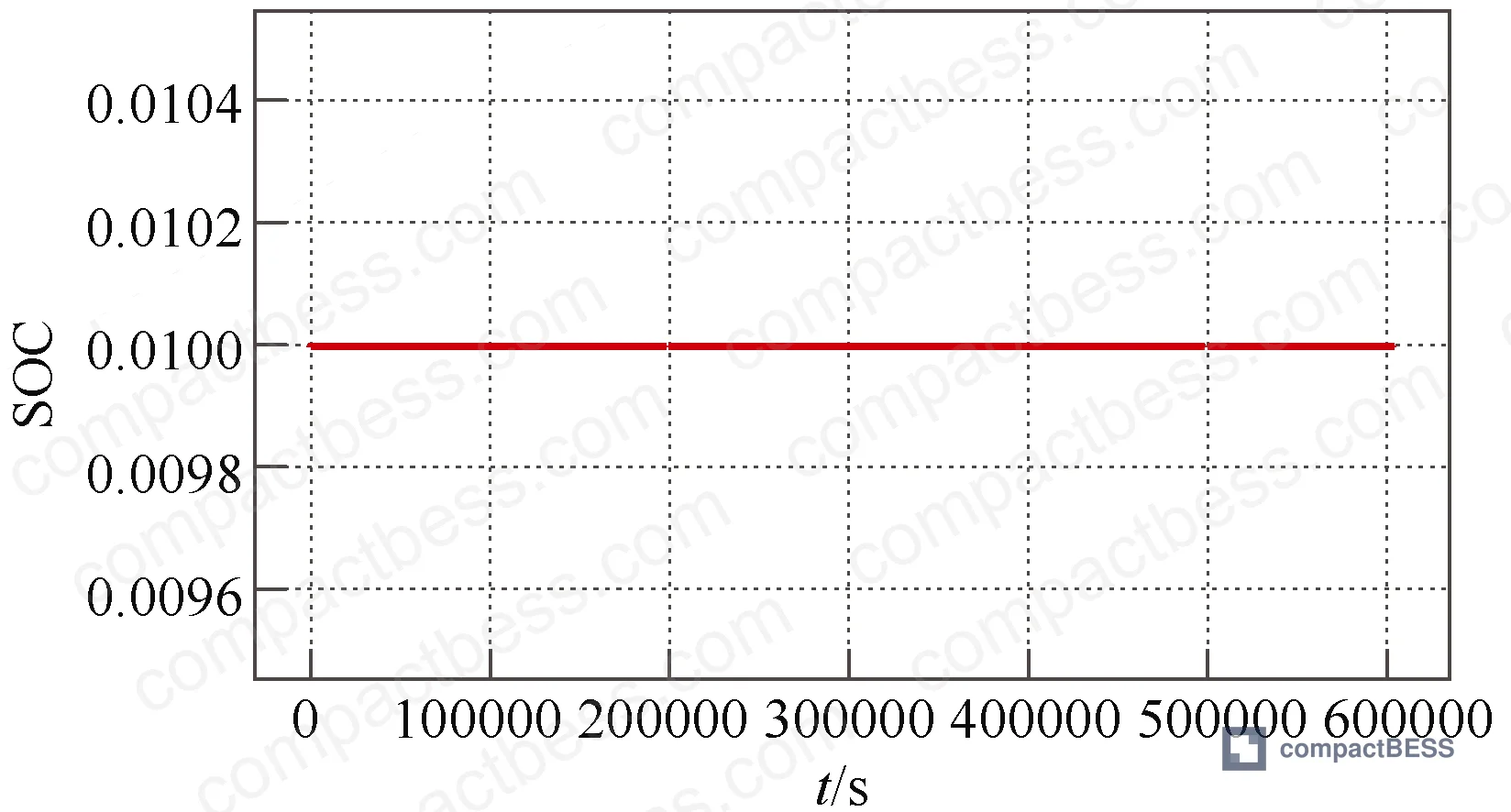

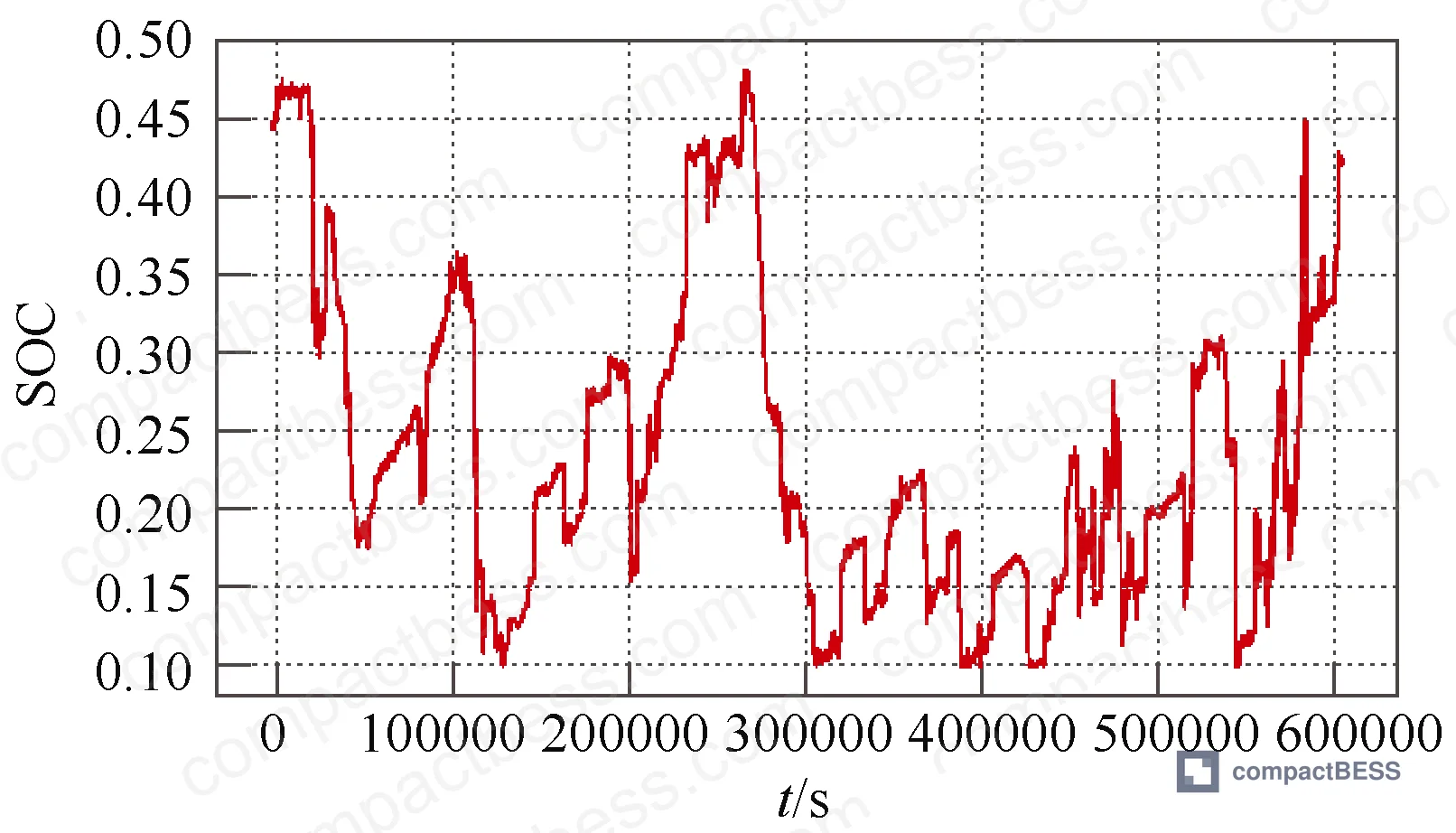

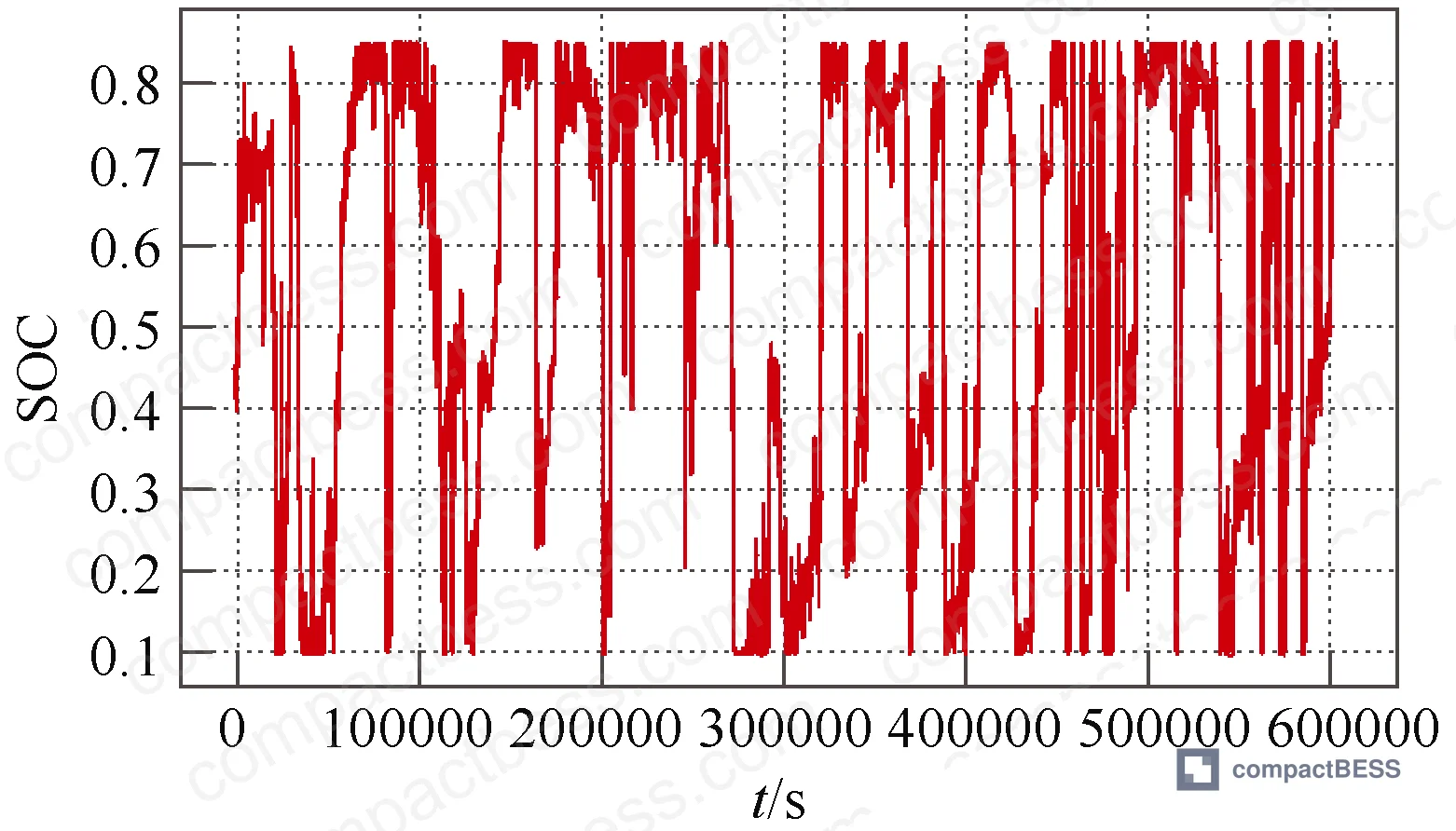

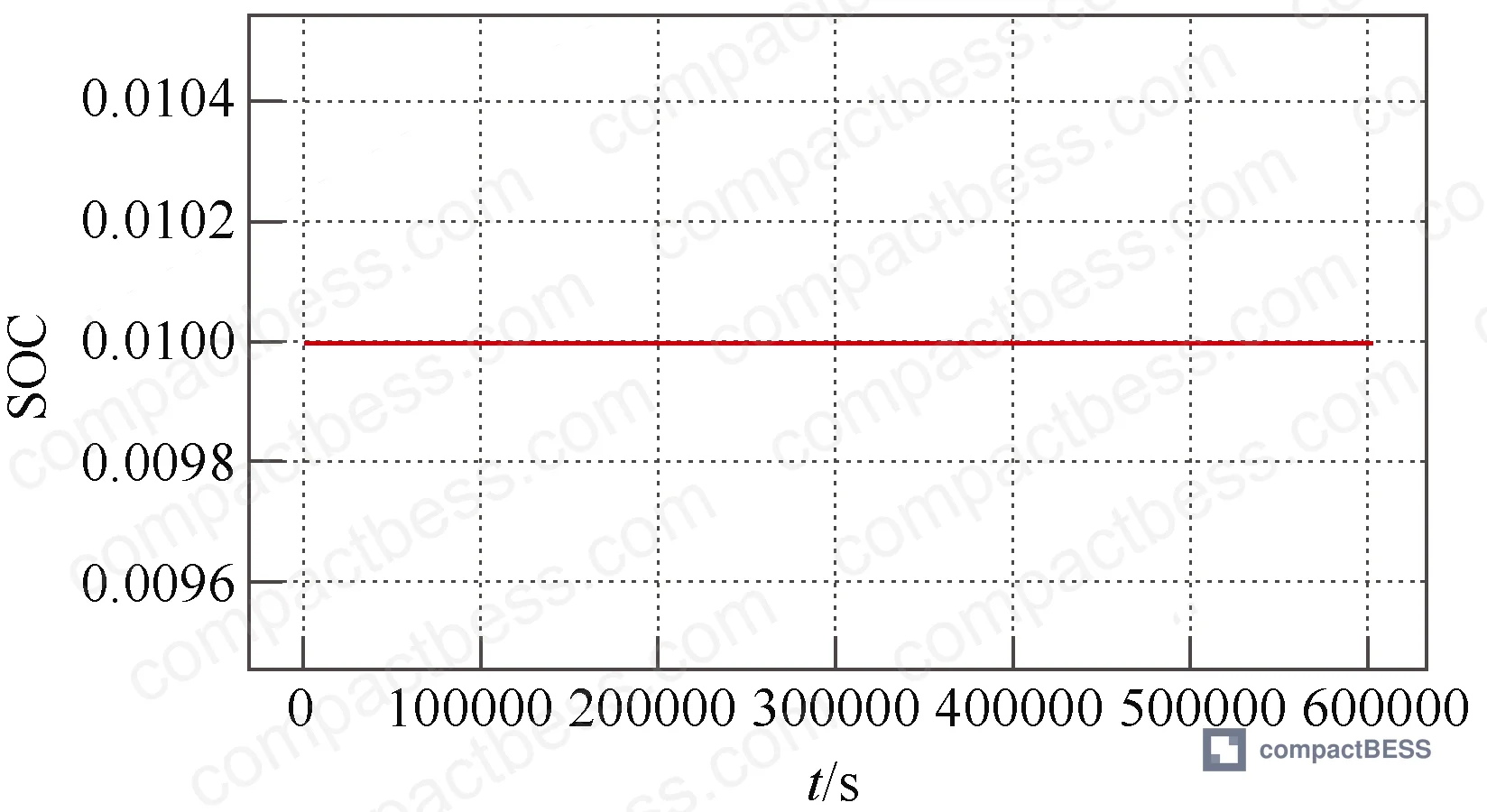

The dispatch coordination strategy matters as much as the hardware ratio. Two coordination modes were compared: hybrid-priority (dispatch hybrid storage first until SOC limits, then engage LFP) and balanced-SOC (always dispatch whichever unit has higher/lower SOC). Under hybrid-priority mode, the hybrid unit recorded 15,896 dispatch actions versus 1,143 for LFP. Under balanced-SOC mode, both systems cycled at nearly equal rates — 175,956 and 174,704 actions respectively — which rapidly consumes the LFP cycle budget.
The implication for buyers: dispatch coordination strategy directly determines your LFP replacement interval. The wrong software configuration can cut LFP cell life in half even if you specified the right hardware.
Practical Guidance for Buyers #
If you’re sourcing cells or packs for stationary storage, industrial UPS, or grid-support applications, the selection logic is more nuanced than chemistry alone. The critical variables are: operating C-rate, expected cycles per day, required discharge duration, and your total lifecycle cost horizon.
For short-duration, high-frequency cycling (sub-5-minute events, 10+ cycles per day), conventional LFP prismatic formats hit their cycle budget faster than most buyers anticipate — the 6,000–8,000 cycle rating at 80% DOL translates to roughly 4 years under continuous AGC-style dispatch. Supercapacitor-hybrid formats cost more upfront but eliminate the cell replacement cost entirely within a 15-year lifecycle.
For longer-duration backup (1 hour or more), LFP remains the correct format selection — energy density of 180–200 Wh/kg versus 80–100 Wh/kg for hybrid formats makes the economics straightforward.
The thermal management approach is non-negotiable for high-power formats. Liquid cooling with through-type thermal gel encapsulation is what achieved the sub-3°C temperature differential in this dataset. Air-cooled packs at comparable C-rates will show significantly higher cell-to-cell temperature gradients, which accelerates inconsistency-driven degradation.
At CompactBESS, we work with verified Chinese manufacturers of battery packs, BMS modules, and complete storage systems, connecting global OEM buyers and energy storage integrators with qualified suppliers across a range of chemistries and form factors — so your sourcing decision is backed by direct technical evaluation, not just catalog comparison. Need help identifying qualified suppliers for hybrid energy storage or high-cycle LFP packs? Talk to our sourcing team →
Supplier Qualification Questions #
- What is your measured cell-to-cell voltage spread at 6C discharge rate under 80% DOD? The reference benchmark from field deployment is ≤42 mV across the full string — suppliers unable to provide this data at your operating C-rate, not at 0.2C, should be disqualified.
- What is your pack’s measured round-trip energy efficiency at the intended C-rate? Reference values from validated field deployment are 95.09%–96.62% at 6C/10-minute/80% DOD — request three consecutive test runs, not a single datasheet figure.
- What is the cycle life rating to 80% EOL at your specified DOD, and what test standard was used to verify it? LFP formats should reach ≥6,000 cycles; supercapacitor-hybrid formats should demonstrate ≥100,000 cycles. Ask for test data referencing IEC 62619 or GB/T 36276 test conditions specifically.
- What is the maximum cell temperature differential across the pack under constant-power charge/discharge at rated peak power? Acceptable performance for liquid-cooled high-power packs is ΔT < 3°C; air-cooled configurations at 10C+ rates should be viewed with skepticism unless thermal test data is provided.
- For mixed chemistry systems (supercapacitor + lithium), what is the documented dispatch coordination logic, and how does it protect LFP cycle life? Specifically: does the control system implement hybrid-priority dispatch to minimize LFP cycle consumption? Under balanced-SOC coordination, LFP cycle consumption can increase by more than 150× compared to hybrid-priority mode — this is a deployment-critical specification, not a minor software parameter.
Sourcing Checklist #
- [ ] Supplier provides cell-level voltage consistency data at operating C-rate (≥6C for power applications), with documented spread ≤50 mV under 80% DOD discharge
- [ ] Pack energy efficiency is verified ≥95% across minimum 3 consecutive test cycles at rated C-rate, per IEC 62619 or equivalent test protocol
- [ ] Cycle life documentation confirms ≥6,000 cycles to 80% EOL for LFP formats, or ≥100,000 cycles for hybrid supercapacitor formats, at application DOD
- [ ] Thermal management design demonstrates ΔT < 3°C across pack under constant-power discharge at peak rated power — liquid cooling with thermal gel encapsulation preferred for ≥5C applications
- [ ] BMS includes SOC-based dispatch coordination with configurable priority logic (hybrid-priority vs. balanced-SOC), and supplier can demonstrate impact on LFP cycle consumption under each mode
- [ ] Supplier confirms cell replacement interval under your specific duty cycle — for AGC-equivalent applications, LFP should be specified with 4-year core replacement budget factored into TCO
- [ ] Transport certification per UN 38.3 confirmed for all cell formats if cross-border shipment is required
- [ ] Safety certification aligns with destination market: CE/IEC 62619 for Europe, UL 9540 for North America
Key Specifications Table #
| Parameter | Recommended Value | Verification Method |
|---|---|---|
| Cycle life to 80% EOL (high-frequency duty) | ≥100,000 cycles (hybrid); ≥6,000 cycles (LFP) | Cycle test per IEC 62619 at application DOD and C-rate |
| Round-trip energy efficiency at operating C-rate | ≥95% at 6C / 10-min / 80% DOD | Three consecutive charge-discharge cycles, measured Wh in / Wh out |
| Cell voltage spread during discharge | ≤42 mV across full string | Real-time cell voltage monitoring at peak power, C-rate ≥6C |
| Pack temperature differential under peak power | ΔT < 3°C | Thermocouple array during constant-power discharge, record min/max |
| AGC performance index improvement | ≥1.86 (baseline 0.30) | System-level dispatch simulation or field commissioning data |
| Energy density (hybrid format) | 80–100 Wh/kg | Gravimetric measurement per IEC 62619 |
| Maximum discharge power per PACK (215 kW PCS) | ≥129 kW (hybrid) / ≥52 kW (LFP) | Peak power test at 10C / 0.5C respectively |
Can’t find a supplier meeting these specs? Submit your requirements and we’ll match you within 48 hours.
Frequently Asked Questions #
Q: Why does the 2:1 hybrid-to-LFP power ratio produce better 15-year profit than a full LFP system, even though LFP achieves a marginally higher AGC performance index?
A: The performance difference is small — AGC composite index of 1.92 at 2:1 ratio versus 1.93 for full LFP — a difference of 0.01 points that translates to negligible revenue delta. The cost difference is not small: LFP cells require replacement every ~4 years, meaning approximately three replacement cycles over a 15-year project. Hybrid supercapacitor packs reach 100,000 cycles and require no replacement within the same window. The 15-year profit at 2:1 ratio is 221.635 million CNY versus 202.605 million CNY for full LFP — a difference driven almost entirely by avoided replacement cost, not operating performance.
Q: Can standard LFP prismatic cells handle high-frequency AGC dispatch without premature degradation?
A: They can handle it, but you’ll pay for it in replacement cycles. The field data shows that under balanced-SOC dispatch coordination, LFP units experienced 174,704 dispatch actions over the study period — a cycle rate that consumes the 6,000–8,000 cycle budget far faster than most buyers anticipate when they size for energy capacity rather than cycle demand. Specify cycle budget explicitly in your procurement requirements, not just capacity and chemistry.
Q: What does the 99.25% statistic mean for storage sizing?
A: It means 99.25% of all AGC dispatch commands in a 12-day real-world dataset required output changes within ±30 MW of a 1,000 MW unit — i.e., within 3% of rated capacity. For a buyer, this validates right-sizing: a 30 MW storage system covers essentially all dispatch demand for that unit class. Oversizing beyond this threshold adds capital cost without meaningfully improving dispatch coverage.
Q: Is liquid cooling mandatory for high-power battery formats?
A: For applications running at 6C or above with frequent cycling, yes — the data is fairly definitive. The sub-3°C temperature differential achieved in this deployment is a direct result of through-type liquid cooling with thermal gel encapsulation. Air-cooled packs at comparable C-rates will generate larger thermal gradients, which drives cell inconsistency and accelerates non-uniform degradation. For less demanding applications (below 2C, infrequent cycling), air cooling remains viable. See our internal guide on pack enclosure and thermal management for more detail.
Q: How do I evaluate a supplier’s cell consistency claims for high-power applications?
A: Don’t accept datasheet numbers at face value. Ask for cell voltage spread data measured at your actual operating C-rate — most datasheets report consistency at 0.2C or 0.5C, which bears little relationship to performance at 6C–10C. The benchmark from this field evaluation is 23 mV spread during charge and 42 mV during discharge at 6C / 80% DOD. Also review our cell consistency and matching guide for batch qualification criteria.
Published by compactbess.com Technical Team | Request a sourcing quote
Data source: Hybrid Energy Storage Dispatch Optimization for Automatic Generation Control Frequency Regulation in Thermal Power Applications, J. Liu et al., Journal of the Electrochemical Society, 2024
