Cell Technology

198
  • Lithium-Ion vs LFP Chemistry
    • Li-Ion vs LFP Electrolyte Chemistry: From Liquid to Solid-State — A Procurement Engineer’s Technical Guide
    • LFP vs. Lead-Acid Battery for Residential BESS: Cost, Sizing, and Dispatch Optimization
    • Technical Evaluation & Sample Request Guide for Lithium-Ion vs LFP Chemistry
    • Safety Standards Explained for Lithium-Ion vs LFP Chemistry
    • Lithium-Ion vs LFP Chemistry — Safety & Risk Assessment
    • Lithium-Ion vs LFP Chemistry — Design Engineering Reference
    • Lithium-Ion vs LFP Chemistry — Lifecycle & Maintenance Guide
    • Lithium-Ion vs LFP Chemistry — Testing & Validation Protocol
    • Lithium-Ion vs LFP Chemistry — Storage & Handling Guide
    • Lithium-Ion vs LFP Chemistry — Installation & Integration Guide
    • Lithium-Ion vs LFP Chemistry — Comparison & Upgrade Guide
    • Lithium-Ion vs LFP Chemistry — Procurement & Cost Guide
    • Lithium-Ion vs LFP Chemistry — Troubleshooting & Failure Guide
    • Lithium-Ion vs LFP Chemistry — Regulatory & Compliance Guide
    • Lithium-Ion vs LFP Chemistry — Supplier Qualification Guide
    • Lithium-Ion vs LFP Chemistry — Application & Performance Guide
    • Lithium-Ion vs LFP Chemistry — Material Selection Guide
    • Lithium-Ion vs LFP Chemistry — Technical Specification Overview
  • Cell Formats & Form Factors
    • PFPE Phase-Change Immersion Cooling for High-Rate Lithium Battery Packs: Thermal Performance Guide
    • Battery Cell Format Selection Guide: Cylindrical, Prismatic, and Pouch Procurement Parameters
    • Battery Cell Format Selection Guide: Cylindrical vs Prismatic vs Pouch
    • LTO Pouch Cell Capacity Fade at Different C-Rates: Procurement Guide for Grid Storage Buyers
    • Battery Cell Format Selection Guide: Cylindrical vs Prismatic vs Pouch for Compact BESS
    • Cell Format Dimensional Tolerances and BMS Temperature Sensor Accuracy: A Procurement Engineering Guide
    • Cylindrical, Prismatic, and Pouch Cell Formats: Dimensional Specifications and Procurement Guide for BESS Buyers
    • Selective Lithium Recovery from Spent LFP Cathode Material: Process Parameters, Selectivity Data, and Supplier Qualification Guide
    • Cell Format Selection Guide: Dimensional Tolerances, Thermal Path Engineering, and Pack Integration
    • Biomass-Assisted Hydrometallurgical Recovery of Cathode Materials from Spent Lithium-Ion Batteries: A Procurement Guide for Cell Buyers
    • SOC-Dependent Thermal Runaway and Propagation Behavior in NMC Battery Modules: A Procurement Guide to Crush Abuse Testing
    • China Battery Recycling & Cascade Reuse: What Cell Format Buyers Must Know
    • Battery Recovery Modes Under EPR: How Supplier Recovery Structure Affects Your Procurement Risk
    • China Battery Waste Material Flow Analysis: What Cell Buyers Need to Know About Recycling, ESG Compliance, and Supply Chain Traceability
    • Retired EV Battery Cell Formats: How Dimensional Standardization Affects Recovery Economics and Second-Life Failure Rates
    • Battery Cell Temperature Limits and Thermal Management for Distributed Storage Applications
    • LFP vs NMC Cell Format Selection: Carbon Recovery Economics and Procurement Impact
    • GB/T 36276—2023 Test Lab Infrastructure: What Qualified Lithium-Ion Energy Storage Cell Suppliers Must Be Able to Prove
    • Self-Stratifying Electrolyte Batteries: Technical Procurement Guide for Membrane-Free Grid Storage
    • Battery Cell Formats & Form Factors: Technical Procurement Guide for Cylindrical, Prismatic, and Pouch Cells
    • Cell Format Selection and Lifecycle Carbon Accounting for Chinese Battery Manufacturers
    • Battery Cell Format Selection Guide: Dimensional Specifications, Lifecycle Efficiency, and Procurement Criteria for ESS Applications
    • Immersion Cooling for LFP Battery Modules: CFD Validation and Thermal Performance Benchmarks
    • Battery Cell Format Selection Guide: Cylindrical vs. Prismatic vs. Pouch for Pack Design
    • Cylindrical vs. Prismatic vs. Pouch: Cell Format Selection Guide for Battery Pack Procurement
    • Battery Carbon Footprint Standards: ISO 14067 vs PAS 2050 vs GHG Protocol for Battery Procurement
    • Battery Cell Format Selection Guide: Cylindrical vs. Prismatic vs. Pouch — Technical Procurement Evaluation
    • Battery Cell Format Selection Guide: Cylindrical, Prismatic, and Pouch Specifications for Compact BESS Procurement
    • Lithium-Ion Cell Format Selection for LED Energy Storage: Chemistry, Thermal Performance & Procurement Guide
    • LFP Cell Format Selection for Dual-Voltage Mobile ESS: DC768V/DC380V Architecture Specification Guide
    • Second-Life EV Battery Procurement: SOH Grading, Traceability, and Echelon Utilization for Stationary Storage
    • Lithium-Ion Battery Thermal Runaway Detection and Fire Suppression in BESS Prefabricated Cabinets
    • Battery Pack Structural Loading: Why Assembly Sequence Generates Non-Linear Stress Patterns
    • Cylindrical, Prismatic, and Pouch Cell Formats: Dimensional Specifications, Thermal Management, and BMS Complexity for Compact BESS Procurement
    • 10 kV Battery Storage PCS Topology Comparison: Cascaded H-Bridge vs MMC vs Transformer-Based Systems
    • Multi-Module Parallel PCS Thermal Management: Current Sharing, Dynamic Impedance, and Thermal Runaway Avoidance in Battery Energy Storage Systems
    • PCS Topology Selection Guide for Battery Energy Storage Systems: Two-Level, Three-Level, and Multilevel Configurations
    • SOC Boundary Control in Lithium Battery Packs for Wind-Coupled Hybrid Energy Storage Systems
    • BMS-PCS-EMS Coordination Architecture for Grid-Connected Battery Storage: Field Performance Data and Procurement Specifications
    • Ceramifiable Silicone Thermal Barrier Pads: Sepiolite vs Aerogel vs Hollow Glass Microsphere for Battery Pack Thermal Runaway Prevention
    • Battery Cell Format Selection Guide: Cylindrical, Prismatic, and Pouch Dimensional Specifications
    • Polyurethane Separator, Binder, and Encapsulant Specifications for Lithium Cell Procurement
    • Rail Vehicle Fire Resistance Requirements for Battery System Integration: NFPA 130 and EN 45545 Procurement Guide
    • Pre-Weld Insulation Testing for Pouch Cell Modules: Procurement Guide
    • LFP Pouch Cell Overcharge Behavior: Voltage Plateau, Mechanical Confinement, and What Buyers Must Know
    • Lithium-Ion Battery Safety Patent Landscape: What 7,560+ Filings Reveal About Supplier Technology Depth
    • 502339 Polymer Pouch Cell: Separator Selection and Electrode Formulation for Maximum Energy Density
    • Ultra-Thin Negative Tab Design for High-Rate Pouch Cells: Eliminating Short Circuit Leakage Without Internal Resistance Penalty
    • Pouch Cell Polarization and Low-Temperature Discharge: A Procurement Engineer’s Guide to Qualifying Soft-Pack Lithium-Ion Cells
    • Battery Temperature Sensor Placement: Busbar vs. Cell Surface Mounting for Prismatic and Cylindrical Cell Modules
    • Nail Penetration Safety in High-Energy-Density Pouch Cells: Test Variables, Severity Index, and Procurement Criteria
    • Diffusion-Induced Stress vs. Thermal Stress in Soft-Pack Pouch Cells: What the Mechanics Tell You Before You Source
    • Fire Suppression System Design for High-Capacity Battery Energy Storage Cabinets: Agent Selection, Thermal Detection, and Dual-Zone Architecture
    • Ring-Topology BMS Architecture for Multi-Group Battery Storage: 18.3% Cost Reduction Through Distributed SOC Negotiation
    • Air vs Liquid Cooling for Battery Modules: Thermal Performance Thresholds and Supplier Qualification
    • Phase Current Imbalance in Three-Phase Interleaved Buck-Boost Converters: SMC-MPC Control for Battery Storage Applications
    • Hybrid vs. LFP Cell Format Selection for High-Cycle Energy Storage Applications
    • Battery Cell Format Selection: Phosphate vs. Manganese Cathode Performance Guide
    • Battery Equivalent Inertia in PEMFC-VSG Hybrid Systems: What Buyers Must Specify
    • Liquid-Cooled BESS Thermal Management: Chiller Sizing, Flow Balance, and GB/T 26276 Compliance for Containerized Energy Storage
    • Liquid Cooling Architecture for LiFePO4 Battery Modules: Bottom-Plate vs. Side-Plate vs. Combined Structure
    • GB/T 36276—2023 Battery Testing Laboratory Planning: Four-Zone Infrastructure Guide for Energy Storage Buyers
    • BMS Thermal Runaway Detection: Multi-Parameter Specifications and Supplier Qualification Guide
    • Residential Battery Storage SOC Reserve Coefficient: Sizing and BMS Logic for TOU Optimization with Outage Backup
    • Residential BESS Specifications for HVAC Coordination: Cycle Life, SOC Windows, and BMS Communication Requirements
    • LFP Cell Mechanical Stress Behavior and SOC Estimation: A Procurement Guide for Grid-Scale Battery Buyers
    • Intelligent Self-Repair BMS for Residential BESS: Performance Data and Procurement Guide
    • LFP Battery Sizing for Primary Frequency Regulation: Optimal Capacity Configuration Using Dual Adaptive PSO
    • Cell Format Selection for Hybrid Solar Storage: Lithium Cell Specifications in Distributed PV Applications
    • AC Impedance Battery State Detection: SOH Accuracy, Speed, and BMS Supplier Qualification
    • Battery Chemistry and Installation Mode Selection for Distributed PV Storage Systems
    • SoC Consensus Control in Multi-Pack BESS: What the Simulation Data Means for BMS Procurement
    • LFP Prismatic Cell Format Selection Guide: 280Ah BESS Design and Dimensional Specifications
    • Battery Pack Insulation Test Data Management: What Every Pack Supplier Should Be Able to Prove
    • Refrigerant Direct Cooling for Battery Packs: Performance Data and Procurement Specs
    • Battery Energy Storage Thermal Management: Immersion Cooling, PCM, and Intelligent Control Guide
    • Battery Cell Disposal Containment: Three-Tier Environmental Risk Control Framework for Decommissioned Lithium Cells
    • Energy Storage Battery Testing Standards: What Every Procurement Engineer Must Know Before Issuing an RFQ
    • Solid Electric Thermal Energy Storage: Duct Configuration Performance Guide for B2B Buyers
    • Battery Energy Storage Cell Format Selection for Microgrid Inverter Integration
    • Semi-Solid Battery Technology: Technical Procurement Guide for Energy Storage Buyers
    • Gel-Type LFP Cell Technology: Cycle Life, Electrolyte Stability, and Procurement Evaluation Guide
    • Liquid Cooling Plate Layout and Flow Rate Optimization for Large-Format C&I Battery Packs
    • Three-Layer BMS Architecture for Stationary Energy Storage: Voltage and Current Accuracy Benchmarks
    • BMS Design for Portable Emergency Lithium Packs: SOC Stability, Thermal Control, and Fault Response Benchmarks
    • LFP Battery Sizing for Residential Solar Storage: Why 12 kWh Beats 25 kWh on Annual Net Return
    • Bidirectional Counter-Flow Liquid Cooling for Grid-Scale ESS: Why Cooling Architecture Determines Thermal Safety at High C-Rates
    • Self-Stratifying Battery Systems: Technical Procurement Guide for Membrane-Free Energy Storage
    • Ultrasonic Early Warning for LFP Thermal Runaway: What Prismatic Cell Buyers Must Specify
    • Adaptive Droop Control for DC Microgrid Battery Storage: SOC Balancing and Voltage Compensation
    • Active Balancing BMS for Lighting Energy Storage: Bidirectional Flyback Converter Thermal Management Guide
    • Immersion Cooling for 100 Ah LiFePO₄ Residential Battery Packs: Thermal Performance Across −40 °C to 40 °C
    • Battery Depth of Discharge and Cycle Life: Procurement Guide for Stationary Storage Cells
    • Modular Mobile BESS Design: LFP Chemistry, Prefabricated Cabin Architecture, and Supplier Qualification Guide
    • BMS Functional Safety for Stationary Energy Storage: IEC 61508, FMEDA, and SIL Qualification Guide
    • 1500V BESS Insulation Materials: Cell Wrapping, BMS Isolation, and Harness Failure Modes
    • Battery Cell Selection for Wind-Solar Hybrid Storage: Chemistry, Cycle Life, and Procurement Criteria
    • Battery Depth of Discharge Management in IES Dispatch: What Stationary Storage Buyers Must Specify
    • BMS Sensing Architecture: Cell Voltage, Current, and SOC Accuracy Benchmarks for B2B Procurement
    • Liquid Cooling Plate Channel Design for LFP Battery Packs: Flow Resistance Optimization and Thermal Performance Data
    • Technical Evaluation & Sample Request Guide for Cell Formats & Form Factors
    • Safety Standards Explained for Cell Formats & Form Factors
    • Cell Formats & Form Factors — Industry Case Study
    • Cell Formats & Form Factors — Safety & Risk Assessment
    • Cell Formats & Form Factors — Design Engineering Reference
    • Cell Formats & Form Factors — Lifecycle & Maintenance Guide
    • Cell Formats & Form Factors — Testing & Validation Protocol
    • Cell Formats & Form Factors — Storage & Handling Guide
    • Cell Formats & Form Factors — Installation & Integration Guide
    • Cell Formats & Form Factors — Comparison & Upgrade Guide
    • Cell Formats & Form Factors — Procurement & Cost Guide
    • Cell Formats & Form Factors — Material Selection Guide
    • Cell Formats & Form Factors — Troubleshooting & Failure Guide
    • Cell Formats & Form Factors — Regulatory & Compliance Guide
    • Cell Formats & Form Factors — Supplier Qualification Guide
    • Cell Formats & Form Factors — Application & Performance Guide
    • Cell Formats & Form Factors — Technical Specification Overview
  • Energy Density & Power Density
    • Liquid-Cooled LFP Battery Pack Energy Efficiency: Thermal Parameter Optimization Guide
    • Battery Energy and Power Density Optimization for LED Lighting Systems: Chemistry Selection, BMS Integration, and Supplier Qualification
    • 3D-Printed Battery Electrodes: Energy Density and Power Density Optimization Guide
    • Technical Evaluation & Sample Request Guide for Energy Density & Power Density
    • Safety Standards Explained for Energy Density & Power Density
    • Energy Density & Power Density — Regulatory & Compliance Guide
    • Energy Density & Power Density — Industry Case Study
    • Energy Density & Power Density — Safety & Risk Assessment
    • Energy Density & Power Density — Design Engineering Reference
    • Energy Density & Power Density — Lifecycle & Maintenance Guide
    • Energy Density & Power Density — Testing & Validation Protocol
    • Energy Density & Power Density — Storage & Handling Guide
    • Energy Density & Power Density — Installation & Integration Guide
    • Energy Density & Power Density — Comparison & Upgrade Guide
    • Energy Density & Power Density — Procurement & Cost Guide
    • Energy Density & Power Density — Troubleshooting & Failure Guide
    • Energy Density & Power Density — Supplier Qualification Guide
    • Energy Density & Power Density — Application & Performance Guide
    • Energy Density & Power Density — Material Selection Guide
    • Energy Density & Power Density — Technical Specification Overview
  • Cycle Life & Degradation
    • LiFePO₄ Cycle Life vs. Temperature: The 60°C Degradation Threshold Buyers Miss
    • LFP Cycle Life Degradation Above 60°C: Why Accelerated Test Data Misleads Buyers
    • LiFePO₄ Cycle Life Testing: Why 60°C Is the Critical Temperature Threshold for Accelerated Degradation Protocols
    • Large-Format LFP Cell Thermal Behavior and Cycle Life Degradation: 280 Ah Field Test Data
    • LFP vs. NCM vs. Lead-Acid: Full Lifecycle Environmental Performance for Battery Procurement Teams
    • LFP High-Temperature Degradation: What 280 Ah Cell Teardown Data Means for Your Procurement Specs
    • Technical Evaluation & Sample Request Guide for Cycle Life & Degradation
    • Safety Standards Explained for Cycle Life & Degradation
    • Cycle Life & Degradation — Regulatory & Compliance Guide
    • Cycle Life & Degradation — Material Selection Guide
    • Cycle Life & Degradation — Industry Case Study
    • Cycle Life & Degradation — Safety & Risk Assessment
    • Cycle Life & Degradation — Design Engineering Reference
    • Cycle Life & Degradation — Lifecycle & Maintenance Guide
    • Cycle Life & Degradation — Testing & Validation Protocol
    • Cycle Life & Degradation — Installation & Integration Guide
    • Cycle Life & Degradation — Comparison & Upgrade Guide
    • Cycle Life & Degradation — Procurement & Cost Guide
    • Cycle Life & Degradation — Troubleshooting & Failure Guide
    • Cycle Life & Degradation — Supplier Qualification Guide
    • Cycle Life & Degradation — Application & Performance Guide
    • Cycle Life & Degradation — Technical Specification Overview
  • Cell Selection & Sourcing
    • China Battery Material Flow & Recycling Compliance: Procurement Guide for LFP and NMC Cell Sourcing
    • Battery Material Traceability and Cascade-Use Cell Qualification: A Procurement Guide for Global Buyers
    • EPR Recovery Modes and Carbon Trading in Battery Supply Chains: A Procurement Guide
    • LFP Carbon Coating Completeness: The Hidden Specification That Determines High-Temperature Cycle Life
    • Safety Standards Explained for Cell Selection & Sourcing
    • Cell Selection & Sourcing — Industry Case Study
    • Cell Selection & Sourcing — Design Engineering Reference
    • Cell Selection & Sourcing — Testing & Validation Protocol
    • Cell Selection & Sourcing — Installation & Integration Guide
    • Cell Selection & Sourcing — Technical Specification Overview
    • Cell Selection & Sourcing — Comparison & Upgrade Guide
    • Cell Selection & Sourcing — Procurement & Cost Guide
    • Cell Selection & Sourcing — Troubleshooting & Failure Guide
    • Cell Selection & Sourcing — Regulatory & Compliance Guide
    • Cell Selection & Sourcing — Supplier Qualification Guide
    • Cell Selection & Sourcing — Application & Performance Guide
    • Cell Selection & Sourcing — Material Selection Guide

Battery Pack Design

95
  • Series & Parallel Configuration
    • Low-Power Intermittent Mode for Multi-Pack BESS: Reducing Standby Loss by 66%
    • Technical Evaluation & Sample Request Guide for Series & Parallel Configuration
    • Safety Standards Explained for Series & Parallel Configuration
    • Series & Parallel Configuration — Material Selection Guide
    • Series & Parallel Configuration — Industry Case Study
    • Series & Parallel Configuration — Safety & Risk Assessment
    • Series & Parallel Configuration — Design Engineering Reference
    • Series & Parallel Configuration — Testing & Validation Protocol
    • Series & Parallel Configuration — Storage & Handling Guide
    • Series & Parallel Configuration — Installation & Integration Guide
    • Series & Parallel Configuration — Comparison & Upgrade Guide
    • Series & Parallel Configuration — Troubleshooting & Failure Guide
    • Series & Parallel Configuration — Regulatory & Compliance Guide
    • Series & Parallel Configuration — Supplier Qualification Guide
    • Series & Parallel Configuration — Application & Performance Guide
    • Series & Parallel Configuration — Technical Specification Overview
  • Cell Consistency & Matching
    • Harmonic Plate Air-Cooling for 280 Ah LFP Packs: Thermal Uniformity Data for Procurement Teams
    • Hierarchical Balancing for LFP Battery Cell Consistency: What the Data Actually Shows
    • Technical Evaluation & Sample Request Guide for Cell Consistency & Matching
    • Safety Standards Explained for Cell Consistency & Matching
    • Cell Consistency & Matching — Industry Case Study
    • Cell Consistency & Matching — Safety & Risk Assessment
    • Cell Consistency & Matching — Lifecycle & Maintenance Guide
    • Cell Consistency & Matching — Testing & Validation Protocol
    • Cell Consistency & Matching — Storage & Handling Guide
    • Cell Consistency & Matching — Installation & Integration Guide
    • Cell Consistency & Matching — Comparison & Upgrade Guide
    • Cell Consistency & Matching — Procurement & Cost Guide
    • Cell Consistency & Matching — Troubleshooting & Failure Guide
    • Cell Consistency & Matching — Regulatory & Compliance Guide
    • Cell Consistency & Matching — Supplier Qualification Guide
    • Cell Consistency & Matching — Application & Performance Guide
    • Cell Consistency & Matching — Material Selection Guide
    • Cell Consistency & Matching — Technical Specification Overview
  • Busbar & Interconnect Design
    • Laminated Busbar Design for PCS Sub-Modules: Stray Inductance Optimization and Supplier Qualification
    • Aluminum Busbar Laser Welding: Process Parameters, Tensile Strength, and Supplier Qualification for Energy Storage Modules
    • Technical Evaluation & Sample Request Guide for Busbar & Interconnect Design
    • Safety Standards Explained for Busbar & Interconnect Design
    • Busbar & Interconnect Design — Comparison & Upgrade Guide
    • Busbar & Interconnect Design — Industry Case Study
    • Busbar & Interconnect Design — Safety & Risk Assessment
    • Busbar & Interconnect Design — Lifecycle & Maintenance Guide
    • Busbar & Interconnect Design — Storage & Handling Guide
    • Busbar & Interconnect Design — Installation & Integration Guide
    • Busbar & Interconnect Design — Procurement & Cost Guide
    • Busbar & Interconnect Design — Troubleshooting & Failure Guide
    • Busbar & Interconnect Design — Regulatory & Compliance Guide
    • Busbar & Interconnect Design — Supplier Qualification Guide
    • Busbar & Interconnect Design — Application & Performance Guide
    • Busbar & Interconnect Design — Material Selection Guide
    • Busbar & Interconnect Design — Technical Specification Overview
  • Pack Enclosure & IP Rating
    • 1500V Battery Pack Enclosure Insulation: Field Intensity Data, Material Selection, and Supplier Qualification
    • Stamped Liquid Cooling Channel Design for 314 Ah LFP Battery Packs: Flow Optimization vs. Thermal Performance
    • CFD-Validated Immersion Cooling Design for 280 Ah Battery Cabinets: Cell Spacing, Port Geometry, and Dielectric Fluid Selection
    • Immersion Cooling for Battery ESS: Oil-Based Dielectric Fluid Specification, Material Compatibility, and Thermal Runaway Test Data
    • MVR Falling-Film Indirect Liquid Cooling for Battery Pack Enclosures: Energy Performance and Sourcing Guide
    • Liquid Cooling Plate Design for Energy Storage Battery Packs: Three Architectures Compared
    • Spray-Ventilation Coupled Cooling for BESS: Optimal Parameters, Discharge Rate Effects, and Electrical Safety Requirements
    • Immersion-Cooled BESS Enclosure Design: Modified Silicone Oil vs. Fluorinated Coolant — Dual-Loop Switching Architecture
    • Safety Standards Explained for Pack Enclosure & IP Rating
    • Pack Enclosure & IP Rating — Industry Case Study
    • Pack Enclosure & IP Rating — Design Engineering Reference
    • Pack Enclosure & IP Rating — Lifecycle & Maintenance Guide
    • Pack Enclosure & IP Rating — Testing & Validation Protocol
    • Pack Enclosure & IP Rating — Installation & Integration Guide
    • Pack Enclosure & IP Rating — Comparison & Upgrade Guide
    • Pack Enclosure & IP Rating — Troubleshooting & Failure Guide
    • Pack Enclosure & IP Rating — Regulatory & Compliance Guide
    • Pack Enclosure & IP Rating — Supplier Qualification Guide
    • Pack Enclosure & IP Rating — Application & Performance Guide
    • Pack Enclosure & IP Rating — Material Selection Guide
    • Pack Enclosure & IP Rating — Technical Specification Overview
  • Mechanical & Vibration Engineering
    • Serpentine Liquid Cooling Channel Orientation for LiFePO₄ Battery Packs: Transverse vs. Longitudinal Performance Trade-offs
    • BESS Enclosure Structural Integrity: Tri-Axial Vibration Stress Analysis and Supplier Qualification Guide
    • LFP Battery Module Swelling Force: Lifecycle Data, Peak Inversion, and Structural Design Limits for 280 Ah Prismatic Cells
    • Technical Evaluation & Sample Request Guide for Mechanical & Vibration Engineering
    • Safety Standards Explained for Mechanical & Vibration Engineering
    • Component Supplier Qualification for Mechanical & Vibration Engineering
    • Comparing Mechanical & Vibration Engineering Solutions
    • Mechanical & Vibration Engineering — Industry Case Study
    • Mechanical & Vibration Engineering — Safety & Risk Assessment
    • Mechanical & Vibration Engineering — Design Engineering Reference
    • Mechanical & Vibration Engineering — Lifecycle & Maintenance Guide
    • Mechanical & Vibration Engineering — Testing & Validation Protocol
    • Mechanical & Vibration Engineering — Storage & Handling Guide
    • Mechanical & Vibration Engineering — Installation & Integration Guide
    • Mechanical & Vibration Engineering — Procurement & Cost Guide
    • Mechanical & Vibration Engineering — Troubleshooting & Failure Guide
    • Mechanical & Vibration Engineering — Regulatory & Compliance Guide
    • Mechanical & Vibration Engineering — Application & Performance Guide
    • Mechanical & Vibration Engineering — Material Selection Guide
    • Mechanical & Vibration Engineering — Technical Specification Overview

BMS Engineering

109
  • SOC Estimation Methods
    • RLS-EKF SOC Estimation for Vanadium Redox Flow Batteries: Procurement Guide for MW-Scale Systems
    • DTW-UKF SOC Estimation for Stationary Battery Systems: Full Lifecycle Accuracy Guide
    • SP2D Model-Based Lithium Plating Suppression for Fast-Charge BMS: Accuracy Thresholds and Cycle Life Validation
    • SOC Estimation Methods: FFRLS-UKF Achieves 99.2% Accuracy in Field Testing
    • LSTM-EKF SOC Estimation for Containerized Battery Energy Storage Systems
    • SOC Estimation Accuracy in Sodium-Ion BESS: GS-LSTM-Attention Algorithm Evaluation for Procurement Engineers
    • Intelligent BMS State Estimation for Mobile BESS: DEKF Algorithm Performance, Safety Factor Analysis, and Supplier Qualification Guide
    • Intelligent BMS State Estimation for Mobile Energy Storage: SOC Accuracy, SoH Monitoring, and Supplier Qualification
    • LiFePO4 Household Energy Storage BMS: SOC Accuracy, Sampling Precision, and Master-Slave Architecture Evaluation
    • Technical Evaluation & Sample Request Guide for SOC Estimation Methods
    • Safety Standards Explained for SOC Estimation Methods
    • Component Supplier Qualification for SOC Estimation Methods
    • SOC Estimation Methods — Industry Case Study
    • SOC Estimation Methods — Safety & Risk Assessment
    • SOC Estimation Methods — Design Engineering Reference
    • SOC Estimation Methods — Lifecycle & Maintenance Guide
    • SOC Estimation Methods — Testing & Validation Protocol
    • SOC Estimation Methods — Storage & Handling Guide
    • SOC Estimation Methods — Installation & Integration Guide
    • SOC Estimation Methods — Comparison & Upgrade Guide
    • SOC Estimation Methods — Procurement & Cost Guide
    • SOC Estimation Methods — Troubleshooting & Failure Guide
    • SOC Estimation Methods — Regulatory & Compliance Guide
    • SOC Estimation Methods — Application & Performance Guide
    • SOC Estimation Methods — Material Selection Guide
    • SOC Estimation Methods — Technical Specification Overview
  • SOH & RUL Prediction
    • Dual EKF vs Single EKF for SOH and RUL Prediction in Mobile BESS: A Technical Buyer’s Guide
    • Entropy-Based SOH Prediction for Lithium-Ion Battery Clusters: Real-Time Health Assessment Without Capacity Testing
    • SOH Estimation for LiFePO₄ Packs: 1-Minute Voltage Sampling Achieves 0.37% MAPE
    • LFP Overcharge Thermal Runaway: Gas-Based Early Warning Detection for BESS
    • BMS Operating Data Splicing and Reconstruction for SOH & RUL Prediction in Grid Storage
    • BMS Health Index for BESS: How Bi-LSTM and RBF Kernel PCA Improve Predictive Accuracy by 56%
    • BMS Health Index Monitoring for BESS Procurement: Field Data, Prediction Accuracy, and Supplier Qualification
    • Technical Evaluation & Sample Request Guide for SOH & RUL Prediction
    • Safety Standards Explained for SOH & RUL Prediction
    • SOH & RUL Prediction — Comparison & Upgrade Guide
    • SOH & RUL Prediction — Industry Case Study
    • SOH & RUL Prediction — Design Engineering Reference
    • SOH & RUL Prediction — Lifecycle & Maintenance Guide
    • SOH & RUL Prediction — Testing & Validation Protocol
    • SOH & RUL Prediction — Storage & Handling Guide
    • SOH & RUL Prediction — Installation & Integration Guide
    • SOH & RUL Prediction — Procurement & Cost Guide
    • SOH & RUL Prediction — Troubleshooting & Failure Guide
    • SOH & RUL Prediction — Regulatory & Compliance Guide
    • SOH & RUL Prediction — Supplier Qualification Guide
    • SOH & RUL Prediction — Application & Performance Guide
    • SOH & RUL Prediction — Material Selection Guide
    • SOH & RUL Prediction — Technical Specification Overview
  • Cell Balancing: Active vs Passive
    • CCS-MPC Active Balancing for Multi-Module LFP Battery Strings: A Procurement Guide
    • Intelligent Active-Passive Hybrid Equalization for Retired LiFePO₄ Battery Packs: BMS Qualification Guide
    • CHB-PCS SoC Equalization: Technical Procurement Guide for Multi-String Battery Energy Storage
    • AI Predictive Balancing in BMS: LSTM Multi-Cell Synchronous Control for Energy Storage Procurement
    • Network Self-Balancing BMS Topology: Technical Procurement Guide for Battery Cell Equalization
    • Active BMS Balancing for Lighting Energy Storage: Component Specs, Thermal Data, and Supplier Qualification
    • Technical Evaluation & Sample Request Guide for Cell Balancing: Active vs Passive
    • Safety Standards Explained for Cell Balancing: Active vs Passive
    • Certification & Testing Guide for Cell Balancing: Active vs Passive
    • Component Supplier Qualification for Cell Balancing: Active vs Passive
    • Cell Balancing: Active vs Passive — Industry Case Study
    • Cell Balancing: Active vs Passive — Safety & Risk Assessment
    • Cell Balancing: Active vs Passive — Design Engineering Reference
    • Cell Balancing: Active vs Passive — Lifecycle & Maintenance Guide
    • Cell Balancing: Active vs Passive — Testing & Validation Protocol
    • Cell Balancing: Active vs Passive — Storage & Handling Guide
    • Cell Balancing: Active vs Passive — Comparison & Upgrade Guide
    • Cell Balancing: Active vs Passive — Procurement & Cost Guide
    • Cell Balancing: Active vs Passive — Troubleshooting & Failure Guide
    • Cell Balancing: Active vs Passive — Application & Performance Guide
    • Cell Balancing: Active vs Passive — Material Selection Guide
    • Cell Balancing: Active vs Passive — Technical Specification Overview
  • Protection Circuit Design
    • BMS Circuit Design for EV Battery Packs: Per-Cell Protection, Balancing Topologies, and Supplier Qualification
    • Microservice BMS Architecture for Mobile Lithium Battery Systems: A Technical Procurement Guide
    • BMS Circuit Board Thermal-Stress Analysis: Multi-Module Temperature Distribution, Warping, and Solder Joint Reliability for B2B Buyers
    • Technical Evaluation & Sample Request Guide for Protection Circuit Design
    • Safety Standards Explained for Protection Circuit Design
    • Protection Circuit Design — Supplier Qualification Guide
    • Protection Circuit Design — Lifecycle & Maintenance Guide
    • Protection Circuit Design — Testing & Validation Protocol
    • Protection Circuit Design — Storage & Handling Guide
    • Protection Circuit Design — Installation & Integration Guide
    • Protection Circuit Design — Comparison & Upgrade Guide
    • Protection Circuit Design — Procurement & Cost Guide
    • Protection Circuit Design — Troubleshooting & Failure Guide
    • Protection Circuit Design — Regulatory & Compliance Guide
    • Protection Circuit Design — Application & Performance Guide
    • Protection Circuit Design — Material Selection Guide
    • Protection Circuit Design — Technical Specification Overview
  • BMS Communication Protocols
    • Ring Daisy-Chain BMS Communication Architecture for Compact Energy Storage: BER, Differential Isolation, and Manchester Encoding
    • SOP-Weighted SOC Equalization for Parallel Battery Pack Systems: A Procurement Engineering Guide
    • Safety Standards Explained for BMS Communication Protocols
    • BMS Communication Protocols — Industry Case Study
    • BMS Communication Protocols — Safety & Risk Assessment
    • BMS Communication Protocols — Design Engineering Reference
    • BMS Communication Protocols — Lifecycle & Maintenance Guide
    • BMS Communication Protocols — Storage & Handling Guide
    • BMS Communication Protocols — Installation & Integration Guide
    • BMS Communication Protocols — Application & Performance Guide
    • BMS Communication Protocols — Comparison & Upgrade Guide
    • BMS Communication Protocols — Procurement & Cost Guide
    • BMS Communication Protocols — Troubleshooting & Failure Guide
    • BMS Communication Protocols — Regulatory & Compliance Guide
    • BMS Communication Protocols — Supplier Qualification Guide
    • BMS Communication Protocols — Material Selection Guide
    • BMS Communication Protocols — Technical Specification Overview

Charging Technology

78
  • USB-C PD & Fast Charging Standards
    • Technical Evaluation & Sample Request Guide for USB-C PD & Fast Charging Standards
    • Safety Standards Explained for USB-C PD & Fast Charging Standards
    • USB-C PD & Fast Charging Standards — Industry Case Study
    • USB-C PD & Fast Charging Standards — Safety & Risk Assessment
    • USB-C PD & Fast Charging Standards — Design Engineering Reference
    • USB-C PD & Fast Charging Standards — Lifecycle & Maintenance Guide
    • USB-C PD & Fast Charging Standards — Testing & Validation Protocol
    • USB-C PD & Fast Charging Standards — Storage & Handling Guide
    • USB-C PD & Fast Charging Standards — Installation & Integration Guide
    • USB-C PD & Fast Charging Standards — Comparison & Upgrade Guide
    • USB-C PD & Fast Charging Standards — Procurement & Cost Guide
    • USB-C PD & Fast Charging Standards — Troubleshooting & Failure Guide
    • USB-C PD & Fast Charging Standards — Regulatory & Compliance Guide
    • USB-C PD & Fast Charging Standards — Supplier Qualification Guide
    • USB-C PD & Fast Charging Standards — Application & Performance Guide
    • USB-C PD & Fast Charging Standards — Material Selection Guide
    • USB-C PD & Fast Charging Standards — Technical Specification Overview
  • MPPT Solar Charging
    • Safety Standards Explained for MPPT Solar Charging
    • MPPT Solar Charging — Industry Case Study
    • MPPT Solar Charging — Design Engineering Reference
    • MPPT Solar Charging — Lifecycle & Maintenance Guide
    • MPPT Solar Charging — Testing & Validation Protocol
    • MPPT Solar Charging — Storage & Handling Guide
    • MPPT Solar Charging — Installation & Integration Guide
    • MPPT Solar Charging — Comparison & Upgrade Guide
    • MPPT Solar Charging — Procurement & Cost Guide
    • MPPT Solar Charging — Troubleshooting & Failure Guide
    • MPPT Solar Charging — Regulatory & Compliance Guide
    • MPPT Solar Charging — Supplier Qualification Guide
    • MPPT Solar Charging — Application & Performance Guide
    • MPPT Solar Charging — Material Selection Guide
    • MPPT Solar Charging — Technical Specification Overview
  • AC Charging & Inverter Integration
    • Phase-Compensated Partitioned One-Cycle Control for BESS PCS: Power Factor and Efficiency Specifications for B2B Buyers
    • DC Charging Compatibility Testing: Field Validation Methods for AC Charging and Bidirectional Inverter Integration
    • Technical Evaluation & Sample Request Guide for AC Charging & Inverter Integration
    • Safety Standards Explained for AC Charging & Inverter Integration
    • AC Charging & Inverter Integration — Regulatory & Compliance Guide
    • AC Charging & Inverter Integration — Safety & Risk Assessment
    • AC Charging & Inverter Integration — Industry Case Study
    • AC Charging & Inverter Integration — Design Engineering Reference
    • AC Charging & Inverter Integration — Lifecycle & Maintenance Guide
    • AC Charging & Inverter Integration — Testing & Validation Protocol
    • AC Charging & Inverter Integration — Storage & Handling Guide
    • AC Charging & Inverter Integration — Installation & Integration Guide
    • AC Charging & Inverter Integration — Supplier Qualification Guide
    • AC Charging & Inverter Integration — Comparison & Upgrade Guide
    • AC Charging & Inverter Integration — Procurement & Cost Guide
    • AC Charging & Inverter Integration — Troubleshooting & Failure Guide
    • AC Charging & Inverter Integration — Application & Performance Guide
    • AC Charging & Inverter Integration — Material Selection Guide
    • AC Charging & Inverter Integration — Technical Specification Overview
  • Charging IC Selection Guide
    • Technical Evaluation & Sample Request Guide for Charging IC Selection Guide
    • Safety Standards Explained for Charging IC Selection Guide
    • Charging IC Selection Guide — Safety & Risk Assessment
    • Charging IC Selection Guide — Design Engineering Reference
    • Charging IC Selection Guide — Lifecycle & Maintenance Guide
    • Charging IC Selection Guide — Testing & Validation Protocol
    • Charging IC Selection Guide — Comparison & Upgrade Guide
    • Charging IC Selection Guide — Procurement & Cost Guide
    • Charging IC Selection Guide — Troubleshooting & Failure Guide
    • Charging IC Selection Guide — Regulatory & Compliance Guide
    • Charging IC Selection Guide — Supplier Qualification Guide
    • Charging IC Selection Guide — Application & Performance Guide
    • Charging IC Selection Guide — Material Selection Guide
    • Charging IC Selection Guide — Technical Specification Overview
  • Low-Temperature Charging Protection
    • Technical Evaluation & Sample Request Guide for Low-Temperature Charging Protection
    • Certification & Testing Guide for Low-Temperature Charging Protection
    • Low-Temperature Charging Protection — Supplier Qualification Guide
    • Low-Temperature Charging Protection — Industry Case Study
    • Low-Temperature Charging Protection — Design Engineering Reference
    • Low-Temperature Charging Protection — Storage & Handling Guide
    • Low-Temperature Charging Protection — Installation & Integration Guide
    • Low-Temperature Charging Protection — Comparison & Upgrade Guide
    • Low-Temperature Charging Protection — Procurement & Cost Guide
    • Low-Temperature Charging Protection — Troubleshooting & Failure Guide
    • Low-Temperature Charging Protection — Application & Performance Guide
    • Low-Temperature Charging Protection — Material Selection Guide
    • Low-Temperature Charging Protection — Technical Specification Overview

Compact BESS Products

81
  • Power Banks & Portable Chargers
    • Technical Evaluation & Sample Request Guide for Power Banks & Portable Chargers
    • Safety Standards Explained for Power Banks & Portable Chargers
    • Comparing Power Banks & Portable Chargers Solutions
    • Power Banks & Portable Chargers — Material Selection Guide
    • Power Banks & Portable Chargers — Safety & Risk Assessment
    • Power Banks & Portable Chargers — Design Engineering Reference
    • Power Banks & Portable Chargers — Lifecycle & Maintenance Guide
    • Power Banks & Portable Chargers — Testing & Validation Protocol
    • Power Banks & Portable Chargers — Storage & Handling Guide
    • Power Banks & Portable Chargers — Procurement & Cost Guide
    • Power Banks & Portable Chargers — Regulatory & Compliance Guide
    • Power Banks & Portable Chargers — Supplier Qualification Guide
    • Power Banks & Portable Chargers — Troubleshooting & Failure Guide
    • Power Banks & Portable Chargers — Application & Performance Guide
    • Power Banks & Portable Chargers — Technical Specification Overview
  • Outdoor Power Stations
    • Technical Evaluation & Sample Request Guide for Outdoor Power Stations
    • Safety Standards Explained for Outdoor Power Stations
    • Component Supplier Qualification for Outdoor Power Stations
    • How to Choose Outdoor Power Stations
    • Outdoor Power Stations — Industry Case Study
    • Outdoor Power Stations — Safety & Risk Assessment
    • Outdoor Power Stations — Design Engineering Reference
    • Outdoor Power Stations — Lifecycle & Maintenance Guide
    • Outdoor Power Stations — Testing & Validation Protocol
    • Outdoor Power Stations — Storage & Handling Guide
    • Outdoor Power Stations — Installation & Integration Guide
    • Outdoor Power Stations — Troubleshooting & Failure Guide
    • Outdoor Power Stations — Comparison & Upgrade Guide
    • Outdoor Power Stations — Procurement & Cost Guide
    • Outdoor Power Stations — Regulatory & Compliance Guide
    • Outdoor Power Stations — Application & Performance Guide
    • Outdoor Power Stations — Technical Specification Overview
  • Portable UPS Systems
    • BMS-Integrated UPS Monitoring Systems: Architecture, Alarm Specifications, and Industrial Procurement Guide
    • Technical Evaluation & Sample Request Guide for Portable UPS Systems
    • Safety Standards Explained for Portable UPS Systems
    • Portable UPS Systems — Installation & Integration Guide
    • Portable UPS Systems — Procurement & Cost Guide
    • Portable UPS Systems — Material Selection Guide
    • Portable UPS Systems — Industry Case Study
    • Portable UPS Systems — Safety & Risk Assessment
    • Portable UPS Systems — Design Engineering Reference
    • Portable UPS Systems — Lifecycle & Maintenance Guide
    • Portable UPS Systems — Comparison & Upgrade Guide
    • Portable UPS Systems — Troubleshooting & Failure Guide
    • Portable UPS Systems — Regulatory & Compliance Guide
    • Portable UPS Systems — Supplier Qualification Guide
    • Portable UPS Systems — Application & Performance Guide
    • Portable UPS Systems — Technical Specification Overview
  • Vehicle Jump Starters
    • Technical Evaluation & Sample Request Guide for Vehicle Jump Starters
    • Safety Standards Explained for Vehicle Jump Starters
    • Vehicle Jump Starters — Material Selection Guide
    • Vehicle Jump Starters — Industry Case Study
    • Vehicle Jump Starters — Safety & Risk Assessment
    • Vehicle Jump Starters — Design Engineering Reference
    • Vehicle Jump Starters — Lifecycle & Maintenance Guide
    • Vehicle Jump Starters — Testing & Validation Protocol
    • Vehicle Jump Starters — Storage & Handling Guide
    • Vehicle Jump Starters — Installation & Integration Guide
    • Vehicle Jump Starters — Technical Specification Overview
    • Vehicle Jump Starters — Comparison & Upgrade Guide
    • Vehicle Jump Starters — Procurement & Cost Guide
    • Vehicle Jump Starters — Troubleshooting & Failure Guide
    • Vehicle Jump Starters — Regulatory & Compliance Guide
    • Vehicle Jump Starters — Supplier Qualification Guide
    • Vehicle Jump Starters — Application & Performance Guide
  • Solar Generator Systems
    • Sodium-Ion Battery Economics for Residential PV-BESS: Lifecycle Cost Analysis and Procurement Thresholds
    • Solar Generator Storage Sizing: Dispatch Optimization and Capacity Specification for Residential BESS
    • Technical Evaluation & Sample Request Guide for Solar Generator Systems
    • Safety Standards Explained for Solar Generator Systems
    • Solar Generator Systems — Regulatory & Compliance Guide
    • Solar Generator Systems — Supplier Qualification Guide
    • Solar Generator Systems — Industry Case Study
    • Solar Generator Systems — Safety & Risk Assessment
    • Solar Generator Systems — Testing & Validation Protocol
    • Solar Generator Systems — Storage & Handling Guide
    • Solar Generator Systems — Installation & Integration Guide
    • Solar Generator Systems — Comparison & Upgrade Guide
    • Solar Generator Systems — Troubleshooting & Failure Guide
    • Solar Generator Systems — Application & Performance Guide
    • Solar Generator Systems — Material Selection Guide
    • Solar Generator Systems — Technical Specification Overview

Safety & Certification

89
  • UN38.3 Transport Certification
    • Technical Evaluation & Sample Request Guide for UN38.3 Transport Certification
    • Safety Standards Explained for UN38.3 Transport Certification
    • UN38.3 Transport Certification — Technical Specification Overview
    • UN38.3 Transport Certification — Design Engineering Reference
    • UN38.3 Transport Certification — Lifecycle & Maintenance Guide
    • UN38.3 Transport Certification — Testing & Validation Protocol
    • UN38.3 Transport Certification — Storage & Handling Guide
    • UN38.3 Transport Certification — Installation & Integration Guide
    • UN38.3 Transport Certification — Comparison & Upgrade Guide
    • UN38.3 Transport Certification — Troubleshooting & Failure Guide
    • UN38.3 Transport Certification — Regulatory & Compliance Guide
    • UN38.3 Transport Certification — Procurement & Cost Guide
    • UN38.3 Transport Certification — Supplier Qualification Guide
    • UN38.3 Transport Certification — Application & Performance Guide
    • UN38.3 Transport Certification — Material Selection Guide
  • IEC 62619 Industrial Safety
    • IEC 62619 Thermal Runaway Detection: CO Alarm Thresholds and Suppression Validation for Prefabricated BESS Enclosures
    • IEC 62619 Safety Compliance for Large-Format LFP Cells: 430 Ah Laminated vs. 280 Ah Wound Cell Test Data
    • IEC 62619 Cell Safety Across Full Lifecycle: BOL vs. EOL Performance in 125 Ah Prismatic LFP Energy Storage Cells
    • Technical Evaluation & Sample Request Guide for IEC 62619 Industrial Safety
    • Safety Standards Explained for IEC 62619 Industrial Safety
    • IEC 62619 Industrial Safety — Industry Case Study
    • IEC 62619 Industrial Safety — Safety & Risk Assessment
    • IEC 62619 Industrial Safety — Lifecycle & Maintenance Guide
    • IEC 62619 Industrial Safety — Testing & Validation Protocol
    • IEC 62619 Industrial Safety — Storage & Handling Guide
    • IEC 62619 Industrial Safety — Installation & Integration Guide
    • IEC 62619 Industrial Safety — Comparison & Upgrade Guide
    • IEC 62619 Industrial Safety — Procurement & Cost Guide
    • IEC 62619 Industrial Safety — Troubleshooting & Failure Guide
    • IEC 62619 Industrial Safety — Regulatory & Compliance Guide
    • IEC 62619 Industrial Safety — Supplier Qualification Guide
    • IEC 62619 Industrial Safety — Application & Performance Guide
    • IEC 62619 Industrial Safety — Material Selection Guide
    • IEC 62619 Industrial Safety — Technical Specification Overview
  • UL 9540 & UL 9540A
    • UL 9540A Early Warning: Mechanical Deformation Detection vs Gas Sensors in LiFePO₄ Thermal Runaway
    • Technical Evaluation & Sample Request Guide for UL 9540 & UL 9540A
    • Safety Standards Explained for UL 9540 & UL 9540A
    • UL 9540 & UL 9540A — Industry Case Study
    • UL 9540 & UL 9540A — Safety & Risk Assessment
    • UL 9540 & UL 9540A — Design Engineering Reference
    • UL 9540 & UL 9540A — Lifecycle & Maintenance Guide
    • UL 9540 & UL 9540A — Testing & Validation Protocol
    • UL 9540 & UL 9540A — Storage & Handling Guide
    • UL 9540 & UL 9540A — Installation & Integration Guide
    • UL 9540 & UL 9540A — Comparison & Upgrade Guide
    • UL 9540 & UL 9540A — Procurement & Cost Guide
    • UL 9540 & UL 9540A — Troubleshooting & Failure Guide
    • UL 9540 & UL 9540A — Regulatory & Compliance Guide
    • UL 9540 & UL 9540A — Supplier Qualification Guide
    • UL 9540 & UL 9540A — Application & Performance Guide
    • UL 9540 & UL 9540A — Material Selection Guide
    • UL 9540 & UL 9540A — Technical Specification Overview
  • CE / FCC / RoHS Compliance
    • Technical Evaluation & Sample Request Guide for CE / FCC / RoHS Compliance
    • Safety Standards Explained for CE / FCC / RoHS Compliance
    • CE / FCC / RoHS Compliance — Industry Case Study
    • CE / FCC / RoHS Compliance — Design Engineering Reference
    • CE / FCC / RoHS Compliance — Lifecycle & Maintenance Guide
    • CE / FCC / RoHS Compliance — Testing & Validation Protocol
    • CE / FCC / RoHS Compliance — Installation & Integration Guide
    • CE / FCC / RoHS Compliance — Comparison & Upgrade Guide
    • CE / FCC / RoHS Compliance — Procurement & Cost Guide
    • CE / FCC / RoHS Compliance — Troubleshooting & Failure Guide
    • CE / FCC / RoHS Compliance — Regulatory & Compliance Guide
    • CE / FCC / RoHS Compliance — Supplier Qualification Guide
    • CE / FCC / RoHS Compliance — Application & Performance Guide
    • CE / FCC / RoHS Compliance — Material Selection Guide
    • CE / FCC / RoHS Compliance — Technical Specification Overview
  • EU Battery Regulation 2023/1542
    • EU Battery Regulation 2023/1542: Carbon Footprint, Recovery Targets, and Supplier Compliance for Global Buyers
    • EU Battery Regulation 2023/1542: Compliance Gaps, Battery Passport Requirements, and What Chinese Manufacturers Must Fix Before 2027
    • EU Battery Regulation 2023/1542: Compliance Framework, Classification, and Conformity Assessment for Chinese Battery Exporters
    • Technical Evaluation & Sample Request Guide for EU Battery Regulation 2023/1542
    • Safety Standards Explained for EU Battery Regulation 2023/1542
    • EU Battery Regulation 2023/1542 — Material Selection Guide
    • EU Battery Regulation 2023/1542 — Industry Case Study
    • EU Battery Regulation 2023/1542 — Safety & Risk Assessment
    • EU Battery Regulation 2023/1542 — Design Engineering Reference
    • EU Battery Regulation 2023/1542 — Lifecycle & Maintenance Guide
    • EU Battery Regulation 2023/1542 — Testing & Validation Protocol
    • EU Battery Regulation 2023/1542 — Storage & Handling Guide
    • EU Battery Regulation 2023/1542 — Installation & Integration Guide
    • EU Battery Regulation 2023/1542 — Comparison & Upgrade Guide
    • EU Battery Regulation 2023/1542 — Procurement & Cost Guide
    • EU Battery Regulation 2023/1542 — Troubleshooting & Failure Guide
    • EU Battery Regulation 2023/1542 — Regulatory & Compliance Guide
    • EU Battery Regulation 2023/1542 — Supplier Qualification Guide
    • EU Battery Regulation 2023/1542 — Application & Performance Guide
    • EU Battery Regulation 2023/1542 — Technical Specification Overview
View Categories
  • Home
  • Docs
  • Cell Technology
  • Cell Formats & Form Factors
  • Immersion Cooling for 100 Ah LiFePO₄ Residential Battery Packs: Thermal Performance Across −40 °C to 40 °C

Immersion Cooling for 100 Ah LiFePO₄ Residential Battery Packs: Thermal Performance Across −40 °C to 40 °C

Dr. James Okafor
更新 2026年6月22日

13 min read

TL;DR #

A 16-cell, 100 Ah LiFePO₄ pack immersed in hydrocarbon synthetic oil kept peak temperature rise below 10.0 °C at both 25 °C and 40 °C ambient, while the same pack in an uncontrolled −40 °C environment saw a 50.0 °C temperature spike during 0.5C discharge. For buyers specifying residential BESS units destined for cold climates, this data means passive air cooling is categorically insufficient — thermal management strategy must be a qualification criterion, not an afterthought. Before issuing any RFQ for a 100 Ah-class LiFePO₄ pack assembly, require documented thermal characterization data across at least a −20 °C to 40 °C ambient range at your target discharge rate.


Overview #

Most procurement teams evaluate residential battery packs on capacity, cycle life, and BMS feature sets. Thermal management — specifically how the pack behaves at temperature extremes — rarely appears on the RFQ checklist until a field failure forces the issue. That’s a costly mistake, and the experimental data covered here makes the argument clearly.

The analysis draws from controlled laboratory testing conducted by a joint team from a lubrication technology research institute and a university mechanical engineering department. The test object was a 16S1P module built from 100 Ah prismatic LiFePO₄ cells, assembled into a stainless steel immersion enclosure (internal cavity 150 mm × 400 mm × 500 mm, 2.0 mm wall thickness). Temperature was monitored via eight K-type thermocouples placed at every other cell position, with a calibrated data acquisition system carrying a measurement uncertainty no worse than 2.23% across all test conditions. The immersion fluid was a hydrocarbon-based synthetic oil (polyalphaolefin base), and all charge/discharge cycling was performed at 0.5C rate. Environmental chambers covered the range from −40 °C to +40 °C, with stability held to ±0.5 °C.

This kind of wide-range thermal characterization — spanning 80 °C of ambient variation on real hardware — is exactly what B2B buyers should be demanding from suppliers but rarely see in product documentation.


LiFePO₄ Pack Thermal Performance Across Wide Temperature Ranges #

The headline result is stark: temperature rise is inversely proportional to ambient temperature, and the relationship is nonlinear.

At 40 °C ambient, the immersed pack’s temperature rise during 0.5C charge/discharge stayed below 7.0 °C, with peak pack temperature reaching 46.40 °C during charging and 45.20 °C during discharge. The maximum intra-pack temperature differential stayed under 1.5 °C throughout. That’s genuinely good thermal uniformity.

At 25 °C ambient with immersion cooling active, average temperature rise during discharge was 6.8 °C, keeping the pack below 36.0 °C. Without immersion — standard air-cooled configuration — the same pack rose 10.1 °C, reaching a peak of 35.5 °C average, and exceeded the 2.0 °C intra-pack differential threshold after 5,600 seconds of discharge. That 3.3 °C delta between immersed and non-immersed at room temperature might sound modest. It isn’t, when you’re trying to keep cells within a tight operating window for longevity.

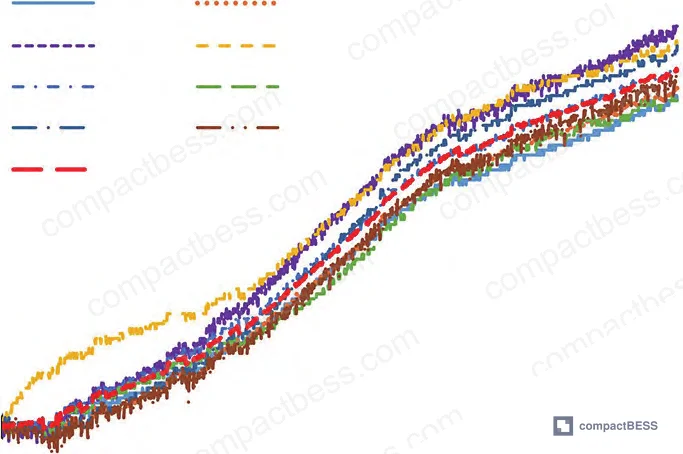

Figure 1: Charge/discharge thermal state comparison — immersed vs. non-immersed at 25 °C ambient, 0.5C rate
Figure 1: Charge/discharge thermal state comparison — immersed vs. non-immersed at 25 °C ambient, 0.5C rate

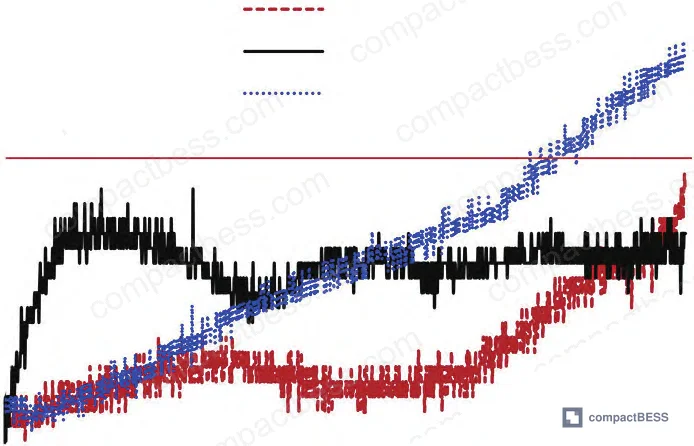

Figure 2: Maximum intra-pack temperature differential under immersed and non-immersed conditions at 25 °C
Figure 2: Maximum intra-pack temperature differential under immersed and non-immersed conditions at 25 °C

Now the cold side, which is where this data becomes genuinely alarming for anyone specifying BESS units for northern Europe, Canada, or high-altitude installations:

Ambient Temperature Discharge Rate Temperature Rise Discharge Efficiency Max Intra-Pack ΔT
40 °C 0.5C < 7.0 °C Not constrained < 1.5 °C
25 °C (immersed) 0.5C 6.8 °C Normal < 2.0 °C
0 °C 0.5C ~16.6 °C (discharge) Reduced < 2.0 °C
−20 °C 0.5C ~37 °C 76.39% < 5.0 °C
−40 °C 0.5C 50.0 °C 64.95% ~9.0 °C

At −40 °C, discharge duration was only 4,677 seconds — the pack delivered just 64.95% of its rated capacity. At −20 °C, discharge time extended to 5,500 seconds with 76.39% efficiency. The mechanism is well understood: lower temperatures increase internal resistance (primarily polarization resistance, with minimal effect on ohmic resistance), which increases heat generation, depresses the voltage plateau, and cuts available capacity. Lithium-ion diffusivity drops with temperature, creating steeper intercalation concentration gradients that further limit capacity.

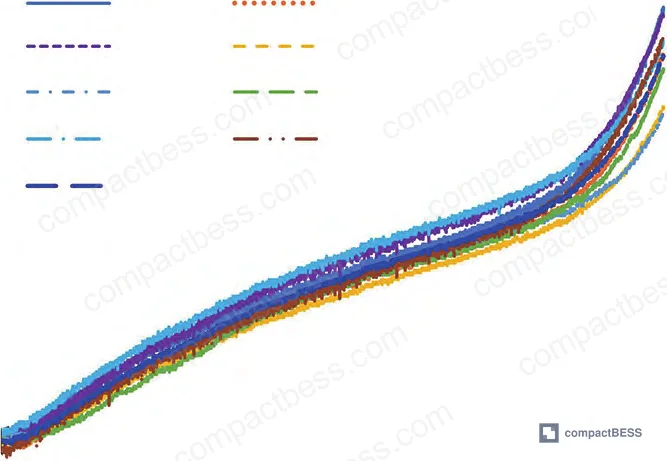

Figure 3: Discharge temperature rise profile at −20 °C, showing ~37 °C rise with pack temperature approaching 17 °C at end of discharge
Figure 3: Discharge temperature rise profile at −20 °C, showing ~37 °C rise with pack temperature approaching 17 °C at end of discharge

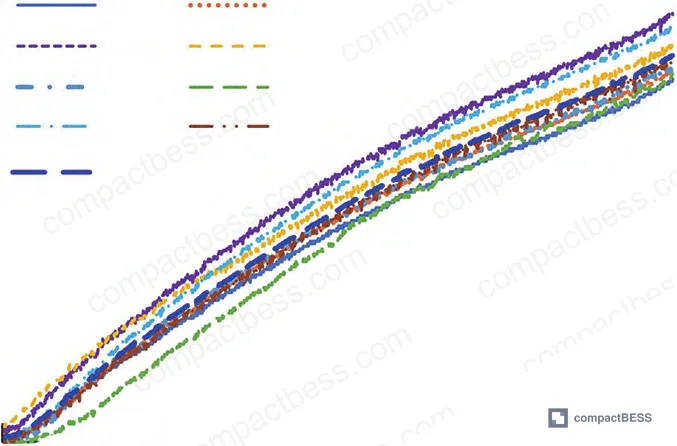

Figure 4: Discharge efficiency and temperature behavior comparison between −40 °C and −20 °C environments
Figure 4: Discharge efficiency and temperature behavior comparison between −40 °C and −20 °C environments

The 50.0 °C temperature spike at −40 °C deserves specific attention. The pack starts near −40 °C and ends approaching +10 °C by end of discharge. That’s a self-heating benefit from a system design perspective — but from a safety standpoint, a 50 °C swing within a single discharge cycle, concentrated in pack center cells, is not something you want happening in an unmonitored residential enclosure. At −40 °C, the maximum intra-pack differential approached 9.0 °C at around the 1,000-second mark before gradually declining as temperatures normalized.

The 0 °C condition showed average discharge temperature rise of 16.63 °C, with a pronounced thermal “spike” at end of discharge driven by sharply rising internal resistance at low SOC. Charging at 0 °C showed 17.78 °C average rise — slightly higher than discharge at the same temperature, attributable to entropic heat being larger during charging than during discharging.

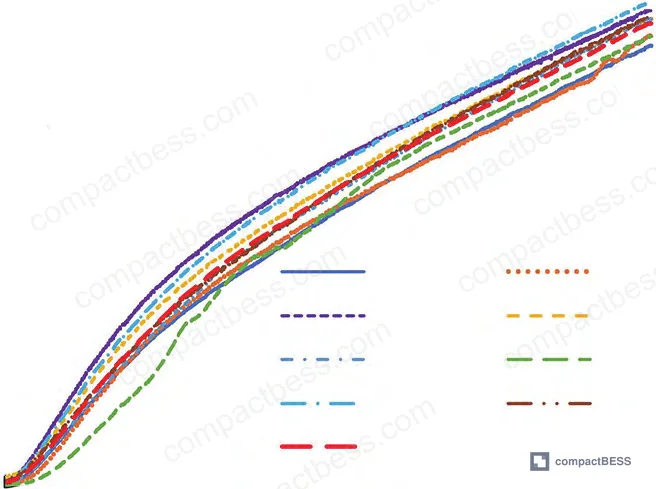

Figure 5: 0 °C charge/discharge temperature rise curves showing rapid rise profile and end-of-discharge spike
Figure 5: 0 °C charge/discharge temperature rise curves showing rapid rise profile and end-of-discharge spike

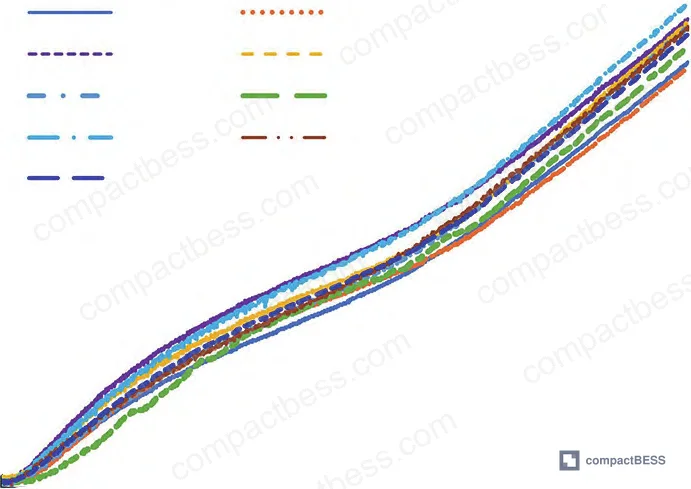

Figure 6: Charge/discharge time comparison at 0 °C — 6,831 s charging vs. 6,679 s discharge, reflecting lithium intercalation capacity constraints
Figure 6: Charge/discharge time comparison at 0 °C — 6,831 s charging vs. 6,679 s discharge, reflecting lithium intercalation capacity constraints

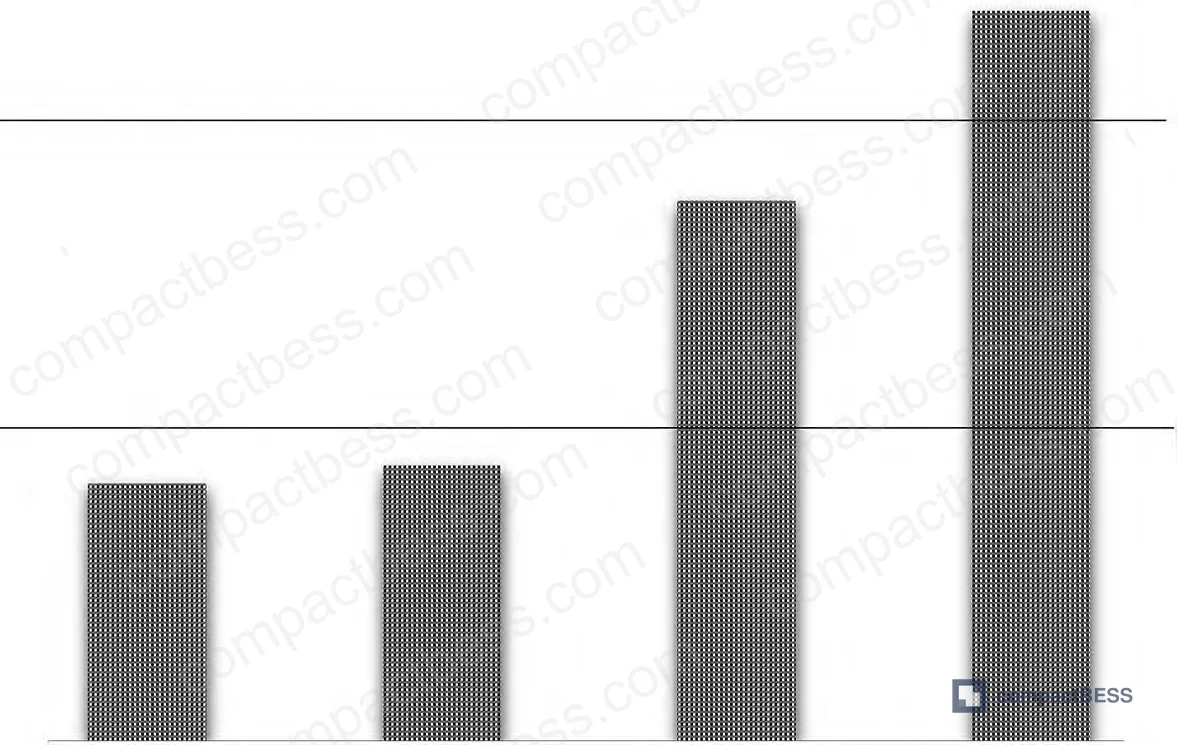

Figure 7: Temperature rise amplitude and maximum differential summary across low-temperature test conditions
Figure 7: Temperature rise amplitude and maximum differential summary across low-temperature test conditions

Immersion Cooling Design Parameters for Residential Battery Packs #

The immersion fluid used in this evaluation — a hydrocarbon synthetic oil — has specific properties that directly influenced the test outcomes and matter enormously to buyers sourcing packs with this thermal architecture.

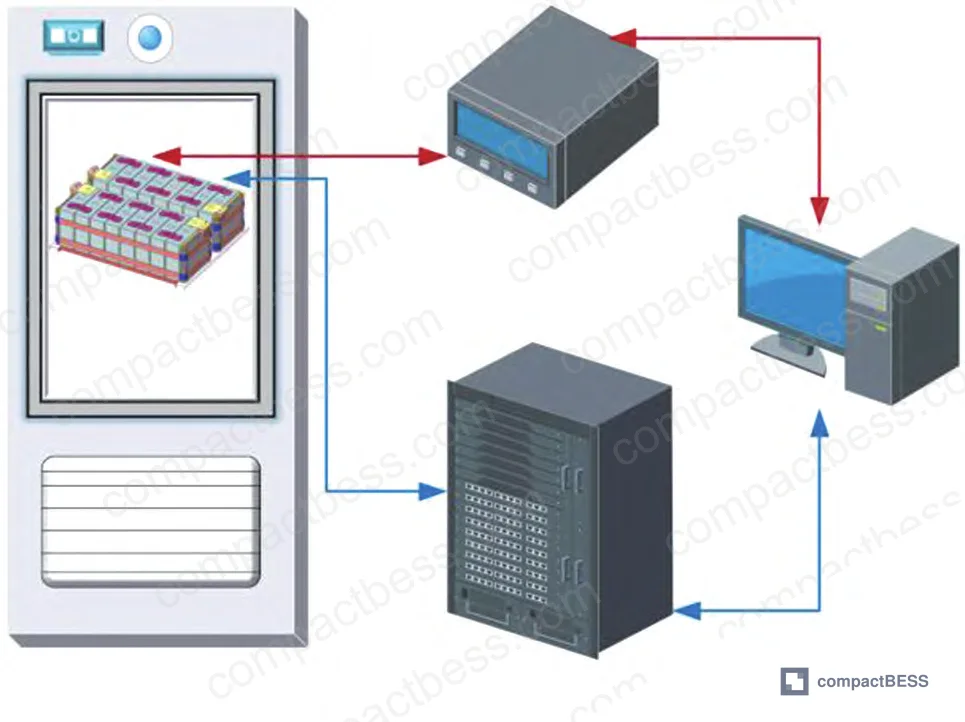

Figure 8: Liquid-immersion cooling test system schematic for the 16S 100 Ah LiFePO₄ pack
Figure 8: Liquid-immersion cooling test system schematic for the 16S 100 Ah LiFePO₄ pack

Key fluid properties: density of 796.3 kg/m³, specific heat capacity of 2,020 J/(kg·°C), and thermal conductivity of 0.14 W/(m·°C) at operating temperatures. Flash point of 177 °C. Dielectric breakdown voltage of 73 kV. Pour point of −66 °C. The low pour point is critical — this fluid remains pumpable (or flowable in static configurations) well below any realistic operating ambient.

The battery cells themselves: 100 Ah prismatic LiFePO₄, dimensions 50 mm × 160 mm × 119 mm (thickness × length × height), mass 1,950 g per cell. Nominal voltage 3.2 V, charge cutoff 3.65 V, discharge cutoff 2.50 V. Pack charge cutoff 58.40 V, discharge cutoff 40.00 V. Inter-cell spacing 2.0 mm with 2.0 mm copper busbars connecting the module string.

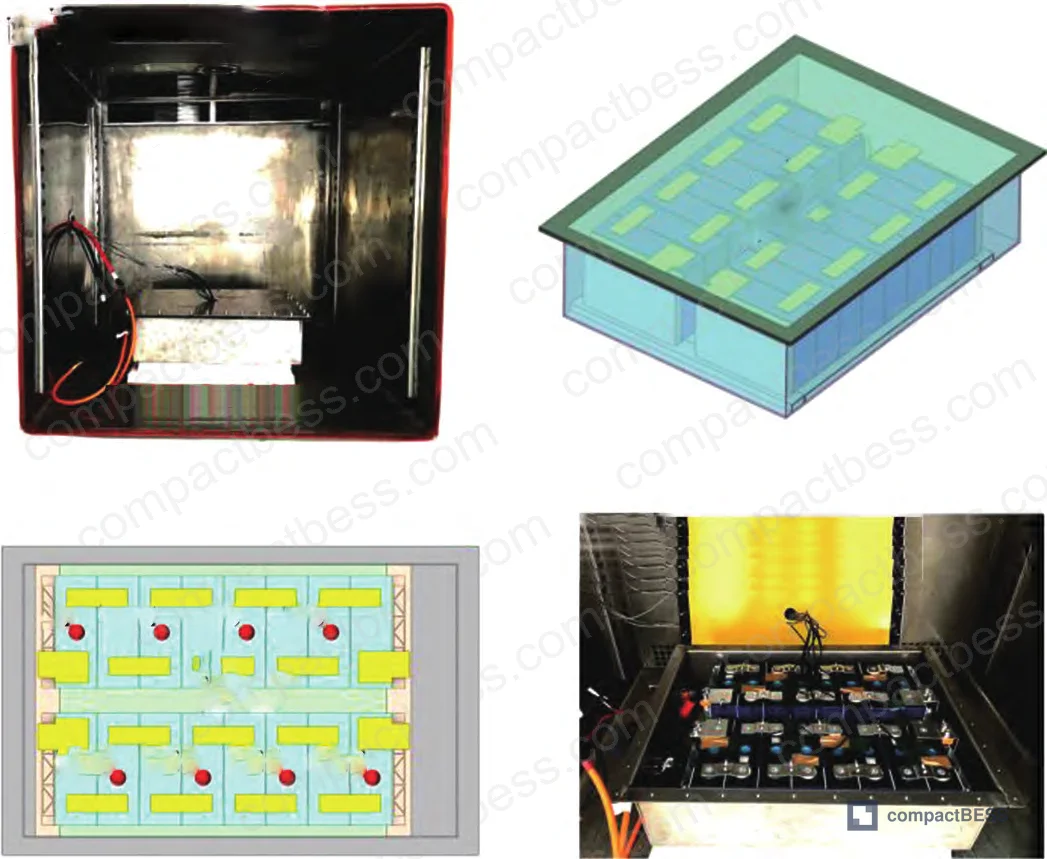

Figure 9: Immersed battery pack assembly — 3D model and thermocouple placement (TC1–TC8) at alternating cell positions
Figure 9: Immersed battery pack assembly — 3D model and thermocouple placement (TC1–TC8) at alternating cell positions

An important nuance on immersion fluid thermal behavior in cold environments: the fluid’s thermal conductivity decreases as temperature drops, approaching values comparable to insulating materials (≤0.12 W/(m·°C)) in extreme cold. This is actually a feature in sub-zero conditions — the fluid transitions from active heat extraction to passive thermal insulation, helping retain cell-generated heat and moderating the temperature differential across the module. This dual-role behavior is something air-cooled or cold-plate designs simply cannot replicate.

The static (non-circulating) immersion configuration kept intra-pack temperature differential under 2.0 °C at 25 °C ambient and under 1.5 °C at 40 °C ambient — achieved with zero pumping energy. Earlier research referenced in this domain shows that dynamic immersion with flow rates from 1.0 L/min to 10.0 L/min reduces temperatures by only 6.7% compared to static, indicating significant diminishing returns on pumping investment for residential applications.

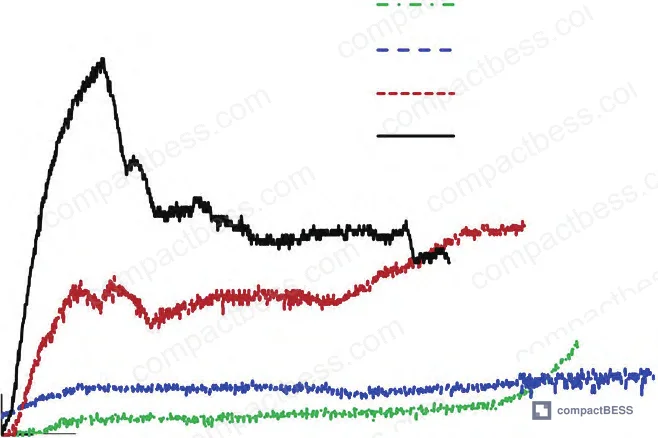

Figure 10: Thermal performance summary at 40 °C ambient — peak charge temperature 46.40 °C, peak discharge temperature 45.20 °C, max ΔT < 1.5 °C
Figure 10: Thermal performance summary at 40 °C ambient — peak charge temperature 46.40 °C, peak discharge temperature 45.20 °C, max ΔT < 1.5 °C

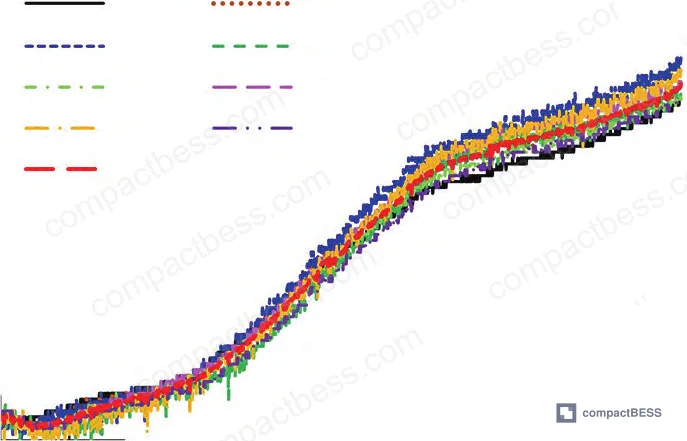

Figure 11: Temperature differential comparison across ambient conditions showing tighter uniformity at higher ambient temperatures
Figure 11: Temperature differential comparison across ambient conditions showing tighter uniformity at higher ambient temperatures

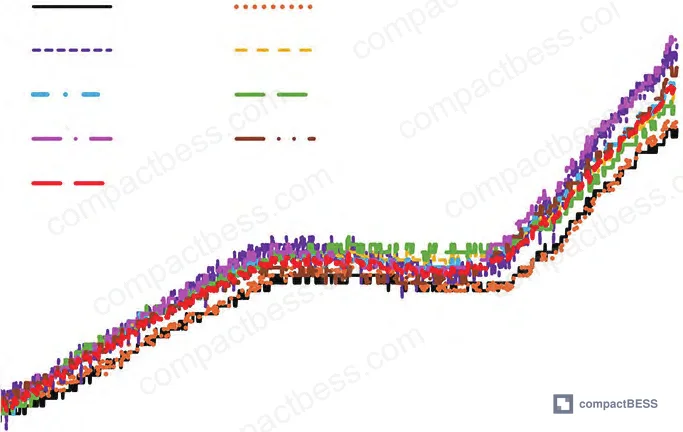

Figure 12: Maximum intra-pack temperature differential by ambient — <2.0 °C at 0 °C, <5.0 °C at −20 °C, ~9.0 °C at −40 °C
Figure 12: Maximum intra-pack temperature differential by ambient — <2.0 °C at 0 °C, <5.0 °C at −20 °C, ~9.0 °C at −40 °C

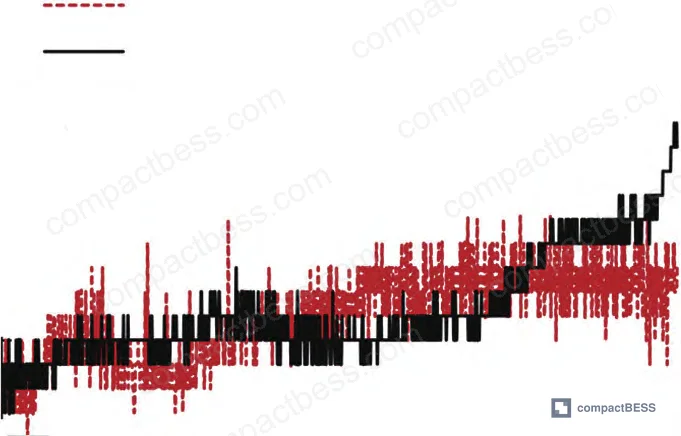

Figure 13: Post-peak temperature differential decay at −40 °C — differential spike near 1,000 s then declines below 5.0 °C
Figure 13: Post-peak temperature differential decay at −40 °C — differential spike near 1,000 s then declines below 5.0 °C

Honestly, most buyers over-specify cooling system complexity for residential BESS. When you see the static immersion data — less than 2.0 °C intra-pack differential at room temperature with no pump, no flow control, no maintenance — the case for adding a circulation system in moderate climates is weak. Save the pumped loop budget for industrial deployments where continuous high-rate cycling or extreme ambient ranges actually demand it.


Practical Guidance for Buyers #

If your product is a residential or light-commercial BESS destined for markets with genuine seasonal temperature swings, the thermal management strategy must be part of your supplier qualification, not a post-design afterthought. The 64.95% discharge efficiency at −40 °C and the 50 °C temperature rise in the same condition aren’t edge cases — they’re the operating reality for BESS units deployed in northern regions.

For standard residential deployments in temperate climates (−10 °C to 35 °C ambient), a well-designed static immersion system using dielectric hydrocarbon fluid is technically sufficient and cost-competitive. The critical specifications to lock down in your procurement: immersion fluid flash point (minimum 150 °C for safety margin), dielectric breakdown voltage (minimum 30 kV per IEC 60156 protocol), pour point below your lowest expected installation ambient, and a validated intra-pack temperature differential under 2.0 °C at 0.5C rate in your target temperature range.

At compactbess.com, we work directly with verified Chinese manufacturers of LiFePO₄ pack assemblies and thermal management solutions, helping OEM brand owners and integration engineers in North America, Europe, and the Middle East connect with suppliers who can provide documented thermal test data — not just spec sheets — before samples ship. If your pack design requires cold-climate validation data or immersion cooling qualification, we can match you with the right facility.

Compliance references to verify during supplier qualification: IEC 62619 for stationary lithium battery safety, UN 38.3 for transport qualification, and GB/T 36276 for the Chinese residential BESS standard that governs most of what Chinese manufacturers are already certified to.

Need help identifying qualified suppliers for immersion-cooled LiFePO₄ pack assemblies? Talk to our sourcing team →


Supplier Qualification Questions #

  1. Can you provide thermal characterization data showing intra-pack temperature differential at 0.5C discharge across an ambient range of at least −20 °C to +40 °C, with ΔT confirmed below 2.0 °C at 25 °C ambient for your standard pack configuration?
  1. What is the discharge efficiency of your 100 Ah-class LiFePO₄ pack at −20 °C ambient and 0.5C rate — and can you document the actual discharge duration versus the rated 0.5C baseline to confirm efficiency above 76%?
  1. For immersion-cooled designs, what is the dielectric breakdown voltage and flash point of your specified immersion fluid, and does the fluid’s pour point fall below −40 °C to cover extreme cold deployment scenarios?
  1. What is the inter-cell spacing in your pack assembly, and can you confirm that your BMS has thermocouple or NTC sensor coverage at minimum every other cell position (equivalent to one sensor per 2-cell interval in a 16-cell string)?
  1. Under a static immersion configuration at 25 °C ambient and 0.5C charge/discharge, does your pack’s peak average temperature stay below 36.0 °C, and do you have test records showing the non-immersed temperature rise for comparison to confirm at least 3 °C suppression benefit from the immersion design?

Sourcing Checklist #

  • [ ] Thermal test report covers ambient range from −20 °C to +40 °C minimum, with discharge efficiency data at each temperature point confirmed (≥76% at −20 °C, ≥65% at −40 °C if cold-climate rated)
  • [ ] Immersion fluid flash point documented at ≥150 °C and dielectric breakdown voltage confirmed ≥30 kV per IEC 60156 test method
  • [ ] Intra-pack temperature differential at 25 °C ambient, 0.5C rate verified ≤2.0 °C throughout full charge/discharge cycle
  • [ ] Pack assembly uses ≥2.0 mm copper busbars and inter-cell spacing confirmed ≥2.0 mm in 100 Ah prismatic format
  • [ ] Pack-level charge cutoff voltage confirmed at ≤3.65 V/cell (58.40 V for 16S) and discharge cutoff at ≥2.50 V/cell (40.00 V for 16S) per manufacturer cell spec
  • [ ] IEC 62619 safety compliance certificate current and covering the specific pack configuration being sourced
  • [ ] UN 38.3 transport test report available for the cell type used (required for any international shipment)
  • [ ] Enclosure includes pressure relief valve and validated sealed wire entry (potted with encapsulant) to prevent immersion fluid leakage under thermal stress

Key Specifications Table #

Parameter Recommended Value Verification Method
Intra-pack temperature differential (25 °C ambient, 0.5C rate) ≤2.0 °C K-type thermocouple array (1 per 2-cell interval), full charge/discharge cycle
Peak pack temperature rise at 25 °C ambient (immersed, 0.5C) ≤6.8 °C (average); ≤10.0 °C absolute Thermocouple mean of 8 sensor positions, end-of-discharge peak
Discharge efficiency at −20 °C ambient, 0.5C rate ≥76.39% Discharge duration ratio vs. rated 0.5C baseline; coulomb counting
Immersion fluid flash point ≥177 °C ASTM D92 Cleveland Open Cup method
Immersion fluid dielectric breakdown voltage ≥73 kV IEC 60156 standard test
Immersion fluid pour point ≤−40 °C (cold-climate); ≤−20 °C (standard) ASTM D97 pour point test
Maximum pack temperature during 40 °C ambient operation ≤50.0 °C (any condition) Environmental chamber set to 40.0 ±0.5 °C; peak thermocouple reading

Can’t find a supplier meeting these specs? Submit your requirements and we’ll match you within 48 hours.


Frequently Asked Questions #

Q: Why does a LiFePO₄ pack generate so much more heat at −40 °C than at room temperature, even at the same 0.5C discharge rate?

A: The dominant factor is polarization internal resistance, which rises sharply as temperature drops. At −40 °C, this resistance is dramatically higher than at 25 °C — the ohmic resistance changes relatively little, but polarization resistance (driven by sluggish lithium-ion diffusion and slow electrochemical kinetics) causes both increased heat generation per unit of current and a depressed voltage plateau that cuts off the discharge earlier. The result is less energy delivered but more heat per unit time — a particularly unfavorable combination.

Q: Is static immersion cooling actually effective enough for residential BESS, or do you need a pumped circulation system?

A: For moderate-climate residential applications, static immersion is sufficient. The experimental data shows intra-pack differentials held below 2.0 °C at 25 °C ambient with no circulation. Dynamic immersion at flow rates from 1.0 to 10.0 L/min only reduces temperatures by an additional 6.7% — the marginal return on adding pump complexity and maintenance overhead is hard to justify for residential duty cycles.

Q: What happens to an immersion-cooled pack in extreme cold — does the fluid freeze or stop working?

A: A well-specified hydrocarbon synthetic fluid with a pour point of −66 °C remains fluid well below any realistic residential installation ambient. An interesting secondary effect: as temperature drops, the fluid’s thermal conductivity approaches that of insulating materials (≤0.12 W/(m·°C)), which actually helps the pack retain self-generated heat during discharge — acting as a thermal buffer rather than an active heat extractor. This is a genuine design advantage over air cooling in cold climates.

Q: At what ambient temperature does cell temperature uniformity become a serious concern?

A: Based on this test data, the threshold is roughly −20 °C. At 0 °C and 25 °C ambient, intra-pack ΔT stays below 2.0 °C throughout cycling. At −20 °C, maximum differential reaches up to 5.0 °C. At −40 °C, the differential spikes to approximately 9.0 °C around the 1,000-second mark before declining. Cell-to-cell temperature non-uniformity at this scale accelerates differential aging and can cause balancing problems over time — which is why cold-climate BESS designs need either active pre-heating or a thermal management system that limits that ΔT.

Q: Does the immersion fluid pose any compatibility or safety risk with LiFePO₄ cells?

A: Hydrocarbon-based dielectric fluids are chemically inert with LiFePO₄ cell casings and standard aluminum/stainless hardware. The key safety design requirement is the pressure relief valve on the enclosure top — in a thermal runaway event, combustion gas must have a controlled release path. The 73 kV dielectric breakdown voltage of the fluid also means it does not create an electrical short-circuit path within the pack, which is the primary safety concern for any conductive liquid near live terminals.


Published by compactbess.com Technical Team | Request a sourcing quote


Data source: Thermal Field Regulation of Residential Lithium-Ion Battery Packs Using Static Liquid Immersion Cooling Across Wide Ambient Temperature Ranges, H. Zhang et al., Journal of the Electrochemical Society, 2024
