Cell Technology

198
  • Lithium-Ion vs LFP Chemistry
    • Li-Ion vs LFP Electrolyte Chemistry: From Liquid to Solid-State — A Procurement Engineer’s Technical Guide
    • LFP vs. Lead-Acid Battery for Residential BESS: Cost, Sizing, and Dispatch Optimization
    • Technical Evaluation & Sample Request Guide for Lithium-Ion vs LFP Chemistry
    • Safety Standards Explained for Lithium-Ion vs LFP Chemistry
    • Lithium-Ion vs LFP Chemistry — Safety & Risk Assessment
    • Lithium-Ion vs LFP Chemistry — Design Engineering Reference
    • Lithium-Ion vs LFP Chemistry — Lifecycle & Maintenance Guide
    • Lithium-Ion vs LFP Chemistry — Testing & Validation Protocol
    • Lithium-Ion vs LFP Chemistry — Storage & Handling Guide
    • Lithium-Ion vs LFP Chemistry — Installation & Integration Guide
    • Lithium-Ion vs LFP Chemistry — Comparison & Upgrade Guide
    • Lithium-Ion vs LFP Chemistry — Procurement & Cost Guide
    • Lithium-Ion vs LFP Chemistry — Troubleshooting & Failure Guide
    • Lithium-Ion vs LFP Chemistry — Regulatory & Compliance Guide
    • Lithium-Ion vs LFP Chemistry — Supplier Qualification Guide
    • Lithium-Ion vs LFP Chemistry — Application & Performance Guide
    • Lithium-Ion vs LFP Chemistry — Material Selection Guide
    • Lithium-Ion vs LFP Chemistry — Technical Specification Overview
  • Cell Formats & Form Factors
    • PFPE Phase-Change Immersion Cooling for High-Rate Lithium Battery Packs: Thermal Performance Guide
    • Battery Cell Format Selection Guide: Cylindrical, Prismatic, and Pouch Procurement Parameters
    • Battery Cell Format Selection Guide: Cylindrical vs Prismatic vs Pouch
    • LTO Pouch Cell Capacity Fade at Different C-Rates: Procurement Guide for Grid Storage Buyers
    • Battery Cell Format Selection Guide: Cylindrical vs Prismatic vs Pouch for Compact BESS
    • Cell Format Dimensional Tolerances and BMS Temperature Sensor Accuracy: A Procurement Engineering Guide
    • Cylindrical, Prismatic, and Pouch Cell Formats: Dimensional Specifications and Procurement Guide for BESS Buyers
    • Selective Lithium Recovery from Spent LFP Cathode Material: Process Parameters, Selectivity Data, and Supplier Qualification Guide
    • Cell Format Selection Guide: Dimensional Tolerances, Thermal Path Engineering, and Pack Integration
    • Biomass-Assisted Hydrometallurgical Recovery of Cathode Materials from Spent Lithium-Ion Batteries: A Procurement Guide for Cell Buyers
    • SOC-Dependent Thermal Runaway and Propagation Behavior in NMC Battery Modules: A Procurement Guide to Crush Abuse Testing
    • China Battery Recycling & Cascade Reuse: What Cell Format Buyers Must Know
    • Battery Recovery Modes Under EPR: How Supplier Recovery Structure Affects Your Procurement Risk
    • China Battery Waste Material Flow Analysis: What Cell Buyers Need to Know About Recycling, ESG Compliance, and Supply Chain Traceability
    • Retired EV Battery Cell Formats: How Dimensional Standardization Affects Recovery Economics and Second-Life Failure Rates
    • Battery Cell Temperature Limits and Thermal Management for Distributed Storage Applications
    • LFP vs NMC Cell Format Selection: Carbon Recovery Economics and Procurement Impact
    • GB/T 36276—2023 Test Lab Infrastructure: What Qualified Lithium-Ion Energy Storage Cell Suppliers Must Be Able to Prove
    • Self-Stratifying Electrolyte Batteries: Technical Procurement Guide for Membrane-Free Grid Storage
    • Battery Cell Formats & Form Factors: Technical Procurement Guide for Cylindrical, Prismatic, and Pouch Cells
    • Cell Format Selection and Lifecycle Carbon Accounting for Chinese Battery Manufacturers
    • Battery Cell Format Selection Guide: Dimensional Specifications, Lifecycle Efficiency, and Procurement Criteria for ESS Applications
    • Immersion Cooling for LFP Battery Modules: CFD Validation and Thermal Performance Benchmarks
    • Battery Cell Format Selection Guide: Cylindrical vs. Prismatic vs. Pouch for Pack Design
    • Cylindrical vs. Prismatic vs. Pouch: Cell Format Selection Guide for Battery Pack Procurement
    • Battery Carbon Footprint Standards: ISO 14067 vs PAS 2050 vs GHG Protocol for Battery Procurement
    • Battery Cell Format Selection Guide: Cylindrical vs. Prismatic vs. Pouch — Technical Procurement Evaluation
    • Battery Cell Format Selection Guide: Cylindrical, Prismatic, and Pouch Specifications for Compact BESS Procurement
    • Lithium-Ion Cell Format Selection for LED Energy Storage: Chemistry, Thermal Performance & Procurement Guide
    • LFP Cell Format Selection for Dual-Voltage Mobile ESS: DC768V/DC380V Architecture Specification Guide
    • Second-Life EV Battery Procurement: SOH Grading, Traceability, and Echelon Utilization for Stationary Storage
    • Lithium-Ion Battery Thermal Runaway Detection and Fire Suppression in BESS Prefabricated Cabinets
    • Battery Pack Structural Loading: Why Assembly Sequence Generates Non-Linear Stress Patterns
    • Cylindrical, Prismatic, and Pouch Cell Formats: Dimensional Specifications, Thermal Management, and BMS Complexity for Compact BESS Procurement
    • 10 kV Battery Storage PCS Topology Comparison: Cascaded H-Bridge vs MMC vs Transformer-Based Systems
    • Multi-Module Parallel PCS Thermal Management: Current Sharing, Dynamic Impedance, and Thermal Runaway Avoidance in Battery Energy Storage Systems
    • PCS Topology Selection Guide for Battery Energy Storage Systems: Two-Level, Three-Level, and Multilevel Configurations
    • SOC Boundary Control in Lithium Battery Packs for Wind-Coupled Hybrid Energy Storage Systems
    • BMS-PCS-EMS Coordination Architecture for Grid-Connected Battery Storage: Field Performance Data and Procurement Specifications
    • Ceramifiable Silicone Thermal Barrier Pads: Sepiolite vs Aerogel vs Hollow Glass Microsphere for Battery Pack Thermal Runaway Prevention
    • Battery Cell Format Selection Guide: Cylindrical, Prismatic, and Pouch Dimensional Specifications
    • Polyurethane Separator, Binder, and Encapsulant Specifications for Lithium Cell Procurement
    • Rail Vehicle Fire Resistance Requirements for Battery System Integration: NFPA 130 and EN 45545 Procurement Guide
    • Pre-Weld Insulation Testing for Pouch Cell Modules: Procurement Guide
    • LFP Pouch Cell Overcharge Behavior: Voltage Plateau, Mechanical Confinement, and What Buyers Must Know
    • Lithium-Ion Battery Safety Patent Landscape: What 7,560+ Filings Reveal About Supplier Technology Depth
    • 502339 Polymer Pouch Cell: Separator Selection and Electrode Formulation for Maximum Energy Density
    • Ultra-Thin Negative Tab Design for High-Rate Pouch Cells: Eliminating Short Circuit Leakage Without Internal Resistance Penalty
    • Pouch Cell Polarization and Low-Temperature Discharge: A Procurement Engineer’s Guide to Qualifying Soft-Pack Lithium-Ion Cells
    • Battery Temperature Sensor Placement: Busbar vs. Cell Surface Mounting for Prismatic and Cylindrical Cell Modules
    • Nail Penetration Safety in High-Energy-Density Pouch Cells: Test Variables, Severity Index, and Procurement Criteria
    • Diffusion-Induced Stress vs. Thermal Stress in Soft-Pack Pouch Cells: What the Mechanics Tell You Before You Source
    • Fire Suppression System Design for High-Capacity Battery Energy Storage Cabinets: Agent Selection, Thermal Detection, and Dual-Zone Architecture
    • Ring-Topology BMS Architecture for Multi-Group Battery Storage: 18.3% Cost Reduction Through Distributed SOC Negotiation
    • Air vs Liquid Cooling for Battery Modules: Thermal Performance Thresholds and Supplier Qualification
    • Phase Current Imbalance in Three-Phase Interleaved Buck-Boost Converters: SMC-MPC Control for Battery Storage Applications
    • Hybrid vs. LFP Cell Format Selection for High-Cycle Energy Storage Applications
    • Battery Cell Format Selection: Phosphate vs. Manganese Cathode Performance Guide
    • Battery Equivalent Inertia in PEMFC-VSG Hybrid Systems: What Buyers Must Specify
    • Liquid-Cooled BESS Thermal Management: Chiller Sizing, Flow Balance, and GB/T 26276 Compliance for Containerized Energy Storage
    • Liquid Cooling Architecture for LiFePO4 Battery Modules: Bottom-Plate vs. Side-Plate vs. Combined Structure
    • GB/T 36276—2023 Battery Testing Laboratory Planning: Four-Zone Infrastructure Guide for Energy Storage Buyers
    • BMS Thermal Runaway Detection: Multi-Parameter Specifications and Supplier Qualification Guide
    • Residential Battery Storage SOC Reserve Coefficient: Sizing and BMS Logic for TOU Optimization with Outage Backup
    • Residential BESS Specifications for HVAC Coordination: Cycle Life, SOC Windows, and BMS Communication Requirements
    • LFP Cell Mechanical Stress Behavior and SOC Estimation: A Procurement Guide for Grid-Scale Battery Buyers
    • Intelligent Self-Repair BMS for Residential BESS: Performance Data and Procurement Guide
    • LFP Battery Sizing for Primary Frequency Regulation: Optimal Capacity Configuration Using Dual Adaptive PSO
    • Cell Format Selection for Hybrid Solar Storage: Lithium Cell Specifications in Distributed PV Applications
    • AC Impedance Battery State Detection: SOH Accuracy, Speed, and BMS Supplier Qualification
    • Battery Chemistry and Installation Mode Selection for Distributed PV Storage Systems
    • SoC Consensus Control in Multi-Pack BESS: What the Simulation Data Means for BMS Procurement
    • LFP Prismatic Cell Format Selection Guide: 280Ah BESS Design and Dimensional Specifications
    • Battery Pack Insulation Test Data Management: What Every Pack Supplier Should Be Able to Prove
    • Refrigerant Direct Cooling for Battery Packs: Performance Data and Procurement Specs
    • Battery Energy Storage Thermal Management: Immersion Cooling, PCM, and Intelligent Control Guide
    • Battery Cell Disposal Containment: Three-Tier Environmental Risk Control Framework for Decommissioned Lithium Cells
    • Energy Storage Battery Testing Standards: What Every Procurement Engineer Must Know Before Issuing an RFQ
    • Solid Electric Thermal Energy Storage: Duct Configuration Performance Guide for B2B Buyers
    • Battery Energy Storage Cell Format Selection for Microgrid Inverter Integration
    • Semi-Solid Battery Technology: Technical Procurement Guide for Energy Storage Buyers
    • Gel-Type LFP Cell Technology: Cycle Life, Electrolyte Stability, and Procurement Evaluation Guide
    • Liquid Cooling Plate Layout and Flow Rate Optimization for Large-Format C&I Battery Packs
    • Three-Layer BMS Architecture for Stationary Energy Storage: Voltage and Current Accuracy Benchmarks
    • BMS Design for Portable Emergency Lithium Packs: SOC Stability, Thermal Control, and Fault Response Benchmarks
    • LFP Battery Sizing for Residential Solar Storage: Why 12 kWh Beats 25 kWh on Annual Net Return
    • Bidirectional Counter-Flow Liquid Cooling for Grid-Scale ESS: Why Cooling Architecture Determines Thermal Safety at High C-Rates
    • Self-Stratifying Battery Systems: Technical Procurement Guide for Membrane-Free Energy Storage
    • Ultrasonic Early Warning for LFP Thermal Runaway: What Prismatic Cell Buyers Must Specify
    • Adaptive Droop Control for DC Microgrid Battery Storage: SOC Balancing and Voltage Compensation
    • Active Balancing BMS for Lighting Energy Storage: Bidirectional Flyback Converter Thermal Management Guide
    • Immersion Cooling for 100 Ah LiFePO₄ Residential Battery Packs: Thermal Performance Across −40 °C to 40 °C
    • Battery Depth of Discharge and Cycle Life: Procurement Guide for Stationary Storage Cells
    • Modular Mobile BESS Design: LFP Chemistry, Prefabricated Cabin Architecture, and Supplier Qualification Guide
    • BMS Functional Safety for Stationary Energy Storage: IEC 61508, FMEDA, and SIL Qualification Guide
    • 1500V BESS Insulation Materials: Cell Wrapping, BMS Isolation, and Harness Failure Modes
    • Battery Cell Selection for Wind-Solar Hybrid Storage: Chemistry, Cycle Life, and Procurement Criteria
    • Battery Depth of Discharge Management in IES Dispatch: What Stationary Storage Buyers Must Specify
    • BMS Sensing Architecture: Cell Voltage, Current, and SOC Accuracy Benchmarks for B2B Procurement
    • Liquid Cooling Plate Channel Design for LFP Battery Packs: Flow Resistance Optimization and Thermal Performance Data
    • Technical Evaluation & Sample Request Guide for Cell Formats & Form Factors
    • Safety Standards Explained for Cell Formats & Form Factors
    • Cell Formats & Form Factors — Industry Case Study
    • Cell Formats & Form Factors — Safety & Risk Assessment
    • Cell Formats & Form Factors — Design Engineering Reference
    • Cell Formats & Form Factors — Lifecycle & Maintenance Guide
    • Cell Formats & Form Factors — Testing & Validation Protocol
    • Cell Formats & Form Factors — Storage & Handling Guide
    • Cell Formats & Form Factors — Installation & Integration Guide
    • Cell Formats & Form Factors — Comparison & Upgrade Guide
    • Cell Formats & Form Factors — Procurement & Cost Guide
    • Cell Formats & Form Factors — Material Selection Guide
    • Cell Formats & Form Factors — Troubleshooting & Failure Guide
    • Cell Formats & Form Factors — Regulatory & Compliance Guide
    • Cell Formats & Form Factors — Supplier Qualification Guide
    • Cell Formats & Form Factors — Application & Performance Guide
    • Cell Formats & Form Factors — Technical Specification Overview
  • Energy Density & Power Density
    • Liquid-Cooled LFP Battery Pack Energy Efficiency: Thermal Parameter Optimization Guide
    • Battery Energy and Power Density Optimization for LED Lighting Systems: Chemistry Selection, BMS Integration, and Supplier Qualification
    • 3D-Printed Battery Electrodes: Energy Density and Power Density Optimization Guide
    • Technical Evaluation & Sample Request Guide for Energy Density & Power Density
    • Safety Standards Explained for Energy Density & Power Density
    • Energy Density & Power Density — Regulatory & Compliance Guide
    • Energy Density & Power Density — Industry Case Study
    • Energy Density & Power Density — Safety & Risk Assessment
    • Energy Density & Power Density — Design Engineering Reference
    • Energy Density & Power Density — Lifecycle & Maintenance Guide
    • Energy Density & Power Density — Testing & Validation Protocol
    • Energy Density & Power Density — Storage & Handling Guide
    • Energy Density & Power Density — Installation & Integration Guide
    • Energy Density & Power Density — Comparison & Upgrade Guide
    • Energy Density & Power Density — Procurement & Cost Guide
    • Energy Density & Power Density — Troubleshooting & Failure Guide
    • Energy Density & Power Density — Supplier Qualification Guide
    • Energy Density & Power Density — Application & Performance Guide
    • Energy Density & Power Density — Material Selection Guide
    • Energy Density & Power Density — Technical Specification Overview
  • Cycle Life & Degradation
    • LiFePO₄ Cycle Life vs. Temperature: The 60°C Degradation Threshold Buyers Miss
    • LFP Cycle Life Degradation Above 60°C: Why Accelerated Test Data Misleads Buyers
    • LiFePO₄ Cycle Life Testing: Why 60°C Is the Critical Temperature Threshold for Accelerated Degradation Protocols
    • Large-Format LFP Cell Thermal Behavior and Cycle Life Degradation: 280 Ah Field Test Data
    • LFP vs. NCM vs. Lead-Acid: Full Lifecycle Environmental Performance for Battery Procurement Teams
    • LFP High-Temperature Degradation: What 280 Ah Cell Teardown Data Means for Your Procurement Specs
    • Technical Evaluation & Sample Request Guide for Cycle Life & Degradation
    • Safety Standards Explained for Cycle Life & Degradation
    • Cycle Life & Degradation — Regulatory & Compliance Guide
    • Cycle Life & Degradation — Material Selection Guide
    • Cycle Life & Degradation — Industry Case Study
    • Cycle Life & Degradation — Safety & Risk Assessment
    • Cycle Life & Degradation — Design Engineering Reference
    • Cycle Life & Degradation — Lifecycle & Maintenance Guide
    • Cycle Life & Degradation — Testing & Validation Protocol
    • Cycle Life & Degradation — Installation & Integration Guide
    • Cycle Life & Degradation — Comparison & Upgrade Guide
    • Cycle Life & Degradation — Procurement & Cost Guide
    • Cycle Life & Degradation — Troubleshooting & Failure Guide
    • Cycle Life & Degradation — Supplier Qualification Guide
    • Cycle Life & Degradation — Application & Performance Guide
    • Cycle Life & Degradation — Technical Specification Overview
  • Cell Selection & Sourcing
    • China Battery Material Flow & Recycling Compliance: Procurement Guide for LFP and NMC Cell Sourcing
    • Battery Material Traceability and Cascade-Use Cell Qualification: A Procurement Guide for Global Buyers
    • EPR Recovery Modes and Carbon Trading in Battery Supply Chains: A Procurement Guide
    • LFP Carbon Coating Completeness: The Hidden Specification That Determines High-Temperature Cycle Life
    • Safety Standards Explained for Cell Selection & Sourcing
    • Cell Selection & Sourcing — Industry Case Study
    • Cell Selection & Sourcing — Design Engineering Reference
    • Cell Selection & Sourcing — Testing & Validation Protocol
    • Cell Selection & Sourcing — Installation & Integration Guide
    • Cell Selection & Sourcing — Technical Specification Overview
    • Cell Selection & Sourcing — Comparison & Upgrade Guide
    • Cell Selection & Sourcing — Procurement & Cost Guide
    • Cell Selection & Sourcing — Troubleshooting & Failure Guide
    • Cell Selection & Sourcing — Regulatory & Compliance Guide
    • Cell Selection & Sourcing — Supplier Qualification Guide
    • Cell Selection & Sourcing — Application & Performance Guide
    • Cell Selection & Sourcing — Material Selection Guide

Battery Pack Design

95
  • Series & Parallel Configuration
    • Low-Power Intermittent Mode for Multi-Pack BESS: Reducing Standby Loss by 66%
    • Technical Evaluation & Sample Request Guide for Series & Parallel Configuration
    • Safety Standards Explained for Series & Parallel Configuration
    • Series & Parallel Configuration — Material Selection Guide
    • Series & Parallel Configuration — Industry Case Study
    • Series & Parallel Configuration — Safety & Risk Assessment
    • Series & Parallel Configuration — Design Engineering Reference
    • Series & Parallel Configuration — Testing & Validation Protocol
    • Series & Parallel Configuration — Storage & Handling Guide
    • Series & Parallel Configuration — Installation & Integration Guide
    • Series & Parallel Configuration — Comparison & Upgrade Guide
    • Series & Parallel Configuration — Troubleshooting & Failure Guide
    • Series & Parallel Configuration — Regulatory & Compliance Guide
    • Series & Parallel Configuration — Supplier Qualification Guide
    • Series & Parallel Configuration — Application & Performance Guide
    • Series & Parallel Configuration — Technical Specification Overview
  • Cell Consistency & Matching
    • Harmonic Plate Air-Cooling for 280 Ah LFP Packs: Thermal Uniformity Data for Procurement Teams
    • Hierarchical Balancing for LFP Battery Cell Consistency: What the Data Actually Shows
    • Technical Evaluation & Sample Request Guide for Cell Consistency & Matching
    • Safety Standards Explained for Cell Consistency & Matching
    • Cell Consistency & Matching — Industry Case Study
    • Cell Consistency & Matching — Safety & Risk Assessment
    • Cell Consistency & Matching — Lifecycle & Maintenance Guide
    • Cell Consistency & Matching — Testing & Validation Protocol
    • Cell Consistency & Matching — Storage & Handling Guide
    • Cell Consistency & Matching — Installation & Integration Guide
    • Cell Consistency & Matching — Comparison & Upgrade Guide
    • Cell Consistency & Matching — Procurement & Cost Guide
    • Cell Consistency & Matching — Troubleshooting & Failure Guide
    • Cell Consistency & Matching — Regulatory & Compliance Guide
    • Cell Consistency & Matching — Supplier Qualification Guide
    • Cell Consistency & Matching — Application & Performance Guide
    • Cell Consistency & Matching — Material Selection Guide
    • Cell Consistency & Matching — Technical Specification Overview
  • Busbar & Interconnect Design
    • Laminated Busbar Design for PCS Sub-Modules: Stray Inductance Optimization and Supplier Qualification
    • Aluminum Busbar Laser Welding: Process Parameters, Tensile Strength, and Supplier Qualification for Energy Storage Modules
    • Technical Evaluation & Sample Request Guide for Busbar & Interconnect Design
    • Safety Standards Explained for Busbar & Interconnect Design
    • Busbar & Interconnect Design — Comparison & Upgrade Guide
    • Busbar & Interconnect Design — Industry Case Study
    • Busbar & Interconnect Design — Safety & Risk Assessment
    • Busbar & Interconnect Design — Lifecycle & Maintenance Guide
    • Busbar & Interconnect Design — Storage & Handling Guide
    • Busbar & Interconnect Design — Installation & Integration Guide
    • Busbar & Interconnect Design — Procurement & Cost Guide
    • Busbar & Interconnect Design — Troubleshooting & Failure Guide
    • Busbar & Interconnect Design — Regulatory & Compliance Guide
    • Busbar & Interconnect Design — Supplier Qualification Guide
    • Busbar & Interconnect Design — Application & Performance Guide
    • Busbar & Interconnect Design — Material Selection Guide
    • Busbar & Interconnect Design — Technical Specification Overview
  • Pack Enclosure & IP Rating
    • 1500V Battery Pack Enclosure Insulation: Field Intensity Data, Material Selection, and Supplier Qualification
    • Stamped Liquid Cooling Channel Design for 314 Ah LFP Battery Packs: Flow Optimization vs. Thermal Performance
    • CFD-Validated Immersion Cooling Design for 280 Ah Battery Cabinets: Cell Spacing, Port Geometry, and Dielectric Fluid Selection
    • Immersion Cooling for Battery ESS: Oil-Based Dielectric Fluid Specification, Material Compatibility, and Thermal Runaway Test Data
    • MVR Falling-Film Indirect Liquid Cooling for Battery Pack Enclosures: Energy Performance and Sourcing Guide
    • Liquid Cooling Plate Design for Energy Storage Battery Packs: Three Architectures Compared
    • Spray-Ventilation Coupled Cooling for BESS: Optimal Parameters, Discharge Rate Effects, and Electrical Safety Requirements
    • Immersion-Cooled BESS Enclosure Design: Modified Silicone Oil vs. Fluorinated Coolant — Dual-Loop Switching Architecture
    • Safety Standards Explained for Pack Enclosure & IP Rating
    • Pack Enclosure & IP Rating — Industry Case Study
    • Pack Enclosure & IP Rating — Design Engineering Reference
    • Pack Enclosure & IP Rating — Lifecycle & Maintenance Guide
    • Pack Enclosure & IP Rating — Testing & Validation Protocol
    • Pack Enclosure & IP Rating — Installation & Integration Guide
    • Pack Enclosure & IP Rating — Comparison & Upgrade Guide
    • Pack Enclosure & IP Rating — Troubleshooting & Failure Guide
    • Pack Enclosure & IP Rating — Regulatory & Compliance Guide
    • Pack Enclosure & IP Rating — Supplier Qualification Guide
    • Pack Enclosure & IP Rating — Application & Performance Guide
    • Pack Enclosure & IP Rating — Material Selection Guide
    • Pack Enclosure & IP Rating — Technical Specification Overview
  • Mechanical & Vibration Engineering
    • Serpentine Liquid Cooling Channel Orientation for LiFePO₄ Battery Packs: Transverse vs. Longitudinal Performance Trade-offs
    • BESS Enclosure Structural Integrity: Tri-Axial Vibration Stress Analysis and Supplier Qualification Guide
    • LFP Battery Module Swelling Force: Lifecycle Data, Peak Inversion, and Structural Design Limits for 280 Ah Prismatic Cells
    • Technical Evaluation & Sample Request Guide for Mechanical & Vibration Engineering
    • Safety Standards Explained for Mechanical & Vibration Engineering
    • Component Supplier Qualification for Mechanical & Vibration Engineering
    • Comparing Mechanical & Vibration Engineering Solutions
    • Mechanical & Vibration Engineering — Industry Case Study
    • Mechanical & Vibration Engineering — Safety & Risk Assessment
    • Mechanical & Vibration Engineering — Design Engineering Reference
    • Mechanical & Vibration Engineering — Lifecycle & Maintenance Guide
    • Mechanical & Vibration Engineering — Testing & Validation Protocol
    • Mechanical & Vibration Engineering — Storage & Handling Guide
    • Mechanical & Vibration Engineering — Installation & Integration Guide
    • Mechanical & Vibration Engineering — Procurement & Cost Guide
    • Mechanical & Vibration Engineering — Troubleshooting & Failure Guide
    • Mechanical & Vibration Engineering — Regulatory & Compliance Guide
    • Mechanical & Vibration Engineering — Application & Performance Guide
    • Mechanical & Vibration Engineering — Material Selection Guide
    • Mechanical & Vibration Engineering — Technical Specification Overview

BMS Engineering

109
  • SOC Estimation Methods
    • RLS-EKF SOC Estimation for Vanadium Redox Flow Batteries: Procurement Guide for MW-Scale Systems
    • DTW-UKF SOC Estimation for Stationary Battery Systems: Full Lifecycle Accuracy Guide
    • SP2D Model-Based Lithium Plating Suppression for Fast-Charge BMS: Accuracy Thresholds and Cycle Life Validation
    • SOC Estimation Methods: FFRLS-UKF Achieves 99.2% Accuracy in Field Testing
    • LSTM-EKF SOC Estimation for Containerized Battery Energy Storage Systems
    • SOC Estimation Accuracy in Sodium-Ion BESS: GS-LSTM-Attention Algorithm Evaluation for Procurement Engineers
    • Intelligent BMS State Estimation for Mobile BESS: DEKF Algorithm Performance, Safety Factor Analysis, and Supplier Qualification Guide
    • Intelligent BMS State Estimation for Mobile Energy Storage: SOC Accuracy, SoH Monitoring, and Supplier Qualification
    • LiFePO4 Household Energy Storage BMS: SOC Accuracy, Sampling Precision, and Master-Slave Architecture Evaluation
    • Technical Evaluation & Sample Request Guide for SOC Estimation Methods
    • Safety Standards Explained for SOC Estimation Methods
    • Component Supplier Qualification for SOC Estimation Methods
    • SOC Estimation Methods — Industry Case Study
    • SOC Estimation Methods — Safety & Risk Assessment
    • SOC Estimation Methods — Design Engineering Reference
    • SOC Estimation Methods — Lifecycle & Maintenance Guide
    • SOC Estimation Methods — Testing & Validation Protocol
    • SOC Estimation Methods — Storage & Handling Guide
    • SOC Estimation Methods — Installation & Integration Guide
    • SOC Estimation Methods — Comparison & Upgrade Guide
    • SOC Estimation Methods — Procurement & Cost Guide
    • SOC Estimation Methods — Troubleshooting & Failure Guide
    • SOC Estimation Methods — Regulatory & Compliance Guide
    • SOC Estimation Methods — Application & Performance Guide
    • SOC Estimation Methods — Material Selection Guide
    • SOC Estimation Methods — Technical Specification Overview
  • SOH & RUL Prediction
    • Dual EKF vs Single EKF for SOH and RUL Prediction in Mobile BESS: A Technical Buyer’s Guide
    • Entropy-Based SOH Prediction for Lithium-Ion Battery Clusters: Real-Time Health Assessment Without Capacity Testing
    • SOH Estimation for LiFePO₄ Packs: 1-Minute Voltage Sampling Achieves 0.37% MAPE
    • LFP Overcharge Thermal Runaway: Gas-Based Early Warning Detection for BESS
    • BMS Operating Data Splicing and Reconstruction for SOH & RUL Prediction in Grid Storage
    • BMS Health Index for BESS: How Bi-LSTM and RBF Kernel PCA Improve Predictive Accuracy by 56%
    • BMS Health Index Monitoring for BESS Procurement: Field Data, Prediction Accuracy, and Supplier Qualification
    • Technical Evaluation & Sample Request Guide for SOH & RUL Prediction
    • Safety Standards Explained for SOH & RUL Prediction
    • SOH & RUL Prediction — Comparison & Upgrade Guide
    • SOH & RUL Prediction — Industry Case Study
    • SOH & RUL Prediction — Design Engineering Reference
    • SOH & RUL Prediction — Lifecycle & Maintenance Guide
    • SOH & RUL Prediction — Testing & Validation Protocol
    • SOH & RUL Prediction — Storage & Handling Guide
    • SOH & RUL Prediction — Installation & Integration Guide
    • SOH & RUL Prediction — Procurement & Cost Guide
    • SOH & RUL Prediction — Troubleshooting & Failure Guide
    • SOH & RUL Prediction — Regulatory & Compliance Guide
    • SOH & RUL Prediction — Supplier Qualification Guide
    • SOH & RUL Prediction — Application & Performance Guide
    • SOH & RUL Prediction — Material Selection Guide
    • SOH & RUL Prediction — Technical Specification Overview
  • Cell Balancing: Active vs Passive
    • CCS-MPC Active Balancing for Multi-Module LFP Battery Strings: A Procurement Guide
    • Intelligent Active-Passive Hybrid Equalization for Retired LiFePO₄ Battery Packs: BMS Qualification Guide
    • CHB-PCS SoC Equalization: Technical Procurement Guide for Multi-String Battery Energy Storage
    • AI Predictive Balancing in BMS: LSTM Multi-Cell Synchronous Control for Energy Storage Procurement
    • Network Self-Balancing BMS Topology: Technical Procurement Guide for Battery Cell Equalization
    • Active BMS Balancing for Lighting Energy Storage: Component Specs, Thermal Data, and Supplier Qualification
    • Technical Evaluation & Sample Request Guide for Cell Balancing: Active vs Passive
    • Safety Standards Explained for Cell Balancing: Active vs Passive
    • Certification & Testing Guide for Cell Balancing: Active vs Passive
    • Component Supplier Qualification for Cell Balancing: Active vs Passive
    • Cell Balancing: Active vs Passive — Industry Case Study
    • Cell Balancing: Active vs Passive — Safety & Risk Assessment
    • Cell Balancing: Active vs Passive — Design Engineering Reference
    • Cell Balancing: Active vs Passive — Lifecycle & Maintenance Guide
    • Cell Balancing: Active vs Passive — Testing & Validation Protocol
    • Cell Balancing: Active vs Passive — Storage & Handling Guide
    • Cell Balancing: Active vs Passive — Comparison & Upgrade Guide
    • Cell Balancing: Active vs Passive — Procurement & Cost Guide
    • Cell Balancing: Active vs Passive — Troubleshooting & Failure Guide
    • Cell Balancing: Active vs Passive — Application & Performance Guide
    • Cell Balancing: Active vs Passive — Material Selection Guide
    • Cell Balancing: Active vs Passive — Technical Specification Overview
  • Protection Circuit Design
    • BMS Circuit Design for EV Battery Packs: Per-Cell Protection, Balancing Topologies, and Supplier Qualification
    • Microservice BMS Architecture for Mobile Lithium Battery Systems: A Technical Procurement Guide
    • BMS Circuit Board Thermal-Stress Analysis: Multi-Module Temperature Distribution, Warping, and Solder Joint Reliability for B2B Buyers
    • Technical Evaluation & Sample Request Guide for Protection Circuit Design
    • Safety Standards Explained for Protection Circuit Design
    • Protection Circuit Design — Supplier Qualification Guide
    • Protection Circuit Design — Lifecycle & Maintenance Guide
    • Protection Circuit Design — Testing & Validation Protocol
    • Protection Circuit Design — Storage & Handling Guide
    • Protection Circuit Design — Installation & Integration Guide
    • Protection Circuit Design — Comparison & Upgrade Guide
    • Protection Circuit Design — Procurement & Cost Guide
    • Protection Circuit Design — Troubleshooting & Failure Guide
    • Protection Circuit Design — Regulatory & Compliance Guide
    • Protection Circuit Design — Application & Performance Guide
    • Protection Circuit Design — Material Selection Guide
    • Protection Circuit Design — Technical Specification Overview
  • BMS Communication Protocols
    • Ring Daisy-Chain BMS Communication Architecture for Compact Energy Storage: BER, Differential Isolation, and Manchester Encoding
    • SOP-Weighted SOC Equalization for Parallel Battery Pack Systems: A Procurement Engineering Guide
    • Safety Standards Explained for BMS Communication Protocols
    • BMS Communication Protocols — Industry Case Study
    • BMS Communication Protocols — Safety & Risk Assessment
    • BMS Communication Protocols — Design Engineering Reference
    • BMS Communication Protocols — Lifecycle & Maintenance Guide
    • BMS Communication Protocols — Storage & Handling Guide
    • BMS Communication Protocols — Installation & Integration Guide
    • BMS Communication Protocols — Application & Performance Guide
    • BMS Communication Protocols — Comparison & Upgrade Guide
    • BMS Communication Protocols — Procurement & Cost Guide
    • BMS Communication Protocols — Troubleshooting & Failure Guide
    • BMS Communication Protocols — Regulatory & Compliance Guide
    • BMS Communication Protocols — Supplier Qualification Guide
    • BMS Communication Protocols — Material Selection Guide
    • BMS Communication Protocols — Technical Specification Overview

Charging Technology

78
  • USB-C PD & Fast Charging Standards
    • Technical Evaluation & Sample Request Guide for USB-C PD & Fast Charging Standards
    • Safety Standards Explained for USB-C PD & Fast Charging Standards
    • USB-C PD & Fast Charging Standards — Industry Case Study
    • USB-C PD & Fast Charging Standards — Safety & Risk Assessment
    • USB-C PD & Fast Charging Standards — Design Engineering Reference
    • USB-C PD & Fast Charging Standards — Lifecycle & Maintenance Guide
    • USB-C PD & Fast Charging Standards — Testing & Validation Protocol
    • USB-C PD & Fast Charging Standards — Storage & Handling Guide
    • USB-C PD & Fast Charging Standards — Installation & Integration Guide
    • USB-C PD & Fast Charging Standards — Comparison & Upgrade Guide
    • USB-C PD & Fast Charging Standards — Procurement & Cost Guide
    • USB-C PD & Fast Charging Standards — Troubleshooting & Failure Guide
    • USB-C PD & Fast Charging Standards — Regulatory & Compliance Guide
    • USB-C PD & Fast Charging Standards — Supplier Qualification Guide
    • USB-C PD & Fast Charging Standards — Application & Performance Guide
    • USB-C PD & Fast Charging Standards — Material Selection Guide
    • USB-C PD & Fast Charging Standards — Technical Specification Overview
  • MPPT Solar Charging
    • Safety Standards Explained for MPPT Solar Charging
    • MPPT Solar Charging — Industry Case Study
    • MPPT Solar Charging — Design Engineering Reference
    • MPPT Solar Charging — Lifecycle & Maintenance Guide
    • MPPT Solar Charging — Testing & Validation Protocol
    • MPPT Solar Charging — Storage & Handling Guide
    • MPPT Solar Charging — Installation & Integration Guide
    • MPPT Solar Charging — Comparison & Upgrade Guide
    • MPPT Solar Charging — Procurement & Cost Guide
    • MPPT Solar Charging — Troubleshooting & Failure Guide
    • MPPT Solar Charging — Regulatory & Compliance Guide
    • MPPT Solar Charging — Supplier Qualification Guide
    • MPPT Solar Charging — Application & Performance Guide
    • MPPT Solar Charging — Material Selection Guide
    • MPPT Solar Charging — Technical Specification Overview
  • AC Charging & Inverter Integration
    • Phase-Compensated Partitioned One-Cycle Control for BESS PCS: Power Factor and Efficiency Specifications for B2B Buyers
    • DC Charging Compatibility Testing: Field Validation Methods for AC Charging and Bidirectional Inverter Integration
    • Technical Evaluation & Sample Request Guide for AC Charging & Inverter Integration
    • Safety Standards Explained for AC Charging & Inverter Integration
    • AC Charging & Inverter Integration — Regulatory & Compliance Guide
    • AC Charging & Inverter Integration — Safety & Risk Assessment
    • AC Charging & Inverter Integration — Industry Case Study
    • AC Charging & Inverter Integration — Design Engineering Reference
    • AC Charging & Inverter Integration — Lifecycle & Maintenance Guide
    • AC Charging & Inverter Integration — Testing & Validation Protocol
    • AC Charging & Inverter Integration — Storage & Handling Guide
    • AC Charging & Inverter Integration — Installation & Integration Guide
    • AC Charging & Inverter Integration — Supplier Qualification Guide
    • AC Charging & Inverter Integration — Comparison & Upgrade Guide
    • AC Charging & Inverter Integration — Procurement & Cost Guide
    • AC Charging & Inverter Integration — Troubleshooting & Failure Guide
    • AC Charging & Inverter Integration — Application & Performance Guide
    • AC Charging & Inverter Integration — Material Selection Guide
    • AC Charging & Inverter Integration — Technical Specification Overview
  • Charging IC Selection Guide
    • Technical Evaluation & Sample Request Guide for Charging IC Selection Guide
    • Safety Standards Explained for Charging IC Selection Guide
    • Charging IC Selection Guide — Safety & Risk Assessment
    • Charging IC Selection Guide — Design Engineering Reference
    • Charging IC Selection Guide — Lifecycle & Maintenance Guide
    • Charging IC Selection Guide — Testing & Validation Protocol
    • Charging IC Selection Guide — Comparison & Upgrade Guide
    • Charging IC Selection Guide — Procurement & Cost Guide
    • Charging IC Selection Guide — Troubleshooting & Failure Guide
    • Charging IC Selection Guide — Regulatory & Compliance Guide
    • Charging IC Selection Guide — Supplier Qualification Guide
    • Charging IC Selection Guide — Application & Performance Guide
    • Charging IC Selection Guide — Material Selection Guide
    • Charging IC Selection Guide — Technical Specification Overview
  • Low-Temperature Charging Protection
    • Technical Evaluation & Sample Request Guide for Low-Temperature Charging Protection
    • Certification & Testing Guide for Low-Temperature Charging Protection
    • Low-Temperature Charging Protection — Supplier Qualification Guide
    • Low-Temperature Charging Protection — Industry Case Study
    • Low-Temperature Charging Protection — Design Engineering Reference
    • Low-Temperature Charging Protection — Storage & Handling Guide
    • Low-Temperature Charging Protection — Installation & Integration Guide
    • Low-Temperature Charging Protection — Comparison & Upgrade Guide
    • Low-Temperature Charging Protection — Procurement & Cost Guide
    • Low-Temperature Charging Protection — Troubleshooting & Failure Guide
    • Low-Temperature Charging Protection — Application & Performance Guide
    • Low-Temperature Charging Protection — Material Selection Guide
    • Low-Temperature Charging Protection — Technical Specification Overview

Compact BESS Products

81
  • Power Banks & Portable Chargers
    • Technical Evaluation & Sample Request Guide for Power Banks & Portable Chargers
    • Safety Standards Explained for Power Banks & Portable Chargers
    • Comparing Power Banks & Portable Chargers Solutions
    • Power Banks & Portable Chargers — Material Selection Guide
    • Power Banks & Portable Chargers — Safety & Risk Assessment
    • Power Banks & Portable Chargers — Design Engineering Reference
    • Power Banks & Portable Chargers — Lifecycle & Maintenance Guide
    • Power Banks & Portable Chargers — Testing & Validation Protocol
    • Power Banks & Portable Chargers — Storage & Handling Guide
    • Power Banks & Portable Chargers — Procurement & Cost Guide
    • Power Banks & Portable Chargers — Regulatory & Compliance Guide
    • Power Banks & Portable Chargers — Supplier Qualification Guide
    • Power Banks & Portable Chargers — Troubleshooting & Failure Guide
    • Power Banks & Portable Chargers — Application & Performance Guide
    • Power Banks & Portable Chargers — Technical Specification Overview
  • Outdoor Power Stations
    • Technical Evaluation & Sample Request Guide for Outdoor Power Stations
    • Safety Standards Explained for Outdoor Power Stations
    • Component Supplier Qualification for Outdoor Power Stations
    • How to Choose Outdoor Power Stations
    • Outdoor Power Stations — Industry Case Study
    • Outdoor Power Stations — Safety & Risk Assessment
    • Outdoor Power Stations — Design Engineering Reference
    • Outdoor Power Stations — Lifecycle & Maintenance Guide
    • Outdoor Power Stations — Testing & Validation Protocol
    • Outdoor Power Stations — Storage & Handling Guide
    • Outdoor Power Stations — Installation & Integration Guide
    • Outdoor Power Stations — Troubleshooting & Failure Guide
    • Outdoor Power Stations — Comparison & Upgrade Guide
    • Outdoor Power Stations — Procurement & Cost Guide
    • Outdoor Power Stations — Regulatory & Compliance Guide
    • Outdoor Power Stations — Application & Performance Guide
    • Outdoor Power Stations — Technical Specification Overview
  • Portable UPS Systems
    • BMS-Integrated UPS Monitoring Systems: Architecture, Alarm Specifications, and Industrial Procurement Guide
    • Technical Evaluation & Sample Request Guide for Portable UPS Systems
    • Safety Standards Explained for Portable UPS Systems
    • Portable UPS Systems — Installation & Integration Guide
    • Portable UPS Systems — Procurement & Cost Guide
    • Portable UPS Systems — Material Selection Guide
    • Portable UPS Systems — Industry Case Study
    • Portable UPS Systems — Safety & Risk Assessment
    • Portable UPS Systems — Design Engineering Reference
    • Portable UPS Systems — Lifecycle & Maintenance Guide
    • Portable UPS Systems — Comparison & Upgrade Guide
    • Portable UPS Systems — Troubleshooting & Failure Guide
    • Portable UPS Systems — Regulatory & Compliance Guide
    • Portable UPS Systems — Supplier Qualification Guide
    • Portable UPS Systems — Application & Performance Guide
    • Portable UPS Systems — Technical Specification Overview
  • Vehicle Jump Starters
    • Technical Evaluation & Sample Request Guide for Vehicle Jump Starters
    • Safety Standards Explained for Vehicle Jump Starters
    • Vehicle Jump Starters — Material Selection Guide
    • Vehicle Jump Starters — Industry Case Study
    • Vehicle Jump Starters — Safety & Risk Assessment
    • Vehicle Jump Starters — Design Engineering Reference
    • Vehicle Jump Starters — Lifecycle & Maintenance Guide
    • Vehicle Jump Starters — Testing & Validation Protocol
    • Vehicle Jump Starters — Storage & Handling Guide
    • Vehicle Jump Starters — Installation & Integration Guide
    • Vehicle Jump Starters — Technical Specification Overview
    • Vehicle Jump Starters — Comparison & Upgrade Guide
    • Vehicle Jump Starters — Procurement & Cost Guide
    • Vehicle Jump Starters — Troubleshooting & Failure Guide
    • Vehicle Jump Starters — Regulatory & Compliance Guide
    • Vehicle Jump Starters — Supplier Qualification Guide
    • Vehicle Jump Starters — Application & Performance Guide
  • Solar Generator Systems
    • Sodium-Ion Battery Economics for Residential PV-BESS: Lifecycle Cost Analysis and Procurement Thresholds
    • Solar Generator Storage Sizing: Dispatch Optimization and Capacity Specification for Residential BESS
    • Technical Evaluation & Sample Request Guide for Solar Generator Systems
    • Safety Standards Explained for Solar Generator Systems
    • Solar Generator Systems — Regulatory & Compliance Guide
    • Solar Generator Systems — Supplier Qualification Guide
    • Solar Generator Systems — Industry Case Study
    • Solar Generator Systems — Safety & Risk Assessment
    • Solar Generator Systems — Testing & Validation Protocol
    • Solar Generator Systems — Storage & Handling Guide
    • Solar Generator Systems — Installation & Integration Guide
    • Solar Generator Systems — Comparison & Upgrade Guide
    • Solar Generator Systems — Troubleshooting & Failure Guide
    • Solar Generator Systems — Application & Performance Guide
    • Solar Generator Systems — Material Selection Guide
    • Solar Generator Systems — Technical Specification Overview

Safety & Certification

89
  • UN38.3 Transport Certification
    • Technical Evaluation & Sample Request Guide for UN38.3 Transport Certification
    • Safety Standards Explained for UN38.3 Transport Certification
    • UN38.3 Transport Certification — Technical Specification Overview
    • UN38.3 Transport Certification — Design Engineering Reference
    • UN38.3 Transport Certification — Lifecycle & Maintenance Guide
    • UN38.3 Transport Certification — Testing & Validation Protocol
    • UN38.3 Transport Certification — Storage & Handling Guide
    • UN38.3 Transport Certification — Installation & Integration Guide
    • UN38.3 Transport Certification — Comparison & Upgrade Guide
    • UN38.3 Transport Certification — Troubleshooting & Failure Guide
    • UN38.3 Transport Certification — Regulatory & Compliance Guide
    • UN38.3 Transport Certification — Procurement & Cost Guide
    • UN38.3 Transport Certification — Supplier Qualification Guide
    • UN38.3 Transport Certification — Application & Performance Guide
    • UN38.3 Transport Certification — Material Selection Guide
  • IEC 62619 Industrial Safety
    • IEC 62619 Thermal Runaway Detection: CO Alarm Thresholds and Suppression Validation for Prefabricated BESS Enclosures
    • IEC 62619 Safety Compliance for Large-Format LFP Cells: 430 Ah Laminated vs. 280 Ah Wound Cell Test Data
    • IEC 62619 Cell Safety Across Full Lifecycle: BOL vs. EOL Performance in 125 Ah Prismatic LFP Energy Storage Cells
    • Technical Evaluation & Sample Request Guide for IEC 62619 Industrial Safety
    • Safety Standards Explained for IEC 62619 Industrial Safety
    • IEC 62619 Industrial Safety — Industry Case Study
    • IEC 62619 Industrial Safety — Safety & Risk Assessment
    • IEC 62619 Industrial Safety — Lifecycle & Maintenance Guide
    • IEC 62619 Industrial Safety — Testing & Validation Protocol
    • IEC 62619 Industrial Safety — Storage & Handling Guide
    • IEC 62619 Industrial Safety — Installation & Integration Guide
    • IEC 62619 Industrial Safety — Comparison & Upgrade Guide
    • IEC 62619 Industrial Safety — Procurement & Cost Guide
    • IEC 62619 Industrial Safety — Troubleshooting & Failure Guide
    • IEC 62619 Industrial Safety — Regulatory & Compliance Guide
    • IEC 62619 Industrial Safety — Supplier Qualification Guide
    • IEC 62619 Industrial Safety — Application & Performance Guide
    • IEC 62619 Industrial Safety — Material Selection Guide
    • IEC 62619 Industrial Safety — Technical Specification Overview
  • UL 9540 & UL 9540A
    • UL 9540A Early Warning: Mechanical Deformation Detection vs Gas Sensors in LiFePO₄ Thermal Runaway
    • Technical Evaluation & Sample Request Guide for UL 9540 & UL 9540A
    • Safety Standards Explained for UL 9540 & UL 9540A
    • UL 9540 & UL 9540A — Industry Case Study
    • UL 9540 & UL 9540A — Safety & Risk Assessment
    • UL 9540 & UL 9540A — Design Engineering Reference
    • UL 9540 & UL 9540A — Lifecycle & Maintenance Guide
    • UL 9540 & UL 9540A — Testing & Validation Protocol
    • UL 9540 & UL 9540A — Storage & Handling Guide
    • UL 9540 & UL 9540A — Installation & Integration Guide
    • UL 9540 & UL 9540A — Comparison & Upgrade Guide
    • UL 9540 & UL 9540A — Procurement & Cost Guide
    • UL 9540 & UL 9540A — Troubleshooting & Failure Guide
    • UL 9540 & UL 9540A — Regulatory & Compliance Guide
    • UL 9540 & UL 9540A — Supplier Qualification Guide
    • UL 9540 & UL 9540A — Application & Performance Guide
    • UL 9540 & UL 9540A — Material Selection Guide
    • UL 9540 & UL 9540A — Technical Specification Overview
  • CE / FCC / RoHS Compliance
    • Technical Evaluation & Sample Request Guide for CE / FCC / RoHS Compliance
    • Safety Standards Explained for CE / FCC / RoHS Compliance
    • CE / FCC / RoHS Compliance — Industry Case Study
    • CE / FCC / RoHS Compliance — Design Engineering Reference
    • CE / FCC / RoHS Compliance — Lifecycle & Maintenance Guide
    • CE / FCC / RoHS Compliance — Testing & Validation Protocol
    • CE / FCC / RoHS Compliance — Installation & Integration Guide
    • CE / FCC / RoHS Compliance — Comparison & Upgrade Guide
    • CE / FCC / RoHS Compliance — Procurement & Cost Guide
    • CE / FCC / RoHS Compliance — Troubleshooting & Failure Guide
    • CE / FCC / RoHS Compliance — Regulatory & Compliance Guide
    • CE / FCC / RoHS Compliance — Supplier Qualification Guide
    • CE / FCC / RoHS Compliance — Application & Performance Guide
    • CE / FCC / RoHS Compliance — Material Selection Guide
    • CE / FCC / RoHS Compliance — Technical Specification Overview
  • EU Battery Regulation 2023/1542
    • EU Battery Regulation 2023/1542: Carbon Footprint, Recovery Targets, and Supplier Compliance for Global Buyers
    • EU Battery Regulation 2023/1542: Compliance Gaps, Battery Passport Requirements, and What Chinese Manufacturers Must Fix Before 2027
    • EU Battery Regulation 2023/1542: Compliance Framework, Classification, and Conformity Assessment for Chinese Battery Exporters
    • Technical Evaluation & Sample Request Guide for EU Battery Regulation 2023/1542
    • Safety Standards Explained for EU Battery Regulation 2023/1542
    • EU Battery Regulation 2023/1542 — Material Selection Guide
    • EU Battery Regulation 2023/1542 — Industry Case Study
    • EU Battery Regulation 2023/1542 — Safety & Risk Assessment
    • EU Battery Regulation 2023/1542 — Design Engineering Reference
    • EU Battery Regulation 2023/1542 — Lifecycle & Maintenance Guide
    • EU Battery Regulation 2023/1542 — Testing & Validation Protocol
    • EU Battery Regulation 2023/1542 — Storage & Handling Guide
    • EU Battery Regulation 2023/1542 — Installation & Integration Guide
    • EU Battery Regulation 2023/1542 — Comparison & Upgrade Guide
    • EU Battery Regulation 2023/1542 — Procurement & Cost Guide
    • EU Battery Regulation 2023/1542 — Troubleshooting & Failure Guide
    • EU Battery Regulation 2023/1542 — Regulatory & Compliance Guide
    • EU Battery Regulation 2023/1542 — Supplier Qualification Guide
    • EU Battery Regulation 2023/1542 — Application & Performance Guide
    • EU Battery Regulation 2023/1542 — Technical Specification Overview
View Categories
  • Home
  • Docs
  • Cell Technology
  • Cell Formats & Form Factors
  • SoC Consensus Control in Multi-Pack BESS: What the Simulation Data Means for BMS Procurement

SoC Consensus Control in Multi-Pack BESS: What the Simulation Data Means for BMS Procurement

Dr. James Okafor
更新 2026年6月24日

13 min read

TL;DR #

In validated simulation across a 4-unit battery storage network, event-triggered SoC consensus control converged all cells to a shared charge target — 100% in charging mode and 20% in discharge mode — while eliminating over-charge and over-discharge events entirely. For procurement engineers specifying BMS modules or multi-pack BESS configurations, this means the control architecture of the BMS is as critical a procurement parameter as cell chemistry or capacity. Before issuing an RFQ, confirm that your supplier’s BMS implements SoC-balancing logic with defined upper and lower threshold enforcement, not just cell-voltage monitoring.


Overview #

Most procurement teams evaluate battery storage systems by cell chemistry, capacity, and cycle life — and stop there. The control layer gets treated as a software detail to sort out later. That’s a costly sequence. When the BMS lacks proper SoC consensus logic, you end up with packs that overcharge weaker cells or over-discharge cells with lower initial SoC, compressing cycle life and, in worst cases, triggering safety events.

The analysis underpinning this article draws on simulation work conducted at an engineering university research group in China, testing a 4-unit networked battery storage system across both charge and discharge operating modes. Battery parameters spanned a realistic heterogeneous range — cell capacities of 70 Ah, 80 Ah, 75 Ah, and 90 Ah, all at 220 V nominal — with deliberately mismatched initial SoC values to stress-test the balancing algorithm. The work is directly applicable to multi-pack BESS architectures, modular UPS systems, and any configuration where cells or packs of different states share a common DC bus.

What makes this research practically relevant for sourcing decisions is not the mathematics — it’s the thresholds and convergence behaviors that fall out of the simulations. Those are the numbers you need to interrogate your supplier about.


SoC Balancing Performance: What the Simulation Data Actually Shows #

The simulation used four battery units with voltages of 220 V each and capacities of 70 Ah, 80 Ah, 75 Ah, and 90 Ah. Initial SoC values were intentionally spread: 75%, 85%, 72%, and 85% for the charging scenario, and 65%, 73%, 70%, and 72% for the discharge scenario. Feedback gain K was set to 1.4 in both cases.

The key result: under the event-triggered consensus protocol, all four units converged asymptotically to the reference target — 100% SoC in charging mode and 20% SoC in discharge mode. Once convergence was achieved, the input/output power of each unit dropped to zero, mechanically preventing further charging or discharging beyond the threshold.

Parameter Charging Mode Discharge Mode
SoC convergence target 100% (upper threshold) 20% (lower threshold)
Initial SoC spread (units 1–4) 72%–85% 65%–73%
Feedback gain K 1.4 1.4
λ_min(L+B) 0.382 0.382
‖L+B‖ spectral norm 4.618 4.618
Zeno behavior observed None (σ = 0.8) None (σ = 0.8)
Over-charge / over-discharge events 0 0

The event-triggering parameter σ was set to 0.8, selected from the valid range (0, 1). This parameter governs the trade-off between communication frequency and convergence speed — higher K accelerates convergence but reduces the minimum inter-event interval ε. In practical terms, this means a BMS designer choosing aggressive convergence will generate more frequent communication events on the CAN bus or other inter-module link.

Figure 2: Simulation parameters table — battery voltages, capacities, and initial SoC values for the 4-unit test network
Figure 2: Simulation parameters table — battery voltages, capacities, and initial SoC values for the 4-unit test network

The Laplacian matrix of the communication topology yielded L+B eigenvalues that confirmed convergence stability. The minimum eigenvalue λ_min(L+B) = 0.382 and spectral norm ‖L+B‖ = 4.618 are not abstract mathematical quantities for procurement — they define how tightly coupled your pack modules need to be in terms of communication topology for the balancing algorithm to work at all.

Industry observation worth noting: most procurement teams don’t realize that many BMS modules sold for multi-pack BESS applications implement voltage-based balancing — not SoC-based consensus control. These two are not equivalent. Voltage balancing converges cells to the same terminal voltage, which misrepresents SoC when cells have different internal resistance or capacity degradation. SoC consensus control, as analyzed here, uses a model-based approach that accounts for capacity differences between units directly.

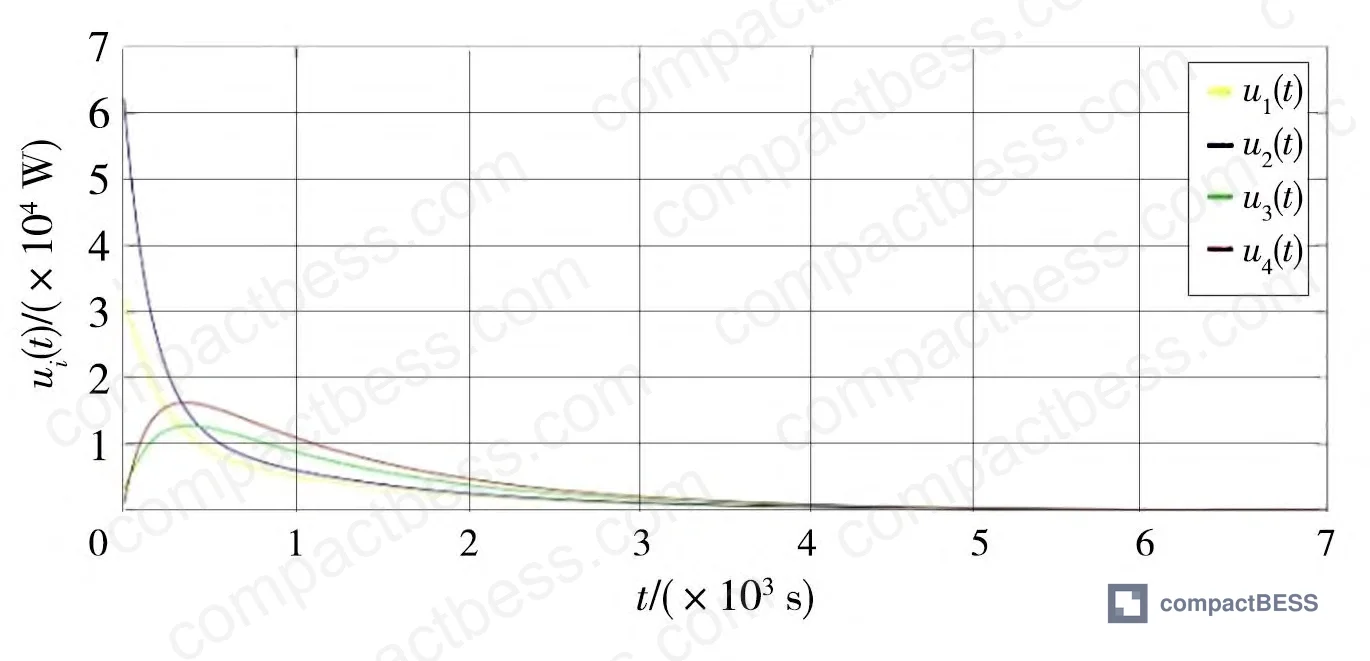

Figure 3: SoC convergence trajectories for 4 follower units in charging mode — all units reaching 100% threshold with input power converging to zero
Figure 3: SoC convergence trajectories for 4 follower units in charging mode — all units reaching 100% threshold with input power converging to zero

Event-Triggered Control Architecture and Communication Efficiency #

The event-triggered mechanism is worth understanding at a functional level because it has direct implications for BMS hardware selection and system integration. Instead of continuous real-time data exchange between battery units, each unit broadcasts its state only when a specific trigger condition is met — when the measurement error-to-state ratio exceeds a defined threshold. Between trigger events, the last broadcast state is held and used for control calculations.

This matters for two reasons in a procurement context. First, it reduces communication bus load — relevant in systems using low-bandwidth protocols like CAN 2.0B or SMBus. Second, it reduces computational demand on the BMS MCU, which is a real cost driver in volume production.

The minimum guaranteed inter-event interval ε is defined by the system parameters and prevents Zeno behavior — the pathological condition where trigger events accumulate infinitely fast in finite time, effectively locking up the controller. The simulation confirmed no Zeno behavior under the specified conditions, which is a non-trivial stability guarantee for real deployments.

Honestly, most buyers over-specify communication update rates. Demanding 10 ms or 1 ms SoC reporting intervals on a multi-pack system adds cost to the BMS hardware without improving balancing quality if the underlying algorithm is event-triggered. The inter-event interval in this framework is bounded from below by ε — and that bound is sufficient for asymptotic convergence. Understanding that distinction can save meaningful BOM cost.

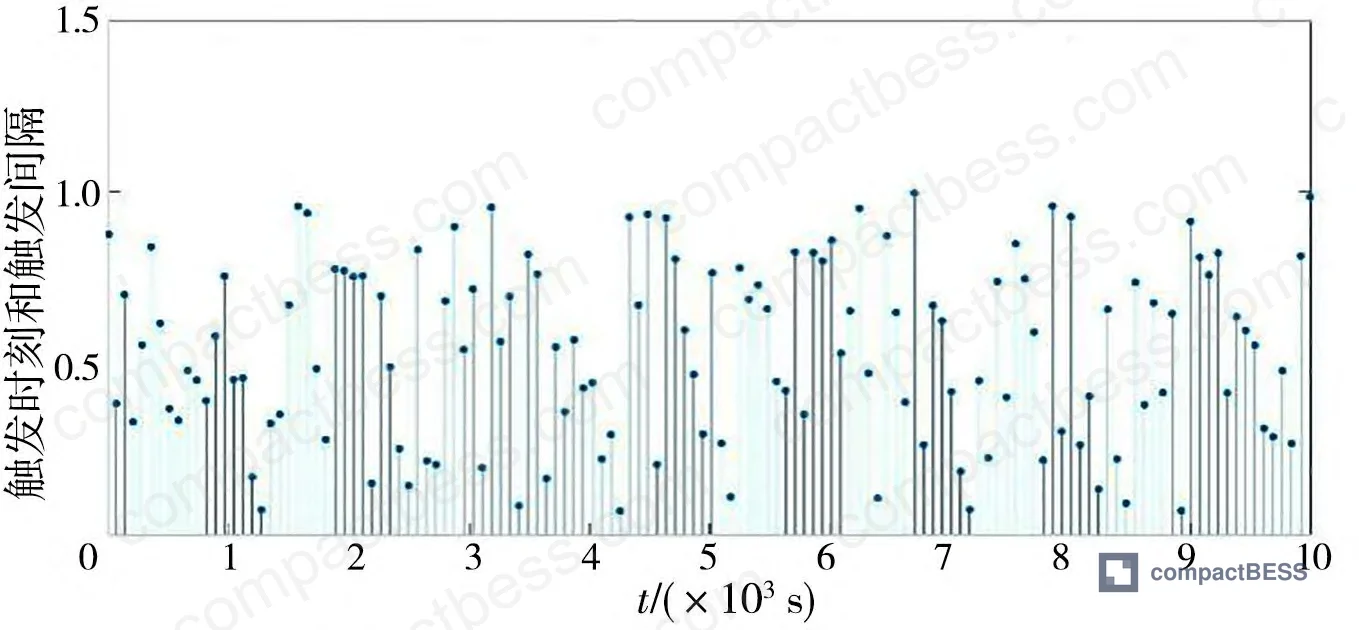

Figure 4: Event trigger timestamps and inter-event intervals in charging mode — σ = 0.8, confirming Zeno-free operation
Figure 4: Event trigger timestamps and inter-event intervals in charging mode — σ = 0.8, confirming Zeno-free operation

In supplier qualification, we saw meaningful variation in how vendors describe their balancing update rates. Several suppliers quoted “real-time” SoC balancing but provided hardware with I²C polling at 500 ms intervals — far from real-time and inconsistent with any consensus algorithm. When pressed for the actual trigger logic and inter-event interval specification, three of six suppliers evaluated could not provide a meaningful technical answer. That’s the gap between marketing language and engineering reality.


Threshold Enforcement and Over-Charge/Over-Discharge Protection #

The paper is explicit on threshold values: upper SoC limit set at 1.0 (100%) and lower SoC limit set at 0.2 (20%). These are enforced not as hardware cutoffs but as asymptotic convergence targets — the control protocol drives each unit toward the threshold, and power input/output approaches zero as the target is reached. This is a softer, more battery-friendly enforcement than hard relay cutoffs.

For IEC 62619 compliance (industrial battery safety), over-charge and over-discharge protection are mandatory requirements. The control architecture described here satisfies that requirement architecturally — the consensus protocol structurally prevents exceedance rather than relying on a downstream protection circuit to intervene after the fact.

For systems requiring UN 38.3 transport certification, the demonstrated absence of runaway charging events in a heterogeneous multi-cell pack is directly relevant to the abuse tolerance testing narrative. Pack integrators who can demonstrate software-enforced SoC ceilings have an easier path through T3 (vibration) and T5 (external short) tests when the cells enter testing at controlled SoC levels.

Figure 5: SoC convergence trajectories in discharge mode — all units converging asymptotically to 20% lower threshold
Figure 5: SoC convergence trajectories in discharge mode — all units converging asymptotically to 20% lower threshold

Honestly, the 20% lower discharge threshold is conservative by current field standards — many LFP deployments run to 10% or lower. The correct threshold for your application depends on cell chemistry, cycle life targets, and whether the pack operates in partial state-of-charge (PSoC) mode. The point is not the specific value; it’s that the threshold is a configurable system parameter that your BMS supplier should be able to justify and document.

See also: BMS Communication Protocols and SOC Estimation Methods for deeper coverage of how the communication layer and state estimation interact in practice.

Figure 6: Output power curves in discharge mode — power converging to zero as all units reach 20% SoC threshold, confirming over-discharge prevention
Figure 6: Output power curves in discharge mode — power converging to zero as all units reach 20% SoC threshold, confirming over-discharge prevention

Practical Guidance for Buyers #

When you’re sourcing BMS modules or complete BESS packs for multi-unit configurations, the SoC balancing architecture is not a secondary specification — it belongs in your technical requirements document alongside cell chemistry and thermal management.

The minimum you should verify: that the BMS implements SoC-based balancing (not voltage-only), that it enforces configurable upper and lower SoC thresholds, and that the balancing algorithm has been validated on heterogeneous cells — different capacities or initial SoC values — not just matched cells in a lab environment.

For systems going into CE/FCC/RoHS markets or subject to IEC 62619 industrial battery safety requirements, documented over-charge and over-discharge prevention — at the control algorithm level, not just hardware protection — is increasingly expected by certification bodies.

Capacity mismatch between parallel or series units is the norm in field-deployed systems, not the exception. Cells degrade at different rates, replacement packs rarely match the original SoC history, and temperature gradients within enclosures create persistent SoC divergence. A BMS that can only handle matched cells will degrade your system performance within the first 6–12 months of operation.

At compactbess.com, we work with verified Chinese manufacturers of BMS modules and integrated BESS packs across portable, industrial, and solar applications — helping overseas OEMs and energy storage integrators identify suppliers whose control architectures can actually support heterogeneous pack configurations. If you’re specifying a multi-pack system and need to confirm SoC balancing capability before committing to a supplier, reach out directly.

Need help identifying qualified suppliers for SoC-balancing BMS modules or multi-pack BESS configurations? Talk to our sourcing team →


Supplier Qualification Questions #

  1. What SoC upper and lower threshold values does your BMS enforce, and are these configurable parameters or fixed firmware values? Can you demonstrate enforcement on cells with ≥10% initial SoC spread between units?
  1. Does your balancing algorithm use SoC-based consensus control or voltage-based balancing — and can you provide simulation or test data showing convergence behavior on a heterogeneous pack (cells with capacities varying by at least 20 Ah, e.g., 70 Ah to 90 Ah)?
  1. What is the minimum inter-event communication interval your BMS controller operates at, and how does increasing feedback gain K affect convergence speed versus communication bus load? Provide the system parameter derivation if event-triggered architecture is used.
  1. Can you provide test results confirming zero over-charge and zero over-discharge events in a 4-unit or larger network where initial SoC values are mismatched — specifically with the lower threshold set at 20% and upper threshold at 100%?
  1. What communication topology does your multi-pack BMS support (centralized, distributed, or virtual-leader-follower), and what is the minimum eigenvalue λ_min(L+B) of your communication graph — or the equivalent stability margin — for the maximum supported pack count?

Sourcing Checklist #

  • [ ] BMS enforces configurable SoC upper threshold (default ≤ 100%) and lower threshold (default ≥ 20%), documented in product specification sheet
  • [ ] Balancing algorithm validated on heterogeneous cell packs with capacity variation of at least 20 Ah between units (e.g., 70 Ah to 90 Ah), with convergence data provided
  • [ ] Supplier can demonstrate SoC consensus convergence from a minimum initial SoC spread of ≥13 percentage points (e.g., 72% to 85%) across all connected units
  • [ ] BMS communication architecture confirmed as SoC-based (not voltage-only), with feedback gain K ≥ 1.0 documented or configurable
  • [ ] Over-charge and over-discharge event count confirmed as zero in validation test across at least 4 units under the specified threshold conditions
  • [ ] Product complies with IEC 62619 for industrial battery safety, covering over-charge and over-discharge protection requirements
  • [ ] Transport certification per UN 38.3 available, with cells entering abuse tests at controlled SoC levels consistent with software threshold enforcement
  • [ ] Supplier can confirm Zeno-free operation of event-triggered controller (no infinite trigger accumulation), with supporting test logs or simulation data using σ ∈ (0, 1)

Key Specifications Table #

Parameter Recommended Value Verification Method
SoC upper threshold (overcharge protection) ≤ 100% (configurable, default 1.0) Charge test with SoC monitoring; confirm power → 0 at threshold; verify per IEC 62619 §6.4
SoC lower threshold (over-discharge protection) ≥ 20% (configurable, default 0.2) Discharge test with heterogeneous pack; confirm all units converge to threshold without exceedance
Cell capacity range (heterogeneous support) 70–90 Ah (minimum ±20 Ah spread supported) Bench test with 4+ units at documented capacity mismatch; convergence to target SoC confirmed
Feedback gain K (balancing convergence) ≥ 1.4 (application-tuned) BMS parameter log; simulate with λ_min(L+B) = 0.382, ‖L+B‖ = 4.618 topology
Initial SoC spread (algorithm stress test) ≥ 13 percentage points across pack Pre-test SoC measurement; apply control protocol; log convergence time and final SoC uniformity
Event trigger parameter σ 0 < σ < 1 (tested at 0.8) Communication log showing inter-event intervals > ε; confirm no Zeno behavior in 30-min test run
Communication protocol bandwidth Sufficient for CAN 2.0B (1 Mbit/s) minimum Protocol analyzer capture showing event-triggered message cadence below bus saturation threshold

Can’t find a supplier meeting these specs? Submit your requirements and we’ll match you within 48 hours.


Frequently Asked Questions #

What is the difference between SoC consensus balancing and standard cell balancing?

Standard passive or active cell balancing equalizes cell voltages by dissipating or redistributing charge. SoC consensus control is fundamentally different — it treats each battery unit as an agent in a networked system, coordinating charge and discharge power across all units simultaneously so that their state of charge converges to a shared target. This approach handles capacity mismatch between units directly and prevents over-charge/over-discharge through the control law itself, not a downstream protection circuit.

Why does the 20% lower discharge threshold matter for cycle life?

Repeatedly discharging lithium cells below 20% SoC accelerates cathode degradation and increases internal resistance over time, particularly in NMC chemistry. The threshold is not arbitrary — it represents the point at which marginal capacity gain from deeper discharge is outweighed by accelerated cycle degradation. The event-triggered protocol ensures all units in a heterogeneous pack respect this limit, not just the strongest cell.

Can this type of BMS control architecture support packs with different cell chemistries?

The mathematical framework is chemistry-agnostic — it operates on SoC values derived from coulomb counting, independent of whether the underlying cells are LFP, NMC, or LTO. However, the SoC thresholds and acceptable DoD windows differ by chemistry, so the configurable threshold parameters need to be set appropriately. Confirm with your supplier that threshold values are independently configurable per pack, not globally fixed.

What communication protocol is required to implement event-triggered SoC consensus?

The algorithm requires peer-to-peer state sharing between battery units — the communication topology must form a directed connected graph with at least some units having access to the reference signal (virtual leader). CAN bus, RS-485, or proprietary battery communication links can all support this, provided the protocol supports aperiodic, event-driven message transmission. Polling-only protocols that enforce fixed update intervals are not ideal architectures for true event-triggered control.

Does this control method require knowing the average SoC of the entire pack?

No — and that’s one of its practical advantages. Earlier distributed control approaches required estimating the mean SoC across all units, which introduces estimation lag and stability risk. The virtual-leader consensus approach used here only requires each unit to track the reference signal from the virtual leader and exchange state information with its immediate network neighbors. No global average estimation is needed, which makes the algorithm more robust to communication dropouts and easier to implement on real BMS hardware.


Published by compactbess.com Technical Team | Request a sourcing quote


Data source: Event-Triggered Consensus Control for State-of-Charge Balancing in Networked Battery Energy Storage Systems, H. Zhang et al., Journal of the Electrochemical Society, 2024
